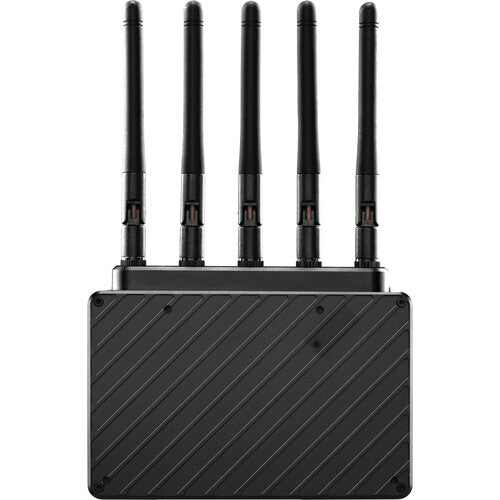

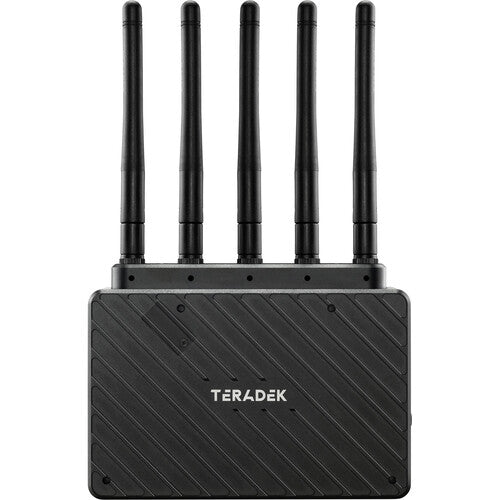

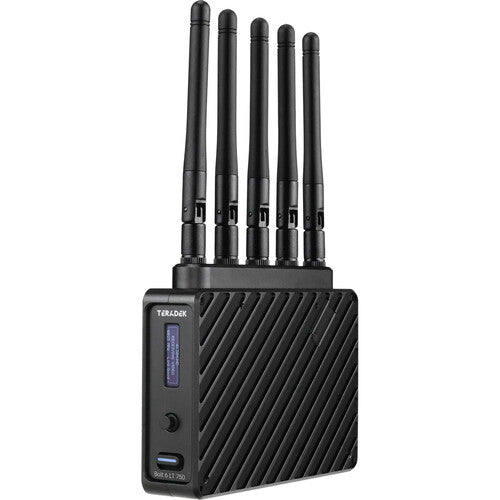

Receive lossless HD video from up to 750' away along line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to 4K30 video with 10-bit HDR support, features a bright OLED display, and features HDMI and 3G-SDI outputs. With the same form factor as the Bolt 4K LT 750, this new line supports the 6 GHz wireless band, which is now freely available.The receiver supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of time code and start/stop triggers.Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.
Technical Specifications:
Antenna I/O

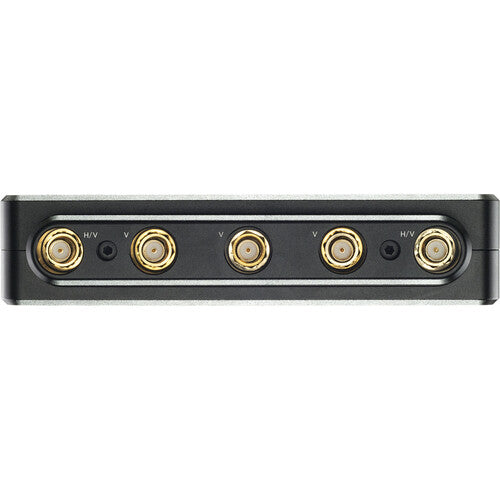

5 x RP-SMA Female
Video I/O

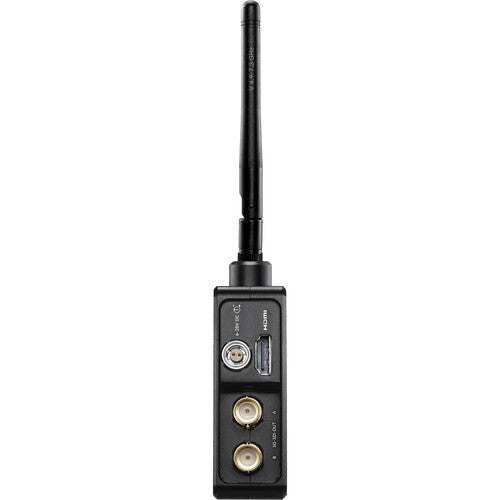

1 x HDMI 1.4b Output
1 x BNC (3G-SDI) Output
Embedded Audio
HDMI: 2-Channel
SDI: 2-Channel
Audio I/O
No
Power I/O
1 x LEMO 2-Pin (28 VDC) Input
Other I/O
1 x Micro-USB Input
Encryption
256-Bit AES
Wireless Range
750' / 228.6 m (Line-of-Sight)
Channel Bandwidth
40 MHz, 20 MHz
Frequency Range
Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency
< 0.01 ms
RF Power
21 dBm
Wi-Fi
Bluetooth
Yes
Video Format
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
576i: 50
Audio Format
2-Channel 24-Bit 48 kHz
Timecode Support
DC Input Power
6 to 28 VDC
Power Consumption
11 W
Mounting
1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental Protection
Operating Temperature
32 to 72°F / 0 to 40°C
Material of Construction
Aluminum, Polycarbonate
Dimensions
4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight
10.3 oz / 292 g
