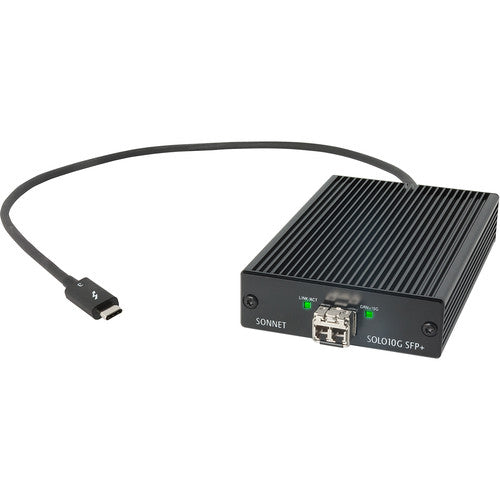

Sonnet Solo10G SFP+ Thunderbolt 3 to 10 Gigabit Ethernet Fanless Adapter with Short-Range SFP+ Transceiver

Sonnet Solo10G SFP+ Thunderbolt 3 to 10 Gigabit Ethernet Fanless Adapter with Short-Range SFP+ Transceiver

Name: Sonnet Solo10G SFP+ Thunderbolt 3 to 10 Gigabit Ethernet Fanless Adapter with Short-Range SFP+ Transceiver
Brand: sonnet
SKU: SOLO10G-SFP-T3
Price: 47075 INR
Availability: InStock

Rs. 47,075.00

- +

sonnet ⁄ Sonnet Solo10G SFP+ Thunderbolt 3 to 10 Gigabit Ethernet Fanless Adapter with Short-Range SFP+ Transceiver

Key Features:

1 x 10 Gb/s SFP+ Port
Attached Thunderbolt 3 Cable
Portable & Rugged Aluminum Design
Bus-Powered
Energy-Efficient Ethernet Support
Hardware Encryption
macOS and Windows Compatible
Includes Short-Range SFP+ Transceiver

Connect your Thunderbolt 3-equipped Mac or Windows PC to 10 Gb/s Ethernet with the Solo10G SFP+ Thunderbolt 3 to 10 Gigabit Ethernet Fanless Adapter with Short-Range SFP+ Transceiver from Sonnet. This compact adapter comes equipped with an SFP+ port capable of speeds up to 10 Gb/s, and it connects to your macOS or Windows system via an attached Thunderbolt 3 cable. The bus-powered adapter has a rugged aluminum shell designed for portability, while its Energy-Efficient Ethernet support helps to conserve power. Hardware encryption is designed to prevent hackers from tampering with the adapter's firmware. A short-range SFP+ transceiver is included.

Safe and Secure Design:

Incorporating encryption in hardware, the adapter is designed to protect against malicious modification of its firmware. Unauthorized attempts at firmware modification to facilitate surreptitious computer access render the adapter inoperable. This secure design helps to prevent the Solo10G adapter's firmware from being reprogrammed except by a manufacturer's update using a secure encryption key.

40 Gb/s Thunderbolt 3 Interface

Connects to a Thunderbolt 3 computer port, or at the end of a Thunderbolt 3 device daisy chain.

Replaceable Captive Cable:

Through the use of a captive cable, the Solo10G SFP+ adapter's Thunderbolt connector is designed to remain firmly connected. Should the cable ever break, it can be replaced with an approved replacement cable available from Sonnet or a Sonnet-authorized reseller.

Intelligent Operation:

The Solo10G SFP+ adapter includes functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory, and stateless offloads such as TCP, UDP, and IPv4 checksum offloading. These processes help your computer to perform better while large file transfers or high I/O operations take place. This Sonnet adapter also supports the Energy-Efficient Ethernet standard (IEEE 802.3az), which reduces the adapter's power demands on your computer.

Additional SFP+ Transceiver Choices:

Sonnet includes a short-range multi-mode fiber SFP+ module (up to 984'), part number G10E-SFP-SR, with the Solo10G adapter. Sonnet also offers a long-range single-mode fiber module (up to 6.2 miles), part number G10E-SFP-LR (sold separately), and a 10GBASE-T copper module (up to 98' using Cat 6A cables), part number G10E-SFP-T (sold separately). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 32.8' long.

Pocketable, Bus-Powered, and Quiet:

The Solo10G SFP+ is pocketable, measuring only 3.1" wide by 4.9" deep by 1.1" tall. It's also bus-powered, meaning it can be used without a power adapter. Wrapped in a rugged aluminum case, the Sonnet adapter is designed to run cool without a fan, allowing for quiet and energy-efficient operation.

Simple Setup:

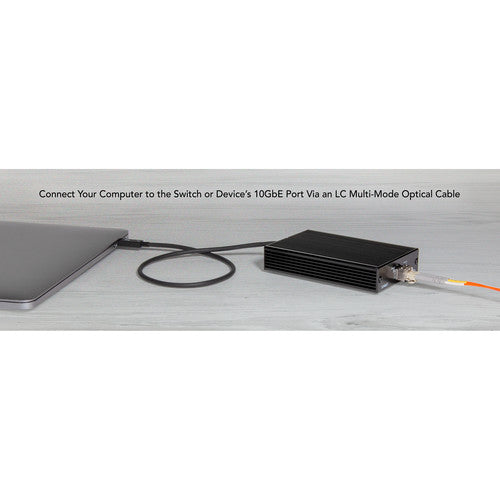

Connect the Solo10G SFP+ adapter to your computer and to the network switch (or directly to 10 Gb/s-enabled storage), and then configure the adapter's settings through the macOS Network control panel or Windows Device Manager.

Advanced Features:

Flow control support
MSI (Message Signaled Interrupts)
RSS (Receive-Side Scaling)
Interrupt coalescing
Multicast filtering:
Energy-Efficient Ethernet (IEEE 802.3az)
64-bit address support for systems using more than 4GB of physical memory

Stateless Offloads:

TCP, UDP, and IPv4 checksum offloading
TSO (TCP Segmentation Offload)
LRO (Large Receive Offload)
RSS (Receiver Side Scaling)

Hardware Requirements:

Mac or Windows PC with Thunderbolt 3 ports

OS Compatibility:

macOS 10.13.6 and later
Windows 10 (64-bit) version 1709 or later

Technical Specifications:

Networking I/O: No
Transceiver Slots: 1x Enhanced Small Form-factor Pluggable (SFP+)
System Connection: USB-C (Thunderbolt 3)
Supported IEEE Standards: 802.3az
OS Compatibility: Windows, macOS
Jumbo Frames Support: 16,352 Bytes
Transfer Rates: Thunderbolt 3: 40 Gb/s
Power Source: Bus Powered
Operating Temperature: 32 to 95°F / 0 to 35°C
Material of Construction: Aluminum
Certifications: RoHS
LED Indicators: Yes
Dimensions: 3.1 x 4.9 x 1.1" / 78.74 x 124.46 x 27.94 mm
Weight: 0.6 lb / 0.27 kg

In the Box:

Solo10G SFP+ Thunderbolt 3 to 10 Gigabit Ethernet Fanless Adapter with Short-Range SFP+ Transceiver
Sonnet Short-Range SFP+ Transceiver
Limited 2-Year Manufacturer Warranty
