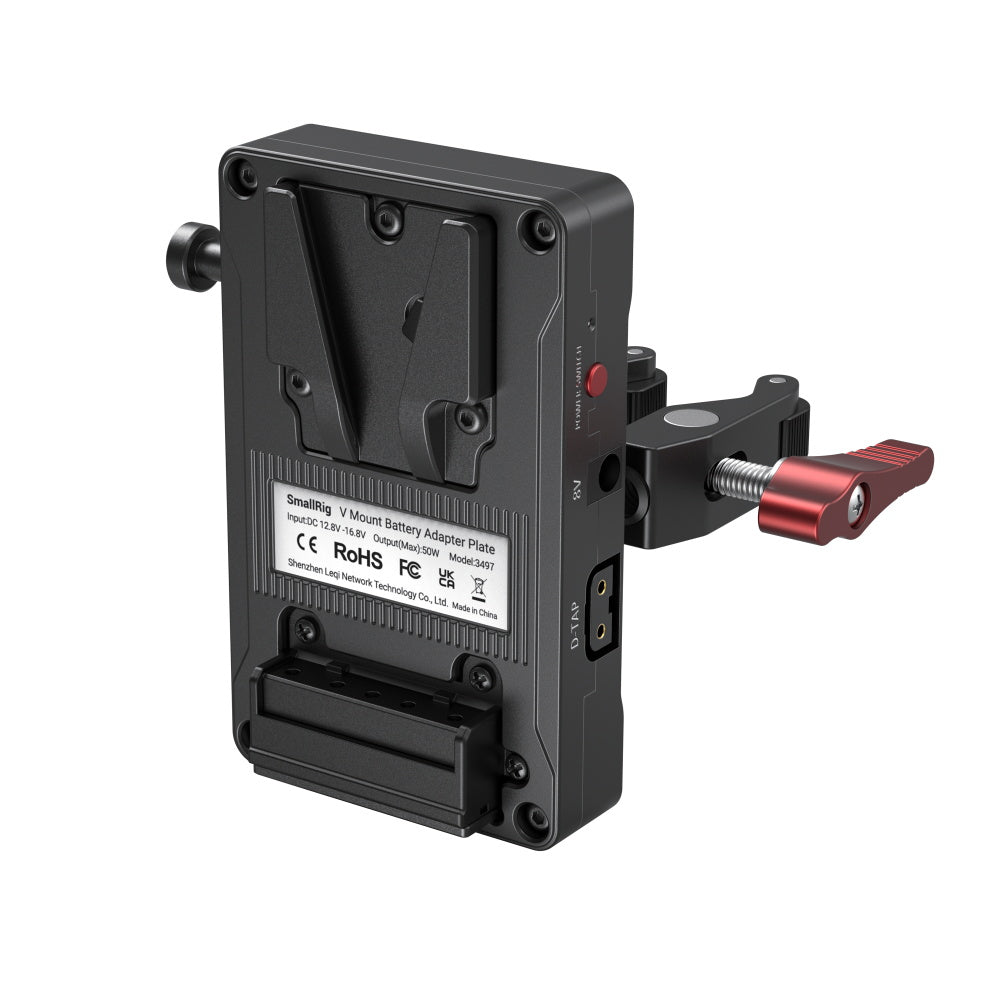

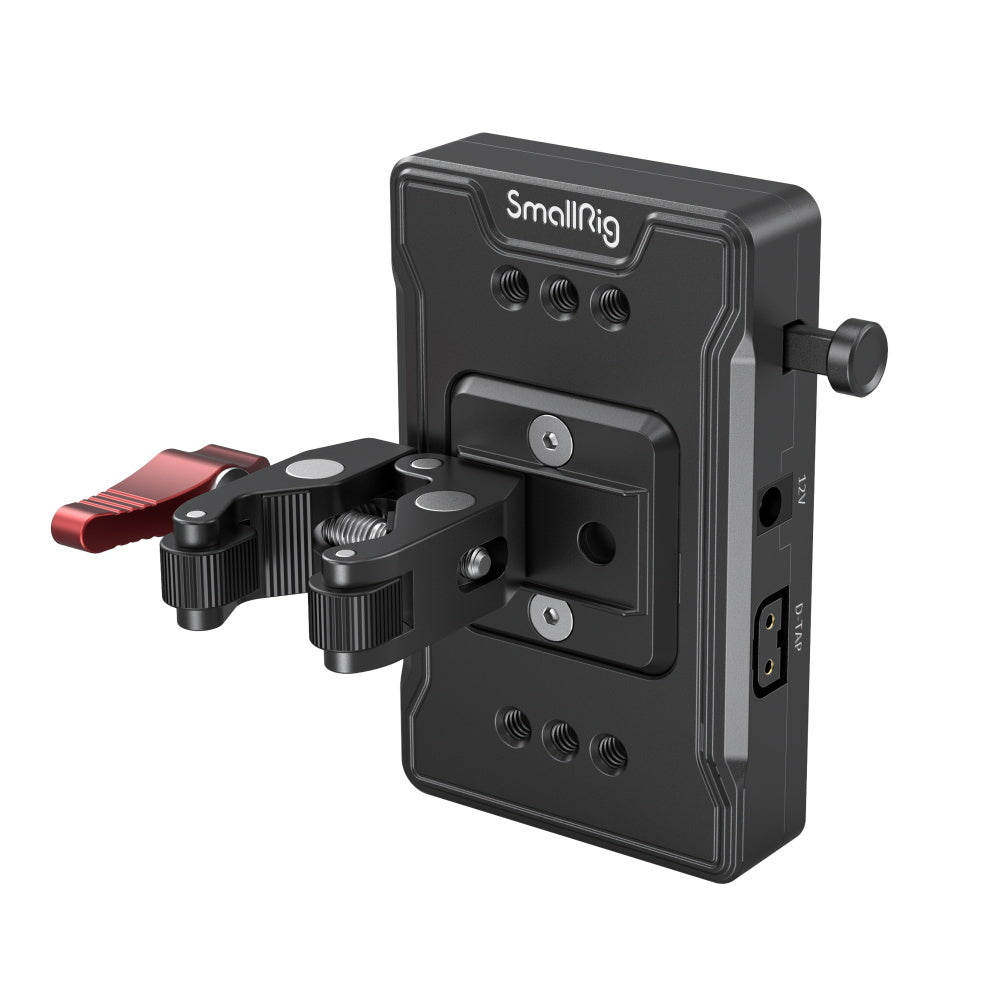

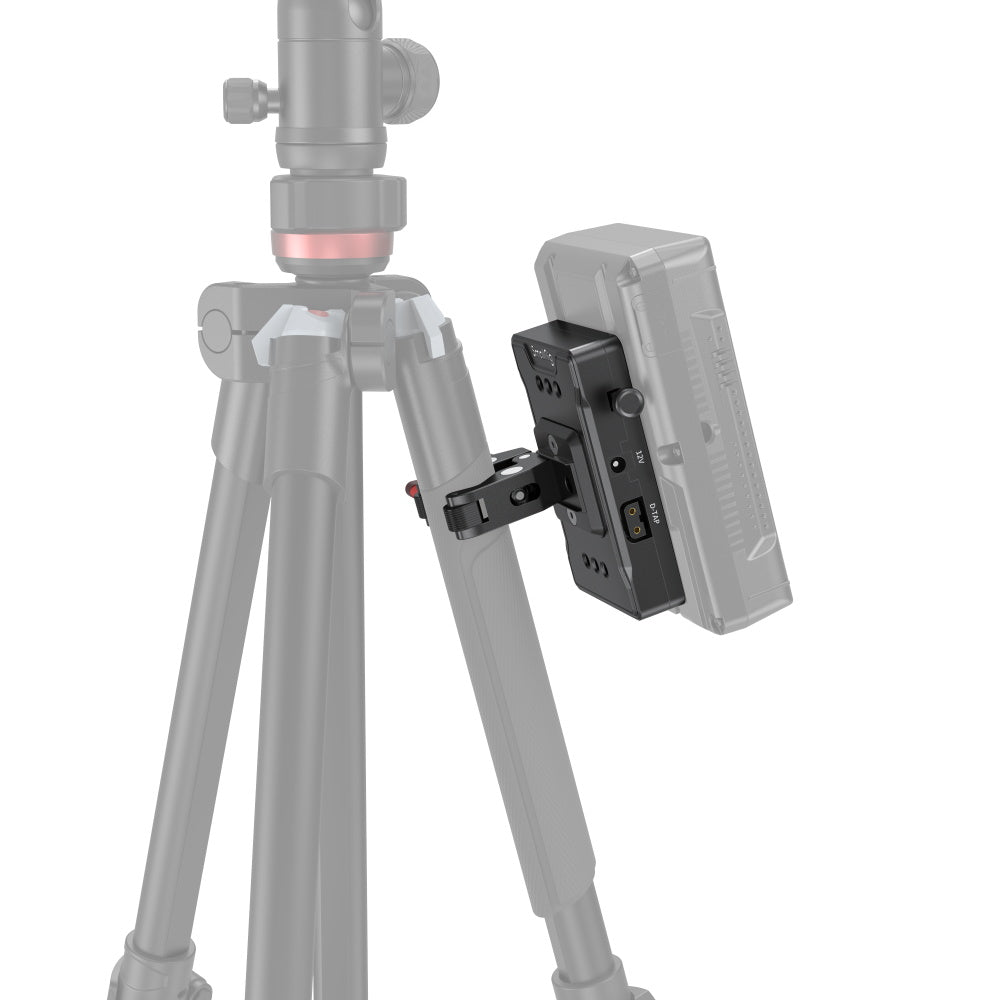

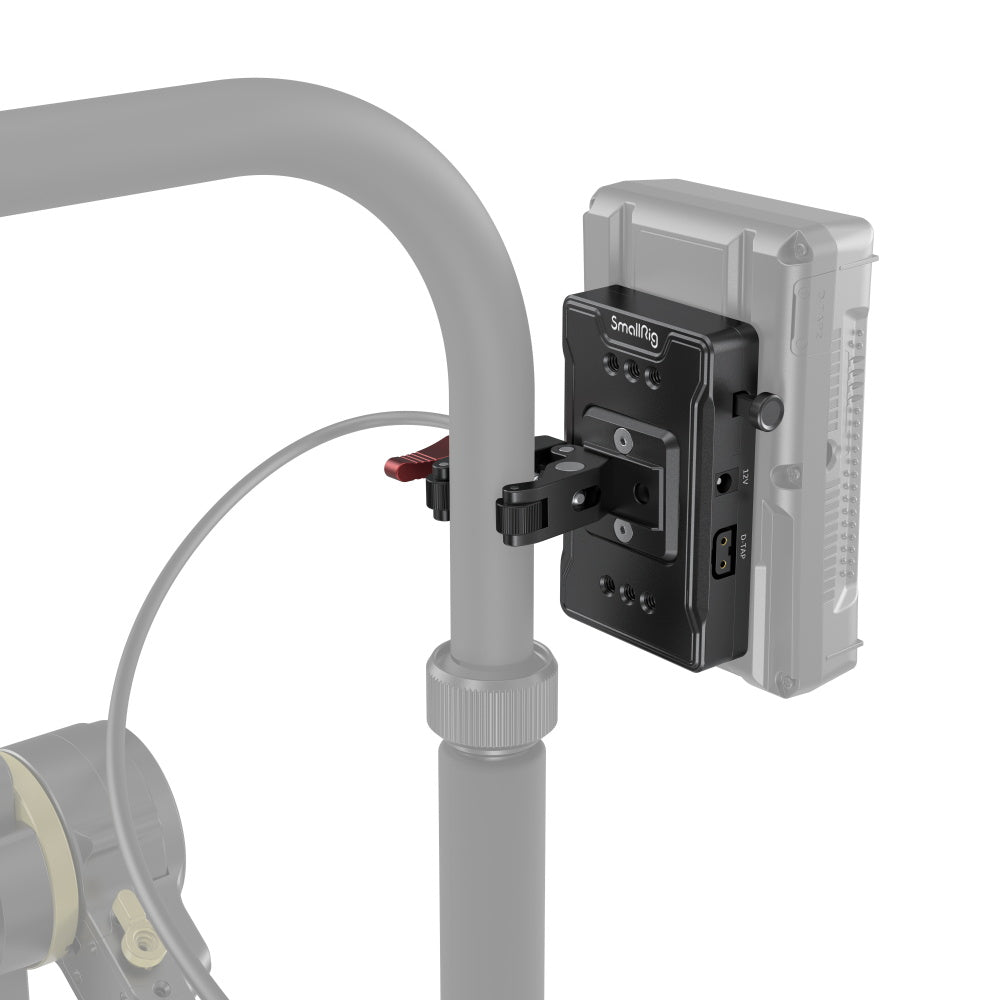

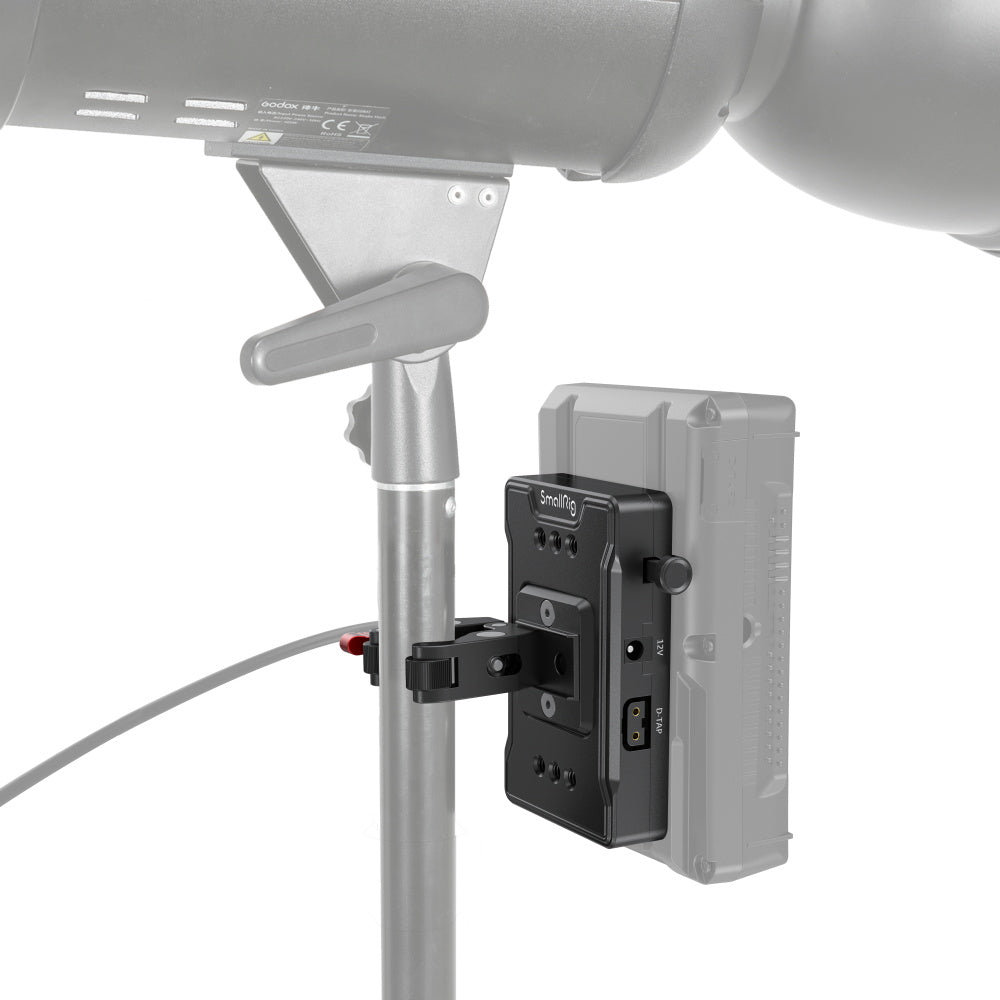

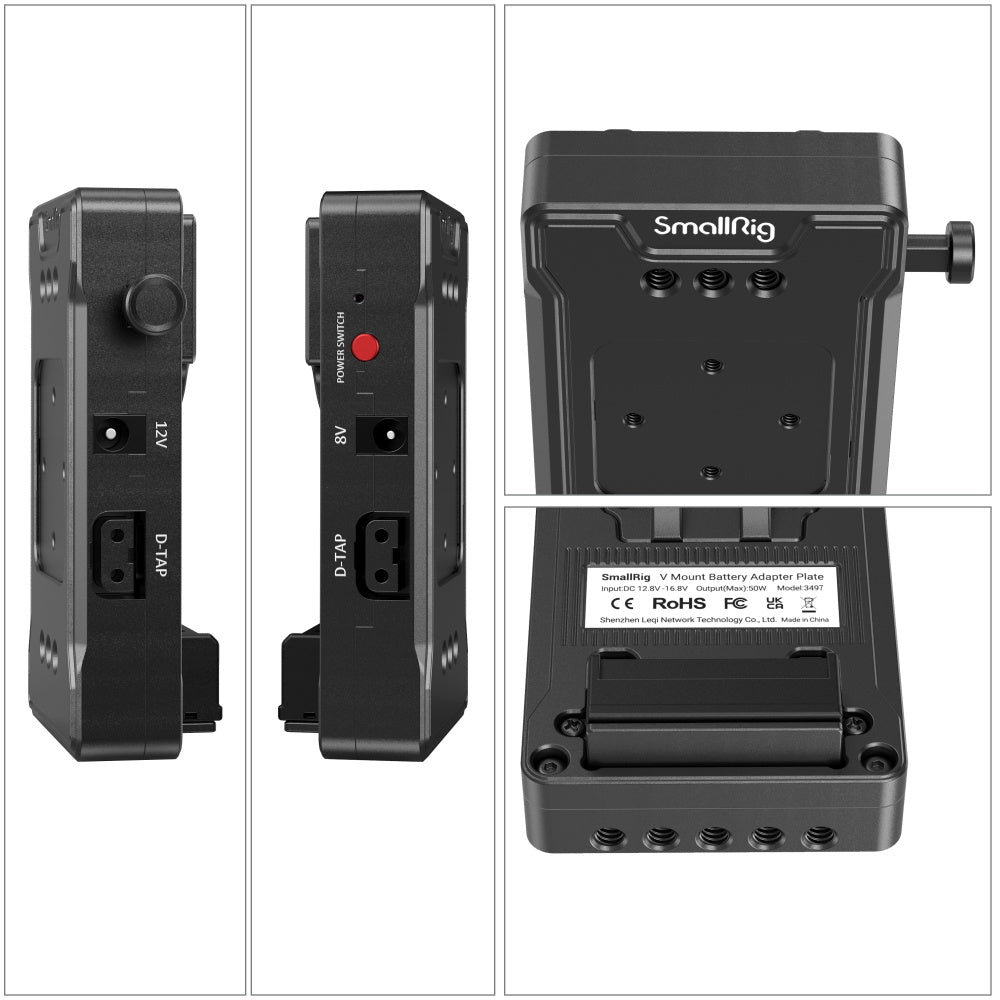

SmallRig V Mount Battery Adapter Plate (Basic Version) with Crab-Shaped Clamp 3497 is designed to provide greater battery life to your camera rig via a V mount battery. Its standard quick-lock V mount supports most V mount batteries. Output ports, including an 8V DC port, a 12V DC port, and two 14.8V D-Tap ports, work with a V mount battery to power your camera and other equipment (e.g. monitor, transmitter, follow focus, mobile phone, etc.). It features a power switch that controls all of the output ports more quickly and conveniently and comes with a super clamp mount that fits rod diameter from 15mm to 30mm to help mount a V mount battery to a tripod, a light stand, or a handheld ring for gimbals. In addition, multiple 1/4”-20 thread holes allow attaching other accessories such as dual rod clamp and magic arm.

Designer: Clara Oswald

Note:
1. Do not use in damp environment to avoid short circuits;
2. In order to achieve the maximum compatibility of the super clamp mount, avoid installing the super clamp mount in the center of the plate (refer to the picture for installation).

Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

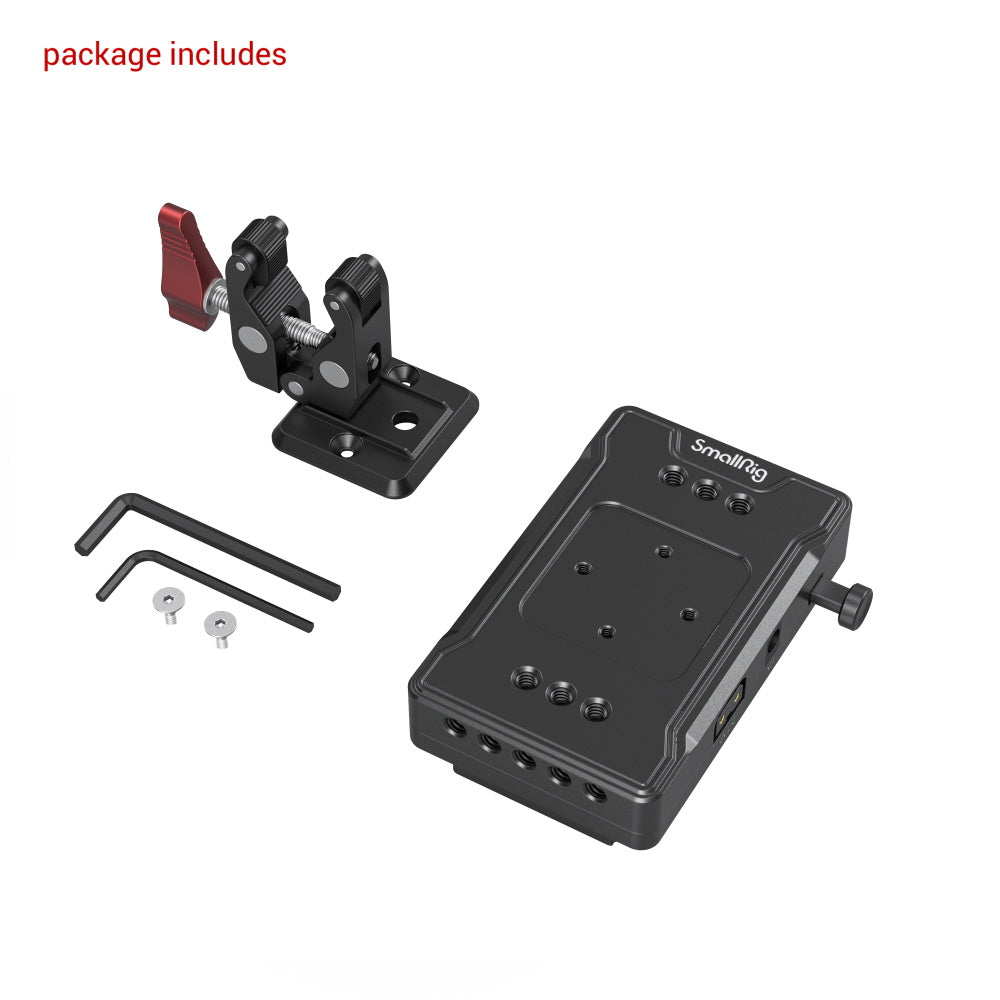

Package Includes:
1 x V Mount Battery Adapter Plate
1 x Crab-shaped Clamp
2 x Allen Wrench

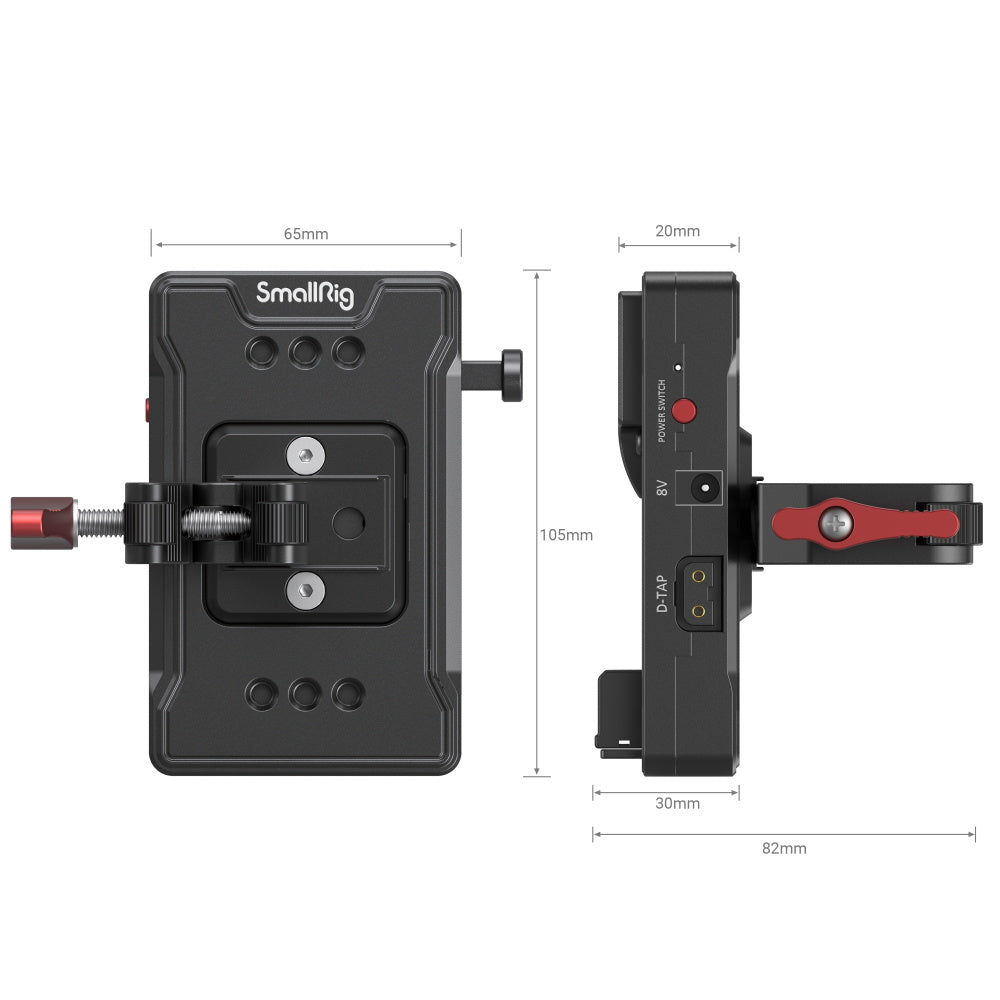

Product Dimensions: 105 x 78.5 x 82.2mm
Package Dimensions: 132 x 190 x 55mm
Net Weight: 298 ± 5g
Package Weight: 403 ± 5g
Material: Aluminum Alloy
