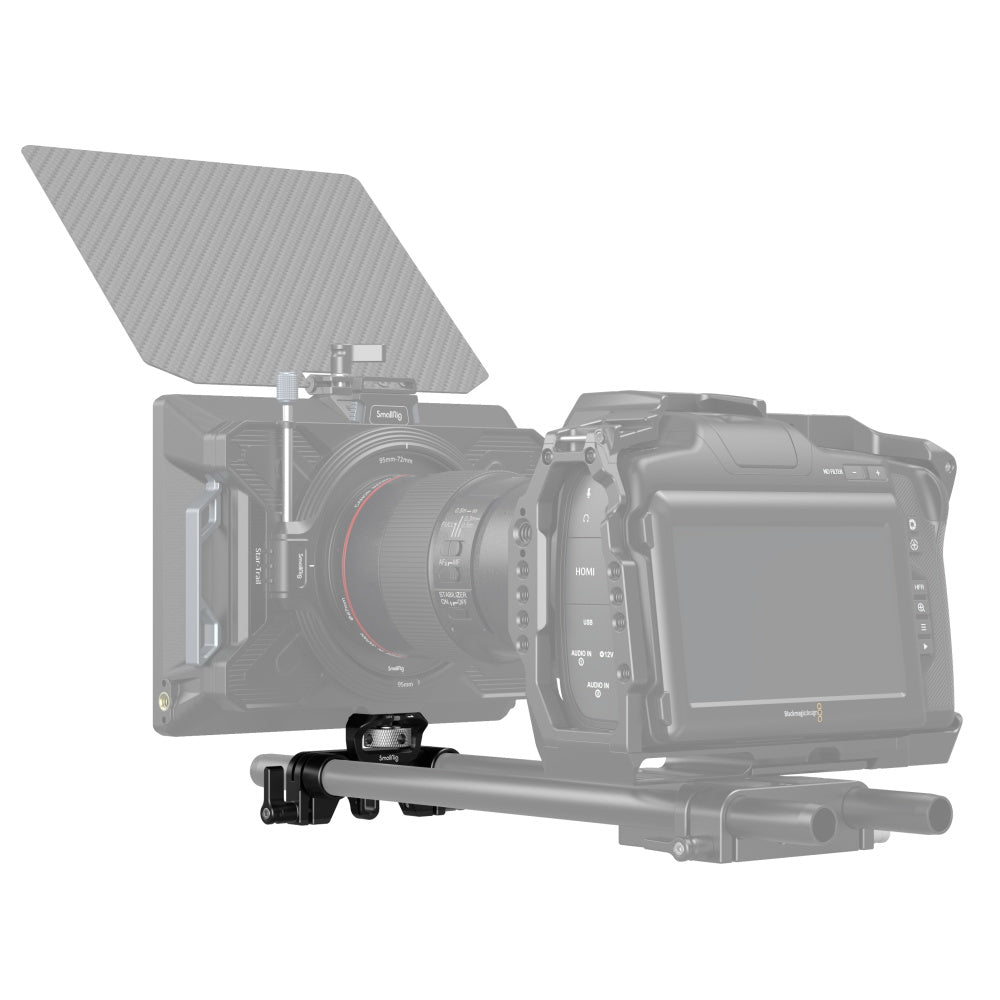

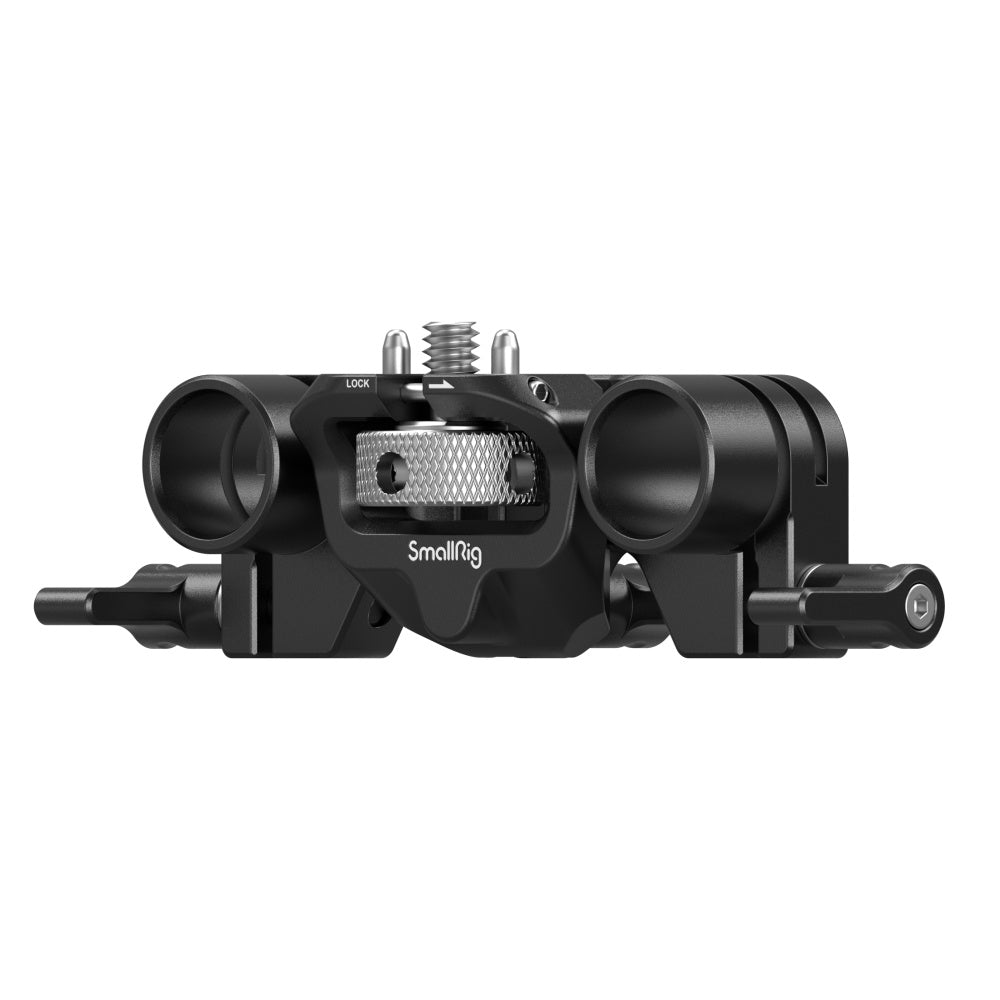

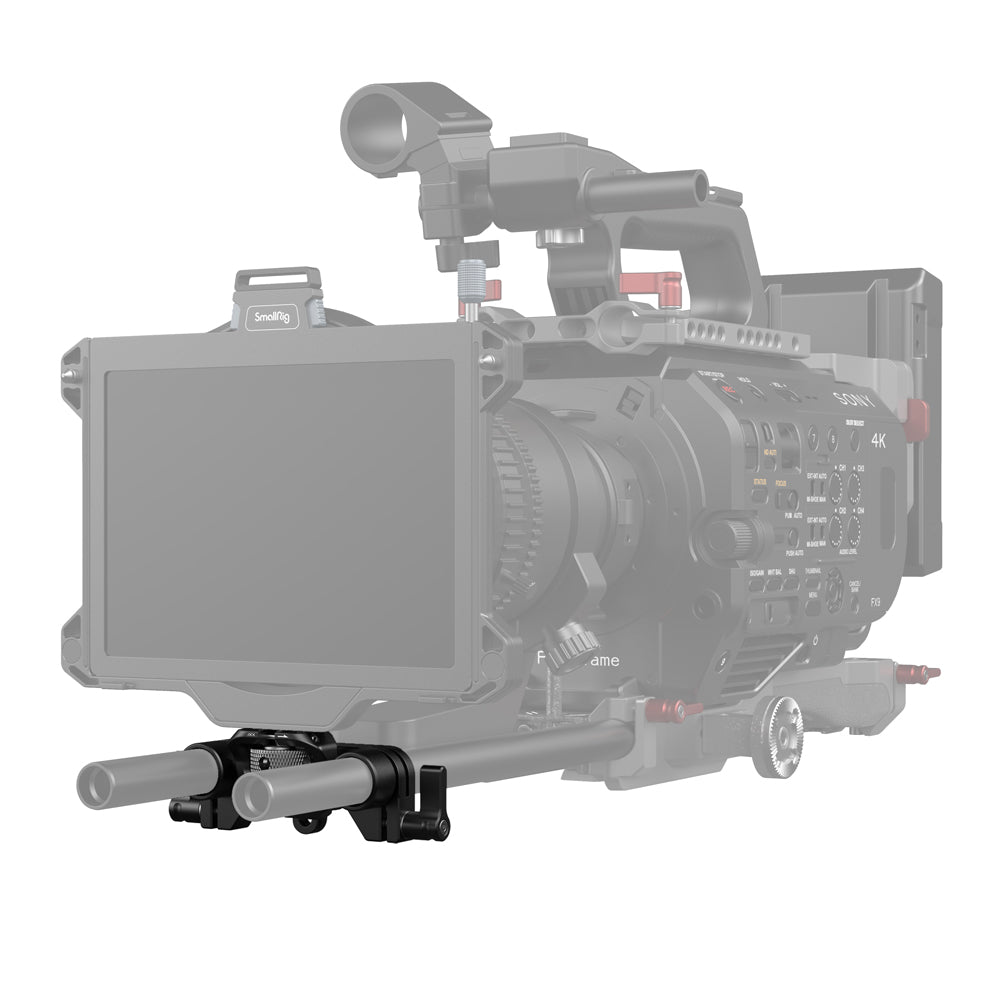

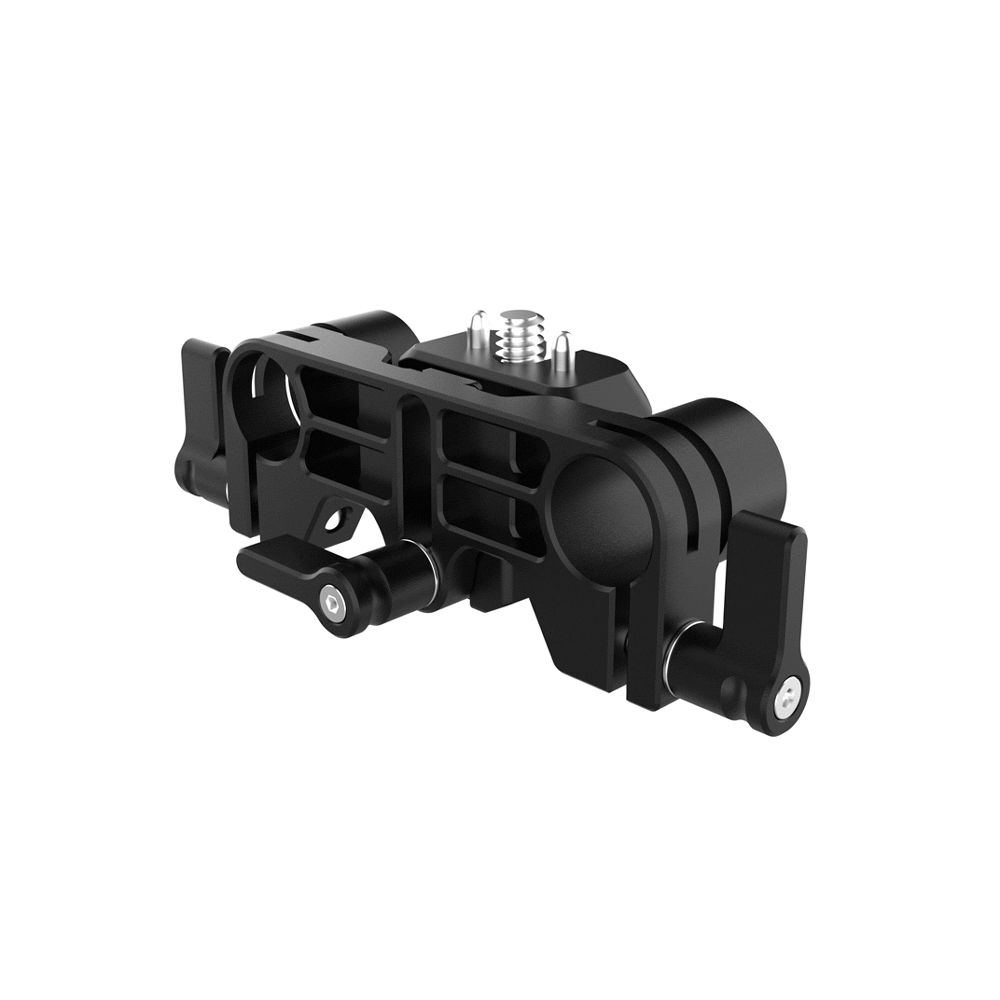

SmallRig 15mm LWS Support 3652, an universal accessory for Star-Trail, Revo-Arcane, and series of mini matte boxes（3196,3680）, is designed to fix matte box and protect lens mount. It comes with an anti-twist design and one 1/4 "-20 screw to fix matte box to a rail support system.

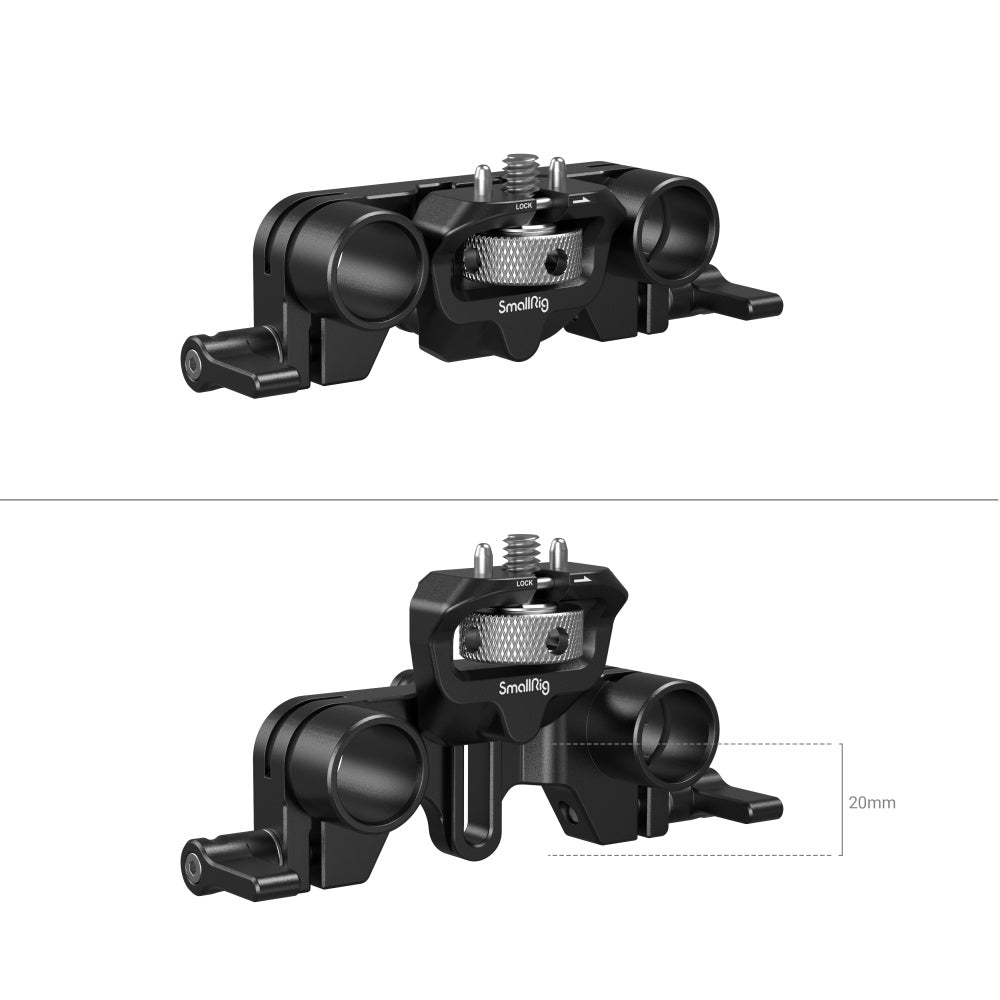

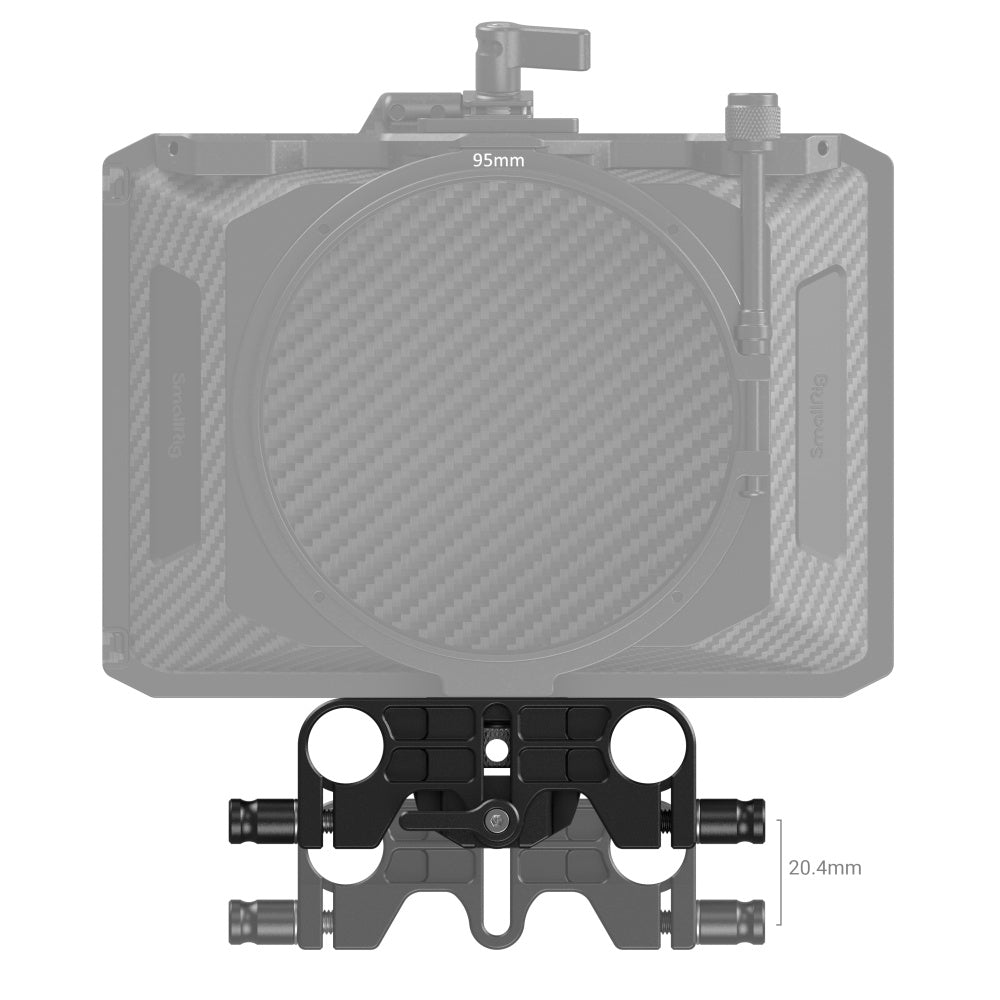

It is 20.4mm vertically adjustable, compatible with Φ52/Φ55/Φ58/Φ62/Φ67/Φ72/Φ77/Φ80/Φ82/Φ85/Φ86/Φ95mm DSLR or cine lens. Its bottom features a horizontal support that prevents tilts.

Designers: Victor Tang, Gale

Note:

1: Incompatible with Matte Box 2660

2: Installed in any direction

3: Compatible with Φ15mm rail support system

Compatibility:

1: Dual Φ15mm rod;

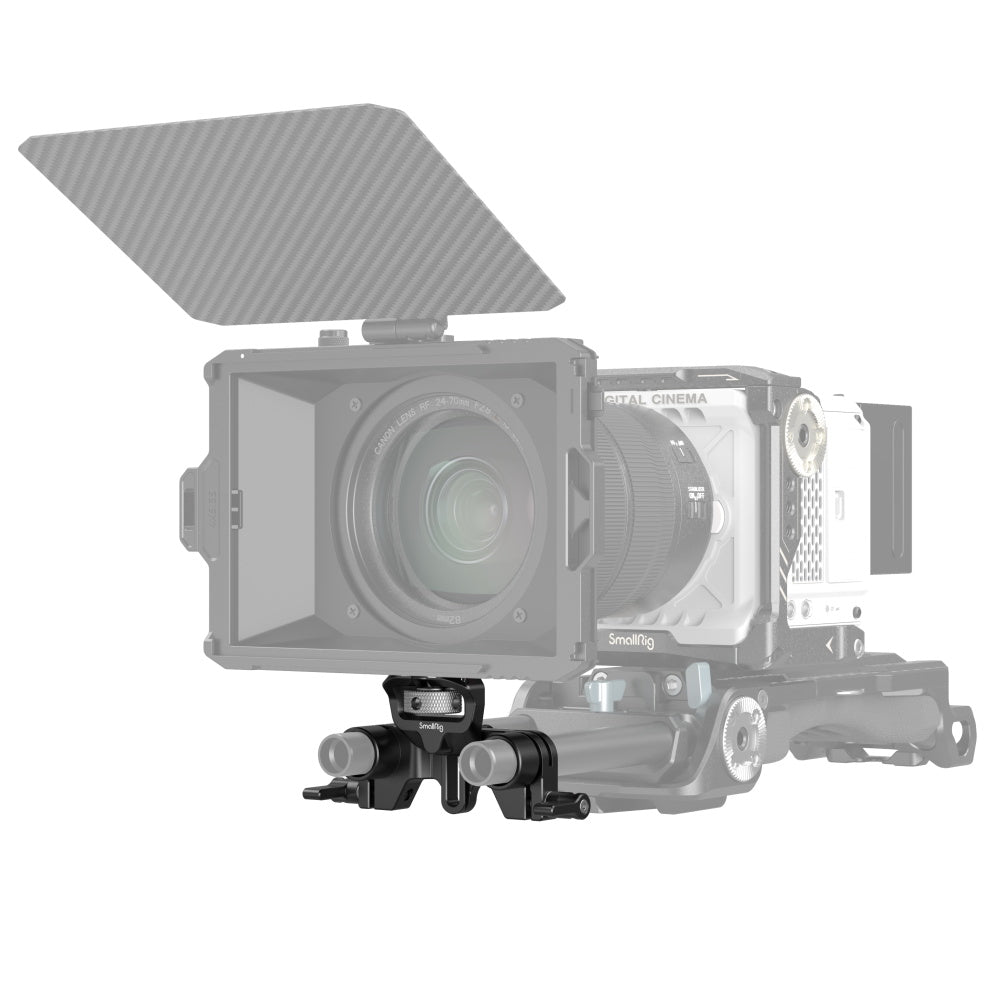

2: Compatible with Star-Trail (95mm) and Revo-Arcane (114mm) series matte box;

3: Compatible with mini matte box (ID: 3196, 3680);

In the Box:

1 x 15mm LWS Support

1 x Allen Wrench

Product Dimensions: 79 x 35.5 x 29.4 mm

Package Dimensions: 121×104×44 mm

Product Weight: 85g±5g

Package Weight: 130g±5g

Material(s): Aluminum Alloy
