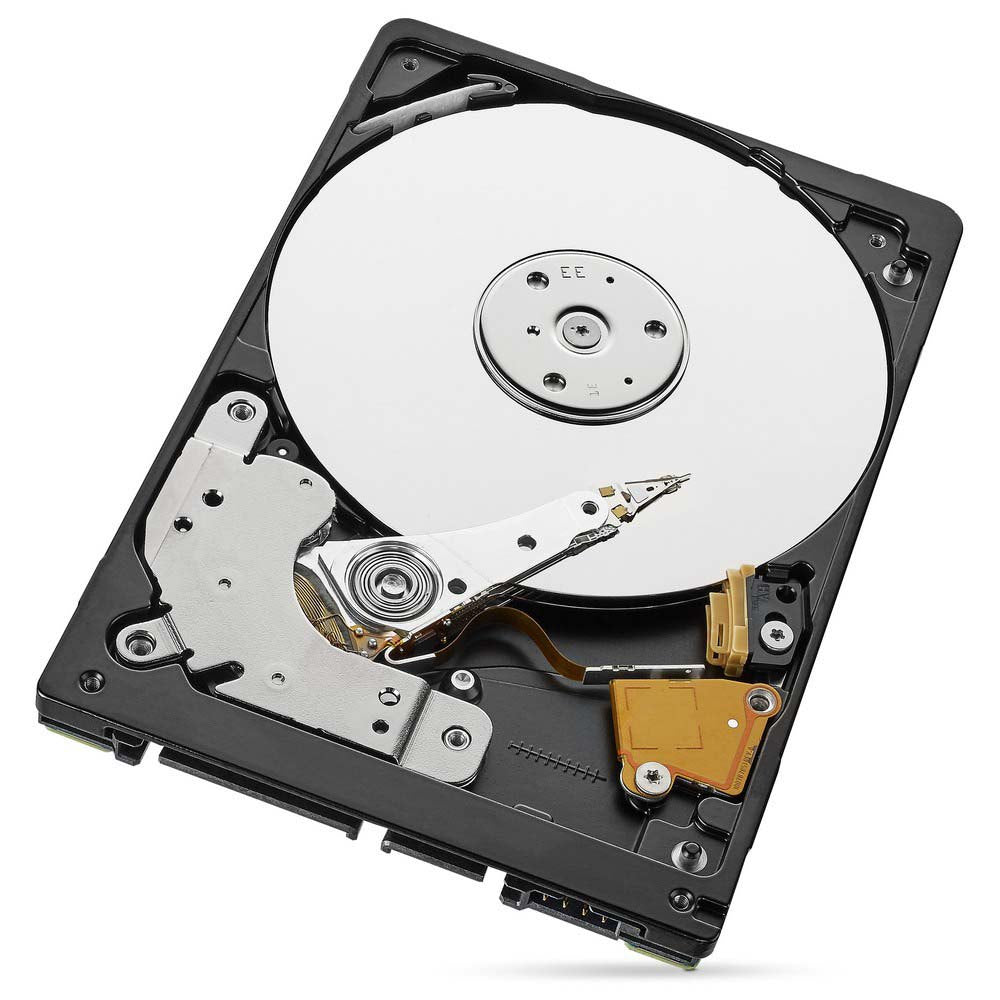

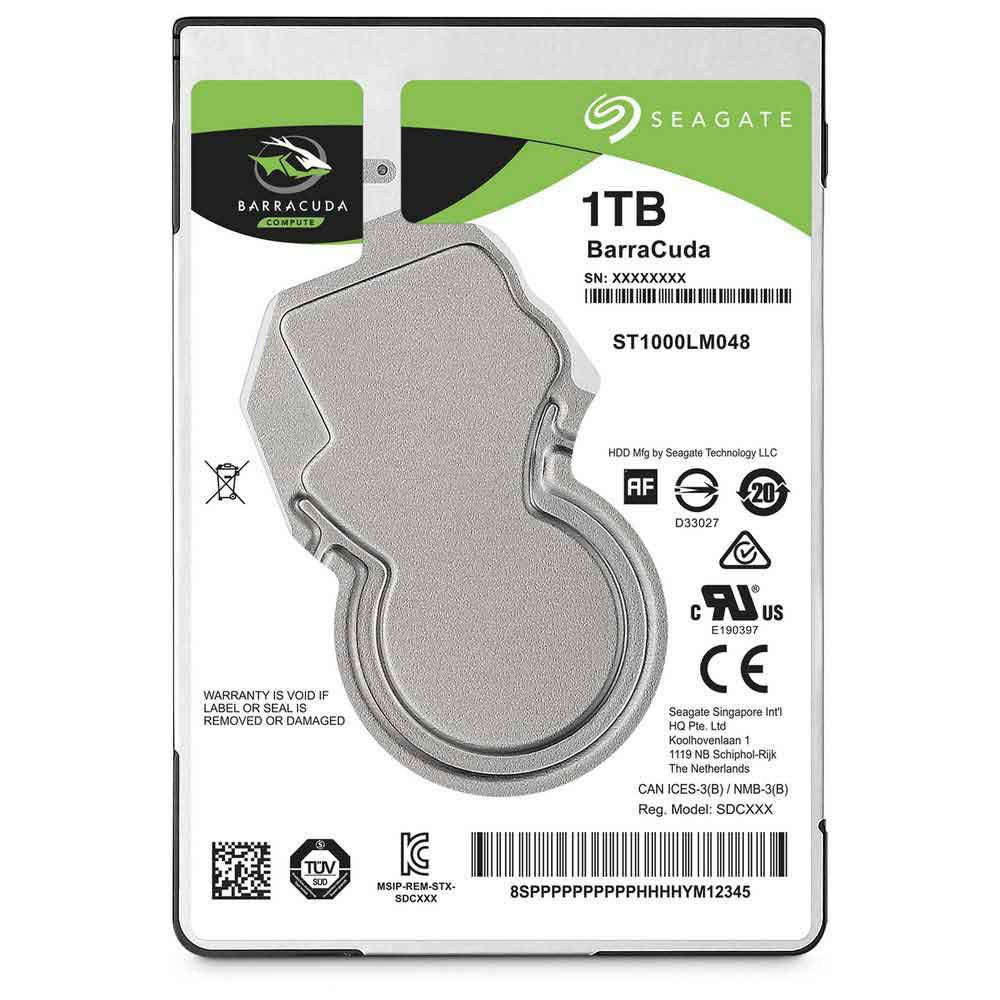

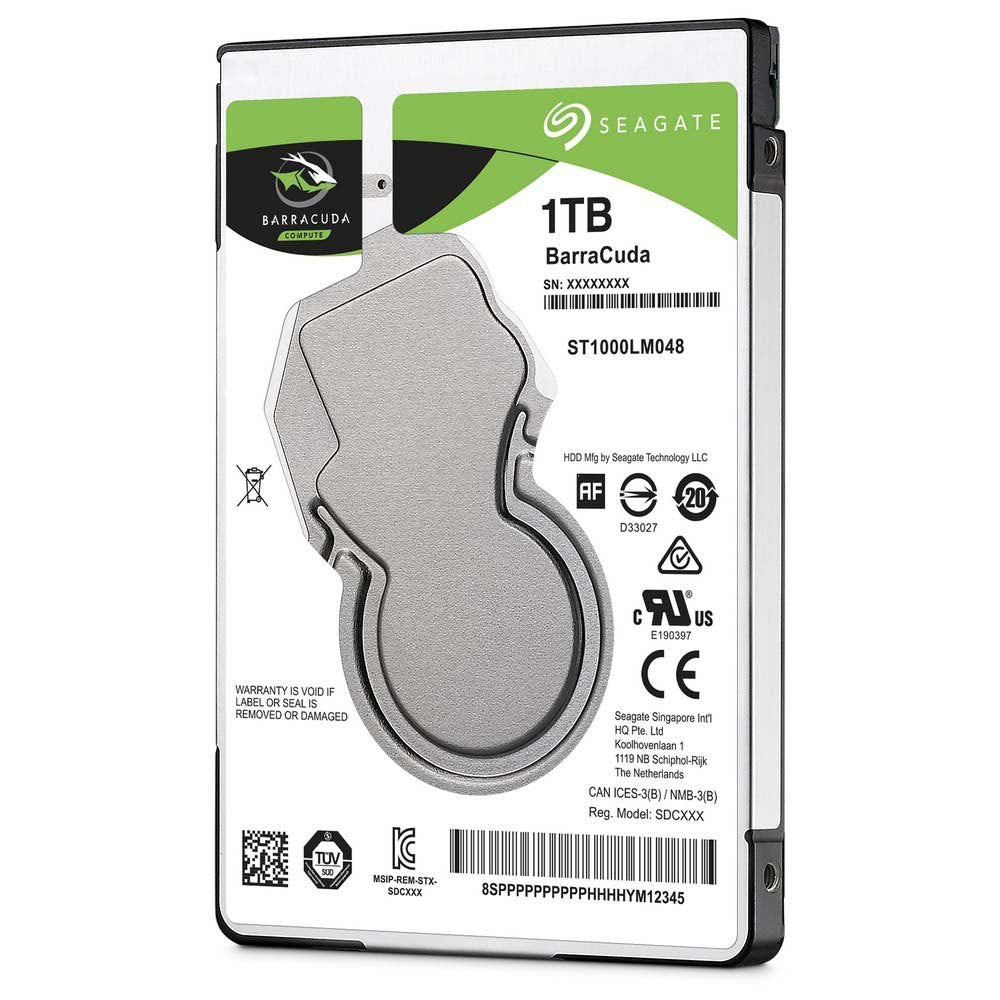

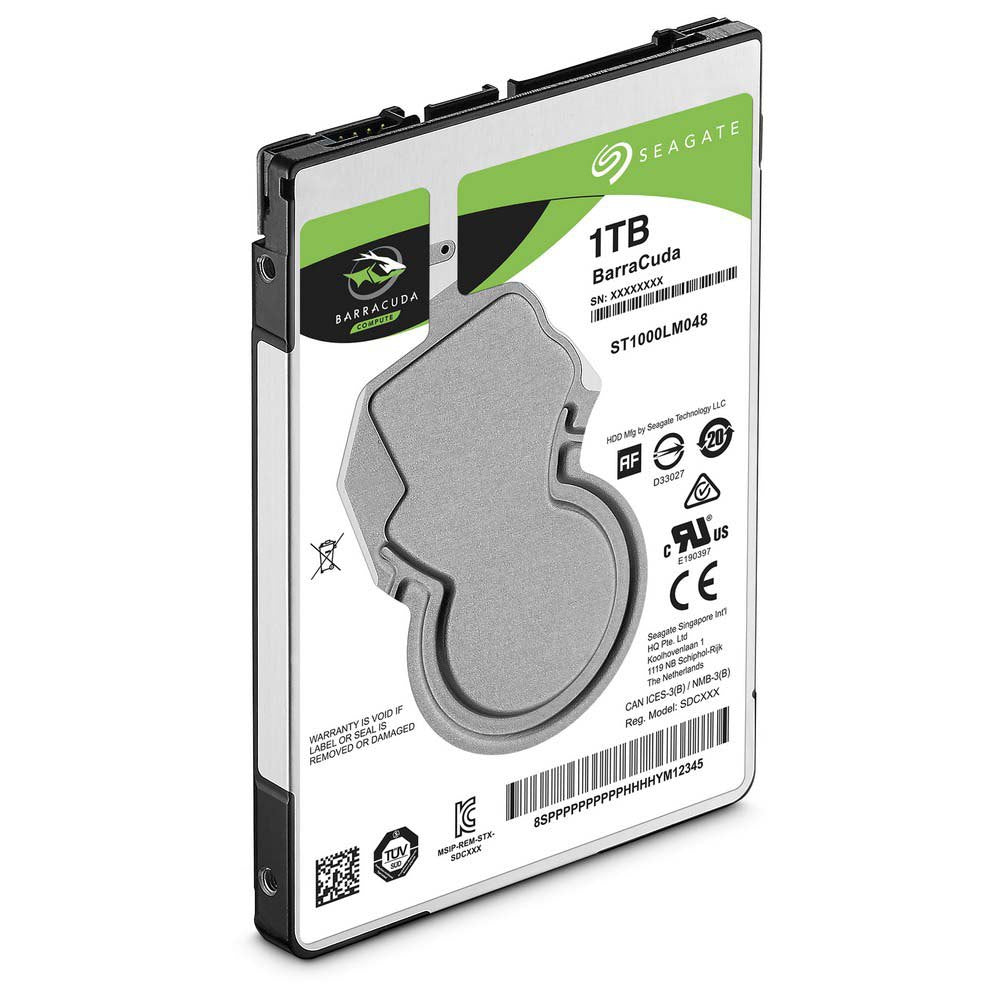

Seagate 1TB BarraCuda Compute 5400 rpm SATA 2.5" Internal HDD
Key Features:
- 1TB Storage Capacity
- 7mm Form Factor
- 128MB Cache
- 5400 rpm
- Up to 140 MB/s Data Transfer Rate
- QuietStep Ramp Load Head-Rest Method
- Multi-Tier Caching Technology
- Halogen Free
The reduced size form factor of the 1TB BarraCuda Compute 5400 rpm SATA 2.5" Internal HDD from Seagate makes it easy to integrate this drive into smaller systems such as laptops and other small form factor computers. Once installed this drive offers enhanced performance to suit the needs of the most demanding applications. With data transfer rates of up to 140 MB/s users benefit from faster load times, the ability to quickly save large files, and more.
- With a broad 2.5-inch hard drive portfolio and a 1TB capacity in a reduced size form factor this drive is suitable for a variety of applications.
- This thin, lightweight hard drive provides seamless upgrades in thin and light laptops and other small form factor systems.
- With data rates up to 140 MB/s users benefit from an enhanced PC end-user experience and faster file transfers.
- This BarraCuda Compute drive offers reduced system heat generation and vibration.
Technical Specifications:
|
Interface |
SATA 6 Gb/s |
|
Bytes per Sector |
Logical/Physical: 512/4,096 |
|
Data Transfer Rate |
Up to 140 MB/s |
|
Cache |
128 MB |
|
Spindle Speed (RPM) |
5400 rpm |
|
Load/Unload Cycles |
600,000 |
|
Head-Rest Method |
QuietStep Ramp Load |
|
Non-Recoverable Read Errors Per Bits Read |
Maximum 1 per 10E14 |
|
Startup Current (5 V) |
1.2 (+5 V / A) |
|
Read / Write Power |
Average 1.6 W / 1.7 W |
|
Idle Power |
Average 0.45 W |
|
Operating Temperature |
32 to 140°F (0 to 60°C) |
|
Non-Operating Temperature |
-40 to 158°F (-40 to 70°C) |
|
Shock |
Operating: 400 Gs, 2 ms Non-Operating: 1,000 Gs, 1 ms |
|
Acoustics |
2.0 Idle, typical (bels-sound power) 2.2 Seek, typical (bels-sound power) |
|
Dimensions |
0.276 x 2.75 x 3.951" (7.0 x 69.85 x 100.35 mm) |
|
Weight |
90 g |
|
Model |
ST1000LM048 |
|
Warranty |
2 years limited warranty |
|
Country Of Origin |
American Brand. Manufactured in Thailand/China |
|
Manufacturer’s Name |
Seagate Technology (Thailand) Limited, Seagate Technology International (Wuxi) Company Limited, |
|
Manufacturer’s Address |
Seagate Technology (Thailand) Limited, 90 Moo 15 Tambol Sungnoen, Amphur Sungnoen, Nakhonratchasima 30170, Thailand Seagate Technology International (Wuxi) Company Limited, Building 101, 102 103, 105, 106, and 113, No. 2 Xing Chuang Er Lu Zone B, Export Processing Zone Wuxi – Singapore, Industrial Park Wuxi, Jiangsu 214028, China |
|
Package Contents |
Seagate 1TB BarraCuda SATA III 3.5" Internal HDD Limited 2-Year Warranty |
|
Service Centre Contact Number |
000 800 440 1392 |
|
Locate Nearby Service Centre |
seacare.co.in |
