Key Features:

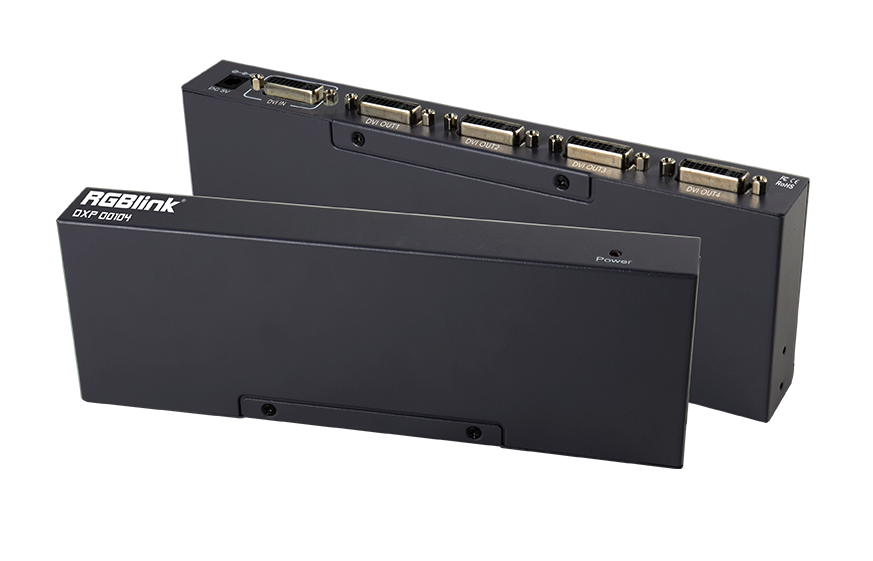

DXP D0104 is a DVI one input and four outputs video distributor. Realizing 1 x DVI input and 4 x DVI output signals distribution which can be extended and increase the number of screen display, input and output support HDTV 1920x1200 (compatible with lower resolution) high resolution image allocation display.
Technical Specifications:
Input
1 × DVI-I
Output
Input Resolutions
SMPTE
480i|576i|720p@50/59.94/60|1080p@50/59.94/60|
1080i@50/59.94/60
VESA
800x600@60|1024x768@60|1280x768@60| 1280x1024@60|1366x768@60|1600x1200@60| 1920x1080@60
Output Resolutions
720p@50/60|1080p@50/60
1024x768@60|1280x1024@60|1440x900@50/60 1440x1050@60|1600x1200@60|1680x1050@60 1900x1200@60
Supported Standard
DVI S-DVI
peculiarity
Can be serial expansion, increase the number of screen display
DVI signal one in and four out distribution
Input Voltage
DC 5V 1A
Temperature
0℃~55℃
Humidity
10%~95%
