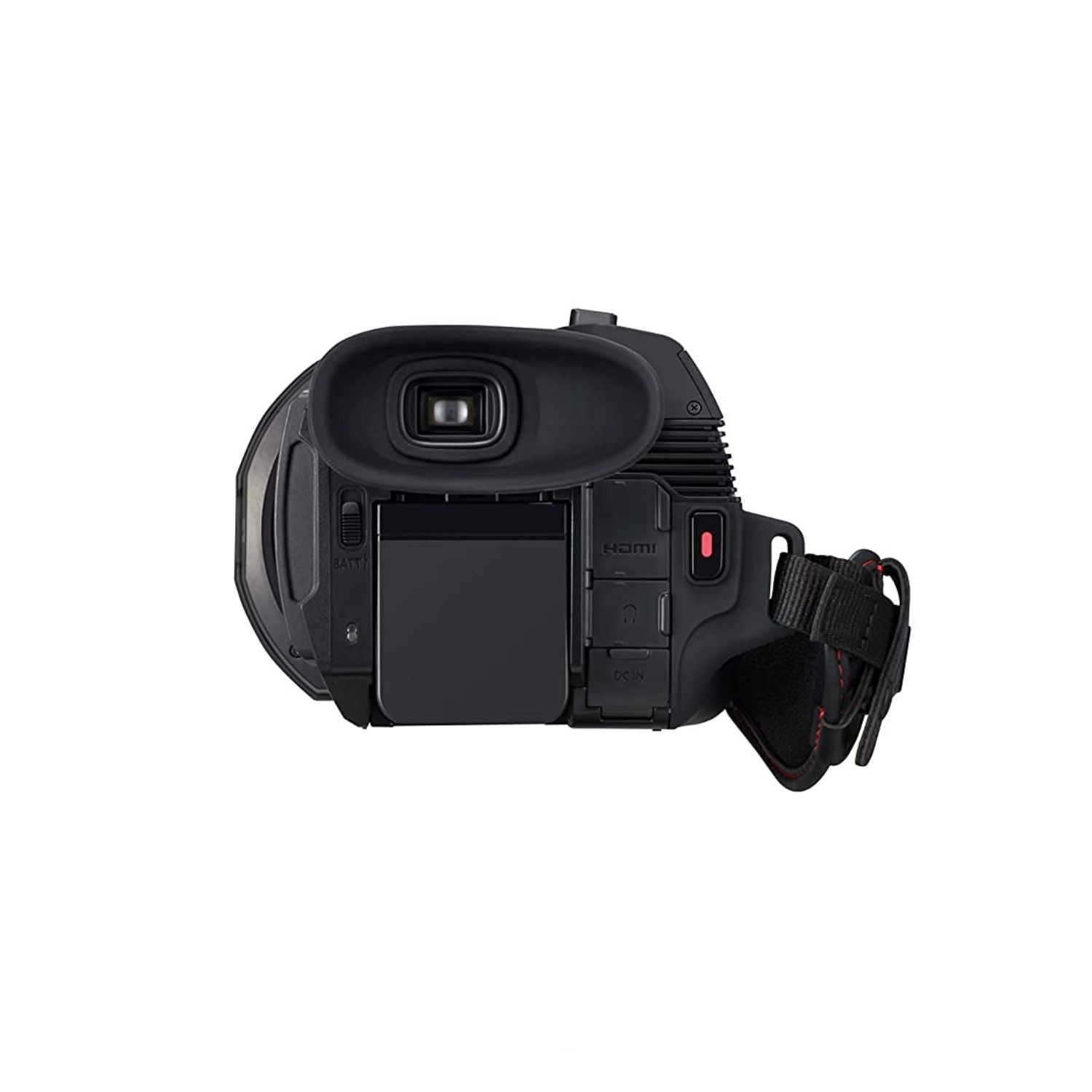

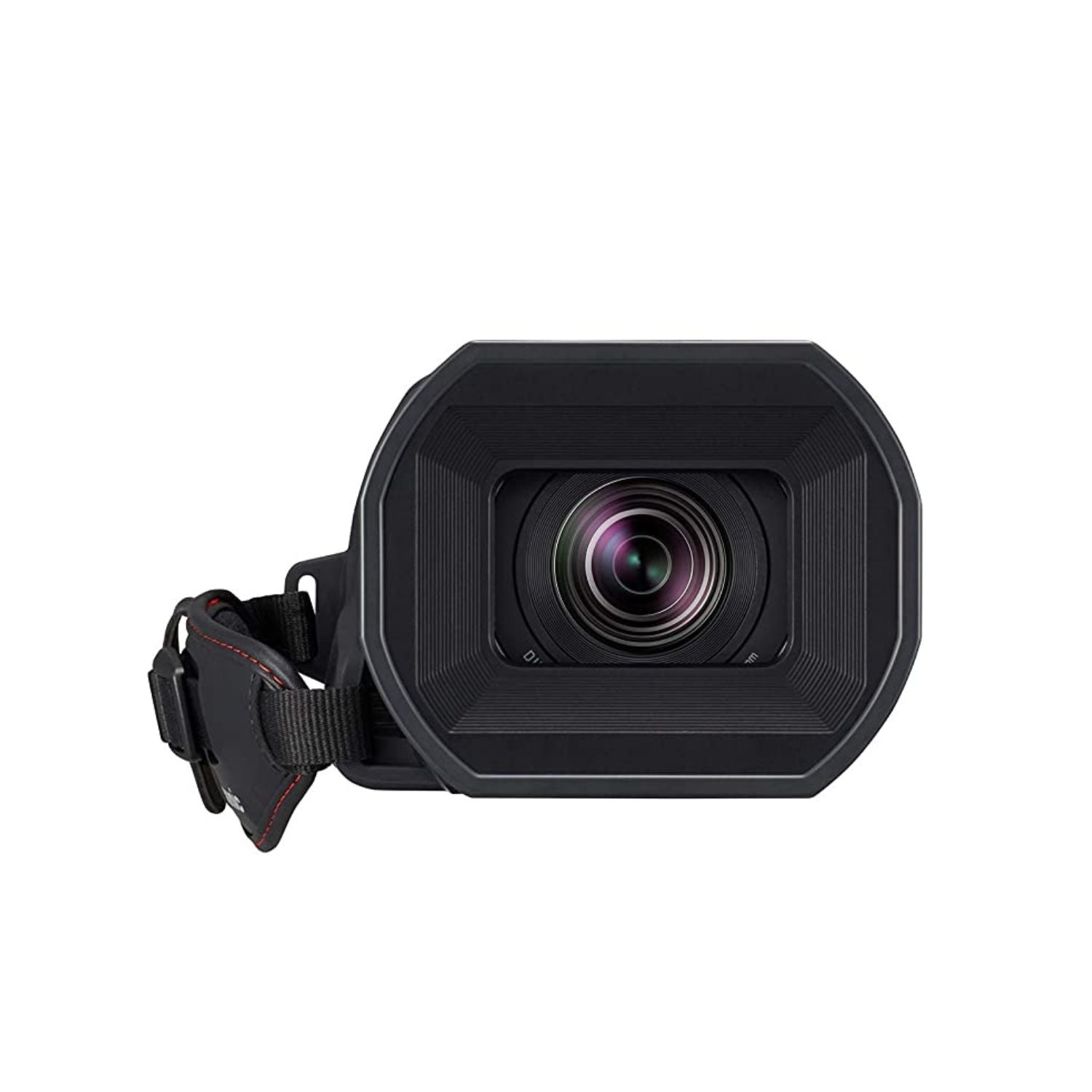

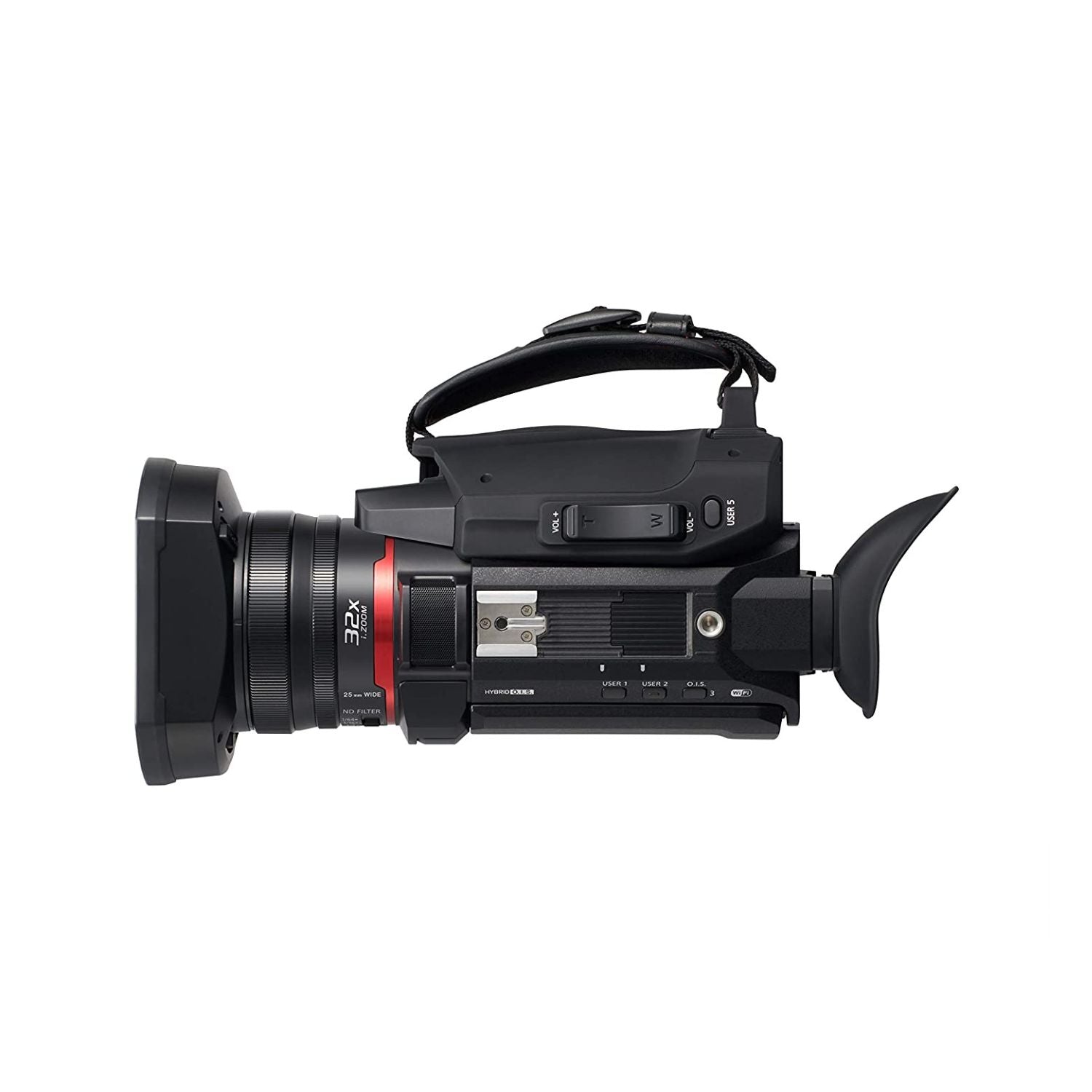

Panasonic Professional Camcorder AG-CX6ED
Key features:
- Versatile 4K 60p Performance
- Wide 25mm* and Optical 24x Zoom Lens
- 4K High-Precision AF
Versatile 4K 60p Performance
The industry’s smallest and lightest* 4K 60p camcorder in a mobile compact body pacis a remarkable optical performance and pro functions into this active handheld with no compromise in quality.
Industry’s Smallest and Lightest 4K 60p Camcorder go
While excelling in mobility and portability, the compact body considers the weight balance of the advanced functions when shooting.
Wide 25mm* and Optical 24x Zoom Lens
The lens covers the range from 25mm wide-angle to 600mm tele with a 24x zoom. i.ZOOM achieves 32x zoom with 4K resolution, and 48x zoom with FHD.
4K High-Precision AF
Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding color recognition, tracking subjects is improved, without interruption, when the face moves to either side.
HYBRID O.I.S.
In both UHD/FHD modes. in addition to Optical Image Stabilization, Electronic Image Stabilization detects and corrects handshake in the 5-axis direction. The Ball O.I.S System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.
Heat-Dispersing Design
A new ultrathin fan disperses heat in a camcorder with integrated lens and 4K 60p recording. It is the industry’s smallest and lightest unit with low power consumption.
Warranty: 2 years Manufacturer's Warranty.
Technical Specifications:
|
Image Sensor |
1/2.5-type (inch) MOS Sensor |
|
Effective Pixles |
8.29 megapixels |
|
F Value |
F1.8 ― 4.0 |
|
Optical Zoom |
24x |
|
Focal Length |
4.12 ― 98.9mm |
|
35 mm Film Camera Equivalent |
25.0 ― 600.0 mm |
|
Filter Diameter |
62 mm |
|
Lens Brand |
Leica Dicomar Lens |
|
Minimum Illumination |
1.5 lx (F1.8, Super Gain +, 1/30) |
|
Focus |
Auto / Manual |
|
Intelligent Zoom OFF |
24x |
|
Intelligent Zoom ON |
Max. 48x (UHD 32x) |
|
Digital Zoom |
2x / 5x / 10x |
|
Shutter Speed 59.94 Hz mode |
59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec 29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec 23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec |
|
Shutter Speed 50.00 Hz mode |
50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec 25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec |
|
Slow Shutter Speed 59.94 Hz mode |
59.94i/59.94p: 1/8, 1/15, 1/30 sec 29.97p: 1/8, 1/15 sec 23.98p: 1/6, 1/12 sec |
|
Slow Shutter Speed 50.00 Hz mode |
50i/50p: 1/6, 1/12, 1/25 sec 25p: 1/6, 1/12 sec |
|
Super Slow Recording Frame Rate 59.94 Hz mode |
FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p) |
|
Super Slow Recording Frame Rate 50.00 Hz mode |
FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p) |
|
ND Filter |
1/4, 1/16, 1/64, OFF |
|
IR Filter |
Incorporates the ON/OFF control function |
|
White Balance |
Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed |
|
Iris |
Auto / Manual |
|
Image Stabilizer |
Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD) |
|
Recording Media |
SDHC/SDXC Memory Card |
|
Recording Format |
MOV, MP4, AVCHD |
|
Video Compression Method |
MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile AVCHD: H.264/MPEG-4 AVC High Profile |
|
Audio Compression Method |
MOV: LPCM (24bit 2ch) MP4: AAC (16bit 2ch) AVCHD: Dolby Audio (16bit 2ch) |
|
System Frequency |
59.94Hz / 50.00Hz |
|
Recording / Playback Mode MOV (HEVC) |
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC 200M: Average 200Mbps (VBR) UHD 3840x2160 29.97p/25.00p/23.98p HEVC 150M: Average 150Mbps (VBR) |
|
MOV |
[4:2:0 8bit] UHD 3840x2160 59.94p/50.00p 150M: Average 150Mbps (VBR) UHD 3840x2160 29.97p/25.00p/23.98p 100M: Average 100Mbps (VBR) [4:2:2 10bit] UHD 3840x2160 29.97p/25.00p/23.98p 150M: Average 150Mbps (VBR) FHD 1920x1080 59.94p/50.00p 200M (ALL-Intra): Average 200Mbps (VBR) FHD 1920x1080 29.97p/25.00p/23.98p 100M (ALL-Intra): Average 100Mbps (VBR) FHD 1920x1080 59.94i/50i 100M (ALL-Intra): Average 100Mbps (VBR) FHD 1920x1080 59.94p/50.00p 100M: Average 100Mbps (VBR) FHD 1920x1080 29.97p/25.00p/23.98p/59.94i/50.00i 50M: Average 50Mbps (VBR) |
|
MP4 (HEVC) |
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC 100M: Average 100Mbps (VBR) UHD 3840x2160 29.97p/25.00p/23.98p HEVC 72M: Average 72Mbps (VBR) |
|
MP4 |
[4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 72M: Average 72Mbps (VBR) FHD 1920x1080 59.94p/50.00p/23.98p 50M: Average 50Mbps (VBR) |
|
AVCHD |
[4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR) PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR) HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR) PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR) |
|
P2 |
— |
|
Video Compression Format |
H.264/MPEG-4 AVC Main Profile, High Profile |
|
Video Resolution |
1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180 |
|
Streaming Method |
Unicast, Multicast |
|
Frame Rate |
System frequency = 59.94 Hz: 30 fps, 60 fps System frequency = 50.00 Hz: 25 fps, 50 fps |
|
Bit Rate |
24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps |
|
Audio Compression Format |
AAC-LC, 48 kHz/16 bit, 2ch |
|
Network Protocol |
RTSP/RTP/RTMP/RTMPS |
|
Recording Format |
JPEG (DCF/Exif2.2) |
|
Recording Image Size* |
Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9) |
|
Power Supply |
7.28V (Battery) / 12V (AC Adaptor) |
|
Power Consumption |
14.4W (LCD Monitor) |
|
Dimensions (W x H x D) |
Approx. 129 x 93 x 257 mm (5.08 x 3.66 x 10.1 inch) |
|
Weight |
Body: approx. 0.9kg (1.98 lb) (body only, excluding handle, lens hood, battery, and accessories) Shooting: approx. 1.2kg (2.65 lb) (including lens hood, battery, and eyecup) |
|
LCD Monitor |
8.88 cm (3.5-inch) Wide LCD monitor (About 2,760,000 dots) (For Europe) 3.5-inch Wide LCD monitor (About 2,760,000 dots) (For North America / Asia) |
|
Viewfinder |
0.61 cm (0.24-inch) Wide EVF (About 1,560,000 dots) (For Europe) 0.24-inch Wide EVF (About 1,560,000 dots) (For North America / Asia) |
|
Manual Ring |
Focus / Zoom or Iris |
|
Accessory Shoe |
Yes |
|
LED Video Light Average Illumination |
— |
|
Irradiation Angle |
— |
|
Color Temperature |
— |
|
SDI OUT |
— |
|
HDMI |
Type A x 1 (VIERA Link not supported) Output format: 2160/59.94p/50.00p/29.97p/25.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p |
|
Built-in Microphone |
Stereo microphone |
|
Microphone Input |
3.5mm stereo mini jack x 1 |
|
XLR Input |
— |
|
SDI |
— |
|
HDMI |
2 ch (LPCM 24bit) |
|
Headphone |
3.5 mm diameter stereo mini jack x 1 |
|
Speaker |
15 mm diameter, round x 1 |
|
Camera Remote |
2.5mm super mini jack x 1 |
|
USB 2.0 HOST |
— |
|
USB 2.0 DEVICE |
Micro-AB connector, 5-pin, mass storage function (read only) |
|
DC IN |
DC 12V (11.4V ― 12.6V) EIAJ Type4 |
|
Standard |
IEEE 802.11b/g/n |
|
Frequency |
2.4GHz band |
|
STANDARD ACCESSORY |
|
|
AC Adaptor |
Yes |
|
AC Cable |
Yes |
|
Rechargeable Battery Pack |
Yes (5,900mAh) |
|
Handle Unit |
— |
|
Battery Charger |
— |
|
IR Remote |
— |
|
HDMI Cable |
— |
|
AV Cable |
— |
|
USB Cable |
— |
|
USB LAN Conversion Adaptor |
— |
|
Microphone Holder |
— |
|
Microphone Holder Screws |
— |
|
Input Terminal Cap |
— |
|
Eye Cup |
Yes |
|
Lens Hood |
Yes |
|
Editing Software |
— |
|
Note |
* Only images cut from video in video playback mode are supported. Specifications are subject to change without notice. |
