Electronic and dance music producers looking for a powerful, all-in-one groove sampler will be thrilled with the Novation Circuit Rhythm, a compact and portable sampler that builds upon the success of the Circuit Tracks and is designed to be used in the studio or on the go for professional producers and DJs.
The Circuit Rhythm offers eight flexible sample tracks with several sample capabilities including slice, chromatic, one-shot, gated, looped, and reverse. The machine provides a variety of sample controls including tune, start, length, slope, distortion, high-pass filter, low-pass filter and resonance. What's more, there is a sample choke function that allows you to assign samples to a group, where by any sample that is playing is automatically cutoff when a new sample in the group is triggered. Great for creating realistic hi-hats and other sounds.
Circuit Rhythm uses Components, a standalone software editor, which provides deep access to the instrument's sampling engine, sample organization, macro controls, and more. You can load up to 220 seconds of samples, plus thousands of patches and projects from the included SD card. Circuit Rhythm is USB class compliant and will work with any modern Mac or Windows computer.

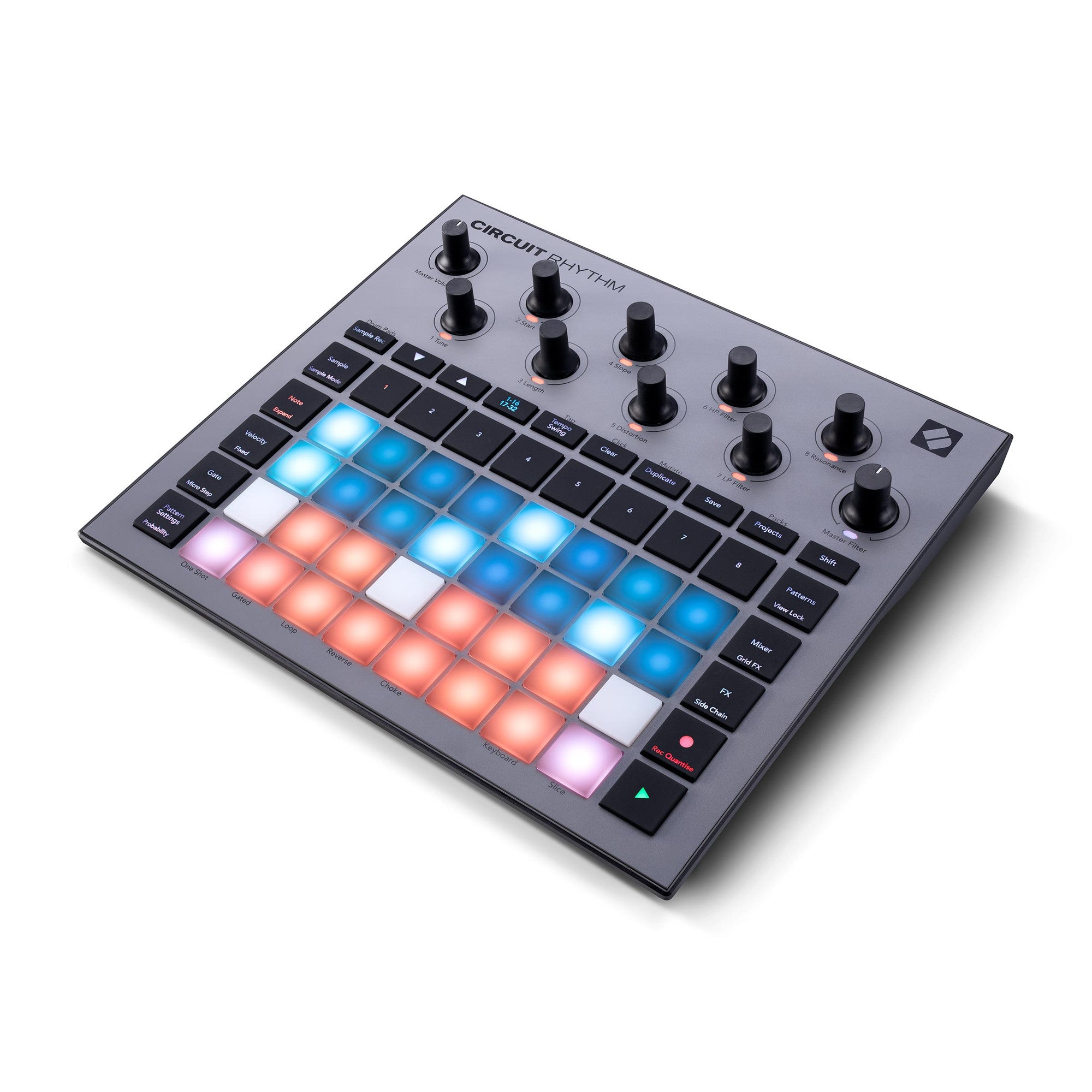

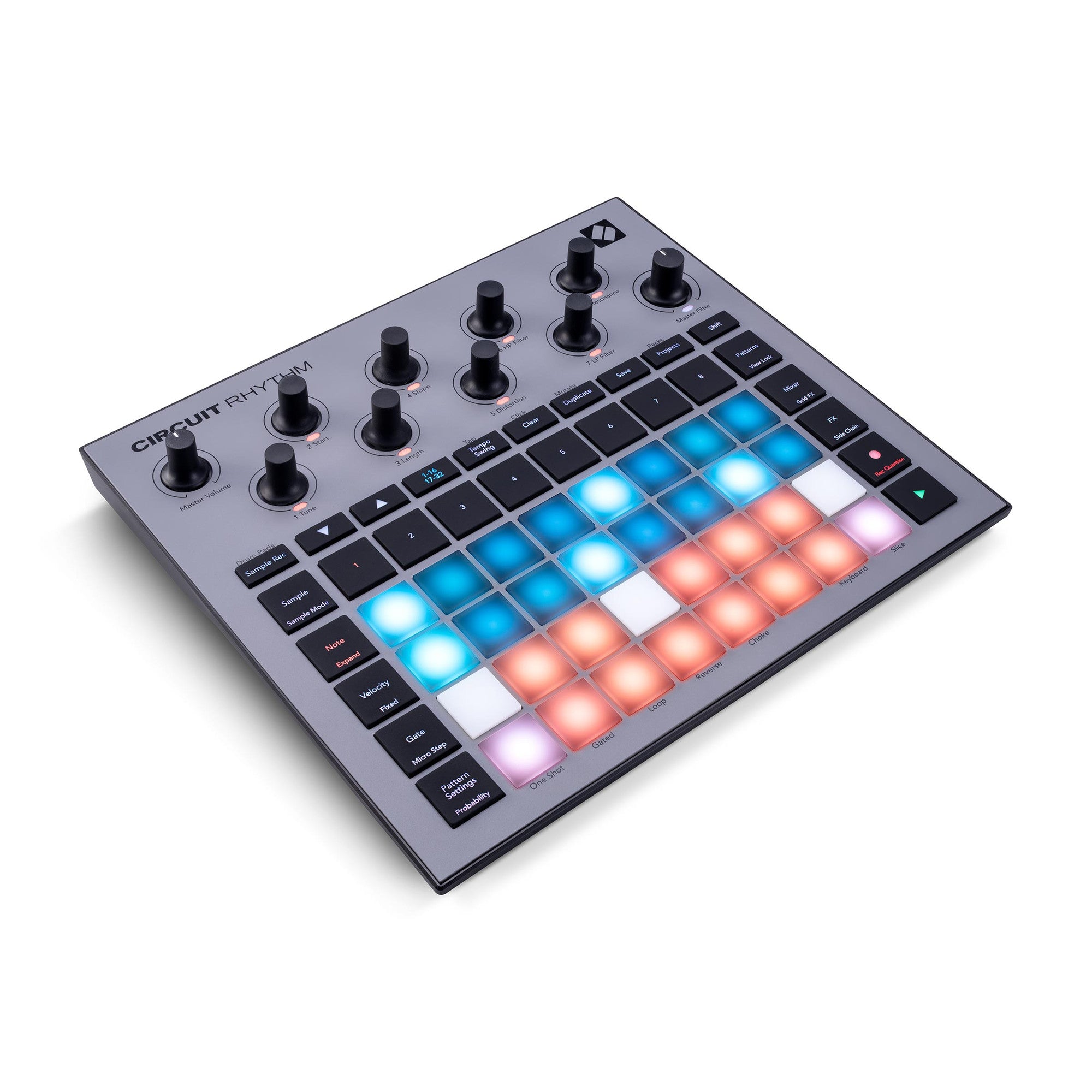

A 4x8 grid of velocity-sensitive (RGB) sequencer pads are used to program the advanced, built-in 32-step sequencer, which offers real-time and step-input recording, as well as time and key lock to ensure all your sounds lock to tempo and blend harmonically. The 8 macro encoders allow you to record and playback multiple parameter tweaks in real time. Combine up to 256 steps of patterns to complete full songs. The onboard effects do not disappoint. There's delay, reverb, and side-chain Send FX for adding depth and motion to your tracks, while the Grid FX provide a variety of realtime effects you can trigger. Choose from vinyl simulation, beat repeat, phaser, gater, reverser, auto-filter, and digitizer.

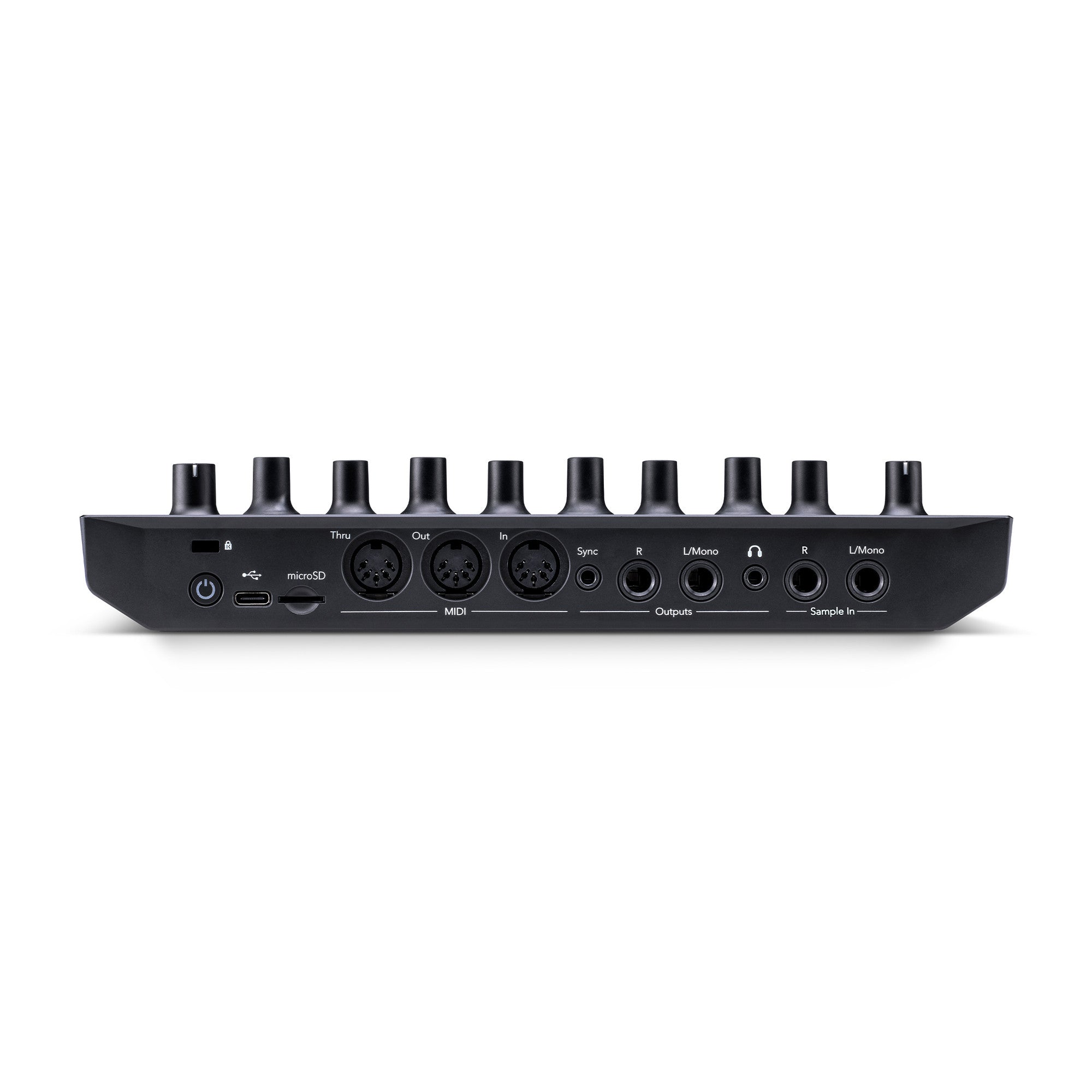

The rear panel provides a panoply of connections including 5-pin DIN MIDI input, output, and thru connectors, as well as sync for connecting to analog equipment. Two 1/4" inputs allow you to sample audio directly into the Circuit Rhythm. You can also route audio live through the unit for mixing and further processing, while two 1/4" outputs connect to your playback system or studio monitors. A 3.5mm headphone output is also included. The Circuit Rhythm can be powered via USB or from the built-in rechargeable battery for true wireless operation anywhere. A USB-C cable and USB power supply are provided.
Technical Specification:
Sound Generation
Sample-Based
Number of Pads
32x Velocity-Sensitive RGB Backlit Pad
Number of Sounds, Kits, or Samples
4096x Sample
Audio I/O
2x 1/4" Input2x 1/4" Main Output1x 1/8" / 3.5 mm TRS Headphone Output
MIDI I/O
1x DIN 5-Pin Input1x DIN 5-Pin Output1x DIN 5-Pin Thru
USB I/O
1x USB-C (Bus Power, Host Connection, Internal Battery Charging, MIDI)
Media/Memory Card Slot
Single Slot: microSD/microSDHC
Expression Controls
4x Knob
Transport Controls
Yes
Display
No
Standalone Operation
Number of Rhythm Pattern Presets
8
Maximum Polyphony
8 Voice
Sampling Formats
MP3, WAV (Load/Import)
Maximum Sample Length
228 Seconds per Pack32 Seconds per Pad
Built-In Effects
Send FX: 16 x Delay, 8 x Reverb, 7 x Compression with Side-ChainGrid FX: Vinyl Simulation, Beat Repeat, Reverse, Filter, Gater, Phaser, Digitizer
Built-In Speaker
Sequencer
Number of Steps: 32x StepNumber of Sequencer Patterns: 8x UserPattern Length: 1/32 Note to 64 BarsPattern Chaining: Yes, Up to 256 PatternsNote Resolution: 24 ppqTime Divisions: 1/32Input/Record Modes: Real-Time Loop Record, Real-Time Record, Step RecordPlayback & Features: Forward/Reverse
Number of Recorder Tracks
8x Audio
Audio Recording Formats
WAVMP3
Max Audio Recording Time
3 Minutes
Trigger Device & Pedal Inputs
CV/Gate I/O
Sync I/O
1x 1/8" / 3.5 mm MTC Output
Network I/O
Internal Drive Bays
Wireless
OS Compatibility
WindowsmacOS
Included Software
Novation Components
Mobile App Compatible
Supported Drivers/API & Plug-Ins
Windows Class-Compliant (No Driver Needed)macOS Class-Compliant (No Driver Needed)
Required Hardware
USB-C Port
Internet Connection
Required for Software/Driver Download
Power Requirements
Built-In Rechargeable Battery, USB Bus Power
Expected Battery Life
4 Hours
Color
Gray
Included Accessories
USB Cable
Dimensions
9.4 x 8.3 x 1.6" / 24 x 21 x 4 cm
