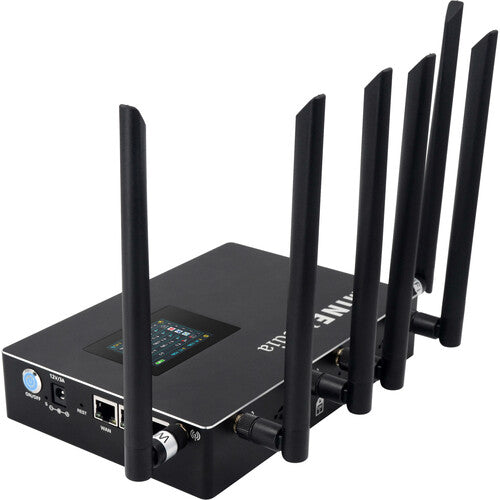

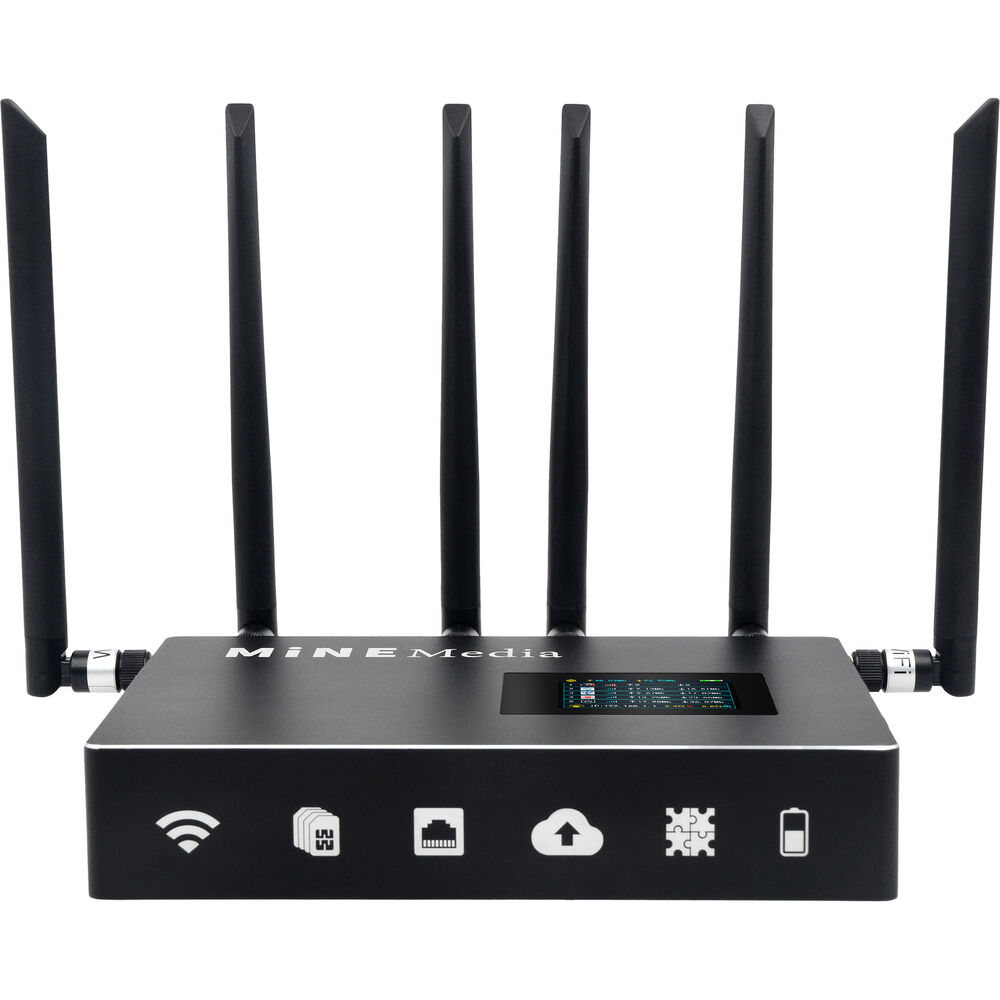

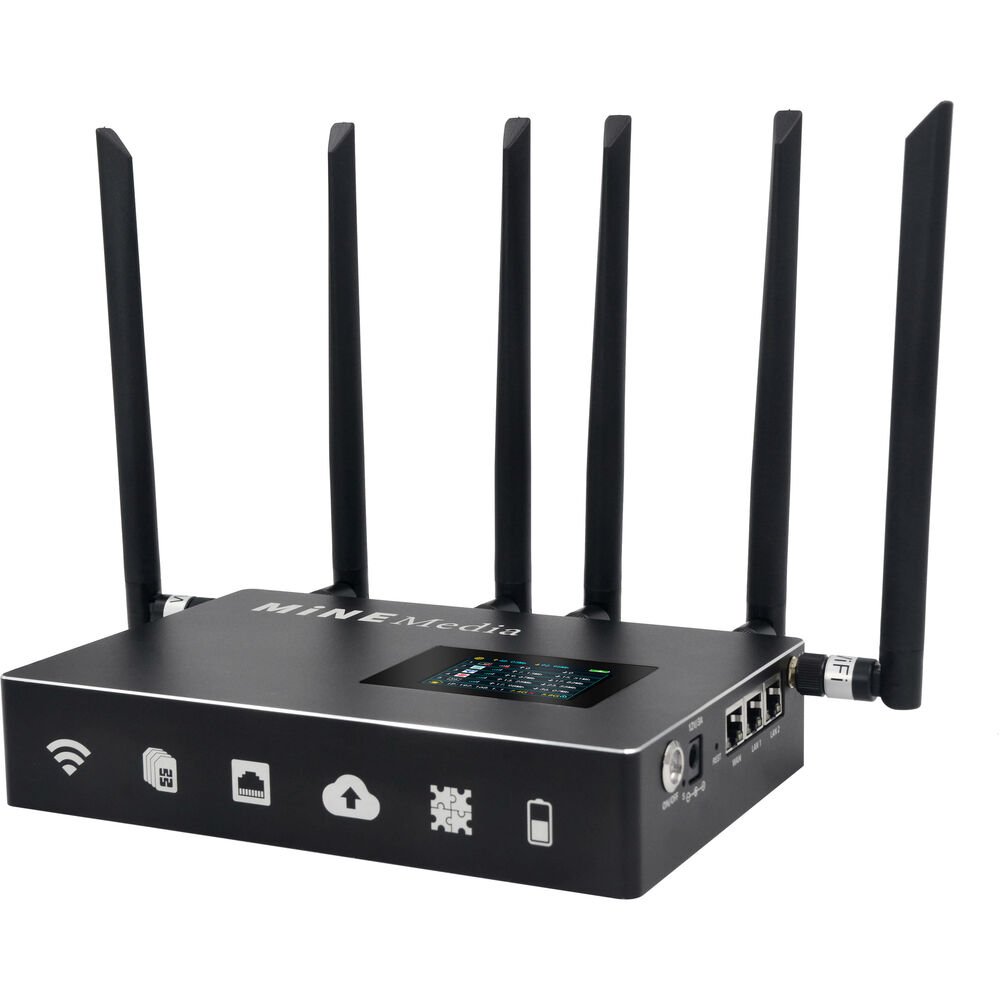

Aggregate four SIM cards and an Ethernet connection to create a single video/data pipeline with the M4 Mini Network Bonding Router from MiNE Media. The versatile cellular bonding router is lightweight and very easy to carry, providing a portable solution for combining several network connections and repacking with solid dependability at the destination.

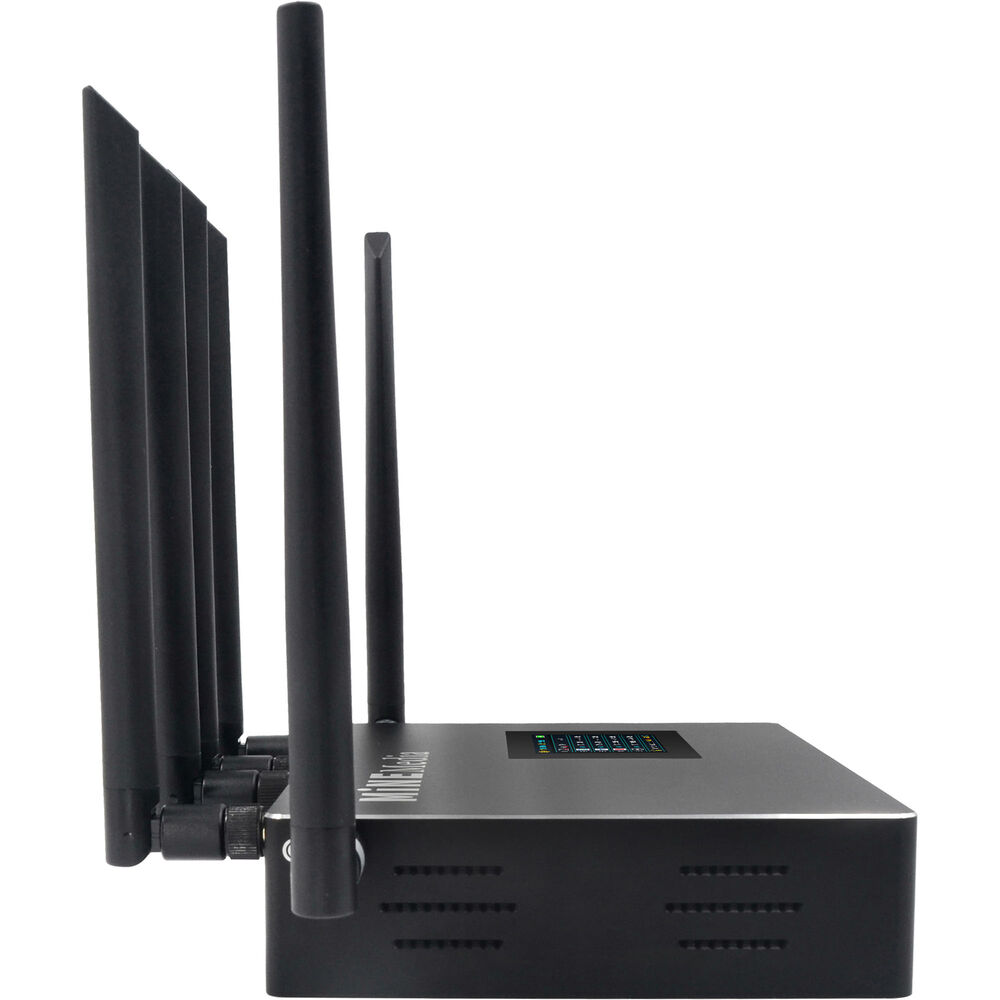

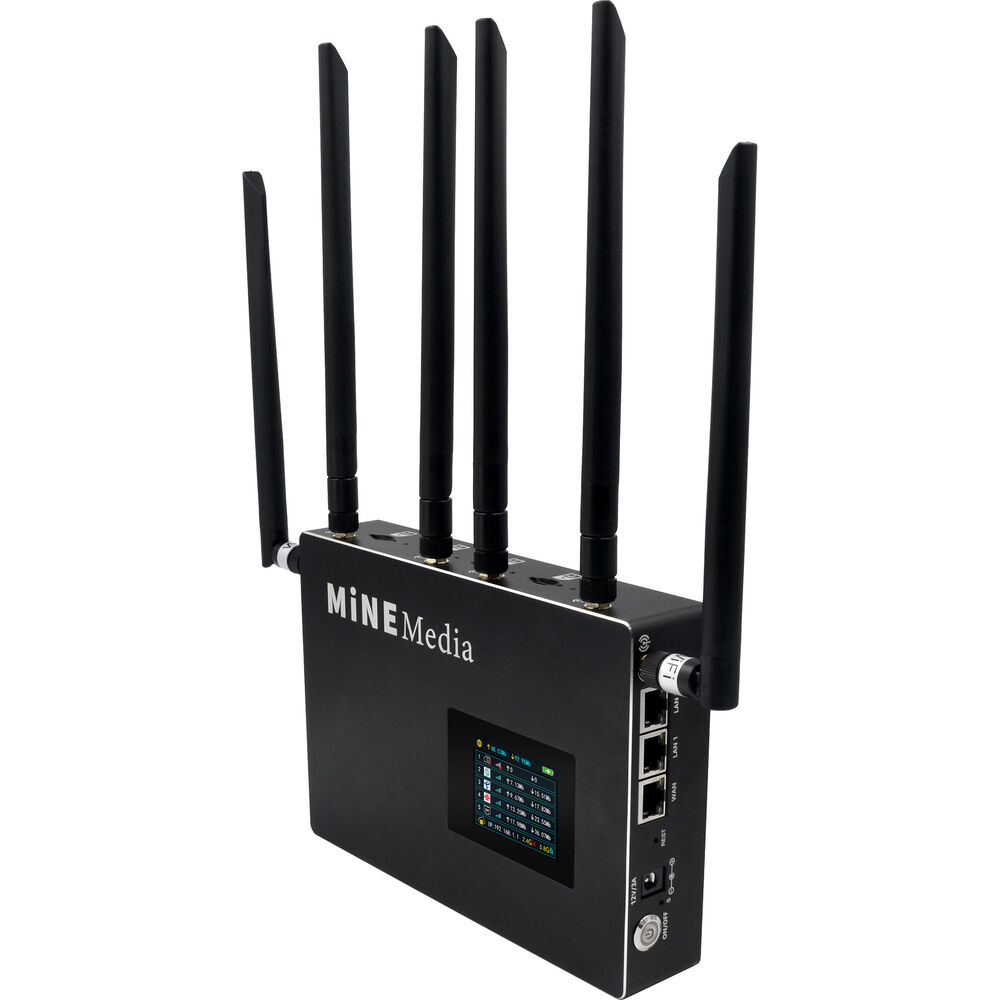

The status of each SIM and the Ethernet speed is viewable via a built-in LCD display, which also displays the total upload and download speed. The onboard battery has a five to six hours outdoor work duration, but the unit can also operate with a 12V, 3A power supply. It supports a self-built server and Linux Debian with a 9.0 operating system.
Technical Specifications:
Network
Cellular Network Mode: TDD-LTE, FDD-LTE, DC-HSPA+/HSPA+/HSPA/UMT, STD-SCDMA
LAN
LAN & WAN Rates: 1000 Mb/s
Wi-Fi
2.4 GHz, 5.8 GHz - 802.11b/g/n 300 Mb/s
Range: 98.4' / 30 m
Antenna Type
6 x External
Protocol
TCP/IP, FTP, HTTP
Management
Web Control
Panel Type
LCD
Size
Not Specified by Manufacturer
Touchscreen
No
Other I/O

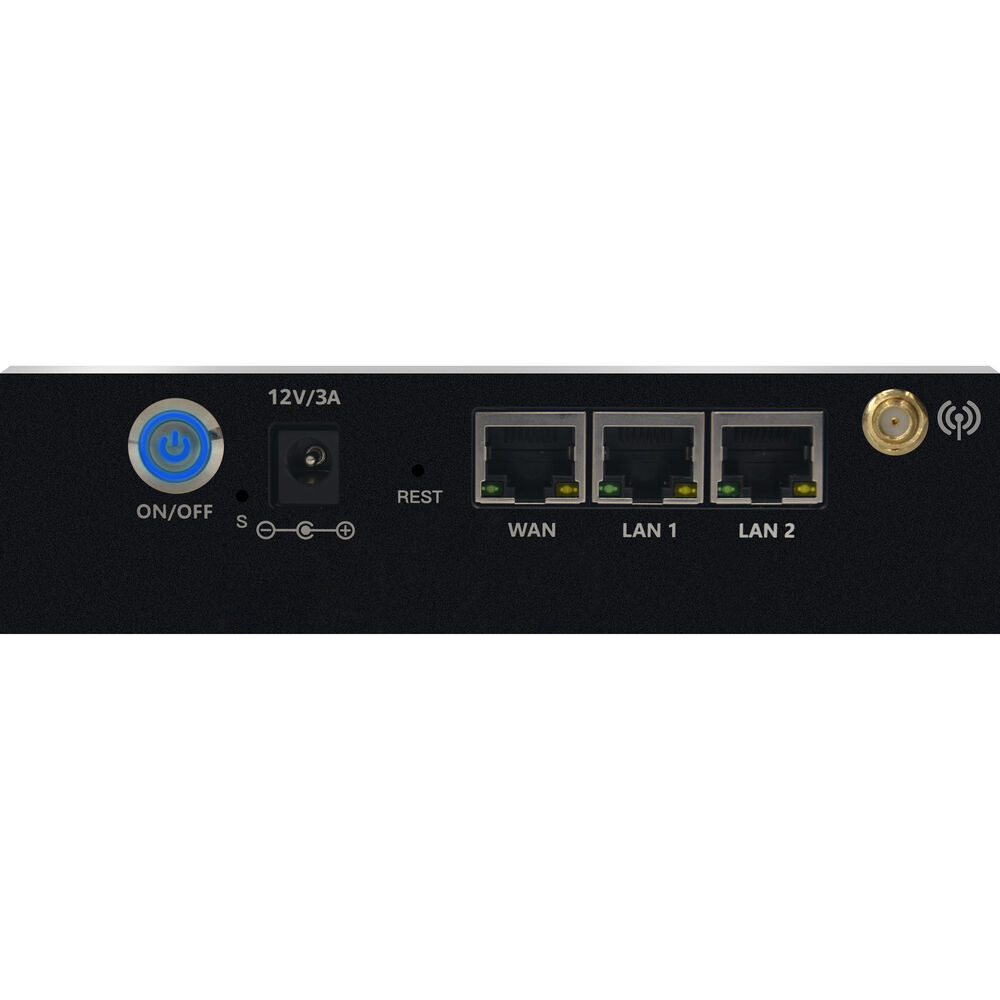

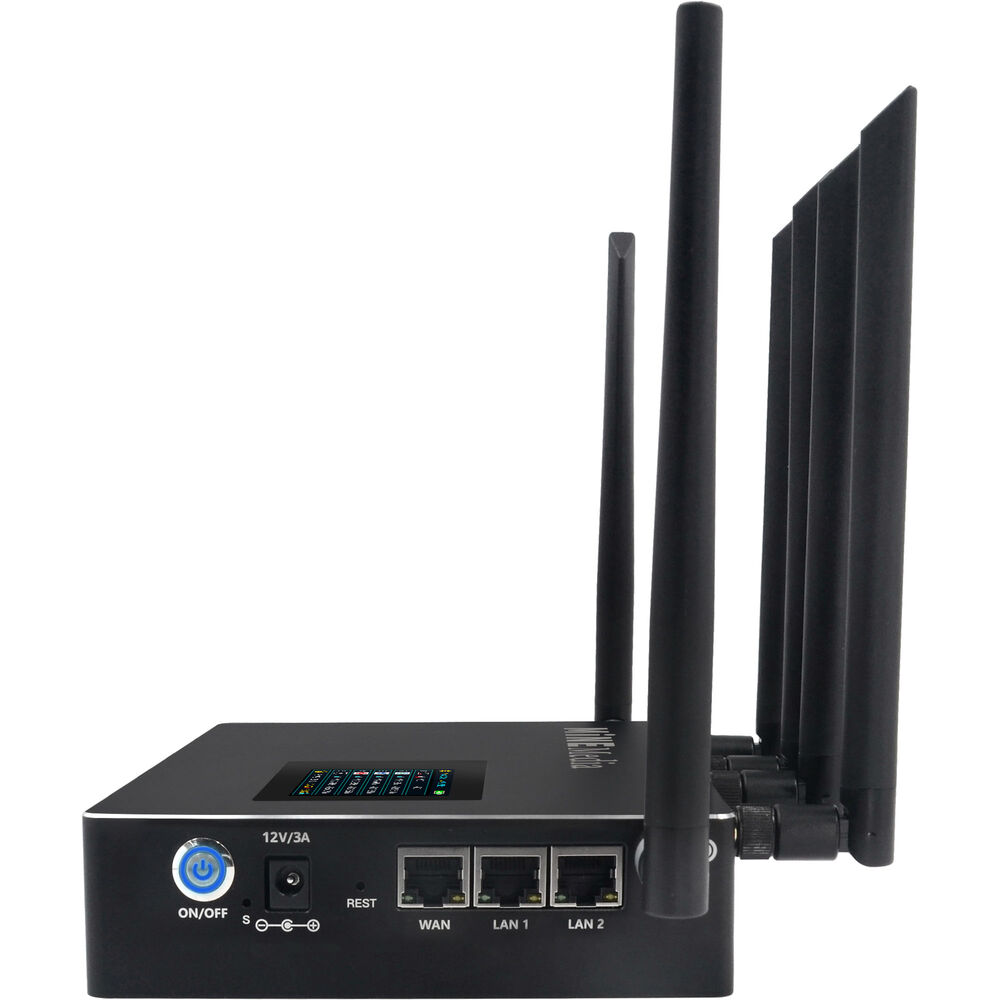

1 x Ethernet Port

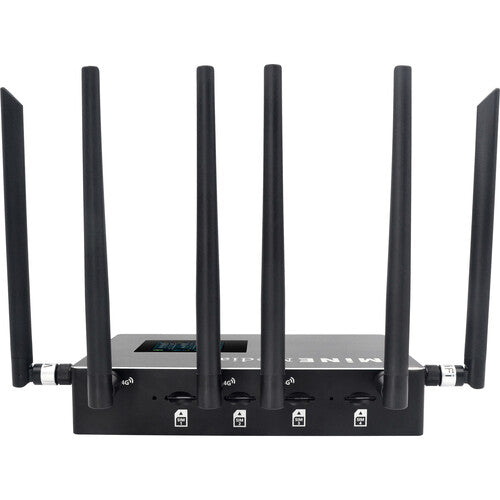

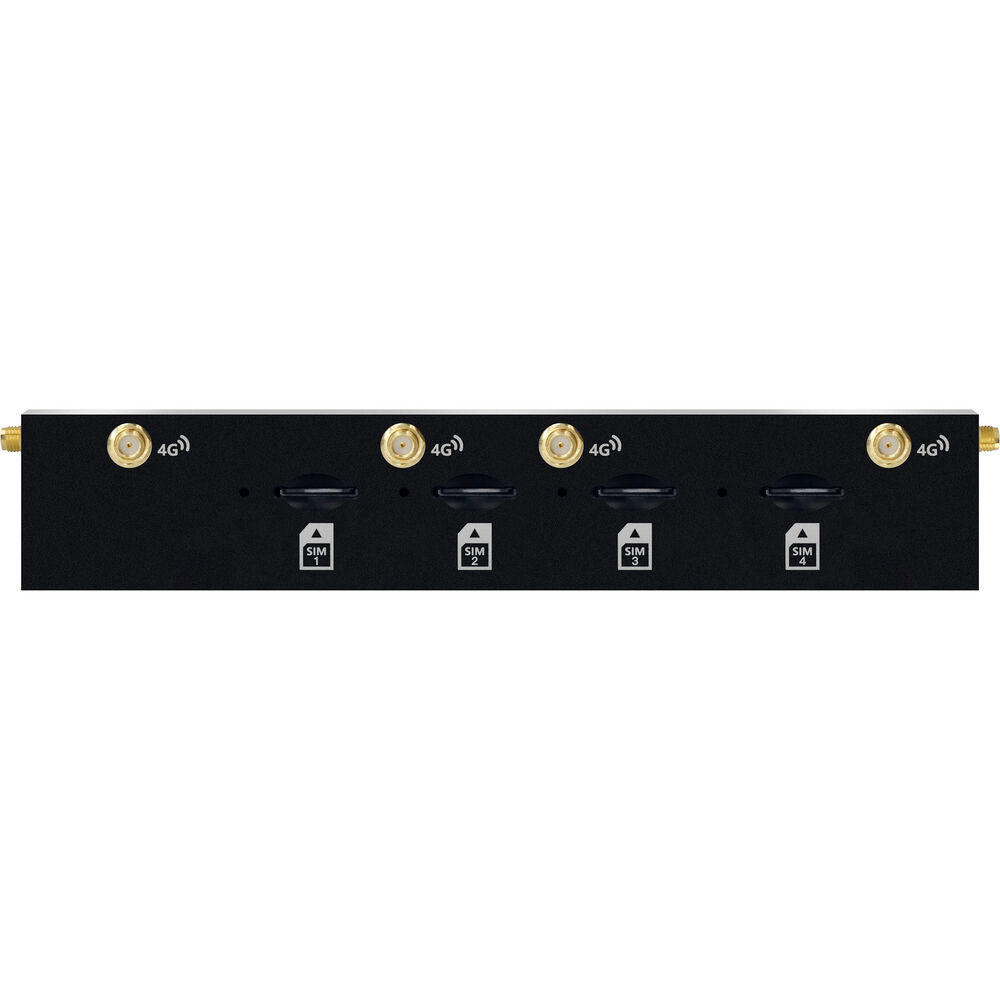

4 x SIM Ports
Wireless
802.11a/b/g Wi-Fi
*Built-In
802.11a/b/g
Power Source
AC Adapter with Power Brick (Included)
Battery Type
1 x Internal Rechargeable
DC Input Power
12 VDC at 3 A
Power Consumption
5 W
Operating Temperature
14 to 104°F / -10 to 40°C
Operating Humidity
10 to 90% (Non-Condensing)
Storage Temperature
-40 to 158°F / -40 to 70°C
Storage Humidity
5 to 90% (Non-Condensing)

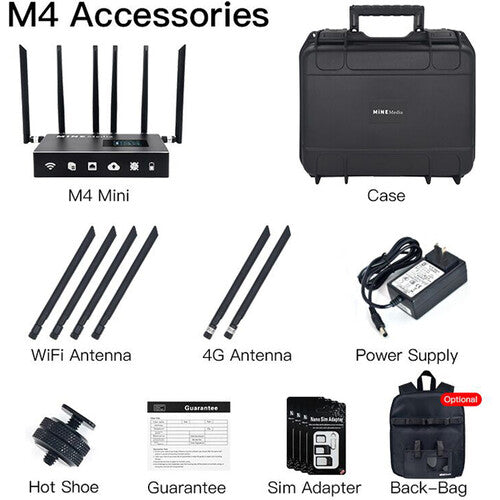

In the Box:
