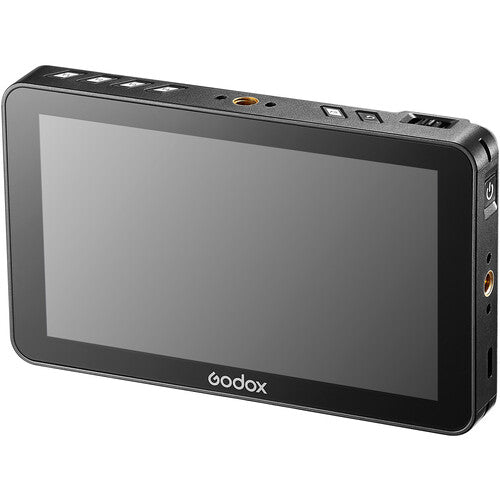

Godox GM6S 5.5" 4K HDMI Touchscreen Ultrabright On-Camera Monitor

Rs. 32,990.00
This product is Out of stock
Key Features:
  • 1200 cd/m² Brightness
  • 5.5" IPS Touchscreen Display
  • DCI and UHD 4K Video Support
  • HDMI Input and Output
  • Headphone and Camera Control Ports
  • 3D LUT Import via SD Card Slot
  • Various Image Monitoring Tools
  • L-Series Battery Plate, USB-C Port
  • DC Input and Output Power Ports
  • Sun Hood and Cold Shoe Mount Included

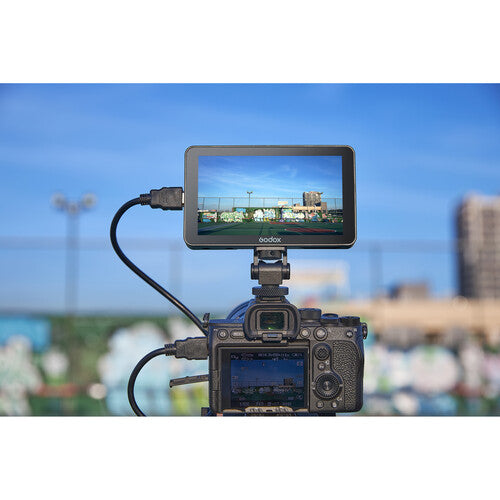

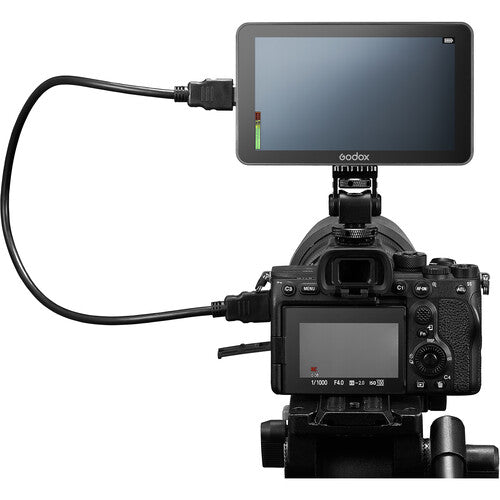

Like its predecessor, the Godox GM6S On-Camera Monitor is a compact, 5.5" device with a lightweight design but features an updated screen with 1200 cd/m² brightness. An HDMI input and output support both DCI and UHD 4K video. A camera control interface is available to communicate settings to the camera from the monitor with separately available proprietary cables. A 3.5mm headphone jack outputs audio for monitoring on set. Up to twenty-five 3D LUTS can be loaded into the monitor using the SD card slot.

Ultrabright Screen

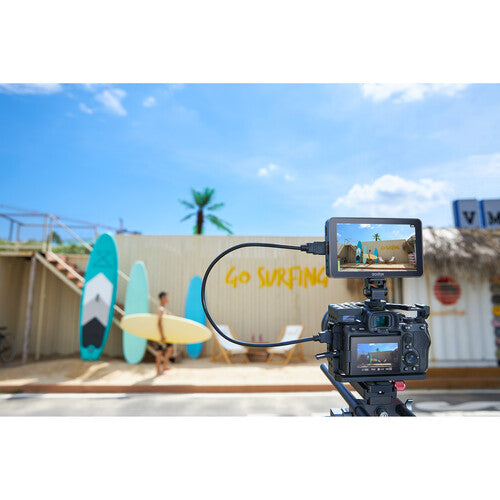

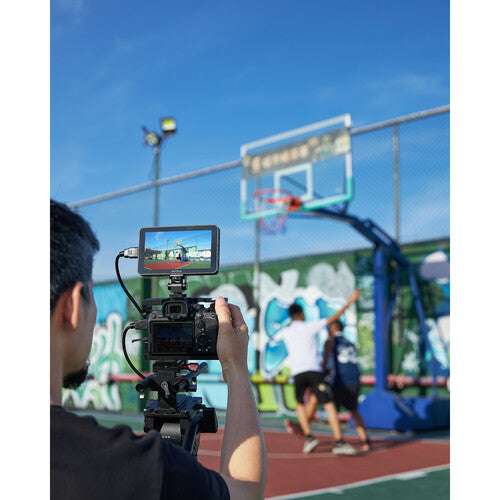

The 5.5" monitor features a maximum brightness of 1200 cd/m² for visibility in bright daylight applications. An included sun hood further reduces glare in particularly sunlit filming locations.
Rec.709 Color, 3D LUT Support
  • Rec.709 color calibration guarantees images with accurate, reliable color
  • Converts Log into Rec.709
  • Supports up to twenty-five 3D LUTs via SD card and compatible 17/32/33/64/65 cubic files

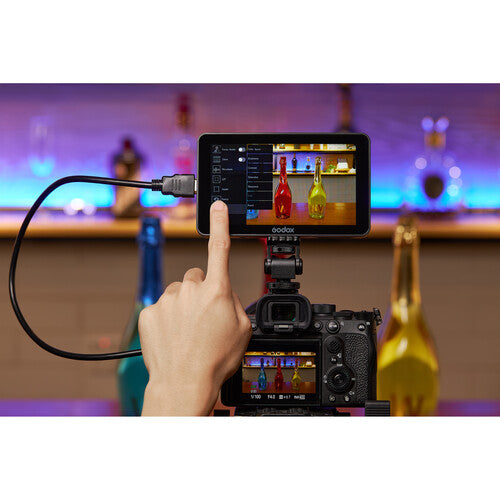

Interface and Control
  • Five function keys can be custom programmed to toggle between various settings
  • Separately available camera control cable accesses camera controls via GM6S
  • Improved UI design and layout

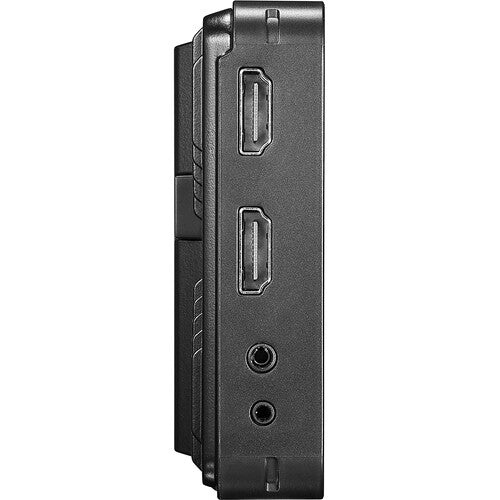

  • HDMI input/output
  • Three 1/4"-20 mounting threads for accessories
Image Monitoring Tools
  • Focus assist
  • Zebra
  • Waveform
  • LUT management
  • Video aspect ratio
  • Center marker
  • Safety marker
  • Image flip
  • Grid
  • Audio meter
  • False colors
  • Monochrome
  • Pixel-to-pixel
  • Zoom

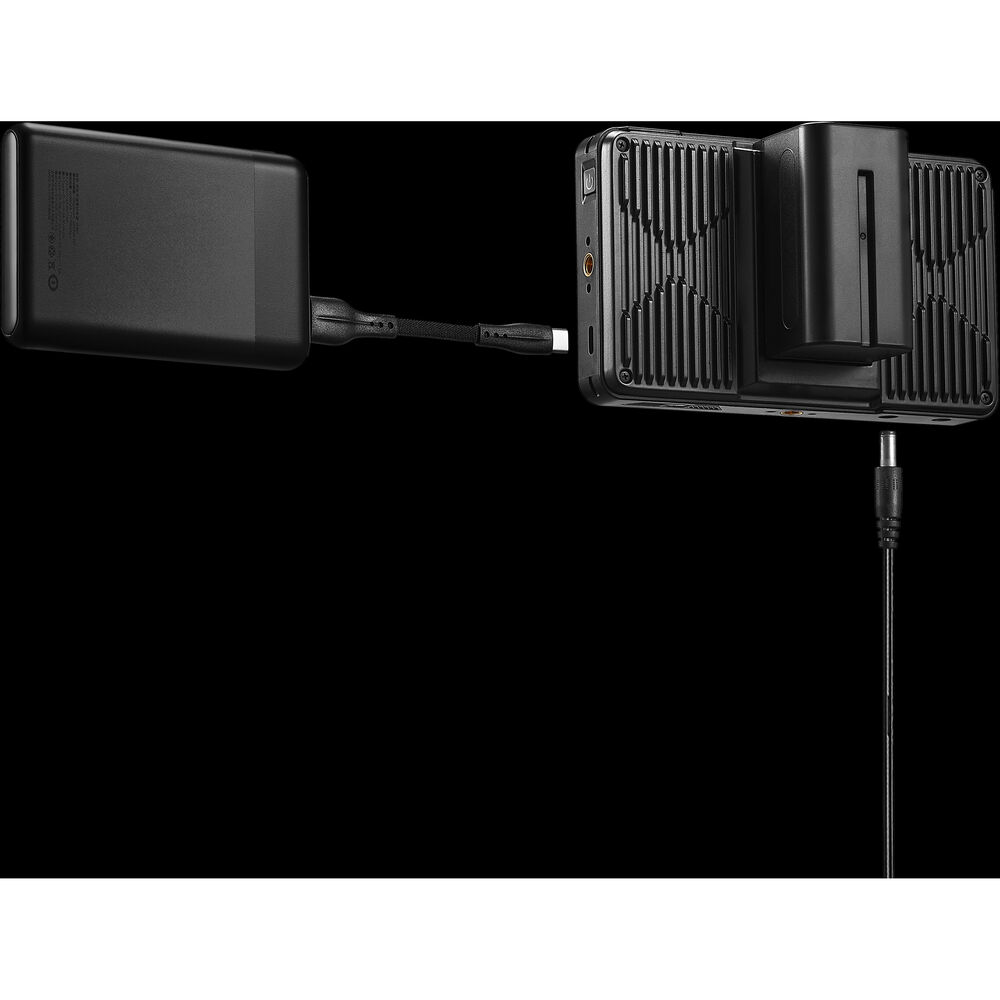

Multiple Power Options
  • DC power input
  • 7.8V DC output port for accessories
  • USB-C power input

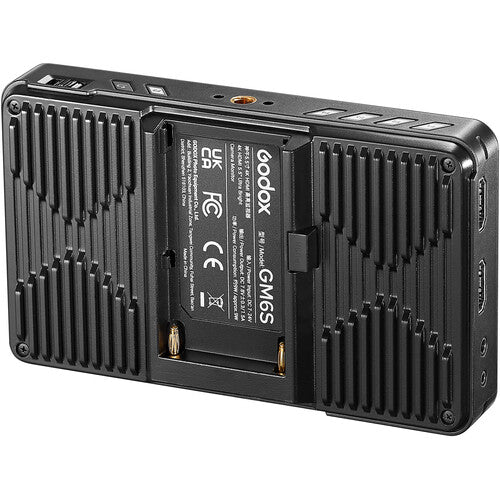

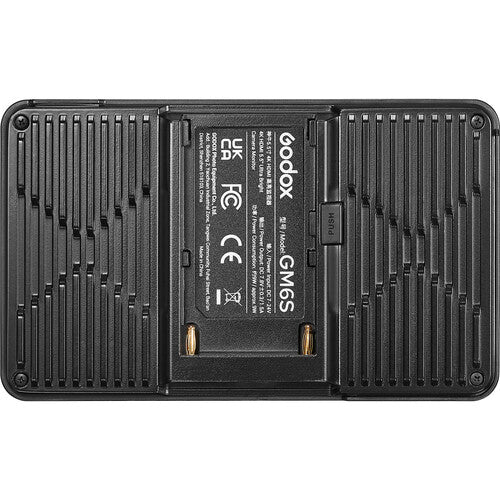

  • L-series battery plate

Technical Specifications:

  • Panel Type: IPS-Type LCD
  • Display Size: 5.5" / 14.0 cm
  • Resolution: 1920 x 1080
  • Aspect Ratio: 16:9
  • Viewing Angle:
    • Horizontal: 160°
    • Vertical: 160°
  • Touchscreen: Yes
  • Maximum Brightness: 1200 nits / cd/m2
  • Contrast Ratio: 1000:1
  • Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
  • HDR Compatibility: No
  • Pixels Per Inch (ppi): 400 ppi
  • Image Controls: Focus Assist, Image Flip, Waveform, Zebra

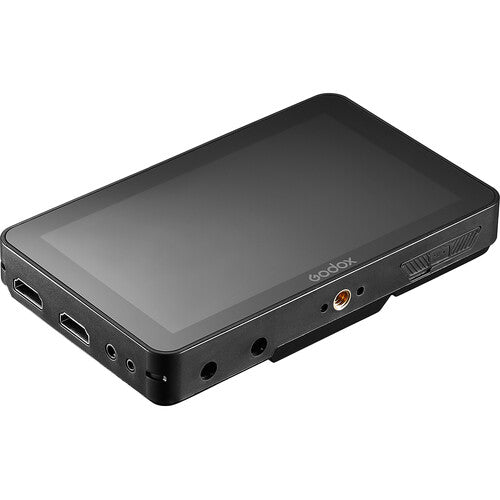

  • Video I/O:
    • 1x HDMI 1.4 Input
    • 1x HDMI 1.4 Output
  • Embedded Audio: HDMI
  • Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
  • Built-In Speaker: No

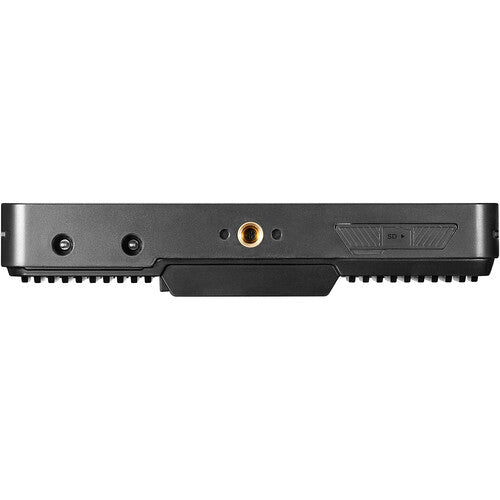

  • Power I/O:

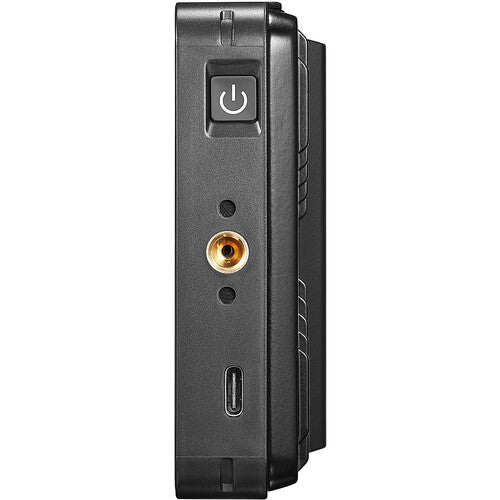

    • 1x USB-C Input
    • 1x Barrel 5.5 mm (24 VDC) Input
    • 1x Barrel 5.5 mm (1.5 A / 7.8 VDC) Output
  • Other I/O: 1x 2.5 mm Input
  • Media/Memory Card Slot: Single Slot: SD/SDHC
  • Wi-Fi: No
  • Video Format: HDMI
    • DCI 4K: 30/29.97/25/24/23.98
    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/50
    • 720p: 60/50
    • 576p: 60/50
    • 576i: 60/50
  • Gamma Curve: Rec709
  • DC Input Power: 7 to 24 VDC
  • Battery Type: 1x L-Series
  • Power Consumption: 9 W
  • Mounting: 3x 1/4"-20 Female
  • Operating Temperature: 22 to 82°F / -10 to 50°C
  • Material of Construction: Metal, Plastic
  • Dimensions: 5.7 x 3.4 x 1.1" / 14.5 x 8.7 x 2.8 cm
  • Weight: 9.6 oz / 273 g

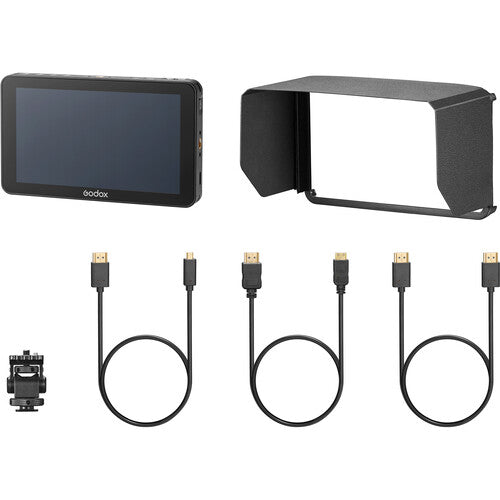

In the Box:

  • Godox GM6S 5.5" 4K HDMI Touchscreen Ultrabright On-Camera Monitor
  • Sun Hood
  • Tilting Cold Shoe Mount
  • HDMI to HDMI Cable
  • HDMI to Micro-HDMI Cable
  • HDMI to Mini-HDMI Cable
  • Screen Cloth
  • Limited 1-Year Manufacturer Warranty
