Godox AD200 TTL Pocket Flash Kit
- 1 x Speedlite, 1 x Bare Bulb Flash Head
- 1 x Lithium Battery, 1 x Charger
- Built-In Wireless X System Receiver
- Optional X1 Wireless TTL Transmitter
- Supports Nikon, Canon, Sony TTL
- Supports Olympus, Panasonic, Fuji TTL
- High Speed Sync up to 1/8000 Sec
- Flash Exposure Compensation, Stand Mount
- TTL, Manual, and Stroboscopic Modes
- Firmware USB Updates, 1 x Carry Case

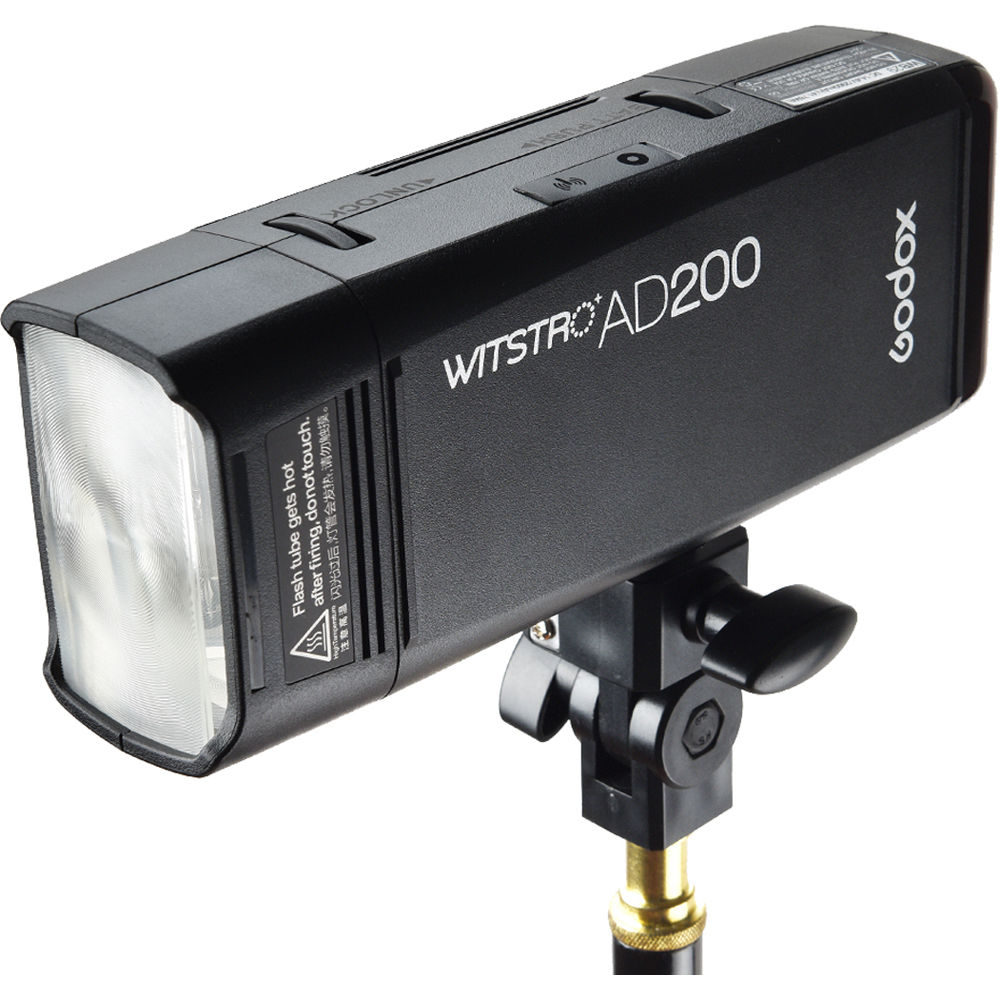

The AD200 TTL Pocket Flash Kit from Godox is built around a unique flash light source that has a standard speedlite head and a bare bulb head that give you the option of 2 distinctly different qualities of light. The kit comes with the 2 heads, lithium battery, charger and carry case.

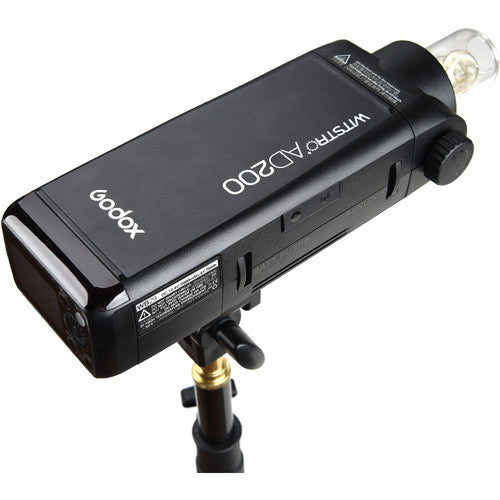

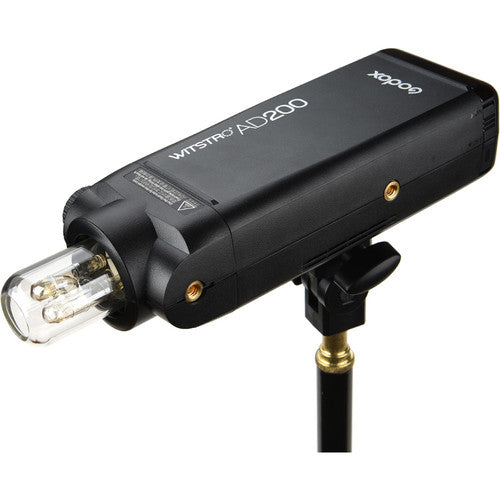

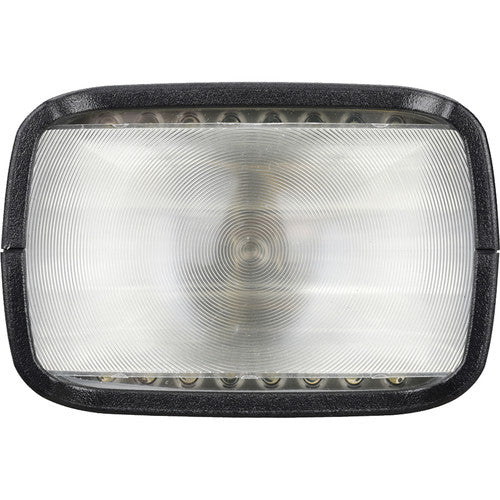

The speedlight head outputs the standard look of an on-camera flash that can be modified using an optional softbox, beauty dish or umbrella. The bare bulb head features a removable flash tube and produces 360 degrees of soft, bright, nearly shadowless light. The head uses optional reflectors that focus the beam angle and give you directional control. The AD200 has impressive core features such as 200 Ws of power adjustable in 8 steps from 1/128 to 1/1, recycling from 0.01 to 2.1 seconds and flash durations as short as 1/11,300 sec. The flash runs on a removal rechargeable lithium battery that will give you up to 500 full power flashes and thousands of lower power flashes.
The AD200 has 3 flash modes: Manual, TTL, and Multi (Stroboscopic). Manual outputs the user's choice of power, modeling light, first or second curtain sync, etc. Multi controls the stroboscopic rate up to 90 times (90 Hz). TTL takes advantage of the flash head's built-in X1 receiver. Optional X1 TTL transmitters are available for Nikon, Canon, Sony, Olympus, Panasonic and Fuji cameras. They will also detect a separately purchased LED head. The 32-channel wireless system controls flash mode, first and second curtain sync, High-speed sync up to 1/8000 sec, power level, modeling lamp and ready beeper at distances up to 328'. Firmware updates are obtainable on the Godox website.
- 8-step power range: 1/1 to 1/128
- Supports flash exposure compensation
- 1/8000 sec high-speed Sync
- First and second curtain sync
- Modeling lamp
- Manual flash
- Multi flash
- Custom functions
Technical Specifications:
|
Maximum Watt/Seconds |
200 |
|
Compatibility |
TTL with Canon, Nikon, Sony cameras with optional X1-C, X1-N, and X1-S transmitters |
|
Control |
Manually on unit |
|
Guide Number |
At Full Power: |
|
Color Temperature |
5600K (+/-200K) |
|
Recycle Time |
0.01 to 2.1 sec |
|
Flash Duration |
Speedlite Flash Head at t0.1: 1/220 to 1/13,000 sec |
|
Flash Variability |
8 Steps: 1/128 to 1/1 |
|
Flash Delay |
Yes, 0.01 to 30 sec |
|
Flash Modes |
TTL, Manual, Multi (Stroboscopic) |
|
Modeling Light |
Uses Speedlite Head: Auto turn off after 30 minutes |
|
Sync Mode |
High-speed sync up to 1/8000 sec |
|
Flash Exposure Compensation |
Yes, plus or minus 3 stops in 1/3 stop increments |
|
Flash Ready Indicator |
LED, beep |
|
Built-in Slave Cell |
S1 and S2 optical slave modes |
|
Wireless & Radio Specifications |
Function: Slave or Off |
|
Mounting |
1/4"-20 female threads |
|
Fan Cooled |
No |
|
Replaceable Flashtube |
Yes, in bare bulb head |
|
Connectors |
3.5 mm sync input |
|
Battery |
Lithium, 14.4 V / 2900 mAH |
|
Number of Flashes @ Full Power |
500 |
|
Dimensions |
6.6 x 3.0 x 2.0" (168 x 75 x 50 mm) without flash head |
|
Weight |
19.7 oz (560 g) without flash head and battery |
In the Box:
- Godox AD200 TTL Pocket Flash Kit
- Godox H200 Speedlite Flash Head
- Bare Bulb Flash Head
- Flash Tube
- Godox Lithium-Ion Battery Pack for AD200 Pocket Flash (14.4V, 2900mAh)
- Charger and Cable
- AD-E Holder (Stand Mount)
- Carrying Case
- Limited 2-Year Warranty
