On Special Order (Contact sales@gearsoffuture.com)
Key Features:
13.5 to 621mm Lens for 2/3" Cameras
46x Zoom Ratio with 2x Extender
Included Optical Shift Stabilization
Motorized Extender via Servo Control
9-Blade Iris for Natural Bokeh
Rich Tonal Gradation
Macro Function, Anti-Vibration Tech

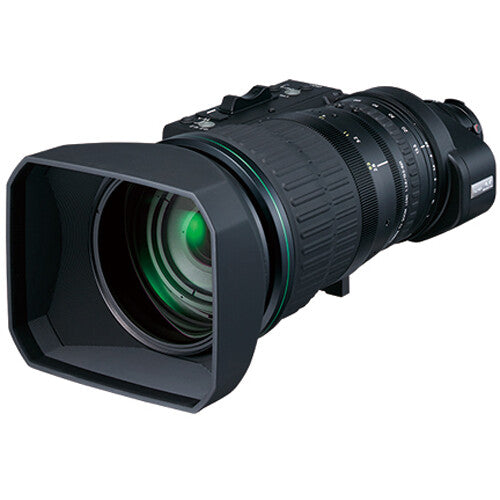

TheUA46x13.5BERD-G1 2/3" ENG 4K LensfromFujinonis a 13.5 to 621mm zoom lens offering 4K capture in a portable broadcast form. Its high 46x zoom ratio doubles to 27 to 1242mm when you engage its motorized 2x extender. The digital-servo UA24X7.8BERD features a fast f/2.8 maximum aperture, cutting-edge optical design with rich tonal gradation, and a 9-blade iris that produces a natural-looking bokeh. The 4K Plus Premier series UA46x13.5BERD-G1 zoom offers the selectable OS-TECH optical shift stabilization to compensate for the level of detected vibration, smoothing your longer shots.
Portable 4K Broadcast Lens
The UA46x13.5BERD offers a high 46x zoom ratio and a long focal length of 621mm in a portable 4K broadcast lens
Optimal Imaging
Cutting-edge optical design produces optimal imagery with rich tonal gradations
Built-In Stabilization
The proprietary OS-TECH stabilization with an anti-vibration mechanism supports up to 4K video
Servo Drive
The high-performance servo drive unit provides comfortable, ergonomic operation
Natural Bokeh
A 9-blade iris creates natural-looking bokeh effects
Technical Specifications:
Sensor Compatibility
2/3" (16:9)
Focal Length
13.5 to 621mm
With Extender: 27 to 1242mm
Built-In Extender
2x (Motorized)
Zoom Ratio
46x
Angle of View
Wide: 0.9 x 0.5° (H x V)
Tele: 39.1 x 22.6° (H x V)
With 2x Extender
Wide: 0.4 x 0.2° (H x V)
Tele: 20.1 x 11.4° (H x V)
Maximum Aperture
f/2.8 to 5.5
With Extender: f/5.6 to 11
Focus Type
Servo
Iris Type
Servo
Macro
Yes
Minimum Object Distance
9.1' / 2.8 m
Macro: 2.4" / 6 cm
Optical Image Stabilization
Yes
Certifications
CAN-ICES-3(B)/NMB-3(B), IEC-003, FCC-Class B
*as per Manufacturer
Dimensions
5.1 x 14.3" / 13.0 x 36.4 cm (ø x L)
Weight
12.8 lb / 5.8 kg
In the Box:
Fujinon UA46x13.5BERD-G1 2/3" 46x ENG 4K Lens with Stabilization
