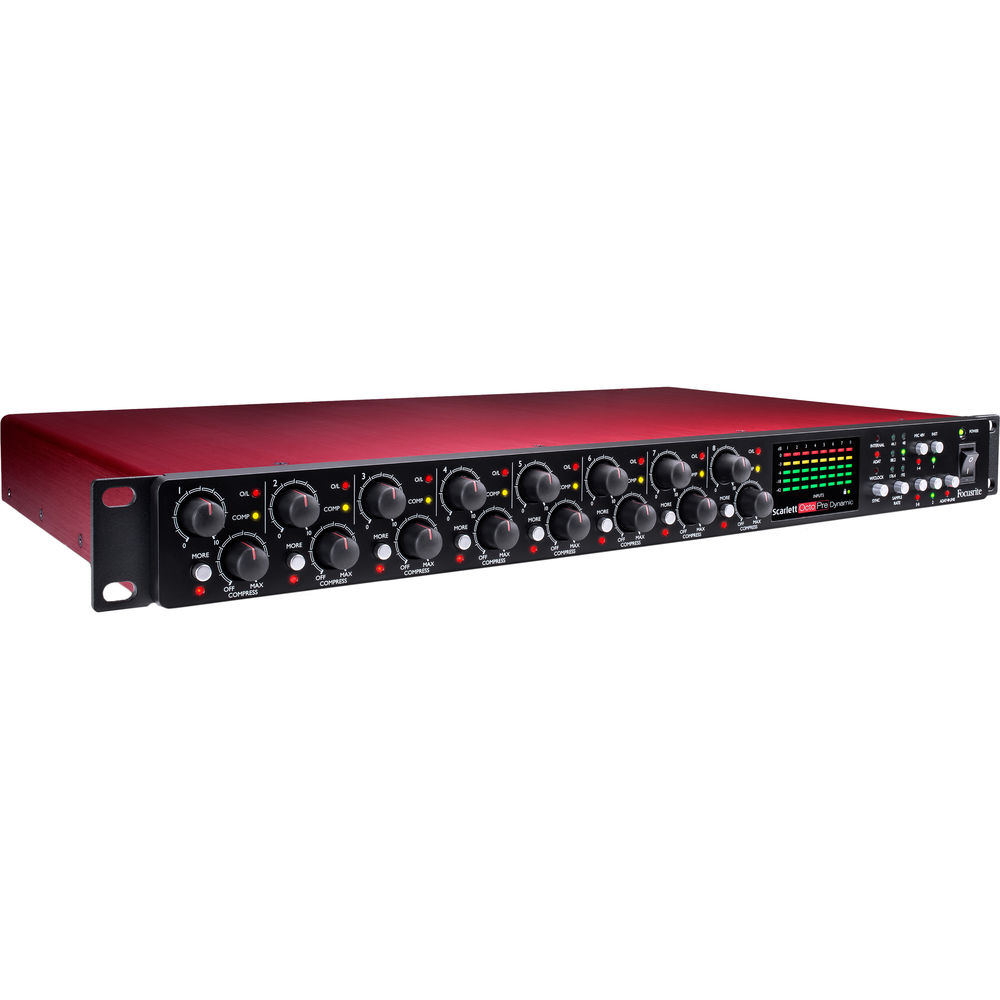

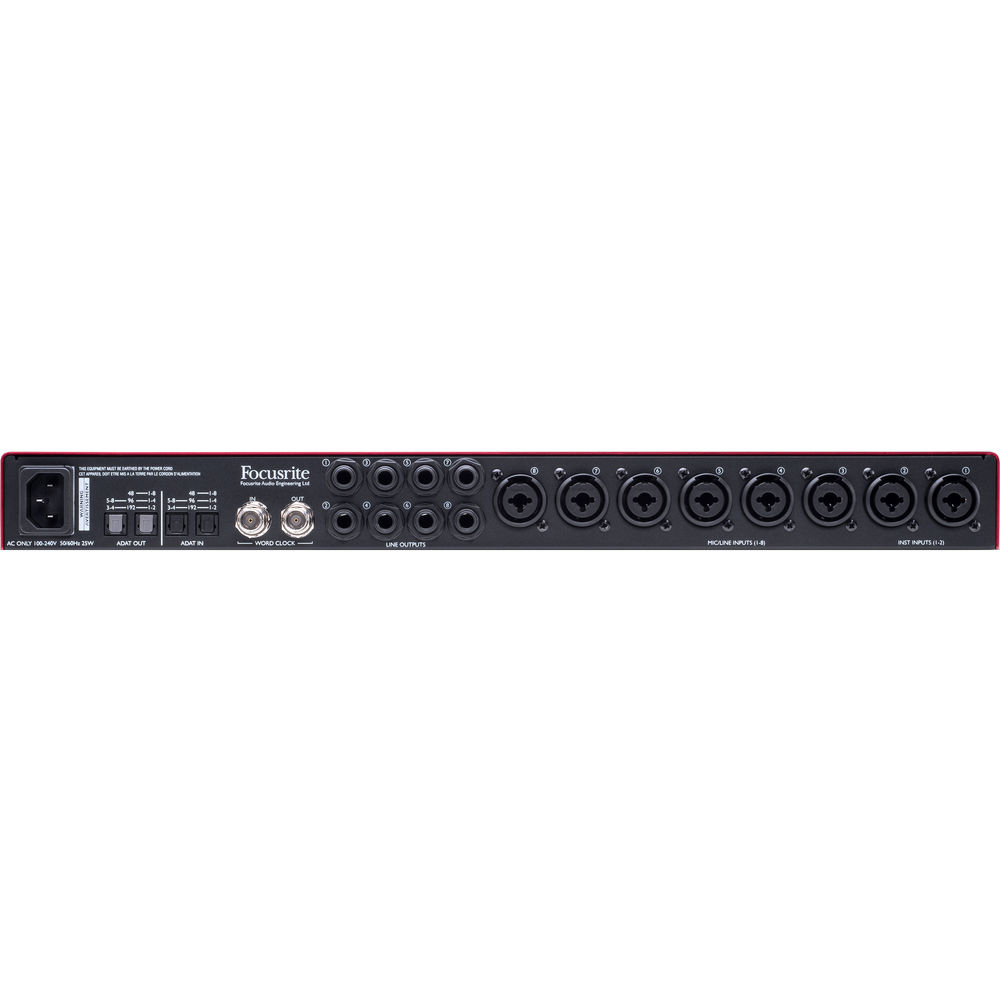

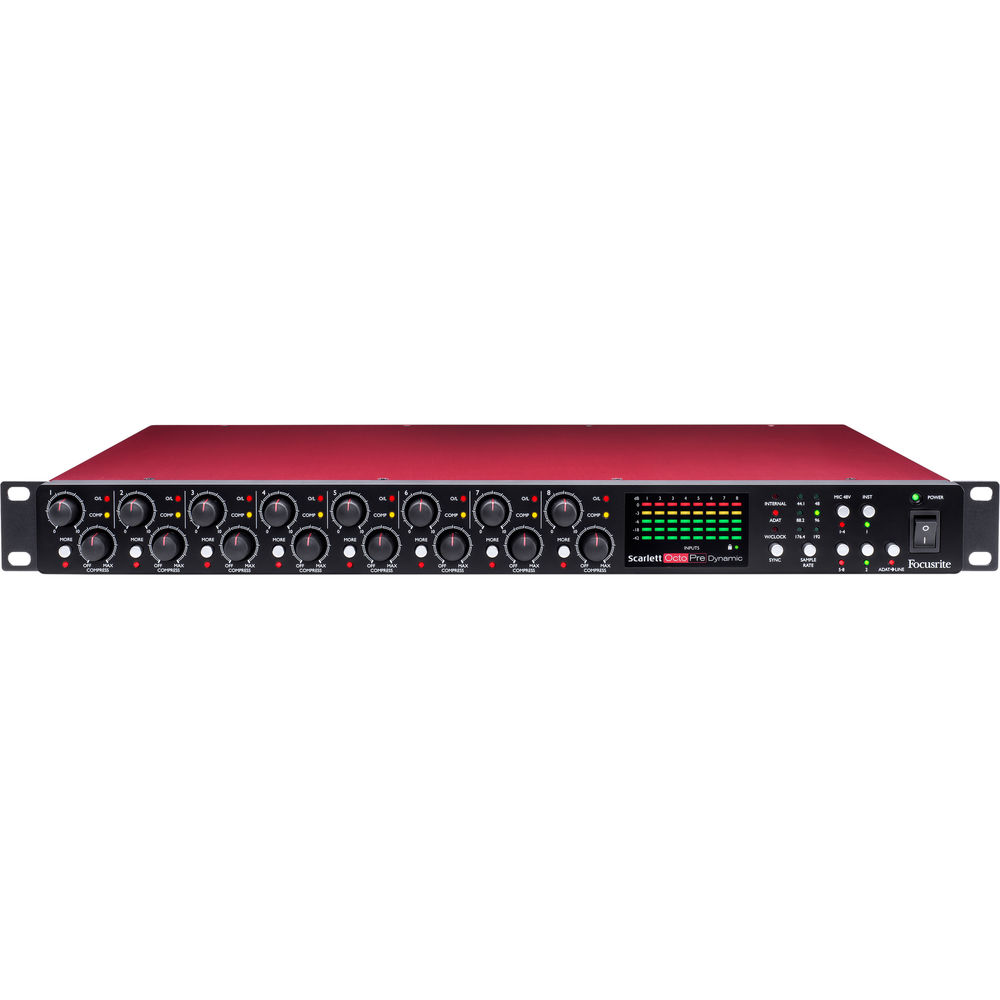

The Scarlett OctoPre Dynamic from Focusrite is an eight-channel preamp and compressor suitable for expanding the input array of any studio or use onstage. Connections are secured via eight combination inputs, each one giving you jacks that accept 1/4" and XLR cables. Two of the inputs can handle Hi-Z instruments as well, allowing you to plug in guitars and basses. Eight 1/4" line outs are also available via the rear panel. Also provided are eight channels of AD/DA conversion up to 192 kHz. Combined with the unit's back-panel ADAT I/O section, these features render the Scarlett OctoPre Dynamic quite suitable for expanding the input and output capability of interfaces such as the Scarlett 18i8, 18i20, or indeed, any interface connectable via ADAT.
As its name suggests, the Scarlett OctoPre Dynamic provides a compressor on each individual input—more specifically, a soft-knee VCA compressor operated by a signal knob. You can use this compressor in transparent mode for a more natural transient-taming response, or depress the More button to achieve a more noticeable sound out of the compressor. Along with the dynamic controls, the high-headroom, 2nd-generation Scarlett mic preamps render the unit suitable for recording loud sound sources, such as drums.

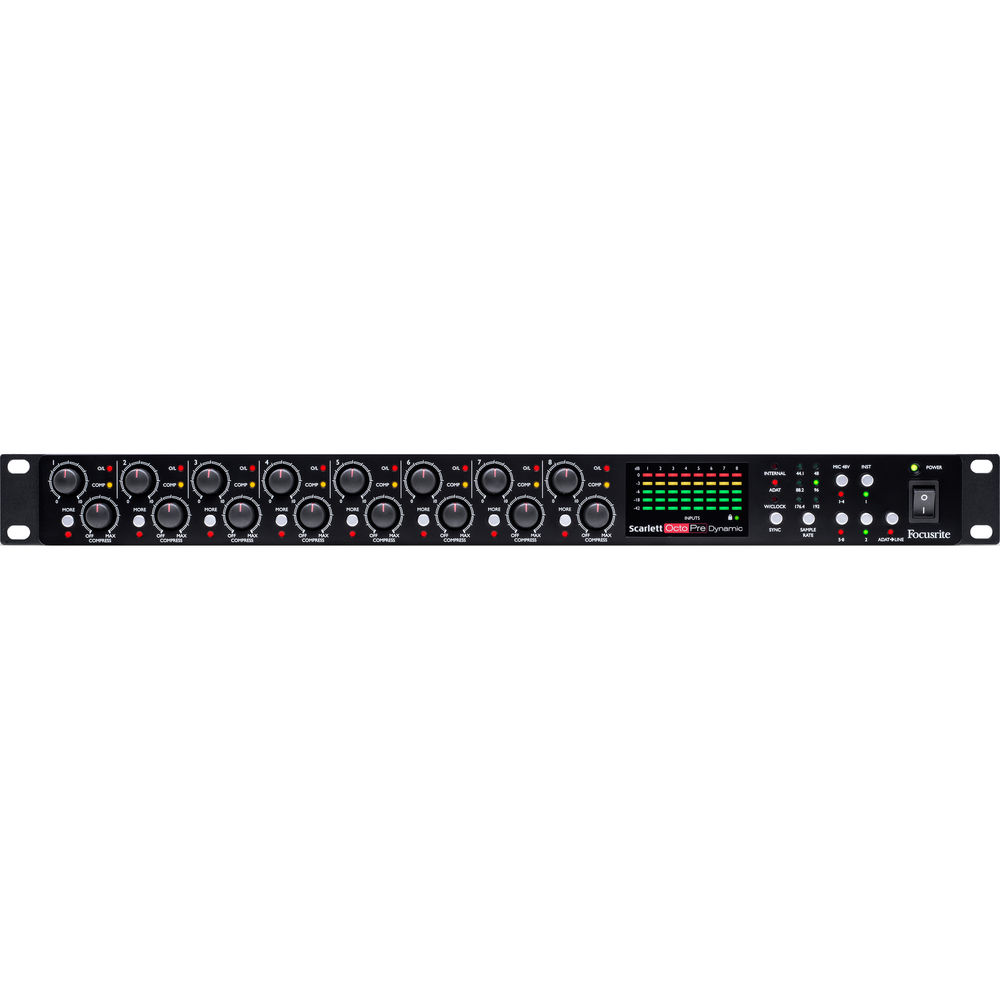

The 48V phantom power is available to power condenser microphones, as is a sample-rate selection button, a word clock sync button, instrument mode button, and more—all controllable from the front panel. 5-segment LED input metering provides an accurate readout of your levels. With its flexibility in accepting/routing signal via ADAT or analog connection points, you'll find this device useful in both studio and live environments.
Channels of I/O
8 Input / 8 Output
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
8
Analog Audio I/O
8x Combo XLR-1/4" TRS Mic/Line Input8x 1/4" TRS Line Output
Digital Audio I/O
2x TOSLINK Optical ADAT Output
OS Compatibility
WindowsmacOS
Power Requirements
AC/DC Power Adapter (Included)
Built-In Microphone
No
Expansion Slots
Gain/Trim Range
50 dB
USB (Non-Host)
Sync I/O
1x BNC Word Clock Input1x BNC Word Clock Output
Network I/O
MIDI I/O
Frequency Response
20 Hz to 20 kHz
Maximum Input Level
+22 dBu
Maximum Output Level
+16 dBu at 0 dBFS
Impedance
1/4" Line Inputs:49 KilohmsCombo XLR-1/4" Mic Inputs:1 MegohmLine Outputs:136 Ohms
Sample Rates
44.1 / 48 / 88.2 / 96 / 192 kHz
Bit Depths
Up to 24-Bit
AC/DC Power Adapter
Included
Rackmount Size
1 RU
Dimensions
23.9 x 11.3 x 1.8" / 60.7 x 28.6 x 4.4 cm
Weight
7.3 lb / 3.3 kg
