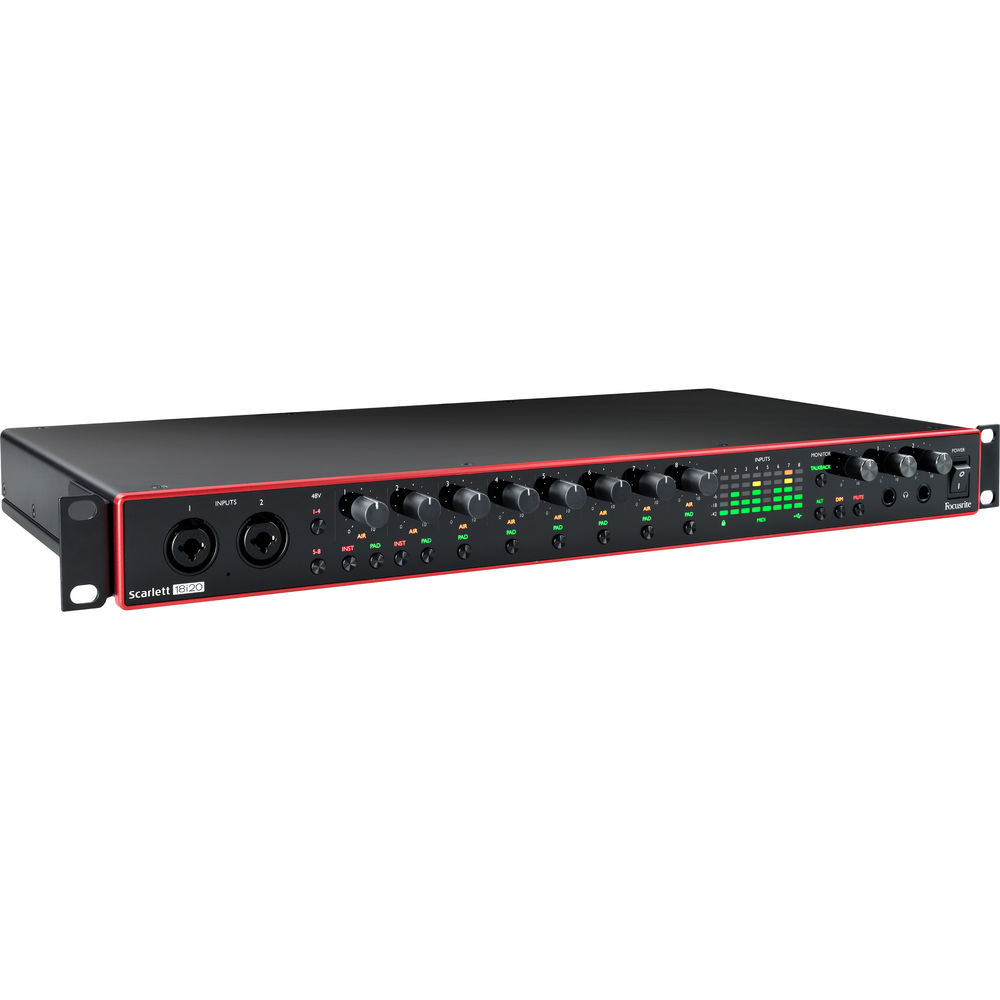

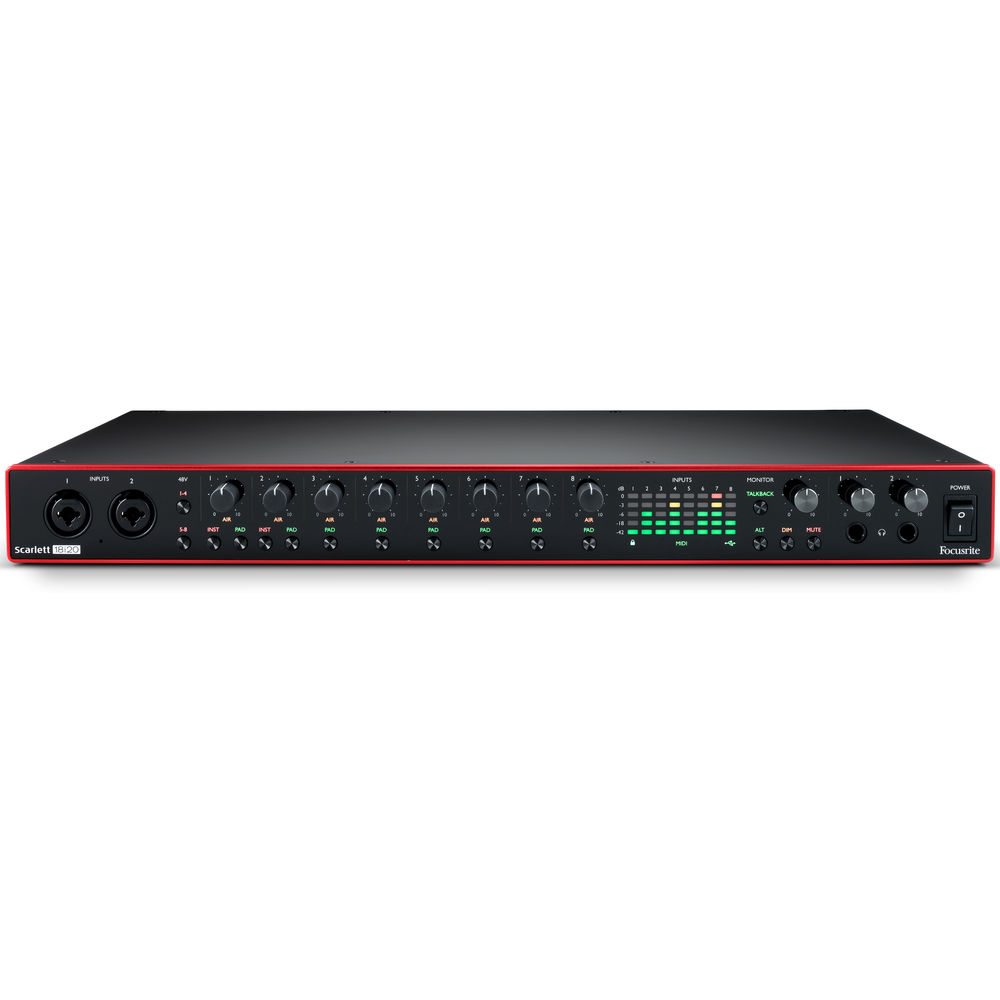

Focusrite Scarlett 18i20 USB-C Audio/MIDI Interface (3rd Generation)

Focusrite Scarlett 18i20 USB-C Audio/MIDI Interface (3rd Generation)

Name: Focusrite Scarlett 18i20 USB-C Audio/MIDI Interface (3rd Generation)
Brand: Focusrite
SKU: Scarlett 18i20 (Gen.3)
Price: 66077 INR
Availability: InStock

Rs. 69,555.00 Rs. 66,077.00

- +

Focusrite ⁄ Focusrite Scarlett 18i20 USB-C Audio/MIDI Interface (3rd Generation)

Key Features:

Bands and Project Studios
AC Powered / Mac, Windows, iPadOS
8 Scarlett Mic/Line Preamps, 2 Hi-Z Ins
Dual Headphone Outs, 10 Line Outs
24-Bit / 192 kHz AD/DA Conversion
Air Mode, Pads, Onboard Talkback
48V, Virtual Loopback, Wordclock Output
Separate Headphone and Monitor Levels
MIDI, S/PDIF, ADAT I/O
Ableton Live Lite, Hitmaker Expansion

Built to deliver top-shelf sound in a rack-friendly and easy-to-use format for bands, project studio engineers, and panel podcasters who need mix-minus functionality when taking calls, the third-generation Focusrite Scarlett 18i20 18x20 USB-C audio/MIDI interface lets artists, engineers, and producers score pro-level tone with no learning curve.

Equally capable for tracking vocals and instruments, the eight improved Scarlett microphone preamps feature switchable phantom power for condenser mics, pads to prevent distortion on loud input signals, and a selectable-per-channel Air circuit, which adds clarity-enhancing brightness based on Focusrite's legendary ISA preamplifier.

The first two XLR-1/4" combo inputs can accept unbalanced instrument level from guitars, basses, synthesizers, and drum machines, or balanced line level from a mixing console or outboard preamps, while combo inputs 3-8 support mic- or line-level sources.

Unlocking the ability to record at standard CD quality or high-fidelity resolutions, the 24-bit / 192 kHz AD/DA converters ensure that signals are captured and reproduced with detail and accuracy. With four balanced 1/4" line/monitor outputs, six additional 1/4" line outs, two 1/4" stereo headphone jacks, and independent volume control of the two headphone outputs and the main/alt speaker outs, the Scarlett 18i20 can simultaneously feed multiple monitoring systems and outboard effects processors with ease.

The virtual loopback function on the Scarlett 18i20 empowers podcasters with an easy mix-minus setup for taking calls without the caller being distracted by a delayed audio return signal. Plus, the onboard talkback feature and built-in talkback mic streamline the task of communicating with your artists during recording sessions. You can even utilize your iPad, iPhone, or iPod touch to wirelessly control the Scarlett 18i20.

Utilize the dual ADAT optical input and output ports to interface external 8-channel AD/DA converters (available separately). Traditional 5-pin MIDI I/O is provided for seamless integration of MIDI equipment such as a keyboard or sound module, and S/PDIF coaxial ports allow proper routing of stereo digital gear.

With its AC powering for stable power in the studio, space-saving USB Type-C connection, and extensive software bundle including elementary versions of Ableton Live and Avid Pro Tools music production workstations, virtual instruments, plug-in effects, loops, and more, the Scarlett 18i20 gives you plenty of powerful tools to kick-start your inspiration. Just connect the Scarlett 18i20 to an AC power source via the supplied power cable, plug into your Mac/Windows computer via USB, fire up your preferred audio recording software, and let the creativity flow.

Great for Bands, Project Studios, and Large Home Setups

With its 1 RU size, USB-C connectivity, and AC powering (via the included power cable), the Scarlett 18i20 is well suited for bands, project studios, and large home setups in need of plenty of analog and digital I/O in a rackmountable form factor.

Pristine, High-Resolution Conversion

Thanks to its high-performance 24-bit / 192 kHz AD/DA converters, the Scarlett 18i20 is equipped to capture any source from vocals to acoustic and electric instruments clearly and accurately, so you never have to worry about the interface clouding your sound.

Scarlett Mic Preamps with Customizable Tone

The eight upgraded third-generation Scarlett mic preamps feature switchable 48V phantom power (in banks of four channels) to accommodate your favorite condenser mics, and a selectable-per-channel Air setting, which reproduces the Air effect of Focusrite's original ISA mic preamp to impart enhanced brightness and openness on your vocal recordings. Use the selectable input pads to prevent distortion when tracking high-level sources such as acoustic drums or electric guitars equipped with active pickups.

Instrument/Line Switching

Thanks to switchable instrument/line settings, the first two XLR-1/4" combo inputs on the Scarlett 18i20's front panel allow distortion-free recording of instruments such as electric guitar and bass, synthesizers, or drum machines with no need for DI boxes or amplifiers, or in Line mode they can be used for line-level sources like a mixer's stereo output or the line outs from external mic preamps or guitar/bass amps. Combo inputs 3-8 are able to handle mic- or line-level sources.

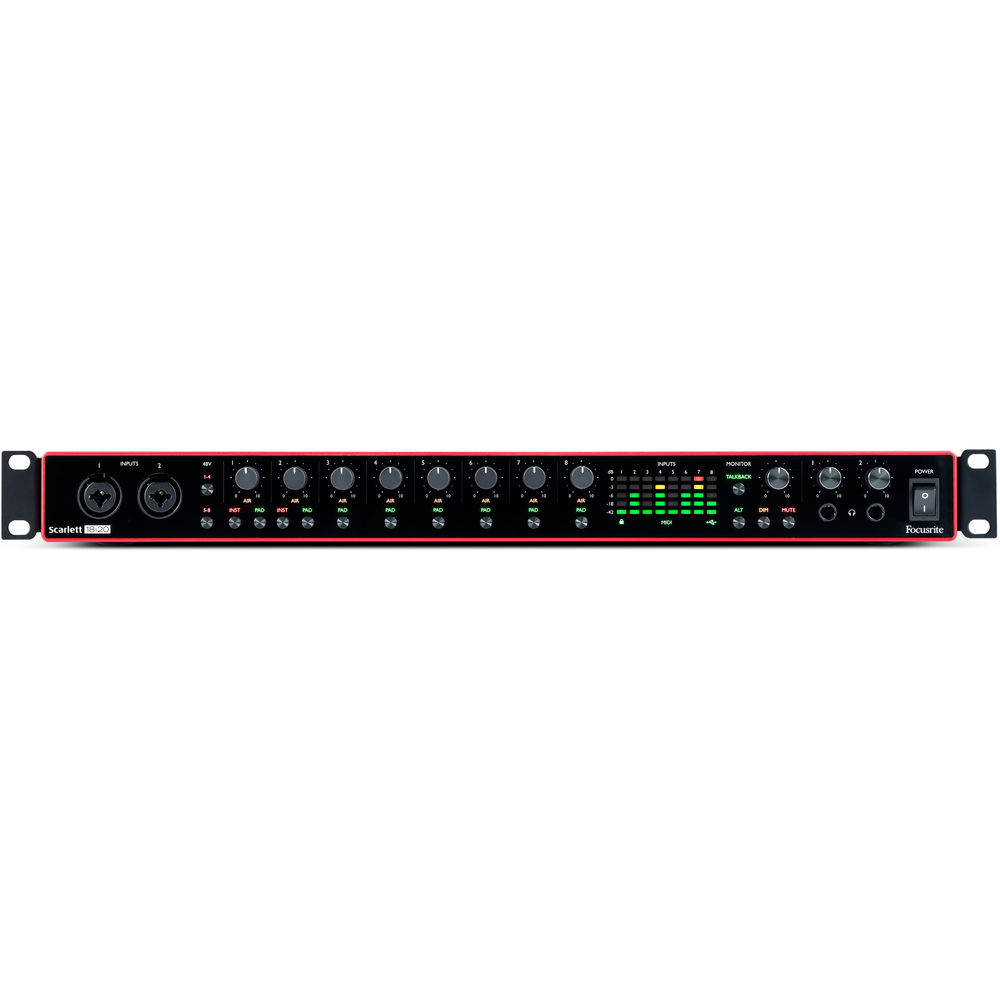

Straightforward Controls and Level Indication

The Scarlett 18i20's independent gain knobs and 5-segment LED input meters mean that you'll have no trouble getting set up and dialing in the perfect levels.

Dual Independent Headphone and Main/Alt Monitor Outputs

The first four balanced 1/4" TRS monitor outputs on the rear panel enable hum-free connectivity with two pairs of balanced studio monitors, and their anti-thump technology protects your speakers if the interface is powered on while the speakers are powered on. To allow critical listening through headphones for two people, there are two front-panel 1/4" headphone jacks, each with its own dedicated volume knob. Another knob is allocated for controlling the volume of the main monitor outputs (1-2) or the alt monitor outputs (3-4), and buttons are provided for dim and mute functions.

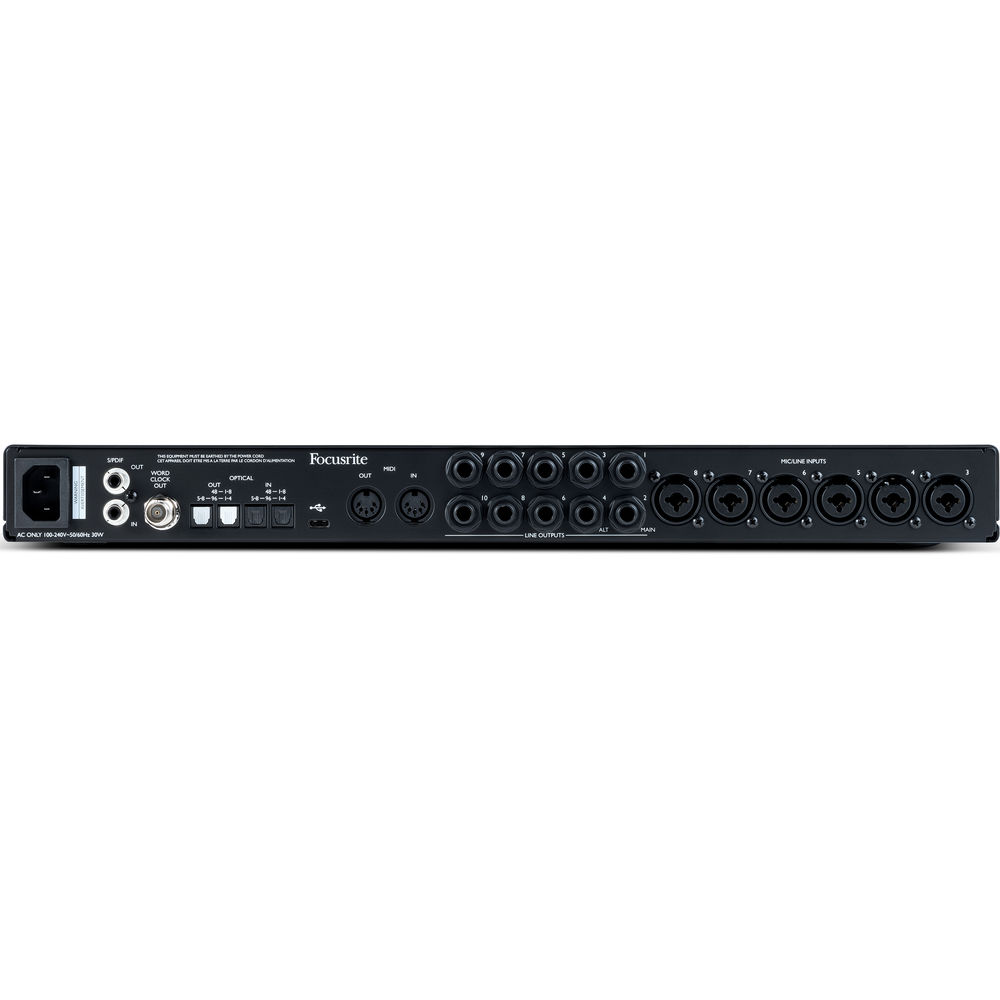

Rear-Panel Line Outputs

Six additional balanced 1/4" TRS line outputs can be found on the rear panel of the Scarlett 18i20. Use these to route tracks from your session into separate analog inputs on a console or summing mixer, or to feed outboard effects processors.

Virtual Loopback for Mix-Minus and More

The Scarlett 18i20 features one pair of virtual loopback inputs, allowing you to capture a stereo feed of any combination of hardware input and software playback channels, making podcasting, live streaming, and sampling tasks much easier.

MIDI I/O

Spin the Scarlett 18i20 around and you'll find traditional 5-pin MIDI I/O ports, perfect for hooking up a MIDI keyboard controller, a synthesizer/workstation, or a sound module for MIDI recording, editing, and sequencing.

Stereo S/PDIF Digital I/O

In addition to having flexible analog I/O, the Scarlett 18i20 offers S/PDIF stereo digital input and output ports via coaxial jacks. Use the S/PDIF input to record the output of a digital DJ mixer or an external mic preamp outfitted with an A/D converter and S/PDIF output. Run the Scarlett's S/PDIF output to a high-end D/A converter for extra processing or mastering with analog gear.

8-Channel ADAT Optical I/O

The inclusion of dual ADAT optical input ports on the Scarlett 18i20 means that you can record up to eight more channels of audio at up to 96 kHz (four channels at 192 kHz), a perfect way to pipe in an external 8-channel mic preamp with an onboard A/D converter.

Dual ADAT optical outputs are also present, should you wish to send tracks digitally (skipping a D/A stage) to a headphone distribution system, an external converter, or a digital mixer.

Wordclock Output

A BNC output provides a stable wordclock signal for synchronization of external digital equipment such as other audio interfaces or a digital mixing console.

Powerful Software Control

Route your audio, cue mix, loopback, and monitor mixes from your Mac or Windows computer via the Focusrite Control desktop software. Tap into even more convenience by using the Focusrite Control iOS app on your iPad, iPhone, or iPod touch to remotely control your Scarlett when connected to Focusrite Control Desktop.

All the Tools You Need to Start Recording

The Scarlett line of interfaces comes with some of the best loved software tools in the business.

Technical Specification:

Channels of I/O	Analog: 8 Inputs / 10 Outputs Digital: 10 Inputs / 10 Outputs
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	8 Preamps
Analog Audio I/O	2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 6x Combo XLR-1/4" TRS Balanced Mic/Line Input 10x 1/4" TRS Balanced/Unbalanced Line/Monitor Output 2x 1/4" TRS Unbalanced Headphone Output
Digital Audio I/O	1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output 1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support) 1x TOSLINK Optical ADAT Input (S/MUX Support) 1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support) 1x TOSLINK Optical ADAT Output (S/MUX Support)
Host Connection	1x USB-C
OS Compatibility	macOS 10.12 macOS 10.13 macOS 10.14 macOS 10.15 macOS 11 Windows 7 or Later
Power Requirements	AC Input
Channels of I/O	Analog: 8 Inputs / 10 Outputs Digital: 10 Inputs / 10 Outputs
Built-In DSP	No
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	8 Preamps
Built-In Microphone	No
Input Level Adjustment	8x Knob
Expansion Slots	No
Pad	-10 dB (Switchable per Channel)
Gain/Trim Range	Mic/Line Inputs: 56 dB
High-Pass Filter	No
Solo/Mute	Mute per Master
Analog Audio I/O	2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 6x Combo XLR-1/4" TRS Balanced Mic/Line Input 10x 1/4" TRS Balanced/Unbalanced Line/Monitor Output 2x 1/4" TRS Unbalanced Headphone Output
Phantom Power	48 V, Selectable On/Off (on 8 Channels)
Digital Audio I/O	1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output 1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support) 1x TOSLINK Optical ADAT Input (S/MUX Support) 1x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support) 1x TOSLINK Optical ADAT Output (S/MUX Support)
Host Connection	1x USB-C
Host Connection Protocol	USB 2.0
USB (Non-Host)	No
Sync I/O	1x BNC Word Clock Output
Network I/O	No
MIDI I/O	1x DIN 5-Pin Input 1x DIN 5-Pin Output
Frequency Response	20 Hz to 20 kHz ±0.1 dB
Maximum Input Level	Mic Inputs: +9 dBu (Min Gain) +16 dBu (Min Gain, with Pad) Hi-Z Inputs: +12.5 dBu (Min Gain) +14 dBu (Min Gain, with Pad) Line Inputs: +22 dBu (Min Gain) +29 dBu (Min Gain, with Pad)
Maximum Output Level	Line Outputs: +15.5 dBu (Balanced) Headphone Outputs: +7 dBu
Impedance	Mic Inputs: 3 Kilohms Hi-Z Inputs: 1.5 Megohms Line Inputs: 60 Kilohms Line Outputs: 430 Ohms Headphone Outputs: < 1 Ohm
Dynamic Range	Mic Inputs: 111 dBA Hi-Z Inputs: 110 dBA Line Inputs: 110.5 dBA Line Outputs: 108.5 dBA Headphone Outputs: 104 dBA
THD+N	Mic Inputs: < 0.0012% Hi-Z Inputs: < 0.03% Line Inputs: < 0.002% Line Outputs: < 0.002% Headphone Outputs: < 0.002%
EIN	Mic Inputs: -128 dB A-Weighted
Sample Rates	Up to 192 kHz (AD/DA Conversion)
Sample Rate Conversion	No
Bit Depths	Up to 24-Bit (AD/DA Conversion)
Sync Sources	ADAT, Internal, S/PDIF
Memory Card Slot	No
OS Compatibility	macOS 10.12 macOS 10.13 macOS 10.14 macOS 10.15 macOS 11 Windows 7 or Later
Mobile App Compatible	Yes: iPadOS Only
Mobile Device Compatibility	No
Required Hardware	Available USB 2.0 Port USB Cable (Included)
Internet Connection	Required for Software/Driver Download
Power Requirements	AC Input
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	30 W
Rackmount Size	1 RU (with Included Hardware)
Dimensions	19 x 10.23 x 1.83" / 48.3 x 25.98 x 4.65 cm
Weight	7.2 lb / 3.3 kg
