Name: Focusrite RedNet 6 - Bi-Directional MADI to Dante Network Bridge Interface
Brand: Focusrite
SKU: RedNet 6
Price: 166985 INR
Availability: InStock

Rs. 175,774.00 Rs. 166,985.00

- +

Focusrite ⁄ Focusrite RedNet 6 - Bi-Directional MADI to Dante Network Bridge Interface

Key Features:

Up to 64 MADI Channels I/O
Coaxial and Optical MADI Support
Asynchronous Sample Rate Converter
External Word Clock I/O
RedNet Control Software
1U Rack-Mount Chassis
Internal Universal Power Supply

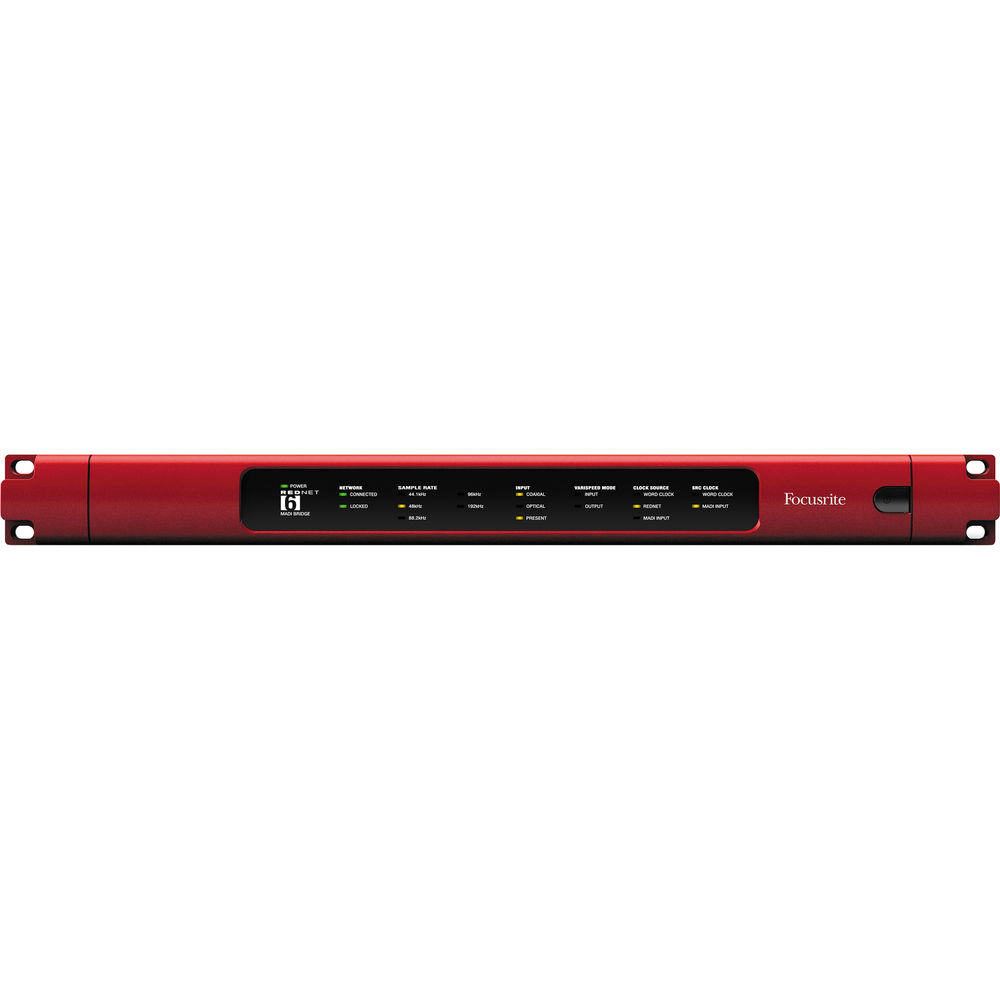

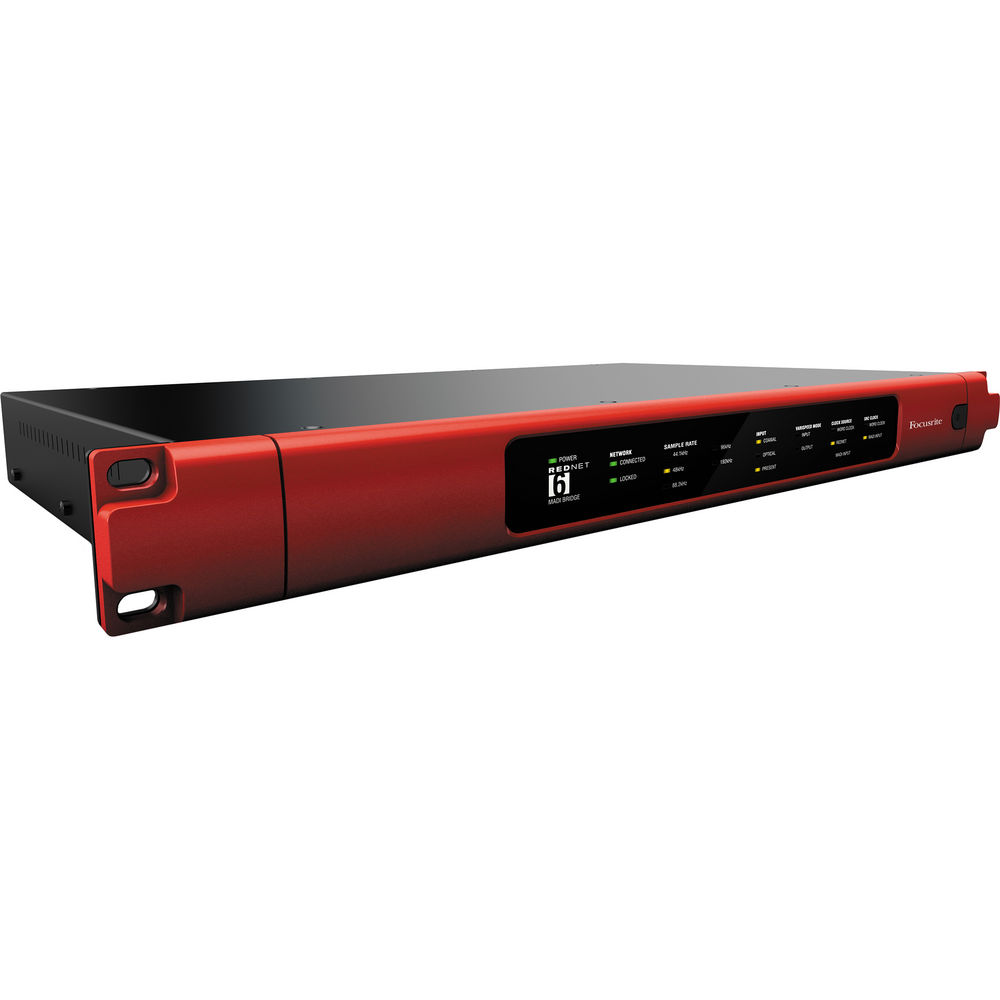

RedNet 6 from Focusrite is a bridge interface that seamlessly connects a MADI system and a RedNet system together. Applications include connecting RedNet to digital mixing consoles, interfaces and cards that use MADI; or conversely, extending a MADI system with RedNet's versatile, quality audio interfaces and connectivity. The interface supports both coax and optical interfaces with simple connectivity.

Either the RedNet systems or MADI streams can slave to an external clock. The interface supports up to 64 channels of digital audio input/output at 44.1, 48 kHz, 32 channels at 96 kHz, and 16 at 192 kHz from the MADI system. Each input and output has asynchronous sample rate converters (ASRC) allowing MADI and RedNet systems to operate simultaneously at different sample rates.

RedNet Control software allows remote routing and control from the audio computer system via a software control panel with no hardware patching required. The unit is housed in a single space, rack-mount chassis and features an internal, universal power supply.

Add MADI to RedNet, or RedNet to MADI

Coaxial and optical interfaces supported

External Wordclock I/O for either RedNet or MADI

Up to sixty-four MADI channels

Asynchronous sample rates throughout

Connects to a computer via single Cat6 Ethernet cable

Remote control via RedNet software

1U rackmount chassis

Technical Specification:

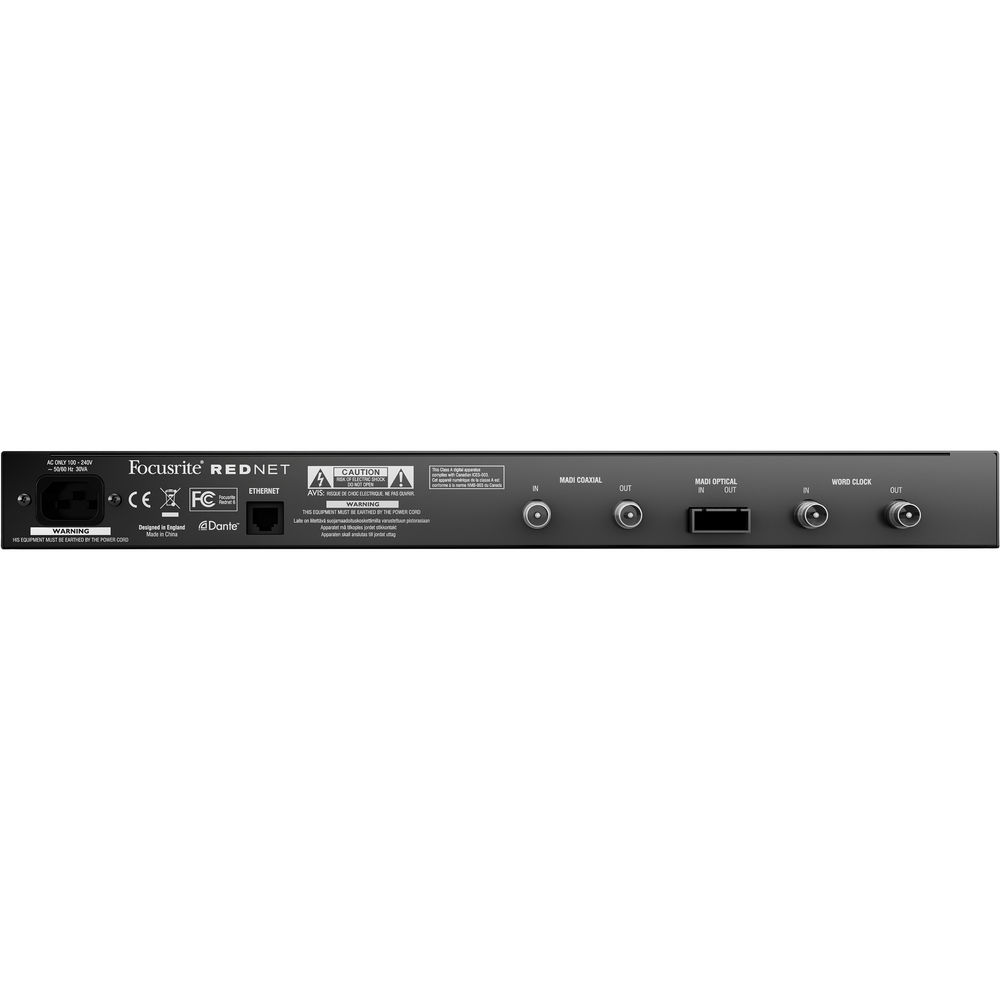

Wordclock	Connectors: 2 x BNC, 75 Ω Output: 5V 75 Ω DC coupled Input: Locks down to 0.2V AC-coupled (75 Ω software switchable termination)
MADI Coaxial	Electrical Standard: As per AES 10:2008 Recommended Cable: 75 Ω characteristic impedance Connectors: 2 x BNC, 75 Ω Mode: 2 x Yellow Signal Present: 16 x Tri-color (green = signal present; amber = -6 dBFS; red = 0 dBFS)
MADI Optical	Optical Standard: As per AES 10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166) Recommended Cable: Multi-mode, graded-index, 62.5 μm core,125 μm cladding Connectors: 1 x Duplex-SC
Power Requirements	100~240V AC, 50/60 Hz Power Consumption: 30 W
Dimensions	19.00 x 9.80 x 1.75" (483 x 249 x 44 mm)
Weight	8.2 lb (3.7 kg)
