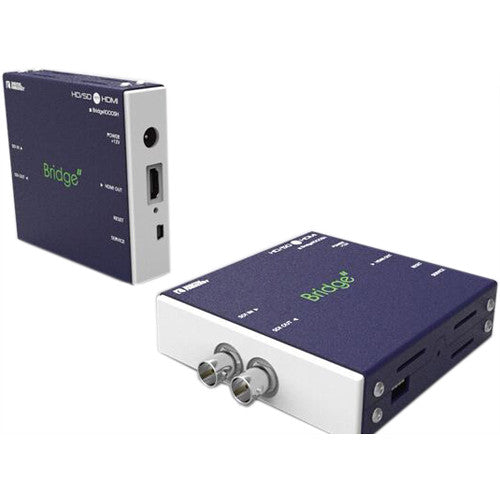

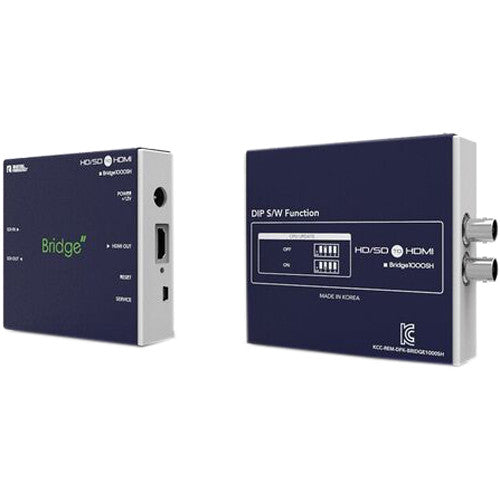

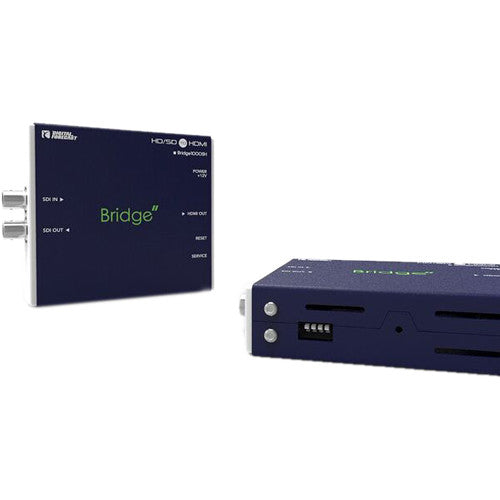

DIGITAL FORECAST Bridge1000 SH HD-SDI to HDMI Converter
The DIGITAL FORECAST Bridge1000 SH HD-SDI to HDMI Converter can be used for converting an HD-SDI signal of SMPTE standards into a HDMI signal. It can support formats up to 1080p60 and supports 1 re-clocking out.
- Input standard format bypass
- SDI signal monitoring for TV
- Low power consumption
Technical Specifications:
|
Inputs |
1 x HD/SDI (SD/HD/3G) |
|
Output |
1 x HD/SDI out (Re-clocking out) 1 x HDMI out (SD/HD/3G) |
|
Formats |
Supports HDMI v1.3 Supports multi-rate SDI formats SMPTE 125M: NTSC (480i 59.94), PAL (576i 50) SMPTE 296M: 720p (60/59.94/50) SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98) SMPTE-424M: 1080p (60/59.94/50) 3G |
|
Input Voltage |
12 VDC |
|
Operating Voltage |
7 to 24 VDC |
|
Power Consumption |
5 W Maximum: 6 W |
|
Operating Temperature |
-4 to 158°F (-20 to 70°C) |
|
Humidity |
0 to 95% RH, non-condensing |
|
Dimensions |
4.17 x 3.77 x 0.98" (106 x 96 x 25 mm) |
|
Weight |
5.8 oz (165 g) |
