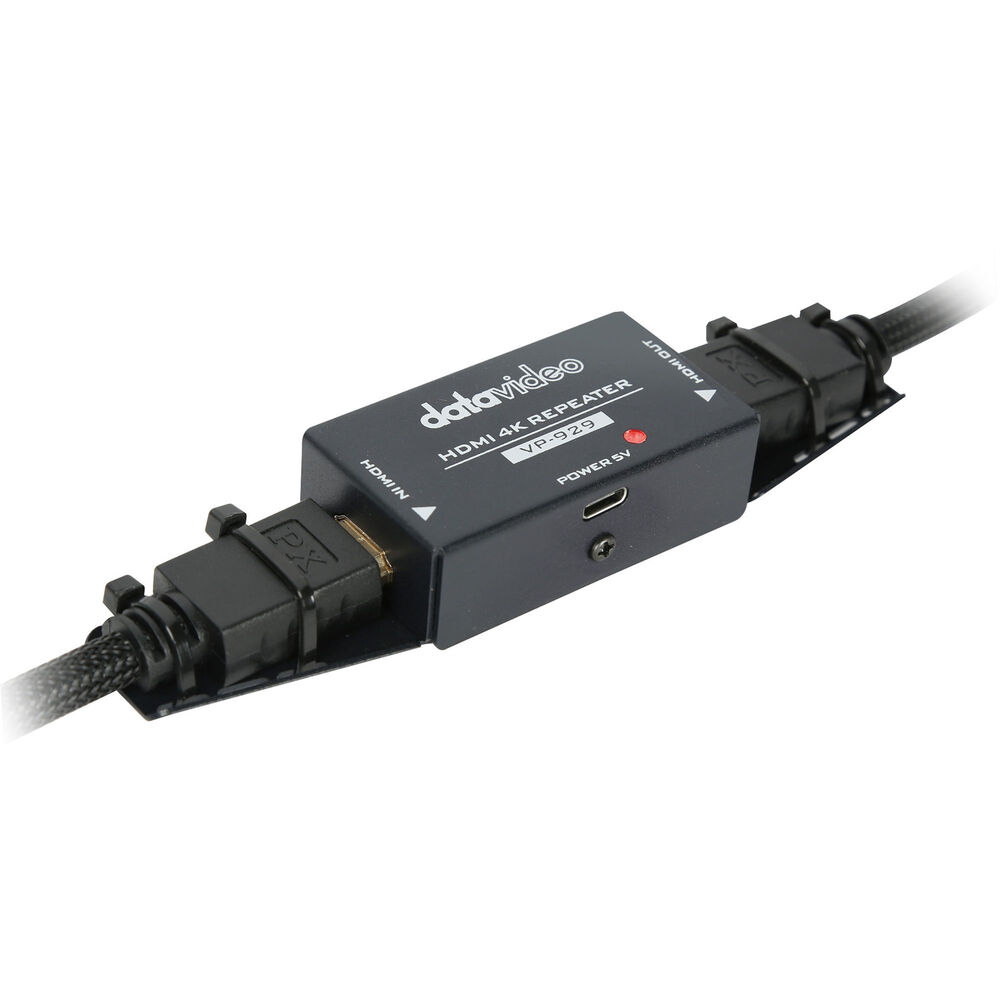

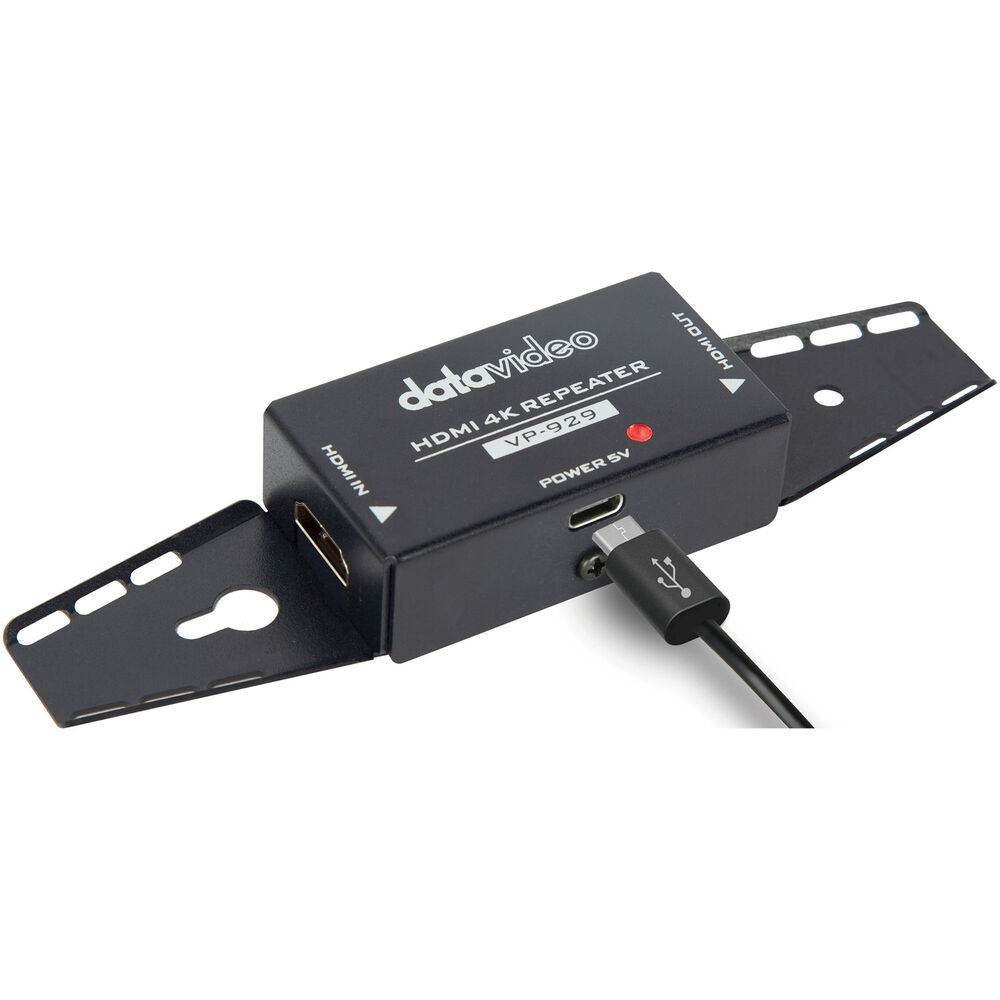

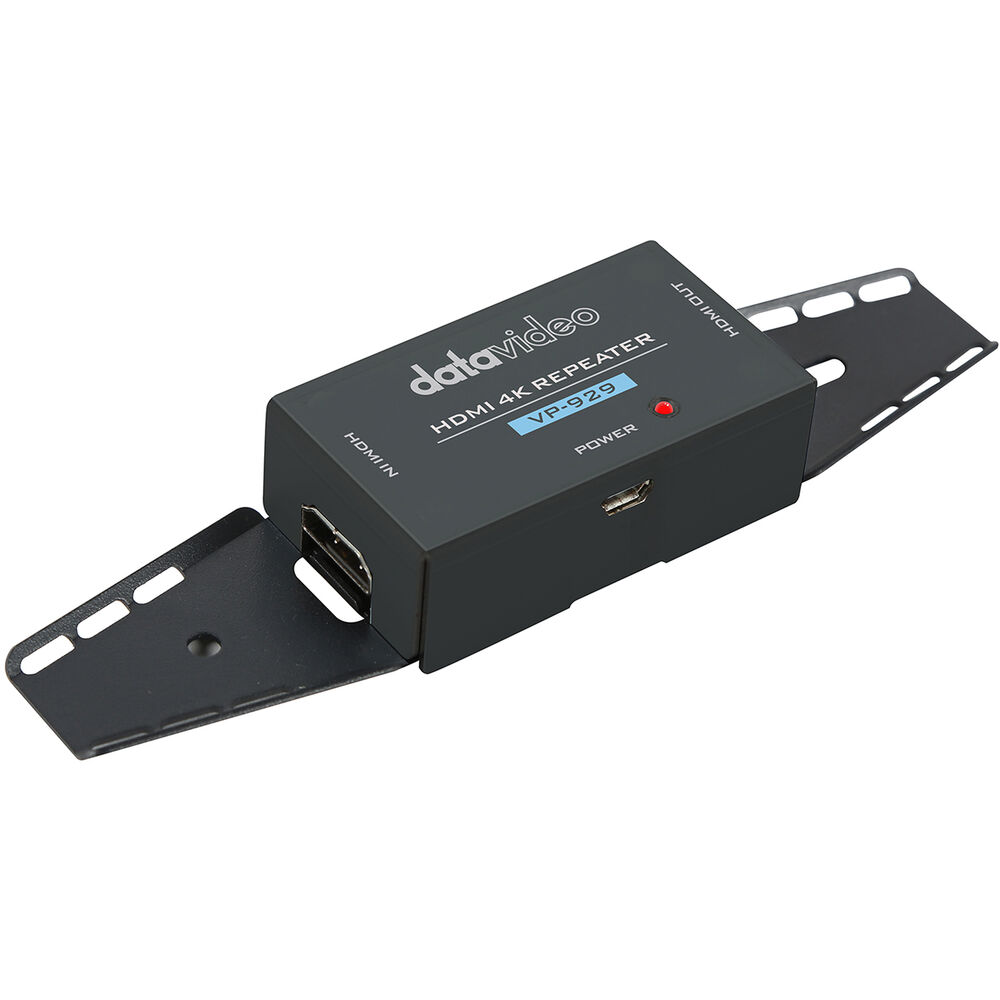

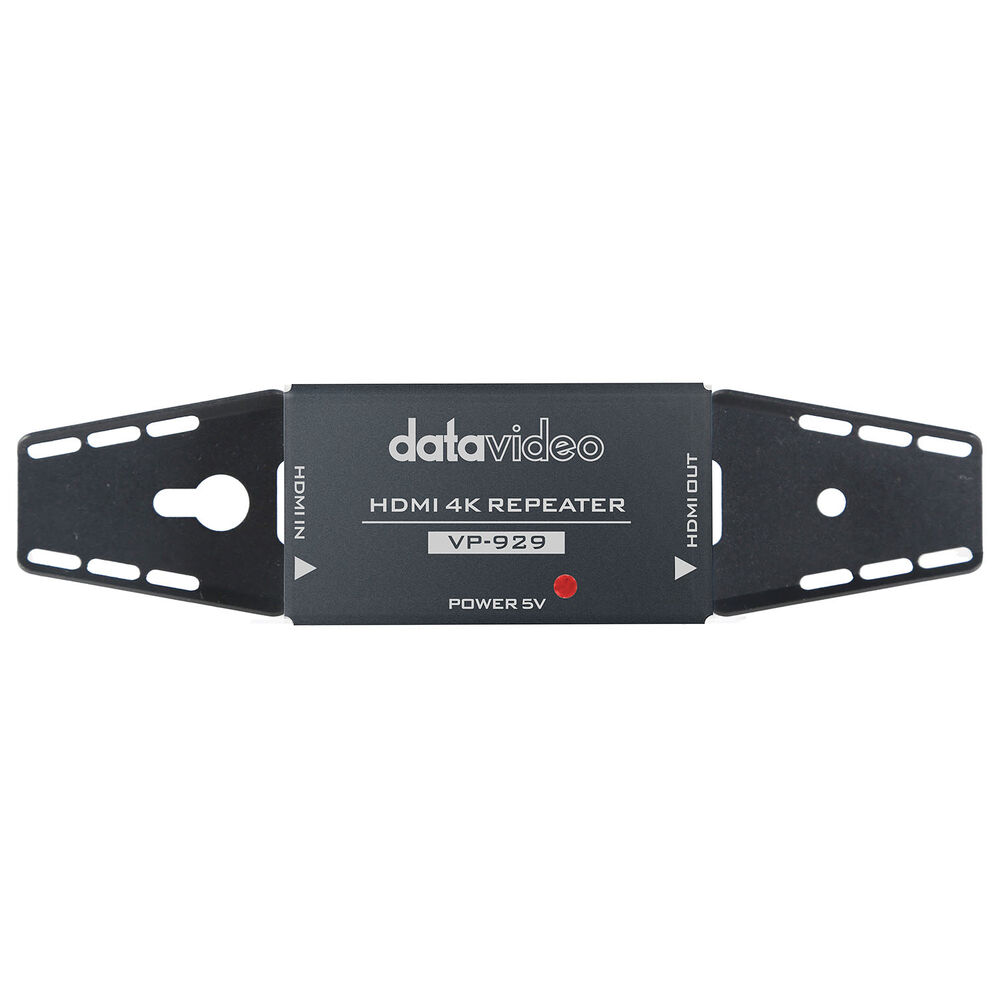

Extends your HDMI 2.0 signal with 1080p or DCI 4K60 resolutions up to 197' with the plug-and-play 4K HDMI Repeater from Datavideo. Adding a repeater to your HDMI video setup bypasses the usual limitations on HDMI cable lengths. No drivers are required to set up and configure the repeater, for easy, plug-and-play operation.This repeater can extend UHD/DCI 4K 4:4:4 signals up to 33', HD 1080p signals up to 49', and by cascading/daisy-chaining multiple repeaters, you can extend an HD 1080p HDMI signal up to 197'. The signal also supports up to 7.1 surround embedded audio, and it also supports HDCP 2.2.The compact and durable design of this unit allows it to be discreetly tucked away out-of-sight in any video environment. The unit can be powered using inline power via the HDMI cables, or by using a separately available standard 5V USB power supply with the unit's mini-USB power connector.
Technical Specifications:
Inputs
1 x HDMI (HDMI 2.0) Female
Embedded Audio Input
HDMI: 7-Channel
Outputs
HDCP Support
Version 2.2
EDID Support
None
Max Transmission Distance
DCI 4K, UHD 4K:
32.8' / 10 m
1080p:
49.2' / 15 m
Video Format
HDMI (8/10-Bit 4:4:4/4:2:0)
DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
PAL: 50 fps
NTSC: 59.94 fps
Power Connector
1 x USB Mini-B (5 VDC) Input
Operating Temperature
32 to 72°F / 0 to 40°C
In the Box:
