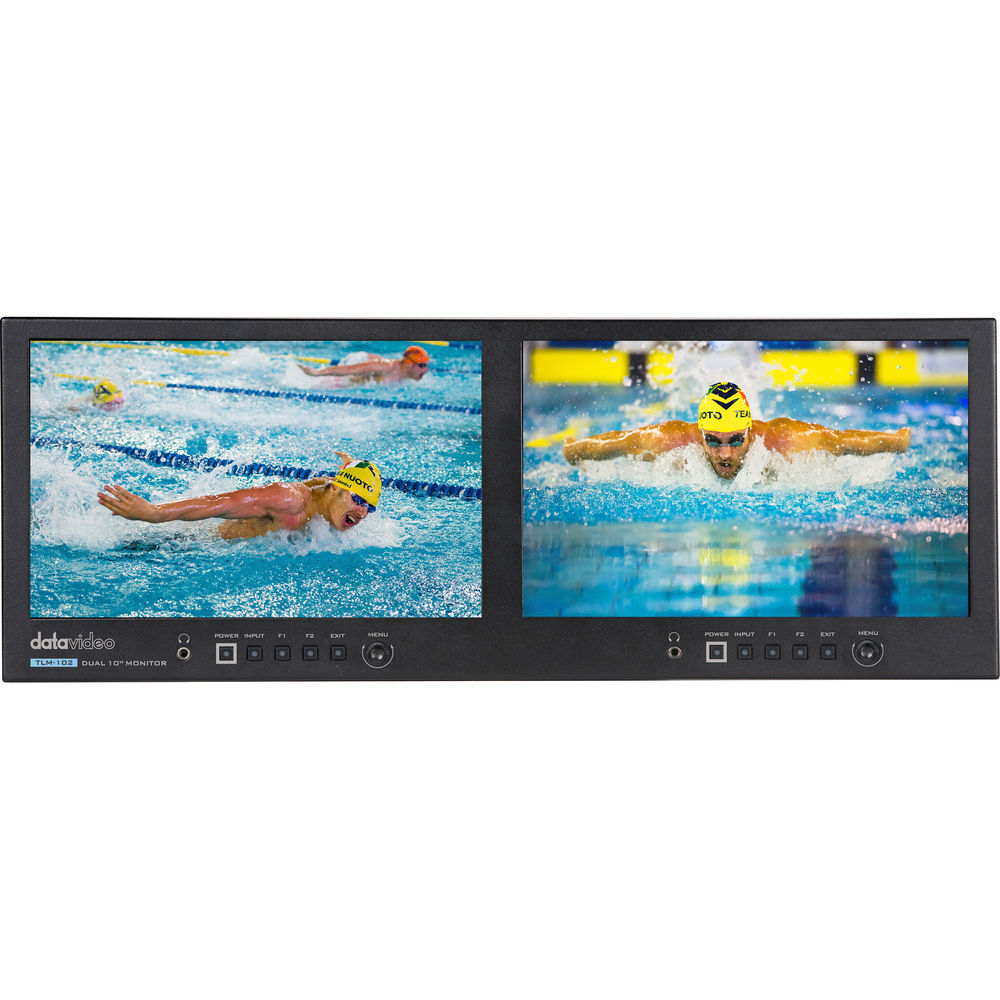

The 10" Dual IPS LCD Monitor from Datavideo is a rack-mounted monitoring unit designed for broadcast, video production, and A/V users. The monitors feature built-in vectorscope, waveform, and video signal converters. Each has one 3G/HD/SD-SDI input and one HDMI input, with loop-through output for both. Built-in signal cross conversion allows each monitor to use one input for display and the other for conversion. The 4 RU rackmount design offers a mounting solution for on-site monitoring, video walls, and production trucks.
Technical Specifications:
Screen Size
10" (25.4 cm)
Screen Type
Dual LCD, IPS panel
Resolution
1280 x 800
Viewing Angle (H/V)
170°/170°
Brightness
300 cd/m2
Contrast Ratio
800:1
Rack Mount
4 RU

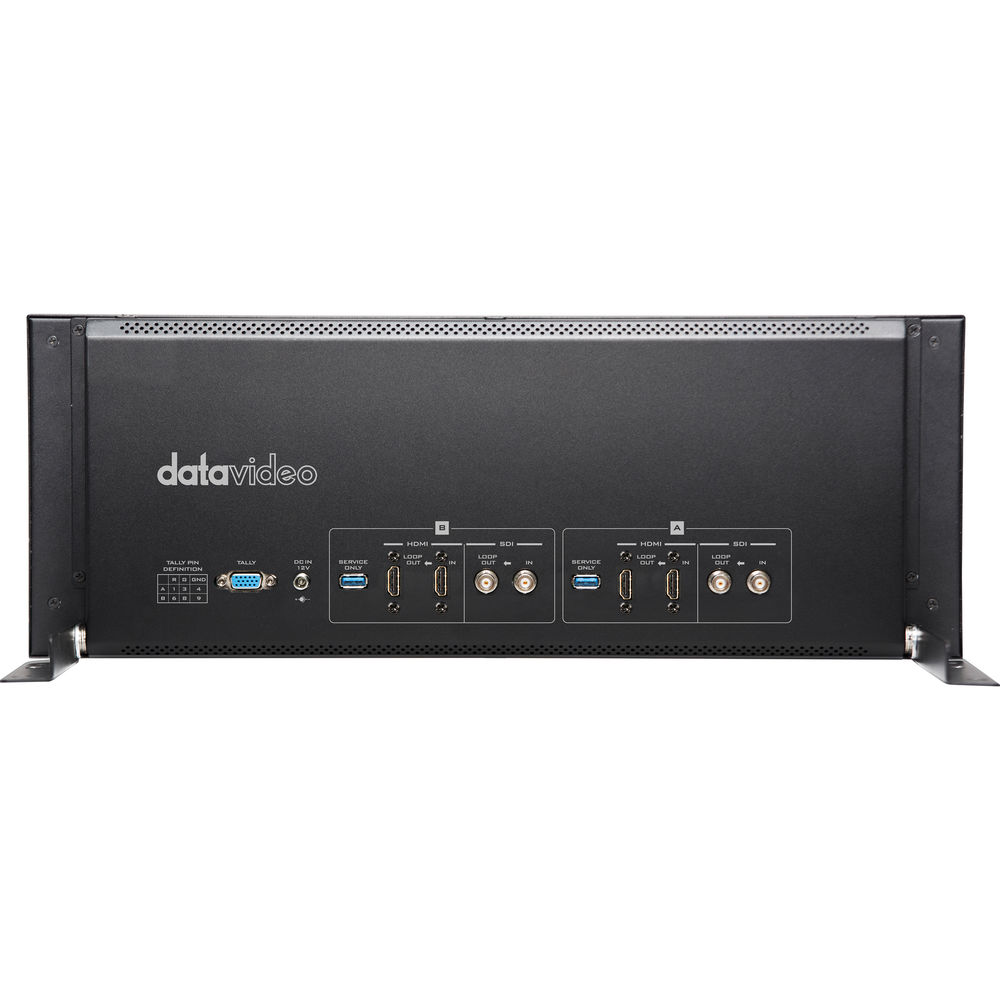

Video Inputs
1 x 3G/HD/SD-SDI
1 x HDMI
Video Outputs
1 x 3G/HD/SD-SDI, loop-through out
1 x HDMI, loop-through out
Audio In/Out
Embedded audio on SDI and HDMI
Headphone jack
Supported Input Resolutions
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
480i (NTSC)
576i (PAL)
Aspect Ratio
16:9, 4:3
Special Features
Timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, SDI/HDMI cross conversion
Tally LED Indicator
Live (red)
Cued (green)
Power Requirements
12 VDC, 26 W
Dimensions
Not specified by the manufacturer
Weight
In the Box:
