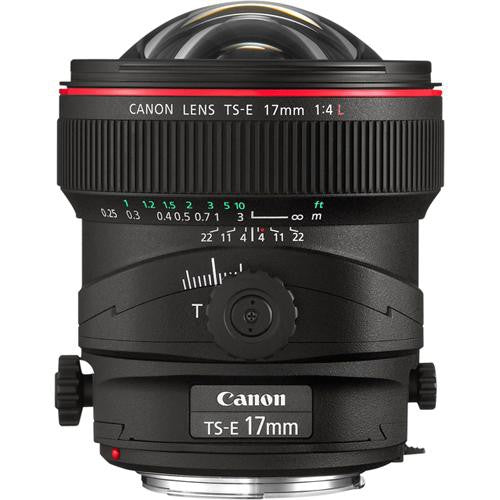

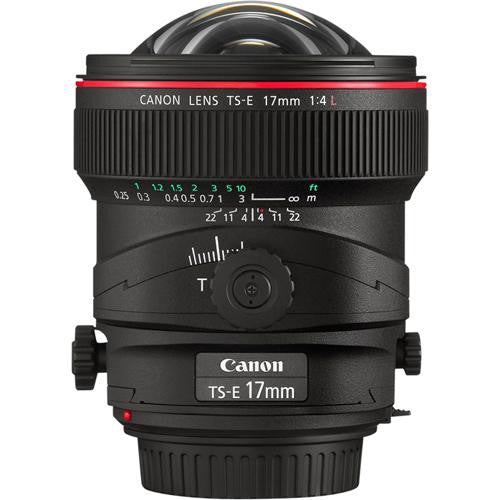

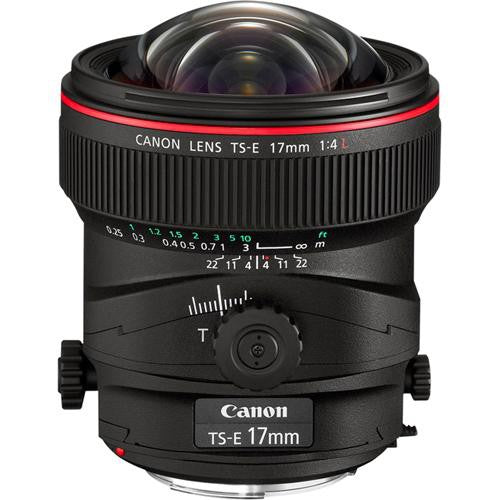

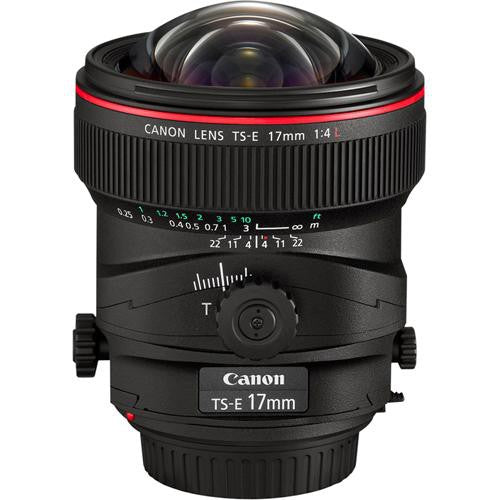

Canon TS-E 17mm f/4L Tilt-Shift Lens
- EF-Mount Lens/Full-Frame Format
- Aperture Range: f/4 to f/22
- Four UD Elements, One Aspherical Element
- Floating Optical System, Rear Focusing
- Subwavelength Coating
- Maximum Tilt: +/- 6.5°
- Maximum Shift: +/- 12mm
- Mount Rotation: +/- 90°
- Locking Tilt-Shift Mechanism
- Rounded 8-Blade Diaphragm
Presenting an ultra-wide field of view with advanced perspective and focus control, the TS-E 17mm f/4L is a Canon L-series tilt-shift lens well-suited to architecture and interior photography. Up to +/- 6.5° of tilt is possible, for focus control, and +/- 12mm of shift, to adjust perspective and composition. The tilt-shift mechanism can be rotated +/- 90° for applying movements in any direction, and a tilt-locking mechanism can be used while shooting for greater stability.
Complementing the operation of the lens, this L-series prime is also distinguished by its optical design that features four of Ultra-Low Dispersion elements to significantly reduce color fringing and chromatic aberrations as well as one aspherical element to minimize spherical aberrations and distortion. Individual elements also feature a Subwavelength Coating to suppress flare and ghosting for greater contrast and color neutrality. Additionally, a floating optical system and a rear focus design help to maintain consistent image quality throughout the focusing range, from 9.8" to infinity.
- Perspective control, tilt-shift lens affords +/- 12mm of shift and +/- 6.5° of tilt, and both types of movements can be applied independently, and parallel or perpendicular to one another. Additionally, the tilt and shift functions can be rotated +/- 90° for applying the movements in distinct directions.
- Tilt-locking mechanism ensures the lens stays in place while shooting.
- Four Ultra-Low Dispersion elements are used to greatly reduce color fringing and chromatic aberrations in order to achieve greater clarity and color accuracy.
- One aspherical element limits distortion and spherical aberrations to realize greater sharpness and accurate rendering.
- A Sub Wavelength Coating has been applied to individual elements to control lens flare and ghosting for greater contrast and color fidelity when working in strong lighting conditions.
- Floating optical system, along with a rear focusing mechanism, maintains consistent image quality throughout the focusing range, from 9.8" to infinity.
- As a member of the esteemed L-series, this lens is sealed against dust and moisture for working in inclement environmental conditions.
- Rounded eight-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field techniques.
Technical Specifications:
|
Focal Length |
17mm |
|
Maximum Aperture |
f/4 |
|
Minimum Aperture |
f/22 |
|
Lens Mount |
Canon EF |
|
Lens Format Coverage |
Full-Frame |
|
Angle of View |
104° |
|
Tilt-Shift |
+/- 6.5° Tilt +/- 12 mm Shift |
|
Minimum Focus Distance |
9.84" / 25 cm |
|
Maximum Magnification |
0.14x |
|
Optical Design |
18 Elements in 12 Groups |
|
Diaphragm Blades |
8, Rounded |
|
Focus Type |
Manual Focus |
|
Image Stabilization |
No |
|
Filter Size |
No |
|
Dimensions (ø x L) |
3.5 x 4.21" / 88.9 x 106.9 mm |
|
Weight |
1.8 lb / 820 g |
In the Box:
- Canon TS-E 17mm f/4L Tilt-Shift Lens
- Canon Lens Cap for TS-E 17mm f/4L Tilt-Shift Lens
- Canon Lens Dust Cap E (Rear Lens Cap)
- Canon LP1219 Soft Lens Case
- Limited 1-Year Warranty
