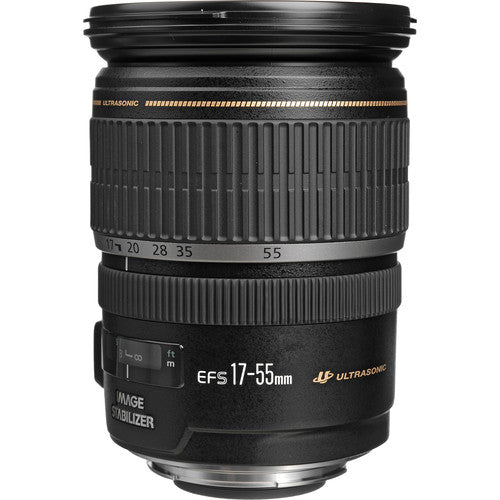

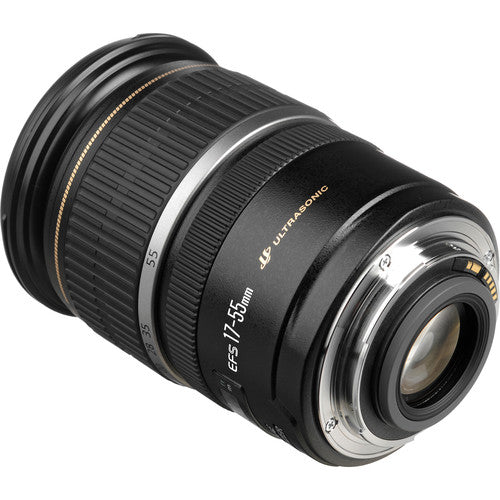

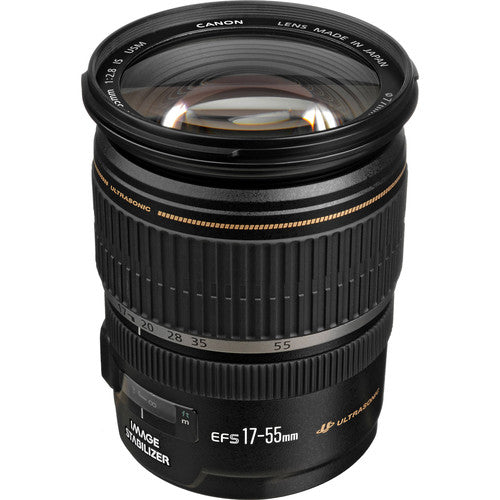

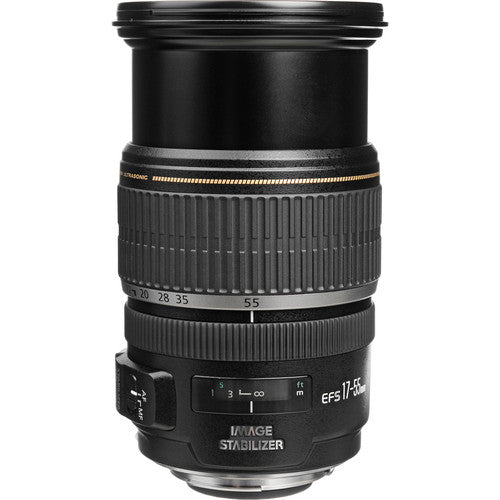

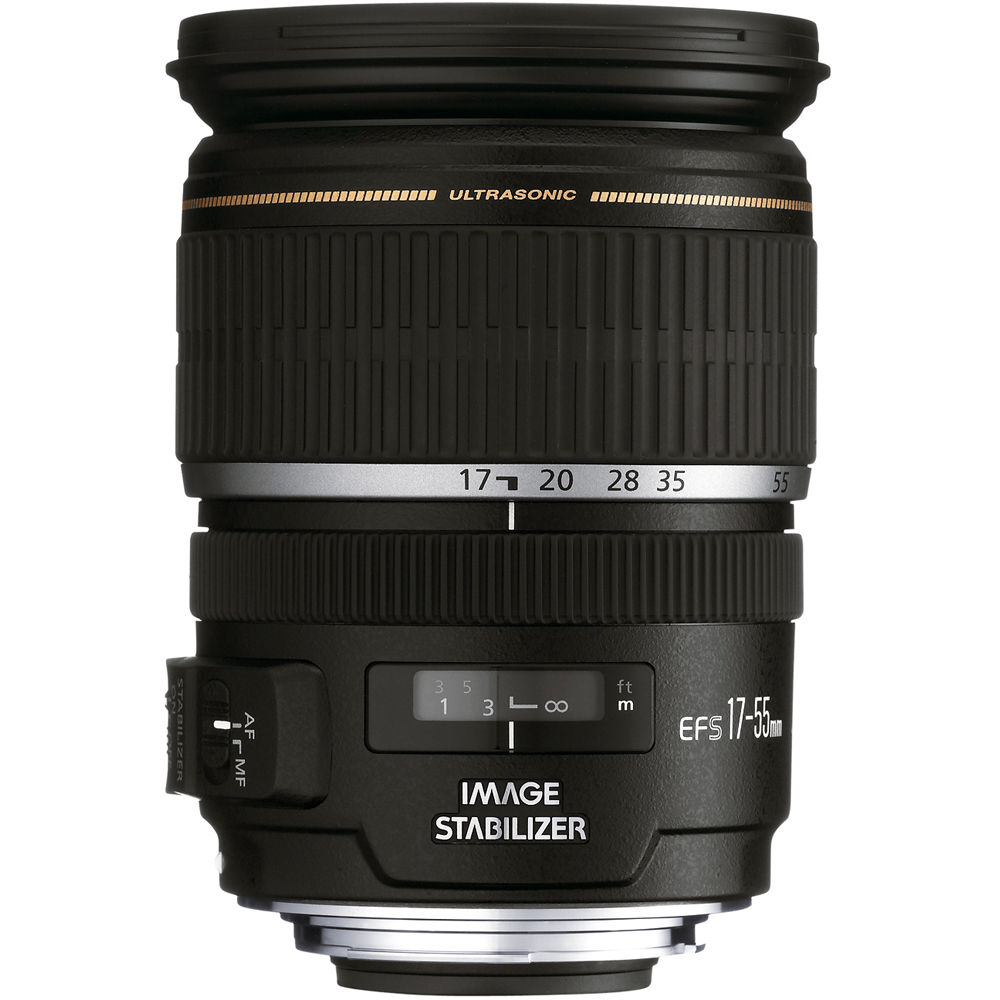

Canon EF-S 17-55mm f/2.8 IS USM Lens
- EF-S-Mount Lens/APS-C Format
- 27.2-88mm (35mm Equivalent)
- Aperture Range: f/2.8 to f/22
- Two UD and Three Aspherical Elements
- Super Spectra Coating
- Ring-Type Ultrasonic Motor AF System
- Optical Image Stabilizer
- Rounded 7-Blade Diaphragm
A tremendously flexible standard zoom for APS-C-format DSLRs, the EF-S 17-55mm f/2.8 IS USM from Canon pairs the 27.2-88mm equivalent focal length range with a bright f/2.8 constant maximum aperture. Benefitting this design is a sophisticated optical layout, which includes both Ultra-Low Dispersion glass and aspherical elements to significantly reduce chromatic and spherical aberrations for improved clarity and sharpness throughout the zoom range. A Super Spectra coating has also been applied to individual elements to suppress flare and ghosting for increased contrast when working in bright environments.
Beyond the optical attributes, this 17-55mm is also characterized by its advanced three stop-effective Image Stabilizer system to minimize the appearance of camera shake. Also complementing handling is a sophisticated ring-type USM, which provides quick, quiet, and accurate autofocus performance along with full-time manual focus override.
- Versatile wide-angle to portrait-length zoom is designed for APS-C-format Canon EF-S-mount DSLRs and offers a 27.2-88mm equivalent focal length range.
- Bright constant f/2.8 maximum aperture affords consistent illumination throughout the zoom range and also affords greater control over depth of field for working with selective focus techniques.
- Two Ultra-Low Dispersion glass elements noticeably reduce color fringing and chromatic aberrations for high clarity and color fidelity.
- Three aspherical elements minimize spherical aberrations and distortions for improved sharpness and accurate rendering.
- Super Spectra coating has been applied to individual elements to minimize ghosting and flare for greater contrast and color neutrality when working in strong lighting conditions.
- An Optical Image Stabilizer helps to minimize the appearance of camera shake by up to three shutter speed stops to better enable working in low-light conditions and with slower shutter speeds.
- A ring-type Ultrasonic Motor (USM), along with an internal focusing design and optimized focusing algorithms, is employed to deliver fast, precise, and quiet autofocus performance as well as full-time manual focus override.
- Rounded seven-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
Technical Specifications:
|
Focal Length |
17 to 55mm (35mm Equivalent: 27.2 to 88mm) |
|
Maximum Aperture |
f/2.8 |
|
Minimum Aperture |
f/22 |
|
Lens Mount |
Canon EF-S |
|
Lens Format Coverage |
APS-C |
|
Angle of View |
78° 30' to 27° 50' |
|
Minimum Focus Distance |
1.15' / 35 cm |
|
Maximum Magnification |
0.17x |
|
Optical Design |
19 Elements in 12 Groups |
|
Diaphragm Blades |
7, Rounded |
|
Focus Type |
Autofocus |
|
Image Stabilization |
Yes |
|
Filter Size |
77 mm (Front) |
|
Dimensions (ø x L) |
3.29 x 4.35" / 83.5 x 110.6 mm |
|
Length at Maximum Extension |
5.55" / 141 mm |
|
Weight |
1.42 lb / 645 g |
In the Box:
- Canon EF-S 17-55mm f/2.8 IS USM Lens

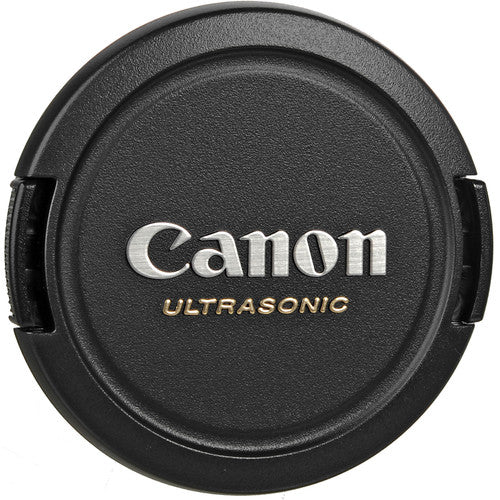

- Canon E-77 II Lens Cap
- Canon Lens Dust Cap E (Rear Lens Cap)
- Limited 1-Year Manufacturer Warranty
