CAMERA TYPE

Interchangeable lens digital camera

LENS MOUNT

E-mount

WEIGHT (MAIN UNIT ONLY) (approx.)

715 g (1 lb 9.3 oz) (with battery and memory card included), 640 g (1 lb 6.6 oz) (body only)

WEIGHT (INCLUDING SUPPLIED ACCESSORIES) (approx.)

1.015 kg　(2　lb　3.8 oz) (with XLR Handle, battery pack, SD card)

DIMENSIONS (W X H X D) (INCLUDING SUPPLIED ACCESSORIES) (approx.)

1.015 kg　(2　lb　3.8 oz) (with XLR Handle, battery pack, SD card)

DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.)

129.7 mm x 77.8 mm x 84.5 mm (5.11 x 3.06 x 3.33) (body without protrusions)

POWER CONSUMPTION

[Movie] Approx. 7.3 W (with FE 28–70 mm F3.5–5.6 OSS lens attached), [Still image] Approx. 3.4 W (with FE 28–70 mm F3.5–5.6 OSS lens attached)

BATTERY OPERATING TIME

Approx. 95 min (Actual recording, CIPA standard)　, Approx. 135 min (Continuous recording, CIPA standard), Approx. 580 shots (still images, CIPA standard)

OPERATING TEMPERATURE

0 °C to 40 °C (32 °F to 104 °F)

STORAGE TEMPERATURE

–20 °C to +55 °C (–4 °F to +131 °F)

XAVC HS

[XAVC HS 4K] XAVC HS 4K 59.94p/50p 200 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 150 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p/23.98p 100 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 75 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 45 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 100 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 30 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p/100p 280Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p/100p 200 Mbps 4:2:0 10bit MPEG-H HEVC / H.265

XAVC S

[XAVC S 4K] XAVC S 4K 59.94p/50p 200 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 59.94p/50p 150 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p 140 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 23.98p 100 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p/23.98p 100 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p/23.98p 60 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p/100p 280 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p/100p 200 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, [XAVC S HD] XAVC S HD 59.94p/50p/29.97p/25p/23.98p 50 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S HD 59.94p/50p/29.97p/25p/23.98p 50 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 59.94p/50p 25 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC HD 29.97p/25p 16 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p/100p 100 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p/100p 60 Mbps 4:2:0 8bit MPEG-4 AVC / H.264,

XAVC S-I

[XAVC S-I 4K] XAVC S-I 4K 59.94p 600 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 50p 500 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 29.97p 300 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 25p 250 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 23.98p 240 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, [XAVC S-I HD] XAVC S-I HD 59.94p 222 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 50p 185 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 29.97p 111 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 25p 93 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 23.98p 89 Mbps 4:2:2 10bit MPEG-4 AVC / H.264,

RECORDING FORMAT (AUDIO)

LPCM 2ch (48 kHz 16 bit), LPCM 2ch (48 kHz 24 bit), LPCM 4ch (48 kHz 24 bit), MPEG-4 AAC-LC 2ch

XAVC HS

[XAVC HS 4K] 3840 x 2160/119.88p, 100p, 59.94p, 50p, 23.98p

XAVC S

[XAVC S 4K] 3840 x 2160/119.88p, 100p, 59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S-I HD] 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p

XAVC S-I

[XAVC S-I 4K] 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S-I HD] 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p,

XAVC HS

[XAVC HS 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 85 minutes, When using CEA-G80T (80 GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 110 minutes, When using CEA-G80T (80 GB) Approx. 55 minutes, 59.94p/50p 100M When using CEA-G160T (160 GB) Approx. 170 minutes, When using CEA-G80T (80 GB) Approx. 80 minutes, 59.94p/50p 75M When using CEA-G160T (160 GB) Approx. 220 minutes, When using CEA-G80T (80 GB) Approx. 100 minutes, 59.94p/50p 45M When using CEA-G160T (160 GB) Approx. 340 minutes, When using CEA-G80T (80 GB) Approx. 160 minutes

XAVC S

[XAVC S 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 85 minutes, When using CEA-G80T (80 GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 110 minutes, When using CEA-G80T (80 GB) Approx. 55 minutes, [XAVC S HD] 59.94p/50p 50M When using CEA-G160T (160 GB) Approx. 310 minutes, When using CEA-G80T (80 GB) Approx. 150 minutes, 59.94p/50p 25M When using CEA-G160T (160 GB) Approx. 550 minutes, When using CEA-G80T (80 GB) Approx. 390 minutes

XAVC S-I

[XAVC S-I 4K] XAVC S-I 4K 59.94p/50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80 GB) Approx. 10 minutes, [XAVC S-I HD] 59.94p/50p When using CEA-G160T (160 GB) Approx. 75 minutes, When using CEA-G80T (80 GB) Approx. 35 minutes

PROXY AUDIO

XAVC Proxy: AAC-LC, 128 kbps, 2 channels

PROXY VIDEO

1280 x 720 (Approx. 6 Mbps), 1920 x 1080 (Approx. 9 Mbps), 1920 x 1080 (Approx. 16 Mbps)

RAW Output

HDMI: 4264 x 2408 (59.94p/50p/29.97p/25p/23.98p), 16bit

VIDEO FUNCTIONS

Audio Level Display, Audio Rec Level, TC/UB, Creative Look, Gamma Display Assist, PAL/NTSC Selector

SENSOR TYPE

35 mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor

PIXELS

Approx. 10.2 megapixels (effective) for movies, Approx. 12.1 megapixels (effective) for Still images, Approx. 12.9 megapixels (total)

SENSITIVITY

[Movie] ISO 80–102400 equivalent (ISO numbers up to ISO 409600 can be set as expanded ISO range.), AUTO (ISO 80–12800, selectable lower limit and upper limit), [Still image] ISO 80–102400 (ISO numbers up from ISO 40 to ISO 409600 can be set as expanded ISO range.), AUTO (ISO 80–12800, selectable lower limit and upper limit)

SHUTTER SPEED

Movie: 1/8000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode) Still image: 1/8000 to 30 s, Bulb

XAVC HS

XAVC HS 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps

XAVC S

XAVC S 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps

XAVC S-I

XAVC S-I 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S-I HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps

WHITE-BALANCE MODES

Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Colour Temperature (2500 to 9900K) & colour filter / Custom

GAMMA CURVE

Off / PP1-PP11, Parameters: Black level, Gamma (Movie, Still, S-Cinetone, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Colour Mode, Saturation, Colour Phase, Colour Depth, Detail, Copy, Reset

Latitude

15+ stop (S-Log3)

Type

Fast Hybrid AF (phase-detection AF / contrast-detection AF)

FOCUS POINT

[Movie] 627 points, [Still image] 35 mm full frame: 759 points (phase-detection AF)

SENSITIVITY RANGE

EV-6 to EV20 (ISO 100 equivalent with F2.0 lens attached)

FOCUS MODE

[Movie] AF-C, MF, [Still image] AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus

FOCUS AREA

[Movie] Wide / Zone / Centre / Flexible Spot / Expanded Flexible Spot, [Still image] Wide / Zone / Centre / Flexible Spot / Expanded Flexible Spot / Tracking

OTHER FOCUS FEATURES

Eye AF ([Movie] Human (Right/Left Eye Select), ([Still image] Human (Right/Left Eye Select) / Animal), Face detection (Face Priority in AF, Face Priority in Multi Metering, Regist. Faces Priority), [Movie] AF Subj. Shift Sensitivity, [Movie] AF Transition Speed, [Still image] Focus Magnifier (35 mm full frame: 2.1x / 4.1x, APS-C: 1.5x / 3.0x)

METERING SENSITIVITY

EV -3 to EV 20 (at ISO100 equivalent with F2.0 lens attached)

EXPOSURE MODES

[Movie] Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M) / Flexible Exp. Mode, [Still images] AUTO (iAuto), P, A, S, M

RECORDING FORMAT

JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 4.0 format compliant)

IMAGE SIZE

Image size [3:2] 35 mm full frame L: 12M, M: 5.1M, S: 3.0M, APS-C L: 5.1M, M: 3.0M, S: 1.3M, Image size [4:3] 35 mm full frame L: 11M, M: 4.6M, S: 2.7M, APS-C L: 4.6M, M: 2.7M, S: 1.1M Image size, [16:9] 35 mm full frame L: 10M, M: 4.3M, S: 2.6M, APS-C L: 4.3M, M: 2.6M, S: 1.1M, Image size [1:1] 35 mm full frame L: 8M, M: 3.4M, S: 2.0M, APS-C L: 3.4M, M: 2.0M, S: 0.8M

PLAYBACK FUNCTIONS

Index view, Folder selection (Date / Still / Movie), Photo capture, 4Ch audio monitoring, Auto Review (stills), Image orientation (stills), Protect (stills), Rating (stills), Display as Group (stills)

AUDIO INPUT

3.5 mm Stereo minijack, XLR handle: [INPUT1][INPUT2] XLR/TRS-type 3-pin (female) (x2), line/mic/mic +48 V selectable, Mic Reference –40 to –60 dBu / [INPUT3] 3.5 mm Stereo minijack)

USB

USB Type-C (x1, SuperSpeed USB 5 Gbps [USB 3.2] compatible), Multi/Micro USB (x1)

HEADPHONE OUTPUT

Yes (3.5 mm Stereo minijack)

SPEAKER OUTPUT

Built-in, monaural

HDMI OUTPUT

HDMI jack (Type-A), YCbCr 4:2:2 10 bit / RGB 8 bit

MULTI INTERFACE SHOE

With Digital Audio Interface

Bluetooth®

Bluetooth Standard Ver. 5.0 (2.4 GHz band)

MEDIA TYPE

CFexpress Type A / SD card (x2), Simult. Rec, Sort, Auto Switch Media, Copy

LCD

7.5 cm (3.0-type) type, approx. 1.44M dots, Opening Angle: Approx. 176 deg., Rotation Angle: Approx. 270 deg.

BUILT-IN MICROPHONE

Built-in, stereo

FILE SYSTEM

FAT12, 16, 32, exFAT

ZOOM FUNCTION

Zoom ring rotate, Clear Image Zoom ([Movie] Approx. 1.5x (4K), Approx. 2x (HD) [Still image] Approx. 2x), Digital zoom ([Movie] 35 mm full frame: approx. 4x, APS-C: approx. 4x, [Still image] 35 mm full frame: L: approx. 4x, M: approx. 6.1x, S: approx. 8x, APS-C: L: approx. 4x, M: approx. 5.2x, S: approx. 8x), Smart zoom ([Still image] 35 mm full frame: M: approx. 1.5x, S: approx. 2x, APS-C: M: approx. 1.3x, S: approx. 2x)

SHUTTER

Mechanical shutter / Electronic shutter

DRIVE MODES

Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket

CONTINUOUS SHOOTING SPEED

Hi+: 10fps, Hi: 8fps, Mid: 6fps, Lo: 3fps

NOISE REDUCTION

Long exposure NR: On / Off, available at shutter speeds longer than 1 s, High ISO NR: Normal / Low / Off

FLASH CONTROL

Sony α System Flash compatible with Multi Interface Shoe, attach the shoe adaptor for flash compatible with Auto-lock accessory shoe, Flash sync speed 1/250 s.

OTHER STILL IMAGE FUNCTION

Electronic Front Shutter Curtain, Silent Shooting, Anti-flicker Shoot

Type

Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)

MODE

[Movie] Active / Standard / Off, [Still image] On / Off

COMPENSATION EFFECT (STILL IMAGES)

5.5 stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50 mm F1.4 ZA lens mounted. Long exposure NR off.)

CUSTOM FUNCTION

Custom key settings, My Menu, My Dial Settings, Reg. Custom Shoot Set

LENS COMPENSATION

Peripheral Shading, Chromatic Aberration, Distortion

SUPPORTED FORMAT

IEEE 802.11a/b/g/n/ac

FREQUENCY BAND

2.4 GHz band/5 GHz band

SECURITY

WEP/WPA-PSK/WPA2-PSK

NFC

NFC Forum Type 3 Tag compliant

FTP Transfer

Wired LAN (USB-LAN), USB Tethering, Wi-Fi

SUPPLIED ACCESSORIES

Rechargeable Battery NP-FZ100

Battery Charger BC-QZ1

Power cord

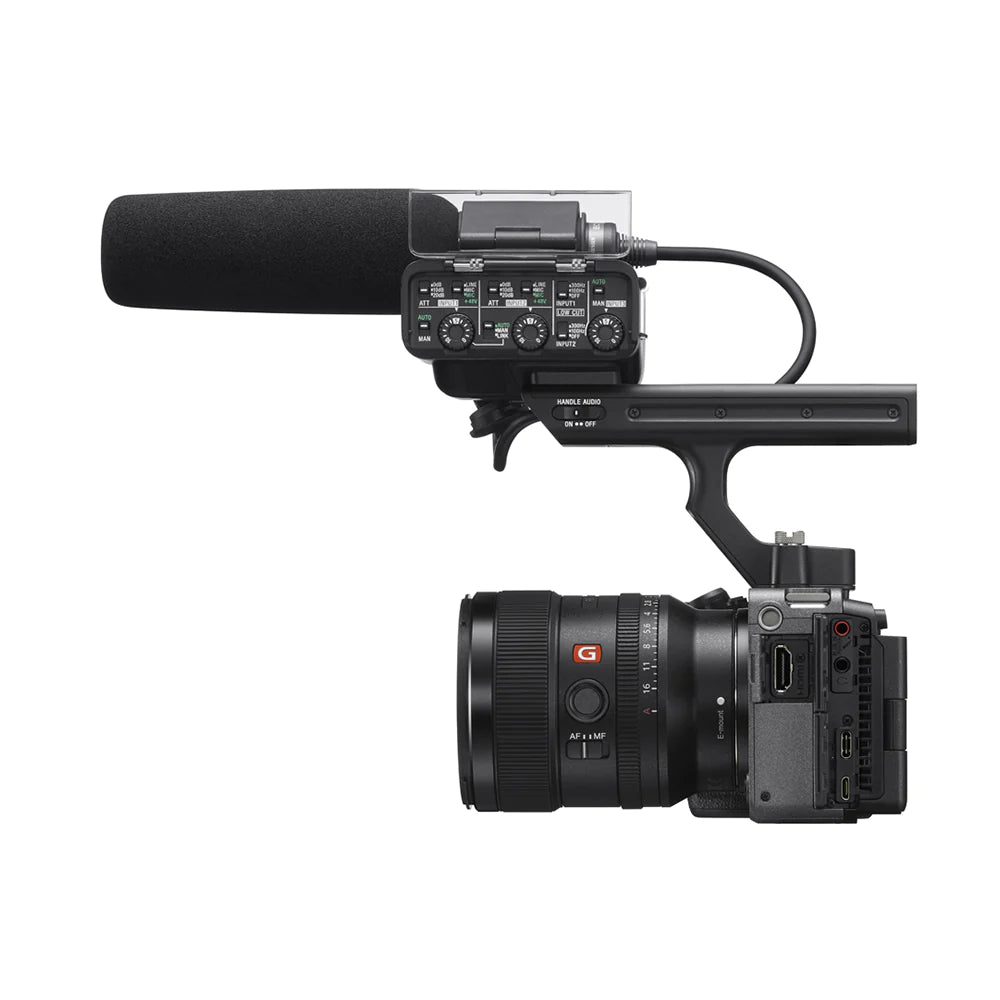

XLR handle unit

Accessory shoe kit

Body cap

Accessory shoe cap

Handle shoe cap

USB-A to USB-C cable (USB 3.2)
