Connects to the Fairlight Audio Interface with a proprietary multipin connector interface to synchronize to house reference via the interface word clock, AES, MADI, or HD Tri‑sync or reference video inputs

Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2, and 3

Supports 44.1, 48, 96, and 192 kHz sampling rates with minimum 32-bit floating-point processing

Supports up to 2000 mono audio tracks, 256 busses plus 512 bus elements, and 128 record channels (all at 48 kHz)

• Elastic wave time warping and sample rate conversion
• 6-band EQ, 4-band clip-based EQ, expander/gate, compressor, and limiter
• Up to six Resolve, VST, or Audio Units plug-ins
• Up to six Resolve, VST, or Audio Units clip-based plug-ins
• Mono, stereo, 5.1, 7.1 up to 26.0, and other 3D channel formats
• Up to 16 VCA groups
• Direct out and in-place solo

• Up to 512 mono bus elements, organized in any format from mono to 26.0
• Mono, stereo, 5.1, 7.1 up to 26.0, and other 3D bus formats
• Up to 10 bus sends per channel and bus with independent level control
• Up to 10 post-fader bus sends per channel and bus
• Automatic and flexible delay compensation

• 4-band EQ
• Compressor and limiter
• Up to six Resolve, VST, or Audio Units pre-fader plug-ins
• Direct out

• Up to six Resolve, VST, or Audio Units plug-ins on any channel or bus
• Tactile control of plug-ins from the Fairlight audio editor (available separately)
• Plug-ins are fully controllable with automation

• Up to four simultaneous sources
• Source from internal buses or external inputs
• Up to 16 different speaker sets
• Customizable fold up and fold down when crossing formats
• Optional B-Chain processor for cinematic setups with up to 64 speakers

Single half-length PCIe x4 board

OS Compatibility	macOS 10.15 or Later Windows 10 (64-Bit)
Bit Depth	32-Bit Floating Point Processing
Sample Rates	44.1, 48, 96, and 192 kHz
Ports	1 x BNC Female MADI Input 1 x BNC Female MADI Output 1 x Proprietary Multipin Fairlight Audio Interface Connector
Expansion Capabilities	Supports Fairlight Audio MADI Upgrade via SATA Connectors 1, 2, and 3
PCIe Card Length	Single Half-Length PCIe x4 Board
Impedance	BNC Input and Output: 75 Ohms
Tracks	2000 Mono Audio Tracks at 48 kHz 1000 Mono Audio Tracks at 96 kHz 500 Mono Audio Tracks at 192 kHz
Channels	64 Input Channels at 48 kHz 64 Output Channels at 48 kHz 128 Record Channels at 48 kHz 64 Record Channels at 96 kHz 32 Record Channels at 192 kHz
Channel Formats	Mono, Stereo, 5.1, 7.1 up to 26.0, and Other 3D Channel Formats
Busses	256 Buses plus 512 Bus Elements at 48 kHz 256 Buses plus 256 Bus Elements at 96 kHz 256 Buses plus 128 Bus Elements at 192 kHz
Power Usage	14 W
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Relative Humidity	0 to 90% Noncondensing
PCIe Card Length	7.4" / 18.7 cm
Weight	7.7 oz / 216.9 g

In the Box:

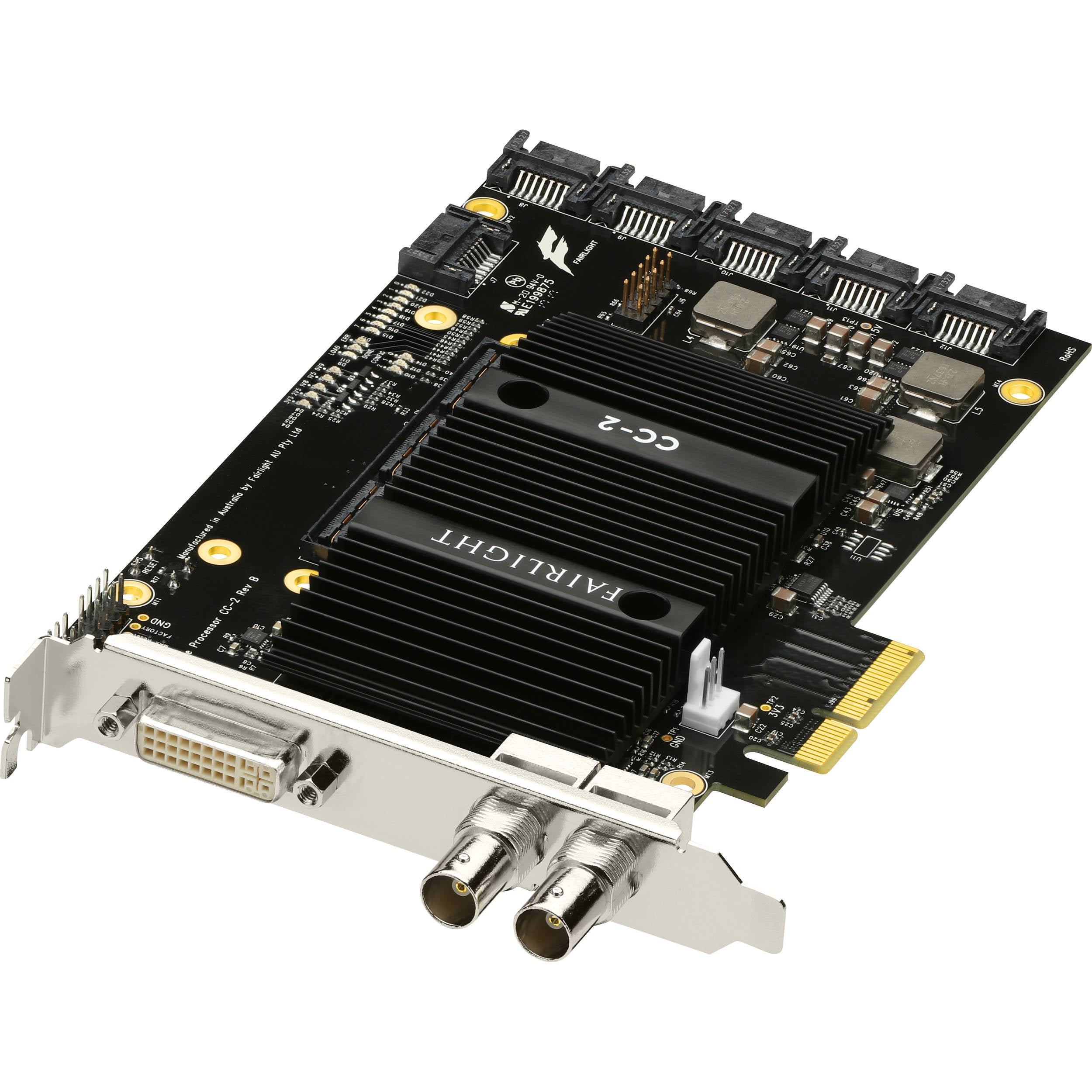

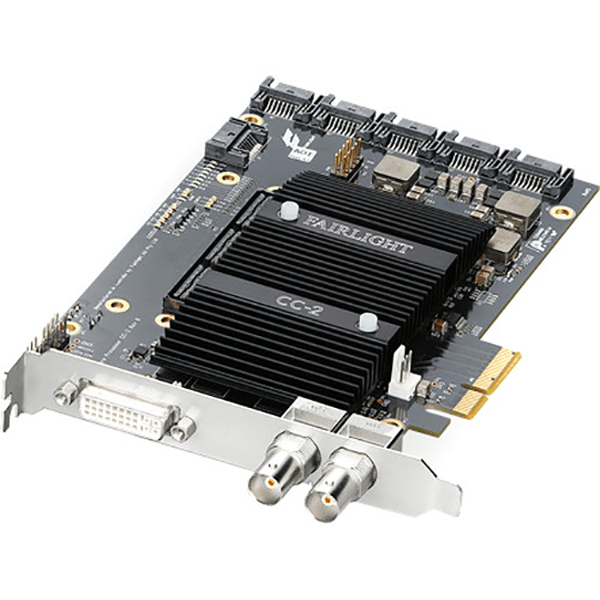

• Blackmagic Design Fairlight PCIe Audio Accelerator
• Limited 1-Year Warranty
