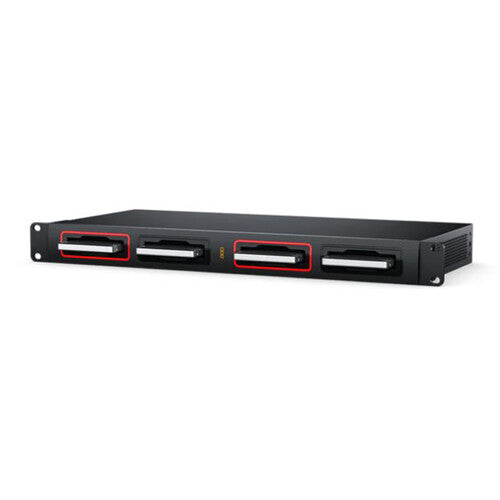

Share the content from up to four 2.5" drives over a high speed 10G Ethernet network with this Cloud Dock 4 from Blackmagic Design. Plug in any four HDD or SSD drives and share your files over a network via the four 10G Ethernet ports or the Ethernet over USB-C port.
Files formatted in ExFAT or HFS+ file systems may be synced globally and shared using Dropbox or Google Drive with an HDMI output providing the option to monitor your activity with graphic representations of the memory core of your drives, which are available separately. The 1 RU unit is compact and lightweight for portability and integrates seamlessly within any film and television environment where collaboration among numerous technical and creative entities is the norm.
Technical Specifications:
Number of Bays
4 x 2.5"
Inputs/Outputs
4 x RJ45 10GbE
1 x HDMI Output
1 x USB-C 3.0 / 3.1/3.2 Gen 1
Compatible Drive Interface
SATA, U.2
Form Factor
Rackmount
Hot-Swap Support
Yes
OS Compatibility
macOS 12 to 13 or Later
Windows 10 (64-Bit Only)
Windows 11
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Encryption
None
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Source
AC Adapter
Power Consumption
60 W (Without SSDs)
Operating Temperature
32.0 to 104.0°F / 0.0 to 40.0°C
Operating Humidity
0 to 90% (Non-Condensing)
Storage Temperature
-4 to 140°F / -20 to 60°C
Cooling
Dimensions
19 x 8.07 x 1.81" / 48.3 x 20.5 x 4.6 cm
Weight
4.5 lb / 2.0 kg
In the Box:
