Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher

Name: Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher
Brand: Blackmagic Design
SKU: BMD-SWATEMSCN2/2ME2/4K
Price: 399000 INR
Availability: InStock

Rs. 443,444.00 Rs. 399,000.00

- +

Blackmagic Design ⁄ Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher

Key Features:

Supports 12/3G/HD-SDI at 10-Bit
20 x 12G-SDI Input, 12 x 12G-SDI Output
Up to 16-Multiview Monitoring Windows
Webcam Output via USB-C
Frame Rate/Format Converter per Input
48-Channel Audio Mixer
8 x Upstream, 2 x Downstream Keyer
Chroma/Luma Keyers
Color/Pattern Generators
Hardware/Software macOS/Windows Control

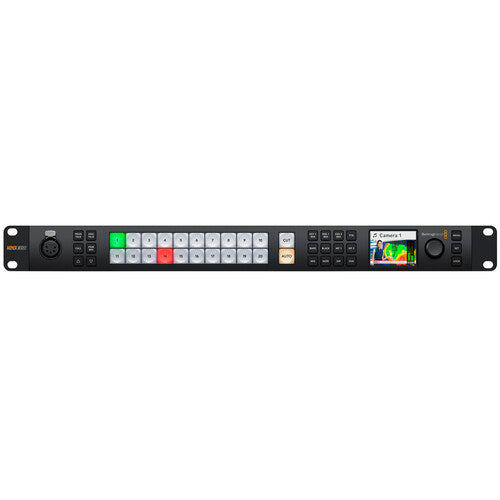

The ATEM 2 M/E Constellation UHD 4K Live Production Switcher adds UHD 4K capabilities and 12G-SDI ports to the familiar switcher construction of its predecessor. Designed for powerful live event UHD 4K switching, the unit features 20 individual 12G-SDI inputs that support 12G/3G/HD-SDI signals and deliver them to 12 12G-SDI outputs or webcam USB-C output. In addition, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.

Technical Specifications:

Available M/E Layers	2 M/E
Effect Types	8x Chroma Key 11x Luma Key 2x DVE, Stinger 2x DVE
Downstream Keys	2x Chroma, Luma, DVE
Generators	2x Color 11x Pattern
Audio Mixing	48-Channel Mixing
Switching Type	Pushbutton, Software
Latency	10 Lines
Processing Resolution	UHD 4K
Color Processing	10-Bit 4:2:2
Number of Video Input Sources	20

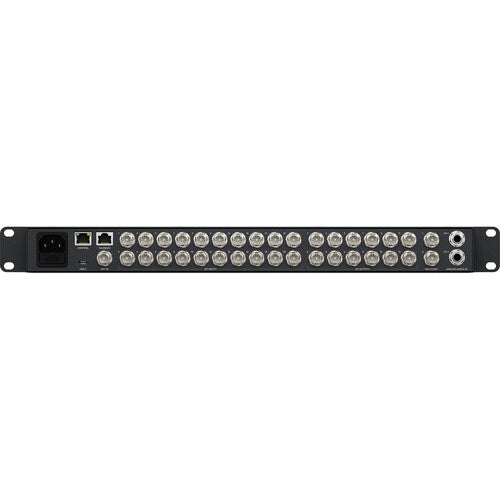

Video Inputs	20x BNC (12G-SDI) Female
Input Video Format	SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Audio Inputs	2x 1/4" TRS
Embedded Audio Input	SDI: 16-Channel
Video Output Channels	12
Video Outputs	12x BNC (12G-SDI) Female
Output Video Format	SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Embedded Audio Output	SDI: 16-Channel
Multiview Output	16-Way Multiview
Other I/O	1x USB-C 1x XLR 5-Pin Talkback Input 1x XLR 5-Pin Talkback Output 1x RJ45 Control, LAN Input/Output 1x RJ45 Talkback Input/Output 1x BNC Blackburst, Reference, Tri-Level Sync Input
Video Standard Compliance	SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10
Display Size	2.2"
OS Compatibility	Windows 10 to 11 macOS 13.0 to 14.0
Processor	Not Specified by Manufacturer
Wi-Fi	Yes
Bluetooth	No
Power I/O	1x IEC C13 Input
Power Consumption	Device: 100 to 240 VAC (90 W)
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%
