THE ULTIMATE WORKSTATION
The power, speed and pixels of Thunderbolt 3 are best in class, and this smart dock brings all the benefits in a single docking station solution. Compatible with Mac and Windows, simply connect your Thunderbolt 3 or USB-C™ laptop* with the included Thunderbolt 3 cable to instantly create a powerful work station. Enjoy Ultra-High Definition monitor support, up to 40 Gbps transfer rates, 85W of power to your laptop, and support for multiple peripherals via Thunderbolt, USB-A, USB-C, Ethernet, SD and Audio ports, all through a single cable.
To see what else Thunderbolt has to offer, check out our comprehensive guide to Thunderbolt technology.
*USB-C host performance will be limited. Note that not all USB-C ports support the full functionality of the USB Type-C standard. USB-C hosts may not support extended display to external monitors.
THE BELKIN DIFFERENCE
- Pioneer in innovation and technology for over 35 years
- Innovative solutions designed to suit both professional and at-home users
- Building on the success of the Thunderbolt 3 Express Dock HD named CES 2018 Best of innovation Awards Honoree
- Rigorous insertion testing guarantees quality, performance and durability
- Environmental tests ensure safety of all materials
ROOM FOR ALL YOUR PERIPHERALS
Enjoy easy access to monitors, networks, power and peripherals with multiple ports available.

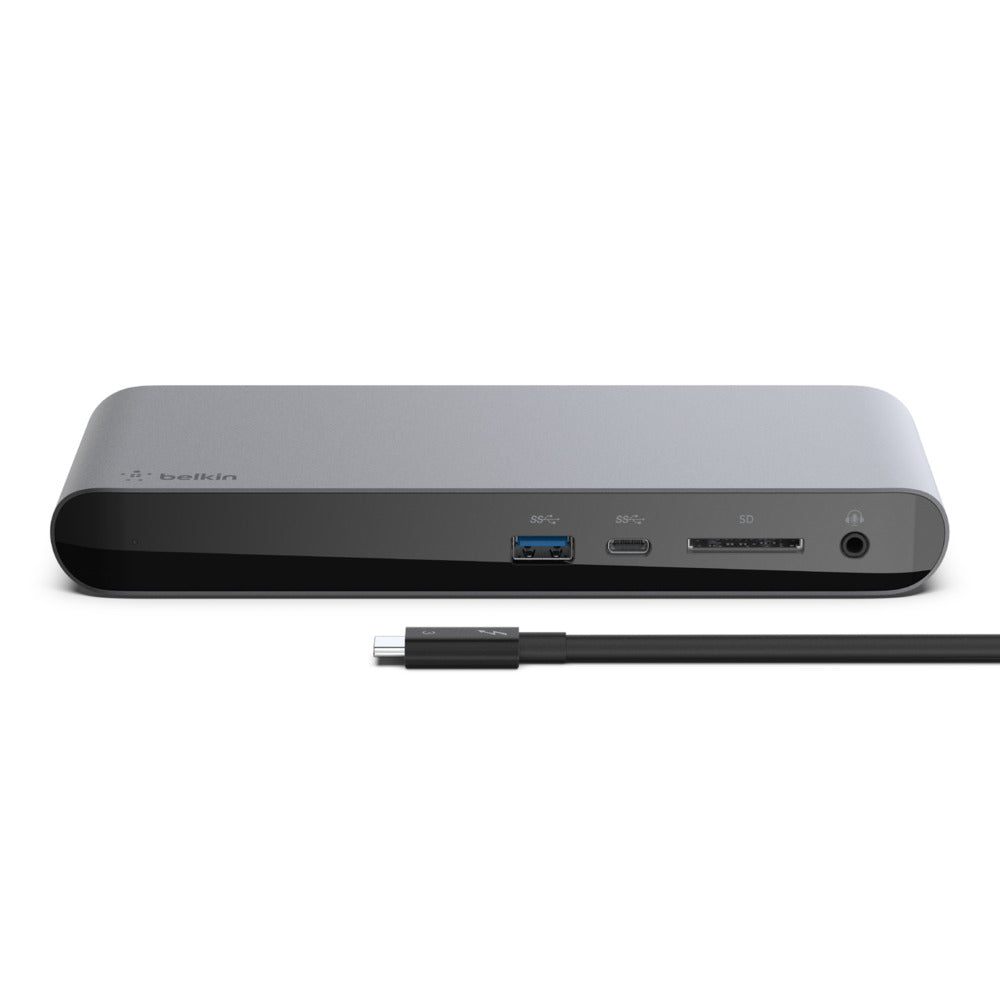

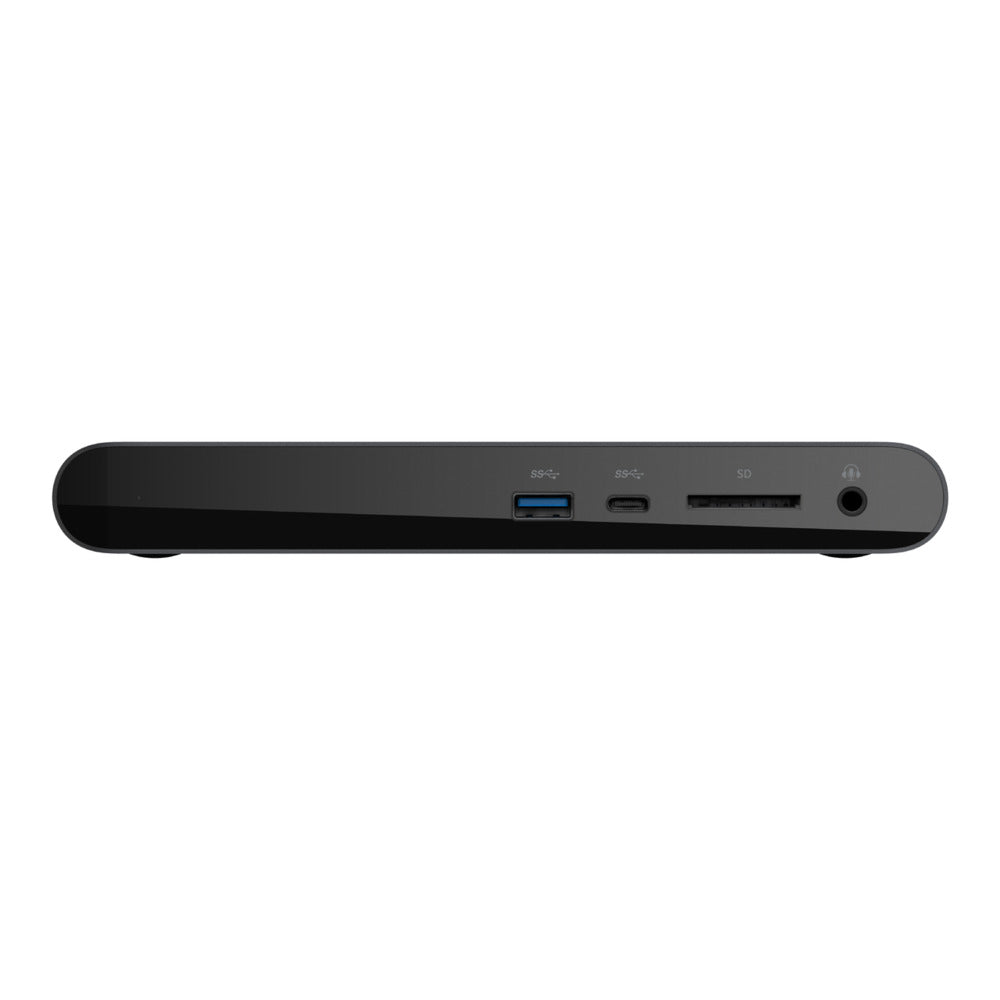

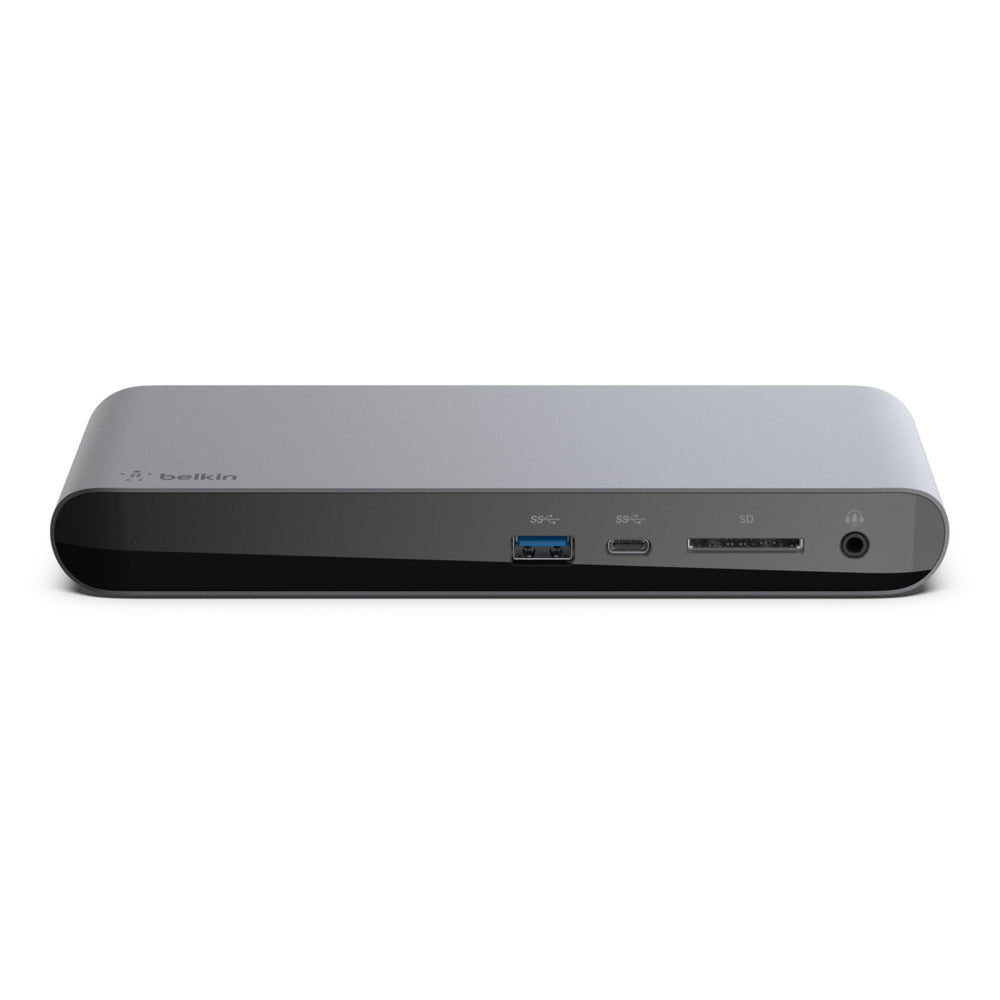

FRONT:
- 1 x USB-A 3.1 port for USB-A peripherals
- 1 x USB-C 3.1 port for USB-C devices
- SD card reader connects to SD cards without an adapter
- Audio in/out for mic and speaker support

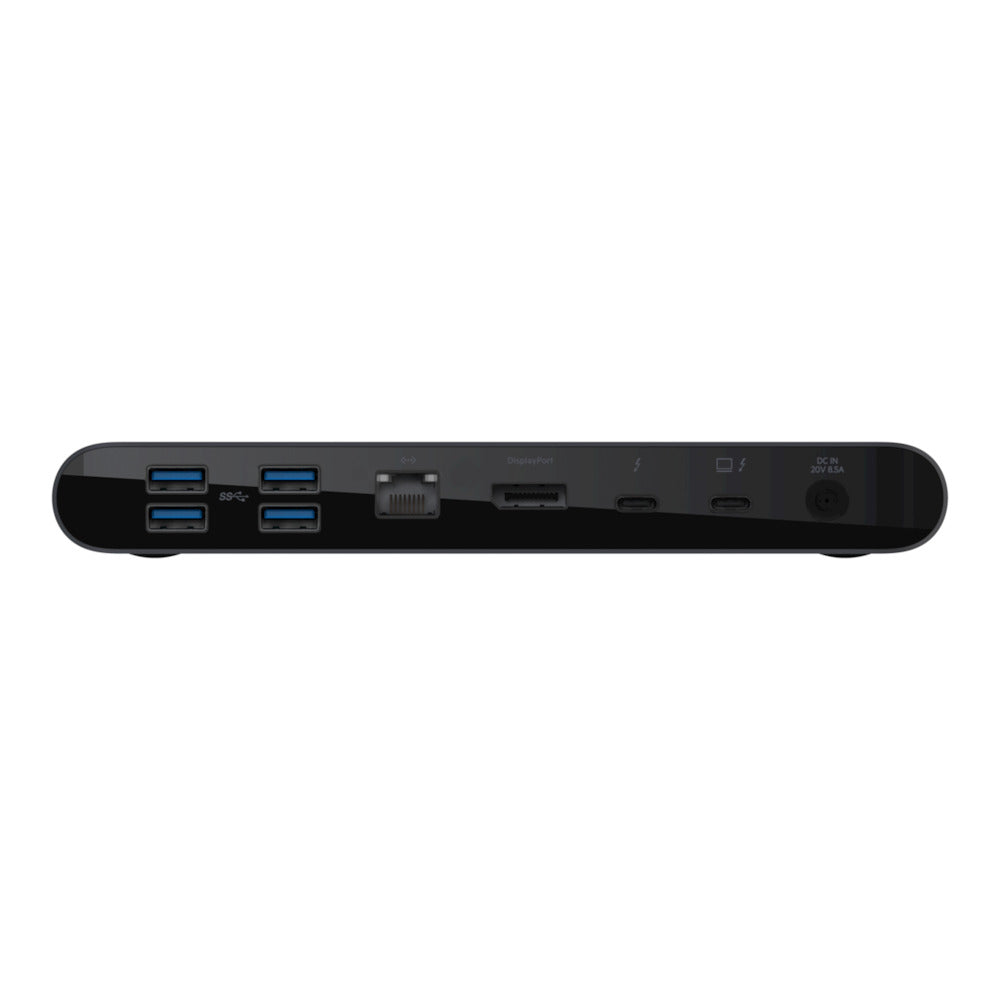

BACK:
- 170W PSU (Power Supply Unit) powers the dock, and also charges the connected laptop up to 85W, to keep your laptop charged while you work
- Thunderbolt 3 port connects to laptop with the included Thunderbolt 3 cable
- Thunderbolt 3 port connects to high-resolution monitor/display and Thunderbolt 3/USB-C peripherals
- DisplayPort™ connects to high-resolution monitor/display
- Gb Ethernet for reliable, hardwired Ethernet connection
- 4 x USB-A 3.0 ports for devices that connect via USB-A such as a mouse, keyboard or printer

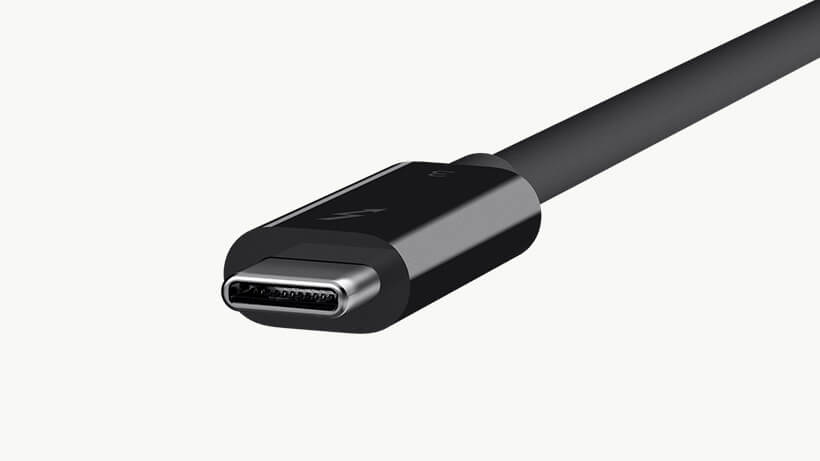

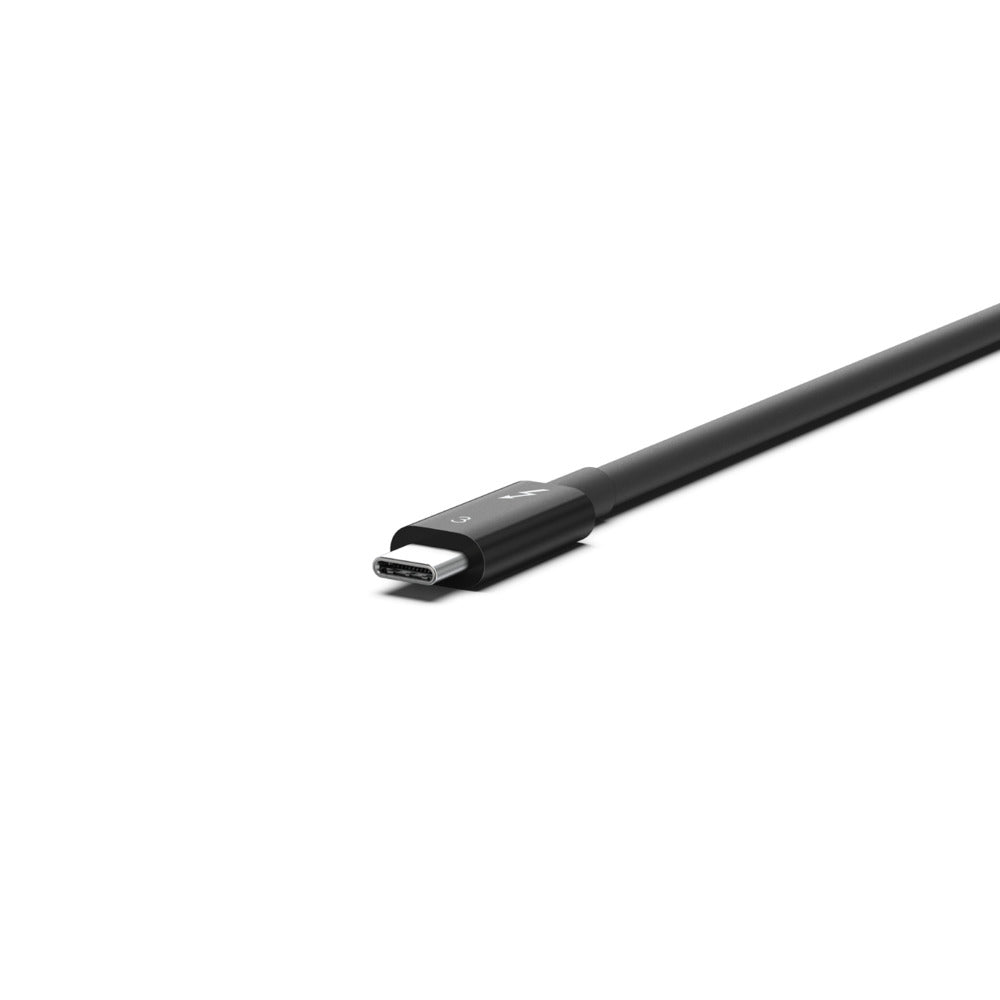

THUNDERBOLT 3 CABLE INCLUDED
The dock connects to your Thunderbolt 3 or USB-C laptop through a single cable, which is included in the box. At 2.6ft / 0.8m, this cable is long enough to fit around furniture or reach further from the main outlet, to offer a more versatile desk configuration.
MAC AND WINDOWS COMPATIBLE
Equipped with the latest Intel chipset/controller to be compatible with Mac (Mac OS) and PC (Windows) laptops, this dock is ideal for businesses with both types of laptop in their organization. It is also well-suited for work spaces in meeting/conference rooms, hotels and other shared work environments. See table below for system requirements.
|
DISPLAY CONFIGURATIONS |
PORTS |
MAC |
macOS Sierra 10.12 or later |
Thunderbolt 3 port |
PC (WINDOWS) |
Windows 10 or later |
Thunderbolt 3 port |

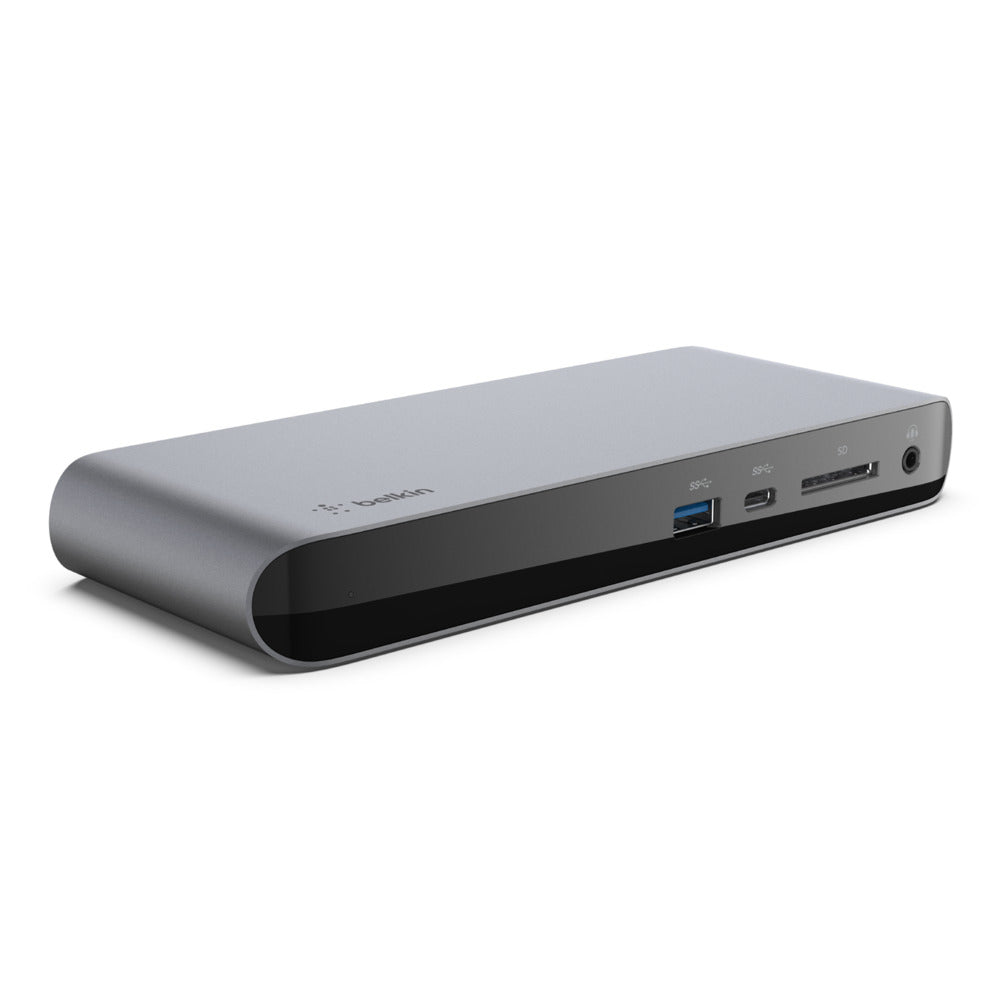

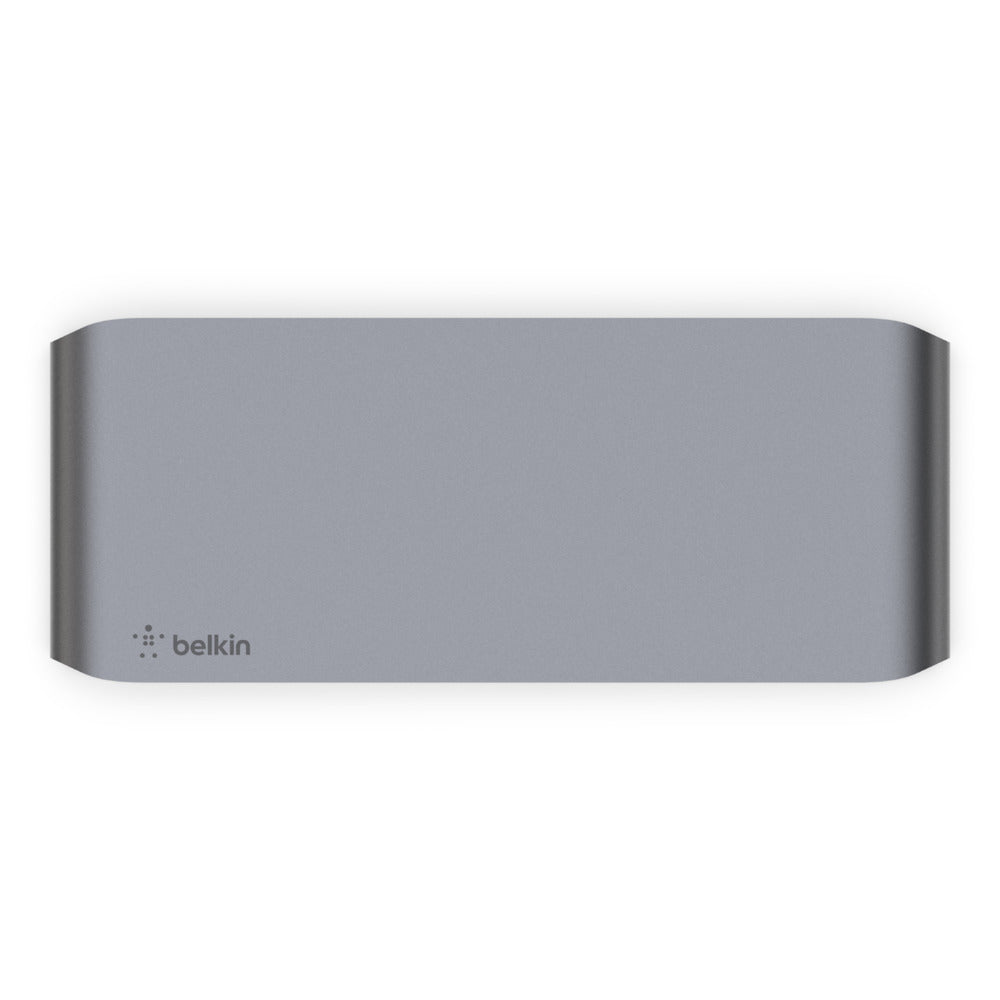

SLEEK ALUMINUM EXTERIOR
Durable aluminum casing protects the delicate circuitry inside the dock, while presenting a stylish, minimal exterior designed to suit any work space.
DUAL HIGH-DEFINITION MONITOR SUPPORT
Thunderbolt 3 Dock Pro supports dual high-definition monitors for a versatile workspace. Please see the table below for specific resolution capabilities for all monitor combinations.
|
SINGLE MONITOR SUPPORT |
DUAL MONITOR SUPPORT |
THUNDERBOLT 3 LAPTOP |
Laptop running High Bit Rate 3: 8K (7680 x 4320) @ 30Hz Laptop running High Bit Rate 2: 4K (3840 x 2160) @ 60Hz |
Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 60Hz Laptop running High Bit Rate 2: 4K (3840 x 2160) @ 30Hz |
USB-C LAPTOP |
Laptop running High Bit Rate 3: 5K (5120 x 3200) @ 30Hz Laptop running High Bit Rate 2: 4K (3840 x 2160) @ 30Hz |
Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 30Hz & 1080P @ 60Hz Laptop running High Bit Rate 2: 1080P @ 60Hz |
*USB-C host performance will be limited. Note that not all USB-C ports support the full functionality of the USB Type-C standard. USB-C hosts may not support extended display to external monitors.
ULTRA HIGH-SPEED SD TRANSFER
The SD (secure digital) card slot supports Ultra-High-Speed II (UHS-II), to transfer data quickly at up to 312 MB/s bus speed. Supporting standard SD cards, SDHC (High-Capacity) cards and SDXC (Extended-Capacity) cards, UHS-II can transfer a full day’s camera footage three times faster than UHS-I.
POWER TO SHARE
With the included 170W power supply unit, the Thunderbolt 3 Dock Pro provides up to 85W of power for a connected laptop. Also known as "upstream charging," this keeps your laptop charged while in use, without a separate power cable.
Specs:
- W: 200mm / 7.87 in
- D: 81mm / 3.19 in
- H: 26mm / 1.02 in
- Weight: 422grams / 14.89 oz
Package Includes:
- Thunderbolt 3 Dock Pro
- 0.8m / 2.6ft. Thunderbolt 3 cable
Specifications:
Cable connector |
Thunderbolt 3 USB-A USB-C 3.5mm Ethernet DisplayPort |
Manufacturer's SKU: F4U097vf
