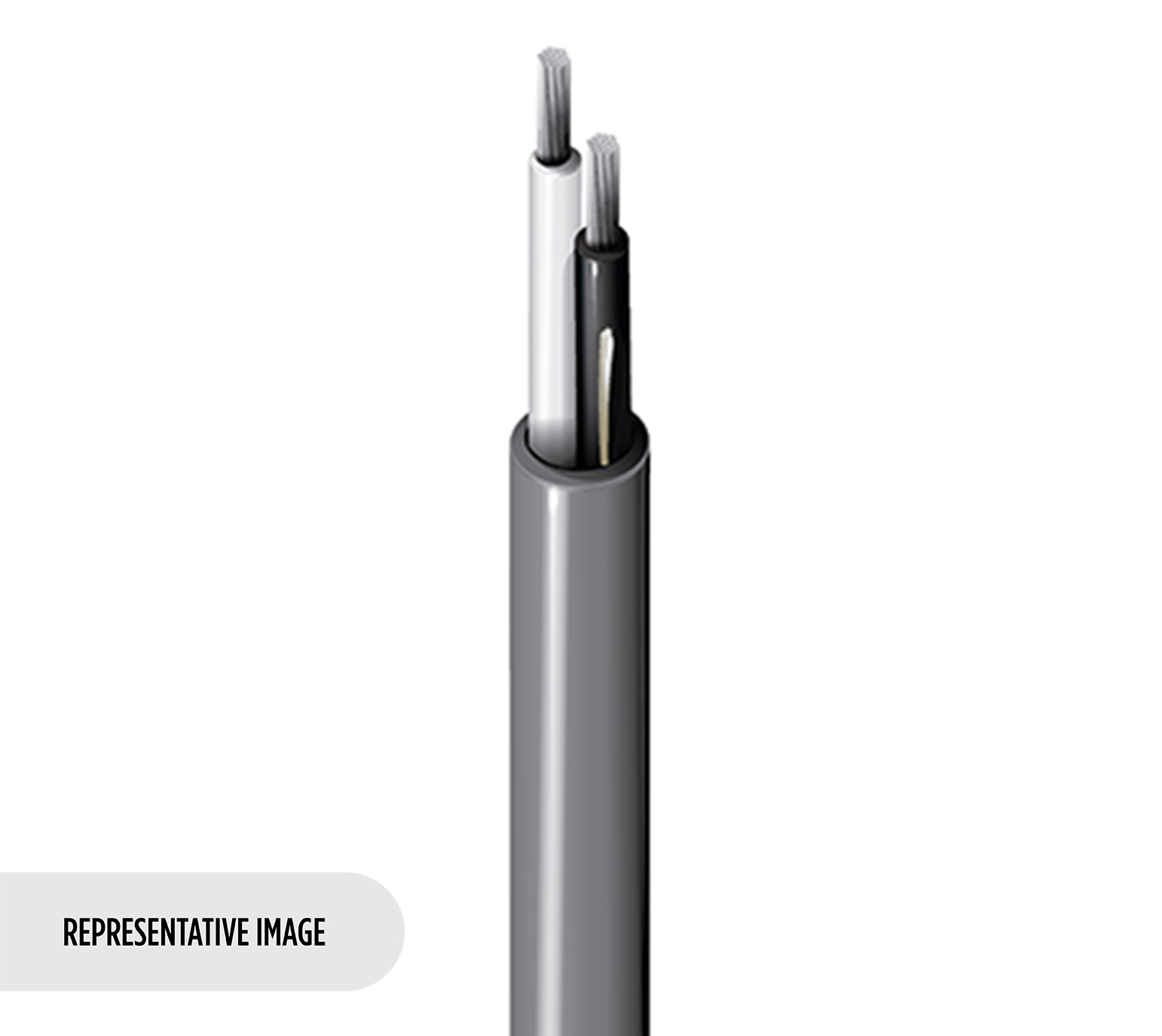

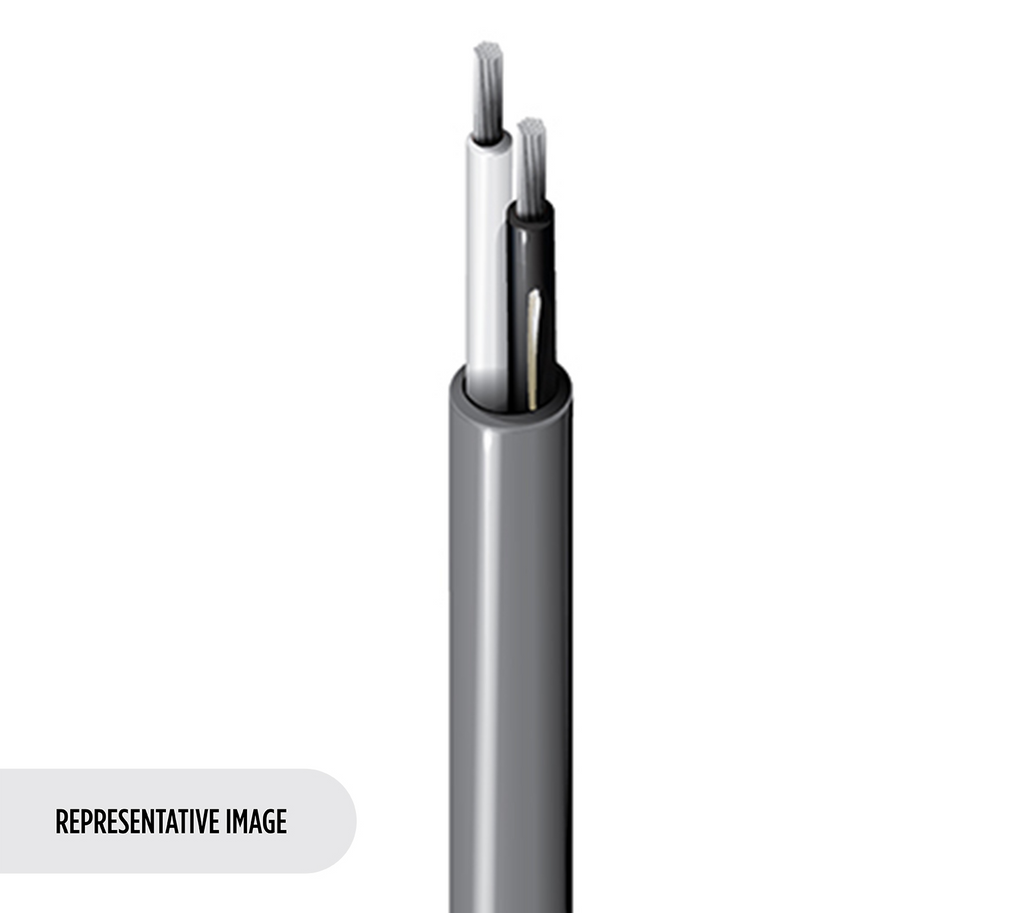

Belden Speaker Cable 12AWG (8477 0601000)
Electronic, 2 Conductor 12AWG (65x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CL3R
Product Overview:
|
Suitable Applications |
up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
1 |
|
AWG |
12 |
|
Stranding |
65x30 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PVC - Polyvinyl Chloride |
|
Thickness |
0.033 in (0.84 mm) |
|
Color Code |
Black & White |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Thickness |
0.035 in (0.89 mm) |
|
Nom. Diameter |
0.386 in |
|
Cable Diameter (Nominal) |
0.386 in (9.80 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
1.8 Ohm/1000ft (5.9 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
35 pF/ft (110 pF/m) |
|
Max. Current |
13 Amps per Conductor at 25ºC |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CL3R), 600 V (UL AWM 2587) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
90°C (UL AWM 2587) |
|
Operating |
-20°C to +90°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
3.9 in (99 mm) |
|
Installation Min. |
3.9 in (99 mm) |
|
Max. Pull Tension |
150 lbs (68 kg) |
|
Bulk Cable Weight |
79 lbs/1000ft (120 kg/km) |
|
Environmental Suitability |
Indoor |
