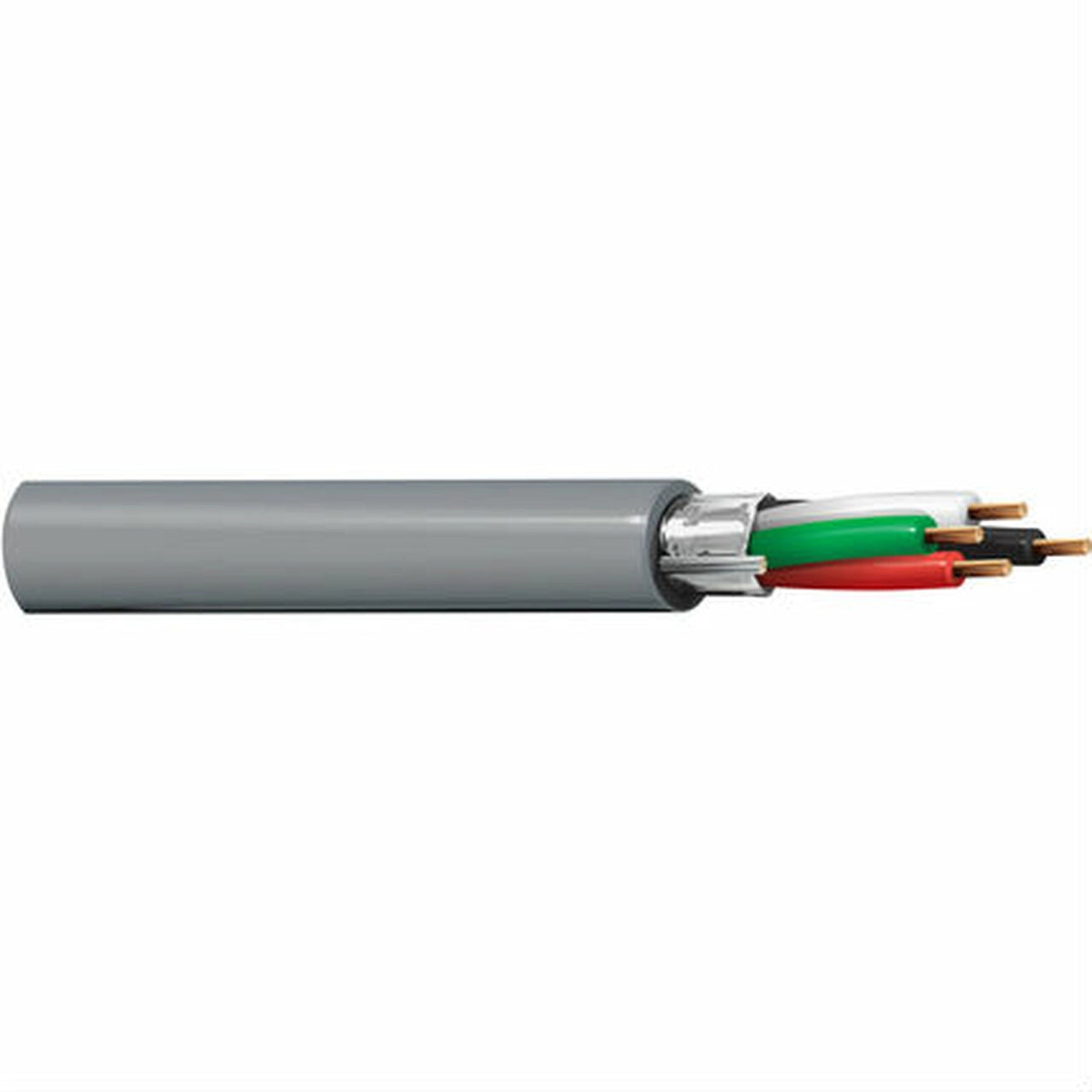

Belden Security & Sound Cable Riser-CMR 4-18 AWG Cable (5302FE)
Security & Sound Cable, Riser-CMR, 4-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Technical Specifications:
|
Suitable Applications |
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment |
|
|
|
|
CONDUCTOR |
|
|
Element |
Conductor(s) |
|
Number of Element |
4 |
|
Size |
18 AWG |
|
Stranding |
7x26 |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Element |
Conductor(s) |
|
Material |
PP - Polypropylene |
|
Nom. Thickness |
0.009 in (0.23 mm) |
|
Color Code |
Black, Red, White, Green |
|
|
|
|
OUTER SHIELD |
|
|
Shield Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage |
100% |
|
Drainwire Type |
24 AWG (7x32) TC |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.017 in (0.43 mm) |
|
Nom. Diameter |
0.188 in (4.78 mm) |
|
Ripcord |
Yes |
|
Overall Cable Diameter (Nominal) |
0.188 in (4.78 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Conductor(s) |
|
Nom. Conductor DCR |
6.5 Ohm/1000ft (21 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
27 pF/ft (89 pF/m) |
|
Nom. Capacitance Cond-to-Other (Conds + Shield) |
48.5 pF/ft (159 pF/m) |
|
Max. Current |
4 Amps per conductor @ 25°C |
|
|
|
|
UL Voltage Rating |
300 V (CMR) |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
-20°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
1.9 in (48 mm) |
|
Installation Min. |
1.9 in (48 mm) |
|
Max. Pull Tension |
104 lbs (47.2 kg) |
|
Bulk Cable Weight |
31 lbs/1000ft (46 kg/km) |
