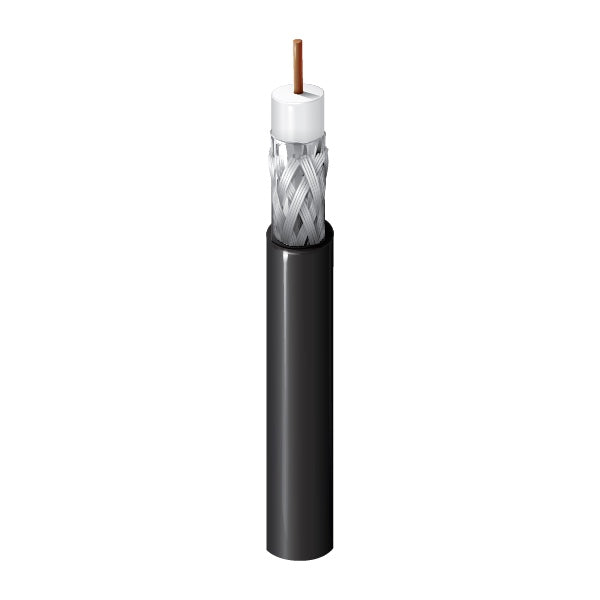

Belden Mini Video Cable RG59 Spool Orange (1855A 0031000)
75 Ohm SDI Coax, Mini RG-59, 23 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR
Product Overview:
|
Suitable Applications |
Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p |
|
|
|
|
Construction Details |
|
|
RG Type |
Mini 59 |
|
|
|
|
CONDUCTOR |
|
|
AWG |
23 |
|
Stranding |
Solid |
|
Material |
BC - Bare Copper |
|
Nom. Diameter |
0.023 in |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene (Foam) |
|
Nom. Diameter |
0.102 in |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation [dB/100ft] |
|
1 MHz |
0.39 dB/100ft |
|
3.58 MHz |
0.78 dB/100ft |
|
5 MHz |
0.92 dB/100ft |
|
6 MHz |
1.00 dB/100ft |
|
7 MHz |
1.08 dB/100ft |
|
10 MHz |
1.2 dB/100ft |
|
12 MHz |
1.3 dB/100ft |
|
25 MHz |
1.8 dB/100ft |
|
67.5 MHz |
2.83 dB/100ft |
|
71.5 MHz |
2.93 dB/100ft |
|
88.5 MHz |
3.22 dB/100ft |
|
100 MHz |
3.39 dB/100ft |
|
135 MHz |
3.84 dB/100ft |
|
143 MHz |
4.00 dB/100ft |
|
180 MHz |
4.41 dB/100ft |
|
270 MHz |
5.44 dB/100ft |
|
360 MHz |
6.34 dB/100ft |
|
540 MHz |
7.85 dB/100ft |
|
720 MHz |
9.15 dB/100ft |
|
750 MHz |
9.31 dB/100ft |
|
1000 MHz |
10.89 dB/100ft |
|
1500 MHz |
13.38 dB/100ft |
|
2000 MHz |
15.64 dB/100ft |
|
2250 MHz |
16.68 dB/100ft |
|
3000 MHz |
19.65 dB/100ft |
|
4500 MHz |
24.35 dB/100ft |
|
6000 MHz |
28.97 dB/100ft |
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Layer 1 |
|
|
Outer Shield Type |
Tape |
|
Material |
Tri-Laminate (Alum+Poly+Alum) |
|
Material Trade Name |
Duofoil® |
|
Coverage |
100% |
|
|
|
|
Layer 2 |
|
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Coverage |
95% |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.159 in |
|
|
|
|
ELECTRICALS |
|
|
RETURN LOSS |
|
|
Frequency [MHz] |
Min. Return Loss [dB] |
|
5 - 1600 MHz |
23 dB |
|
1600 - 4500 MHz |
21 dB |
|
4500 - 6000 MHz |
15 dB |
|
|
|
|
Nom. Conductor DCR |
20.1 Ohm/1000ft |
|
Nom. Outer Shield DCR |
3.7 Ohm/1000ft |
|
Nom. Capacitance Cond-to-Shield |
16.3 pF/ft |
|
Nom. Impedence |
75 Ohm |
|
Nom. Velocity |
82% |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CMR, CMG) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
75°C |
|
Operating |
-30°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
1.6 in |
|
Bulk Cable Weight |
17 lbs/1000ft |
|
Max. Pull Tension |
33 lbs |
