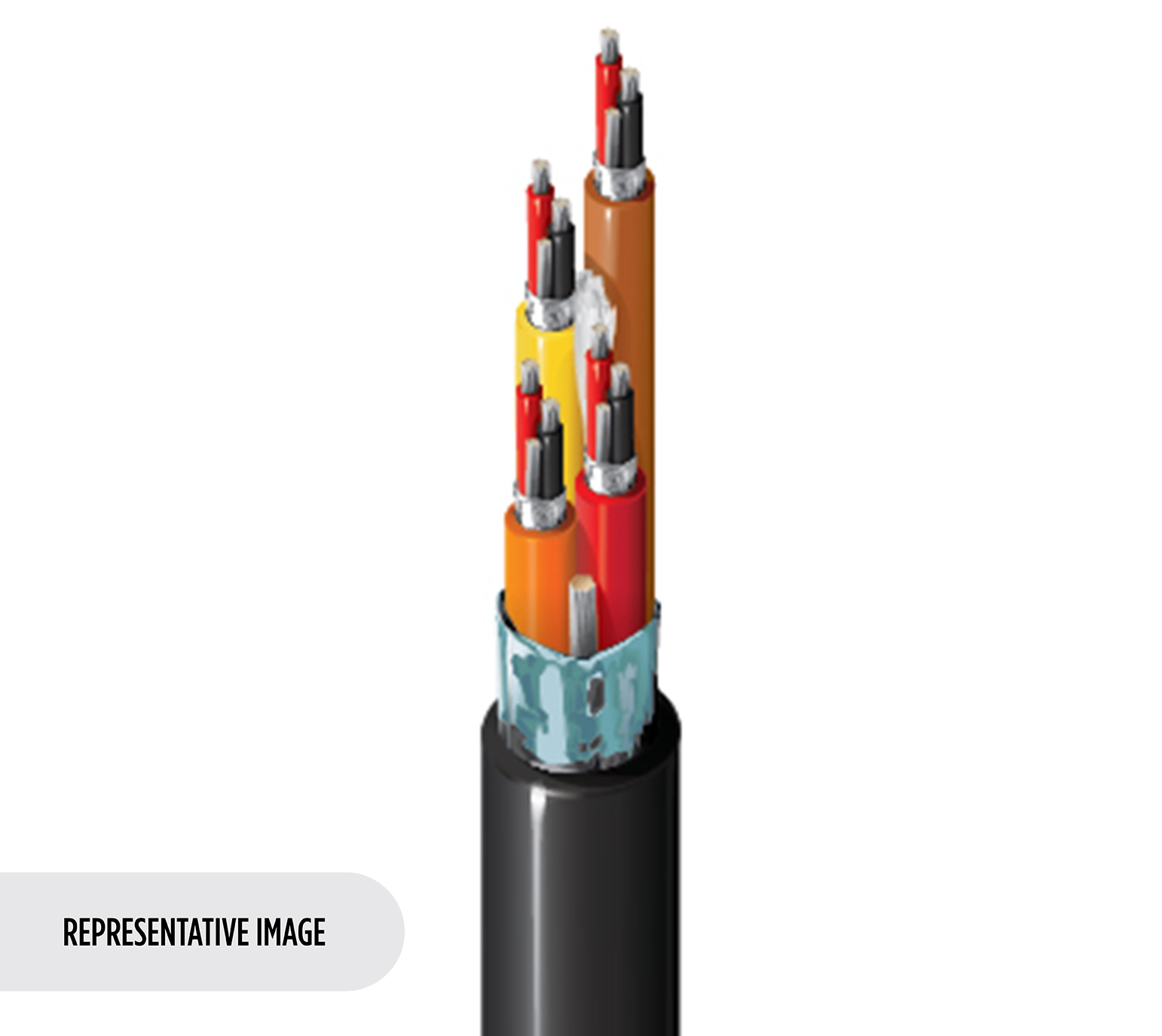

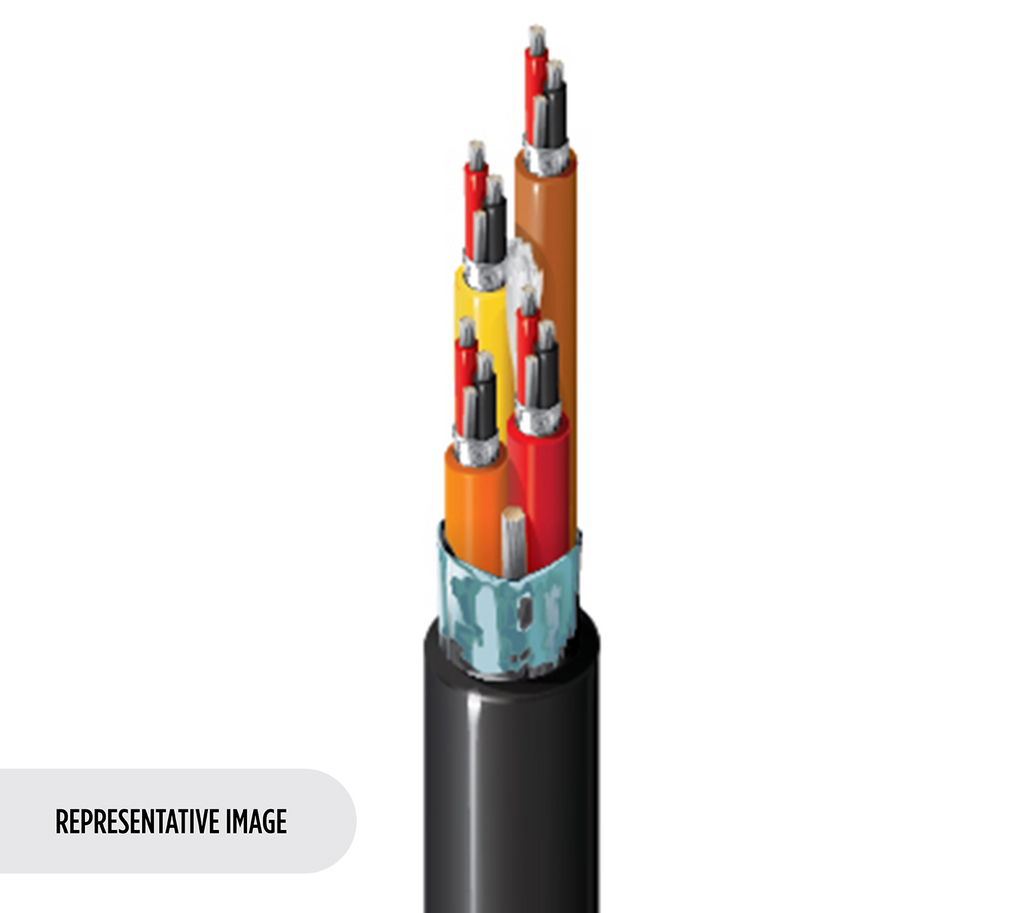

Belden Audio Snake Cable 12 Pair 24 AWG (1513C)
Audio Snake Cable, 12 Pair 24 AWG (7 x 32) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil® Shield, PVC jacket, Ripcord, CM, Flexible
Technical Specifications:
|
Suitable Applications |
Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
12 |
|
Size |
24 |
|
Stranding |
7x32 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PP - Polypropylene |
|
Nom. Thickness |
0.008 in (0.20 mm) |
|
Nom. Insulation Diameter |
0.04 in (1.0 mm) |
|
Color Code |
Black & Red |
|
|
|
|
INNER SHIELD |
|
|
Element |
Pair(s) |
|
Shield Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage |
100% |
|
Drainwire Type |
24 AWG (7x32) TC |
|
Notes |
Individual pair tapes are adhered to their inner jackets for easy stripping |
|
|
|
|
OUTER SHIELD |
|
|
Shield Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage |
100% |
|
Drainwire Type |
18 AWG (65x36) TC |
|
|
|
|
INNER JACKET |
|
|
Element |
Pair(s) |
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.015 in (0.38 mm) |
|
Nom. Diameter |
0.113 in (2.87 mm) |
|
Table Notes |
Inner jackets are numbered and are colored: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Tan, Pink |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.045 in (1.1 mm) |
|
Nom. Diameter |
0.561 in (14.2 mm) |
|
Ripcord |
Yes |
|
Overall Cable Diameter (Nominal) |
0.561 in (14.2 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
23.3 Ohm/1000ft (76.4 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
31 pF/ft (100 pF/m) |
|
Nom. Capacitance Cond-to-Other (Conds + Shield) |
58 pF/ft (190 pF/m) |
|
Nom. Characteristic Impedence |
50 Ohm |
|
Nom. Velocity of Prop |
66% |
|
Max. Current |
1.05 Amps per conductor @ 25°C |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CM) |
|
|
|
|
TEMPERATURE |
|
|
Operating |
-35°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
5.6 in (140 mm) |
|
Installation Min. |
5.6 in |
|
Max. Pull Tension |
220.4 lbs (99.97 kg) |
|
Bulk Cable Weight |
162 lbs/1000ft (241 kg/km) |
