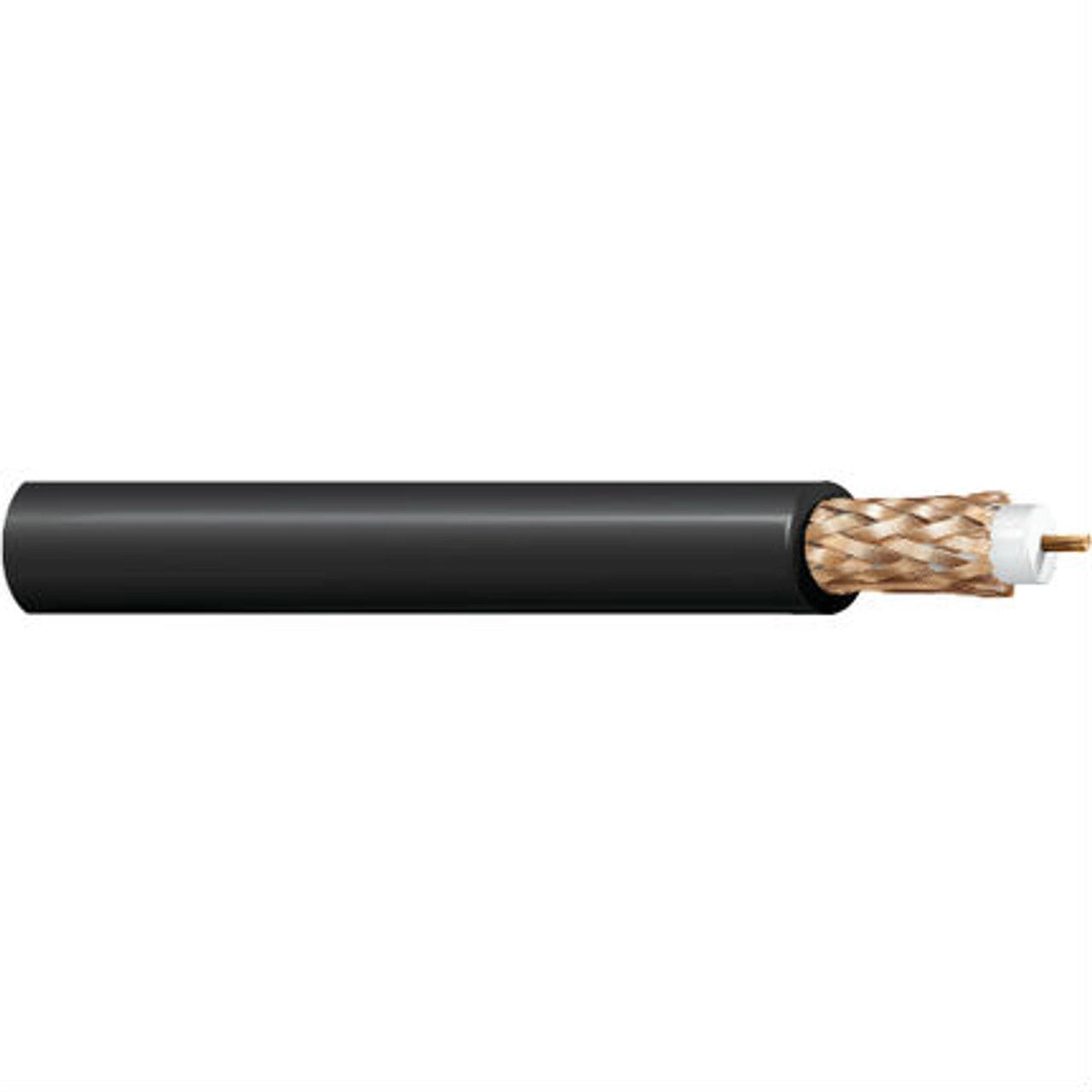

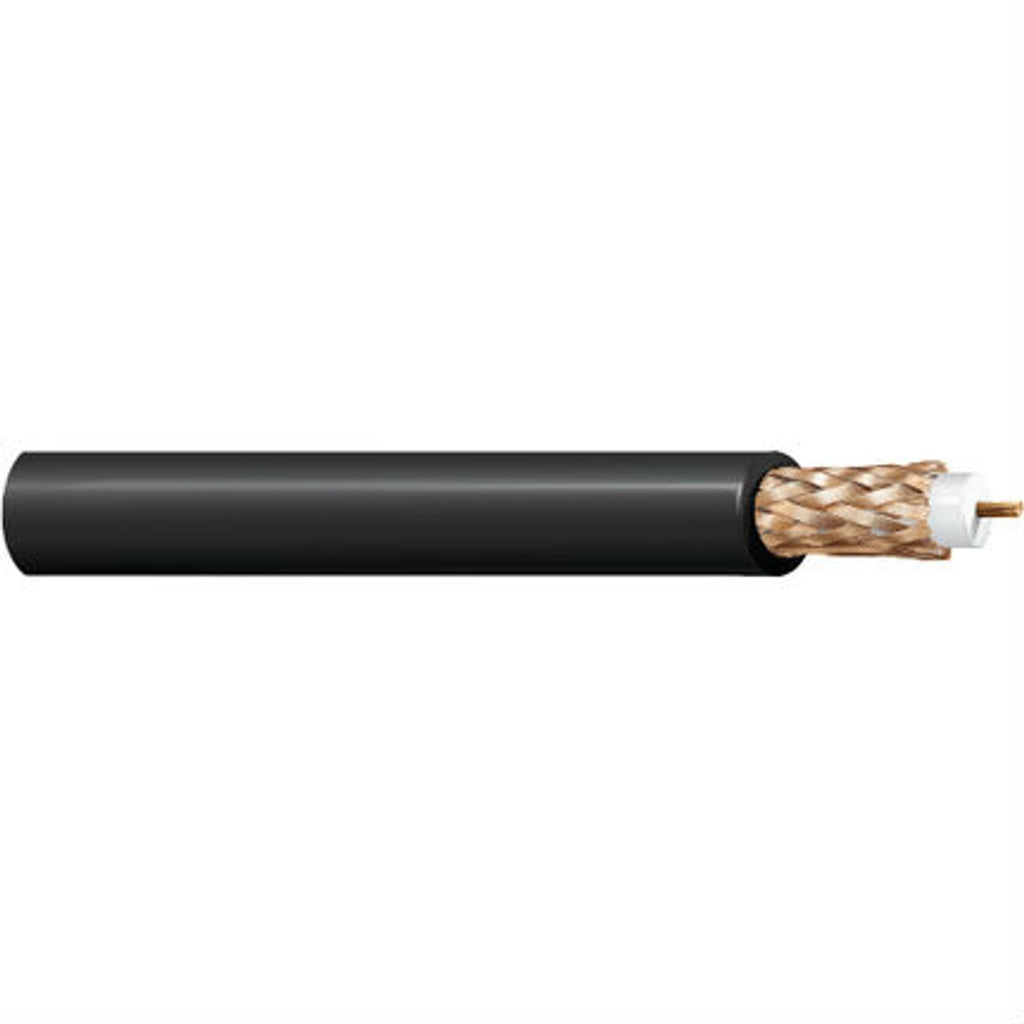

Belden 50 Ohm Wireless Transmission Coax RG-8 11 AWG Cable (8214)
50 Ohm Wireless Transmission Coax, RG-8, 11 AWG (7x19) Bare Copper Conductor , PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket, CM
Technical Specifications:
|
Suitable Applications |
Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|
|
|
|
RG Type |
8 |
|
|
|
|
CONDUCTOR |
|
|
Size |
11 AWG |
|
Stranding |
7x19 |
|
Nom. Diameter |
0.108 in |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene (Foam) |
|
Nom. Insulation Diameter |
0.285 in (7.24 mm) |
|
|
|
|
OUTER SHIELD |
|
|
Outer Shield Type |
Braid |
|
Material |
Bare Copper (BC) |
|
Coverage |
95% |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.403 in (10.2 mm) |
|
Overall Cable Diameter (Nominal) |
0.403 in (10.2 mm) |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation |
|
1 MHz |
0.14 dB/100ft |
|
10 MHz |
0.5 dB/100ft |
|
50 MHz |
1.2 dB/100ft |
|
100 MHz |
1.7 dB/100ft |
|
200 MHz |
2.6 dB/100ft |
|
400 MHz |
3.9 dB/100ft |
|
700 MHz |
5.6 dB/100ft |
|
900 MHz |
6.5 dB/100ft |
|
1000 MHz |
7.0 dB/100ft |
|
4000 MHz |
21.5 dB/100ft |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
1.2 Ohm/1000ft (3.9 Ohm/km) |
|
Nom. Outer Shield DCR |
1.1 Ohm/1000ft (3.6 Ohm/km) |
|
Nom. Capacitance Cond-to-Shield |
26 pF/ft (85 pF/m) |
|
Nom. Characteristic Impedance |
50 Ohm |
|
Nom. Velocity of Prop. |
78% |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CM), 30 V (UL AWM 1354) |
|
Voltage Rating |
300 V |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
60°C (UL AWM 1354) |
|
Operating |
-30°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
4.0 in |
|
|
|
|
Max. Pull Tension |
189 lbs (85.7 kg) |
|
Bulk Cable Weight |
107 lbs/1000ft |
