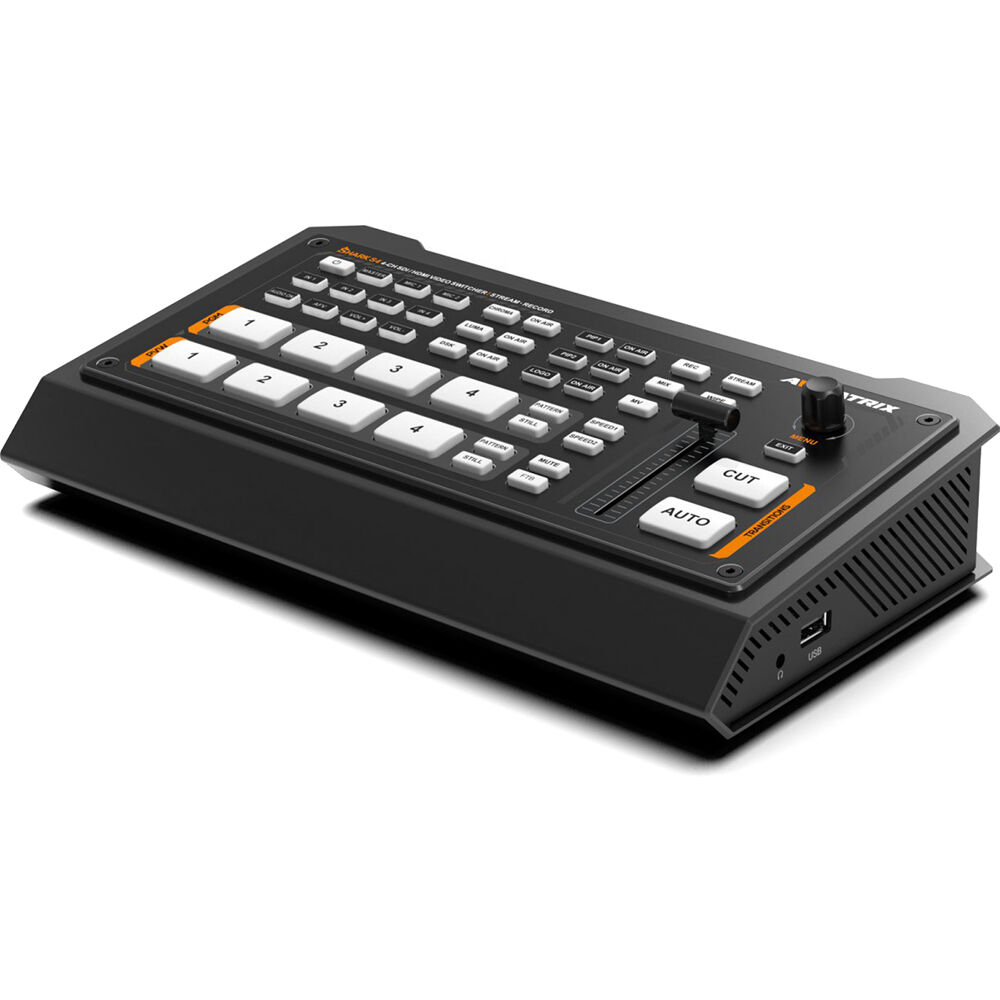

AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher
- Compact 4-Channel Video Switcher
- 2 x 3G-SDI & 2 x HDMI Inputs
- 1 x HDMI Multiview & 2 x HDMI PGM Out
- 1 x USB-C Out for Capture & Streaming
- Supports up to 1080p60 Video In/Out
- 1 x LAN for Control Input & Streaming
- SD Card/USB-A Recording, 2 x Mic Inputs

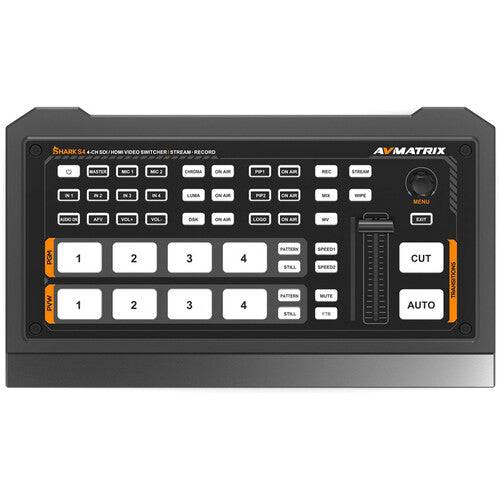

- T-Bar, Auto & Cut Transitions
- Audio Mixing, Multiview Output
- Adjustable PiP Size & Positioning
Switch up to two HDMI and two 3G-SDI video inputs while monitoring the program feed with the Shark S4 4-Channel 3G-SDI/HDMI Video Switcher from AVMATRIX. Use the USB-C output together with your computer for capture and streaming. This compact switcher supports up to 1080p60 video input and output with embedded audio and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.
- Enhanced chroma key
- Professional audio mixer with embedded and analog audio inputs
- Import up to 39 default patterns, 16 imported images, 16 captured images, and two color generators via USB
- PiP, PoP, logo overlay, transition effects
- Broadcast
- Education
- Conference
- Social media/vlogging
- Live sports
- House of worship
- Live events
Technical Specifications:
|
Available M/E Layers |
2 M/E |
|
Effect Types |
1x Luma Key |
|
Downstream Keys |
1x Chroma 1x Luma |
|
Generators |
1x Pattern 2x Color |
|
Audio Mixing |
2-Channel Mixing |
|
Switching Type |
Pushbutton, Software, T-Bar |
|
Processing Resolution |
1080p at 23.98/24/25/29.97/30/50/59.94/60 |
|
Color Processing |
RGB YCbCr |
|
Number of Video Input Sources |
4 |
|
Video Inputs |
2x HDMI Female 2x BNC (3G-SDI) Female |
|
Input Video Format |
BNC / HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps |
|
Audio Inputs |
2x 1/8" / 3.5 mm TRS Stereo Analog Female |
|
Input Audio Format |
Analog |
|
Embedded Audio Input |
HDMI: 2-Channel SDI: 2-Channel |
|
Video Output Channels |
5 |
|
Video Outputs |
2x HDMI Female (Program) 1x HDMI Female (Monitor) 1x USB-C (USB Video) Female (Program) 1x USB-A (USB Video) Female (Program) |
|
Output Video Format |
HDMI 1080p at 24/25/30/50/60 fps 1080i at 50/60 fps USB-C 1080p at 60 fps |
|
Audio Outputs |
1x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
|
Embedded Audio Output |
HDMI USB-C |
|
Multiview Output |
4-Way Multiview via HDMI |
|
Monitor Output |
1x HDMI |
|
Other I/O |

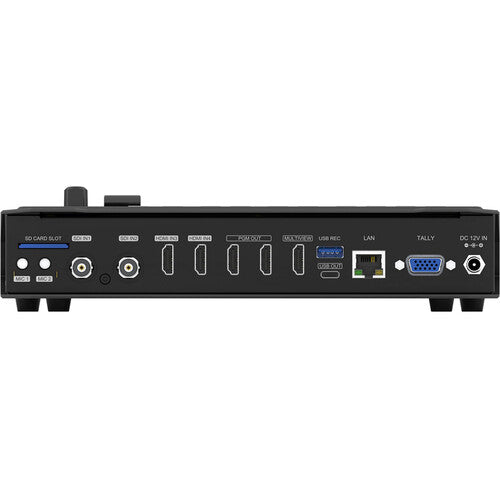

1x RJ45 LAN Input 1x DE-15/DB-15 Tally Input/Output 1x USB-A Input |
|
HDCP Support |
No |
|
IP Video |
1920 x 1080 Encoding |
|
Transport Protocols |
RTMP, RTMPS, SRT |
|
Simultaneous Streams |
1 Streams |
|
Compatible Services |
Facebook Live, Instagram, Livestream, Skype, Twitch, YouTube Live |
|
Recording Media |
1x SD (Unspecified Type) |
|
Processor |
Not Specified by Manufacturer |
|
Wi-Fi |
No |
|
Bluetooth |
No |
|
Power I/O |
1x Barrel (12 VDC at 1.4 A) Input |
|
Power Consumption |
Device: 16.8 W |
|
Operating Temperature |
12 to 92°F / -20 to 60°C |
|
Dimensions |
9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45 cm |
|
Weight |
2.2 lb / 1 kg |
In the Box:
- AVMATRIX Shark S4 4-Channel 3G-SDI/HDMI Video Switcher
- 12V Power Supply
- USB-A to USB-C Cable
- Tally Connector
- Limited 3-Year Manufacturer Warranty
