Number of Supported Cameras

255 Channels

Supported Control Protocols

IP

Pelco-D

Pelco-P

RS-232

RS-422

RS-485

VISCA

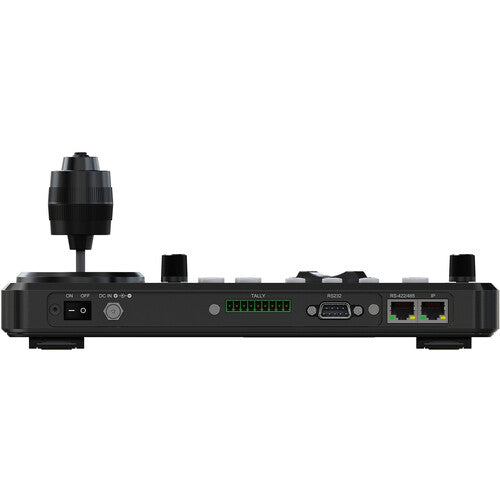

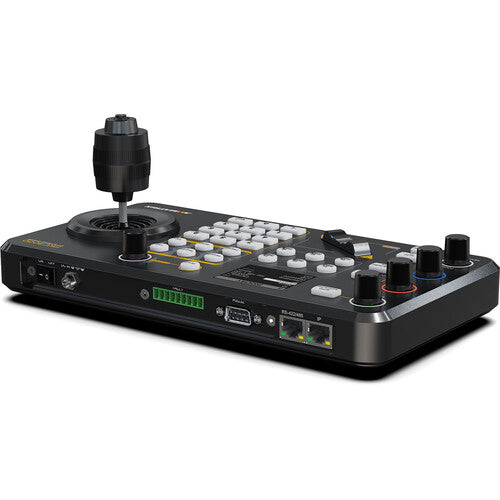

Control I/O

1 x Block 9-Pin Input

1 x RJ45 (IP Control) Output

1 x RJ45 (RS-422, RS-485) Output

1 x D-Sub 9-Pin (RS-232) Output

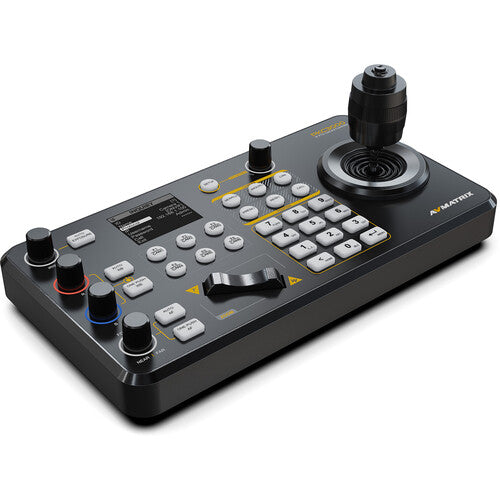

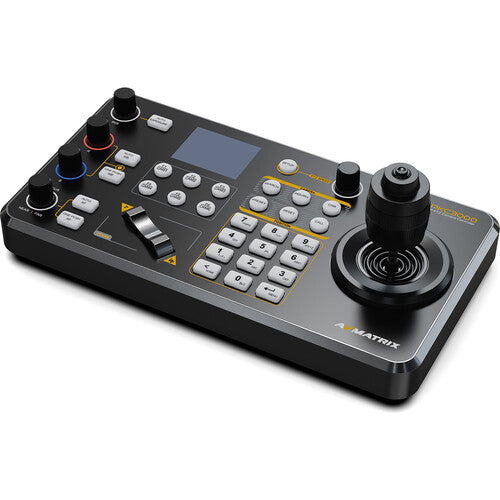

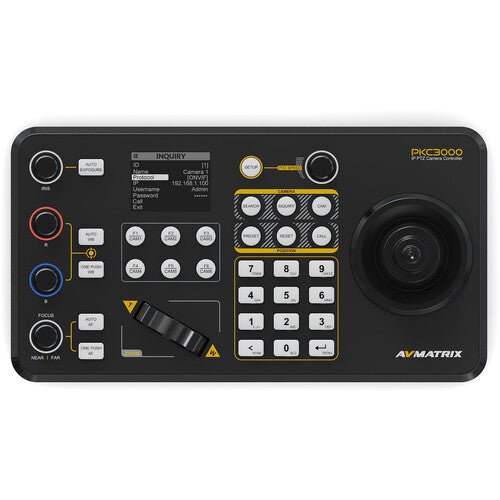

Controls

6 x Programmable Buttons

1 x Pan/Tilt, Zoom Joystick

6 x Camera Selection Buttons

5 x Knobs

1 x Zoom Rocker

Presets

255 via IP, RS-232, VISCA, Pelco-P, Pelco-D

Display Size

2.2"

Touchscreen

No

PoE Support

Yes

Power Connectors

1 x Barrel / Coaxial

Power Consumption

5 W

DC Input Power

12 VDC

Operating Temperature

-4 to 140°F / -20 to 60°C

Storage Temperature

-40 to 176°F / -40 to 80°C

Security Lock Support

No

Dimensions

106.3 x 57.1 x 11.6" / 270 x 145 x 29.5 cm

106.3 x 57.1 x 42" / 270 x 145 x 106.6 cm

Weight

2.6 lb / 1.2 kg
