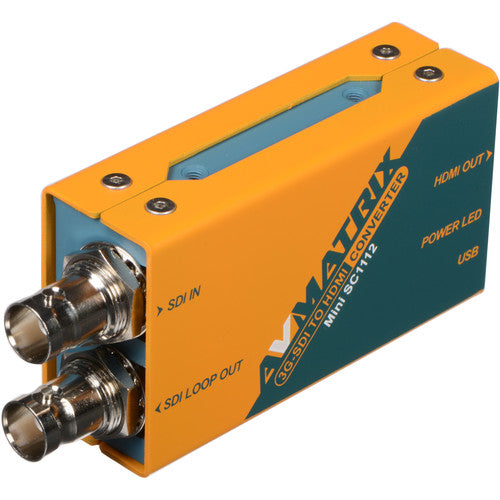

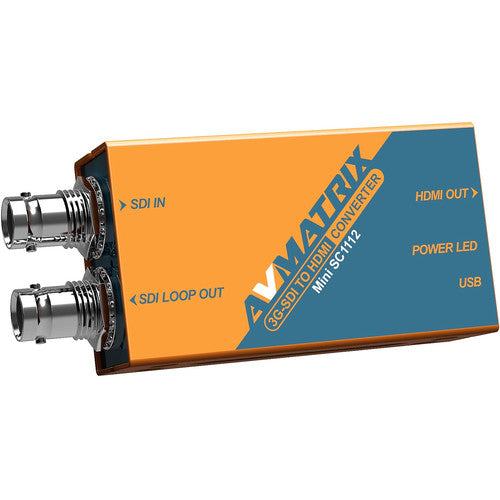

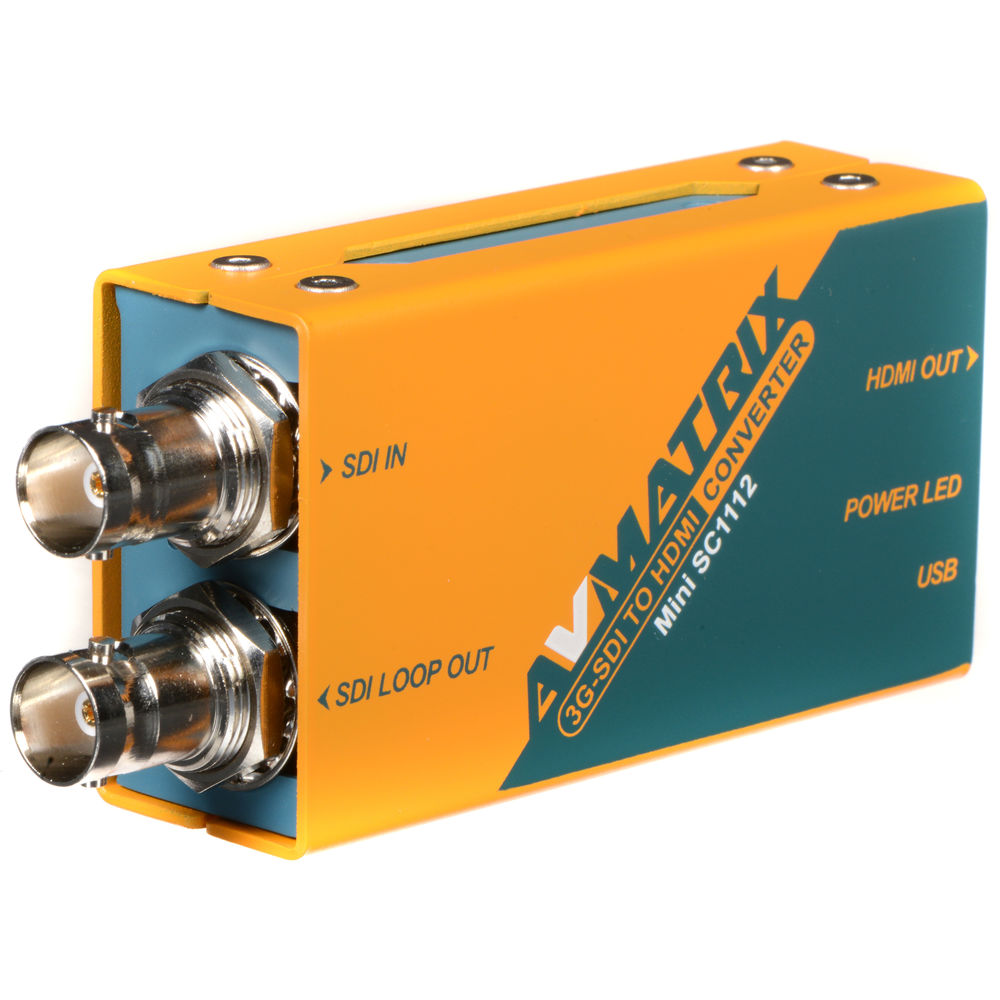

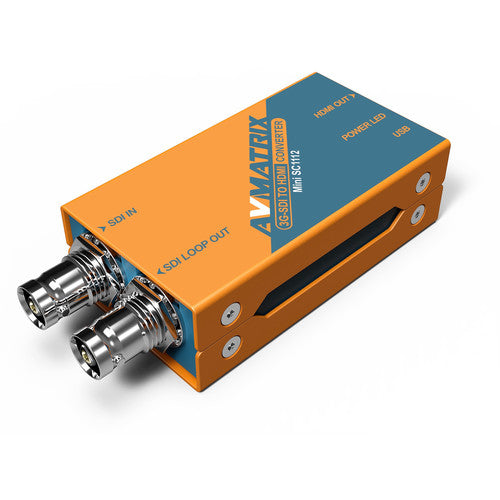

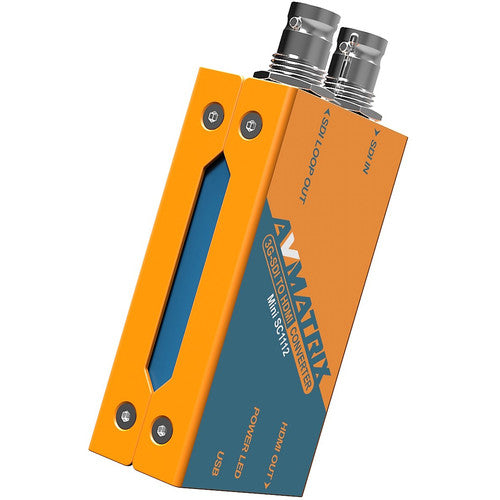

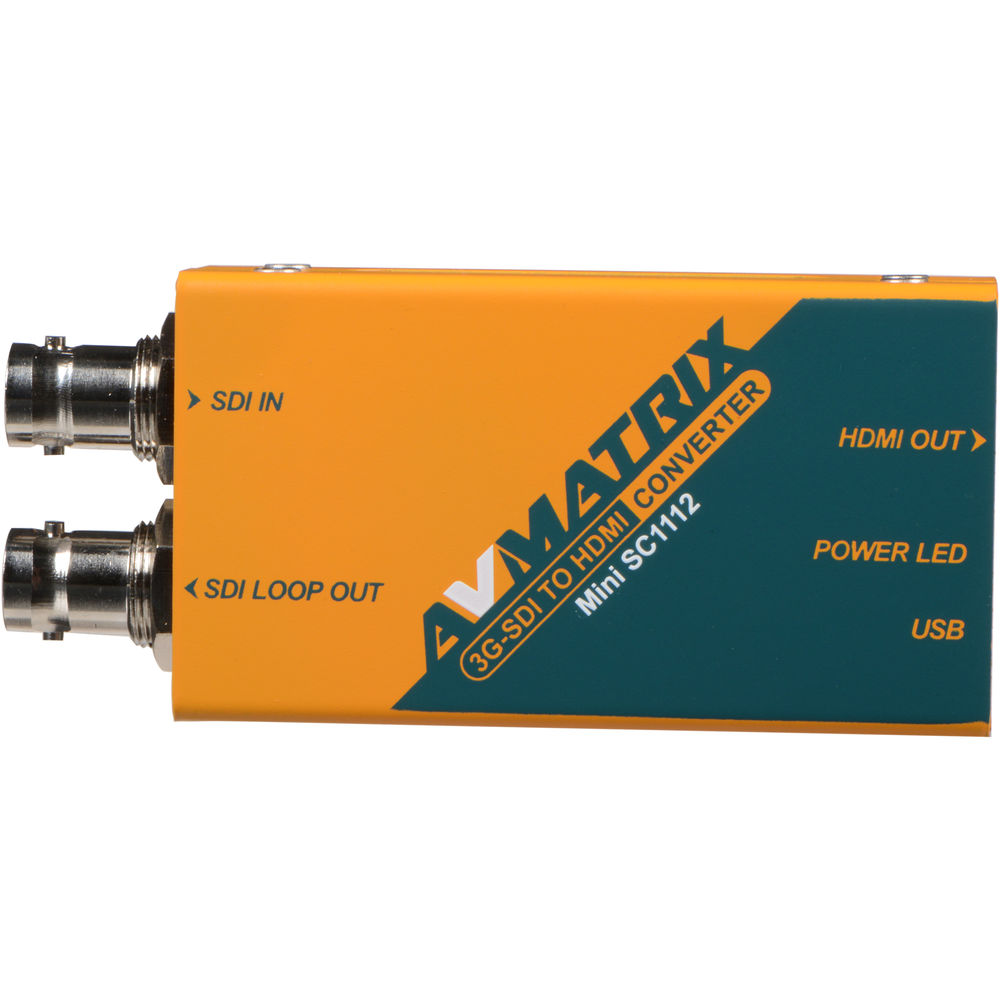

The AVMatrix Mini SC1112 from Lilliput Electronics is an ultra-compact SDI to HDMI signal converter in a robust metal housing.

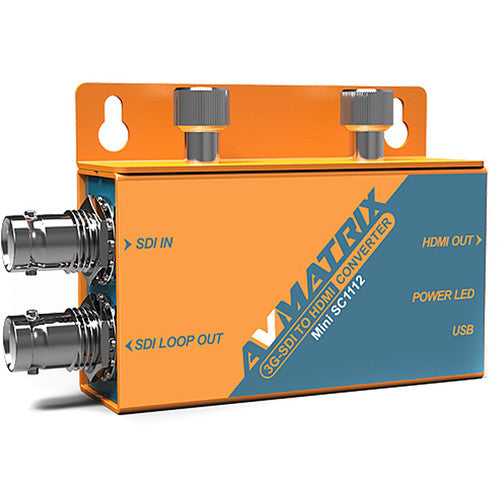

The Mini SC1112 features a 3G-SDI input and full-size HDMI output, and an SDI loop out for monitoring. It supports up to 1080p60 resolution and auto-selects between 3G, HD, and SD on input. EMC compliant, the Mini SC1112 can reliably be used 24 hours a day, 7 days a week without interruptions, lag, or delay. A mounting bracket is also included that easily attaches/detaches and allows for convenient mounting indoors or outdoors.
The Mini SC1112 has a USB port for power and an LED indicator that confirms power status. An AC adapter is supplied that connects into the micro-USB port to provide continuous power, but you can also connect it to other sources over a USB cable (included). For example, you can connect it to a laptop or a power bank. A 10,000mAh power bank will run the converter for approximately 24 hours.
The converter is also capable of working in a wide temperature range of -4 to 140°F.
Technical Specifications:
Input
1 x 3G/HD/SD-SDI (auto-selecting; level A and B supported)
Output
1 x HDMI type-A
1 x 3G/HD/SD-SDI loop out
SDI Format Support
1080p at 50/59.94/60 fps
1080psf at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/50/59.94/60 fps
625i at 50 fps
525i at 59.94 fps
SDI Compliance
SMPTE 292M/SMPTE 259M/SMPTE 424M
SDI Color Space
YUV 4:2:2
HDMI Format Support
720p at 24/25/30/59.94/60 fps
576i at 50 fps
480i at 60 fps
HDMI Color Space
Power Port
1 x micro-USB
Power Consumption
1.5 W
Voltage Range
3.3 - 5 V
Operating Temperature
-4 to 140°F (-20 to 60°C)
Storage Temperature
-22 to 158°F (-30 to 70°C)
Relative Humidity
0 to 90% non-condensing
Dimensions
2.9 x 1.6 x 0.9" (7.4 x 4.1 x 2.3 cm)
