Find your Mastery

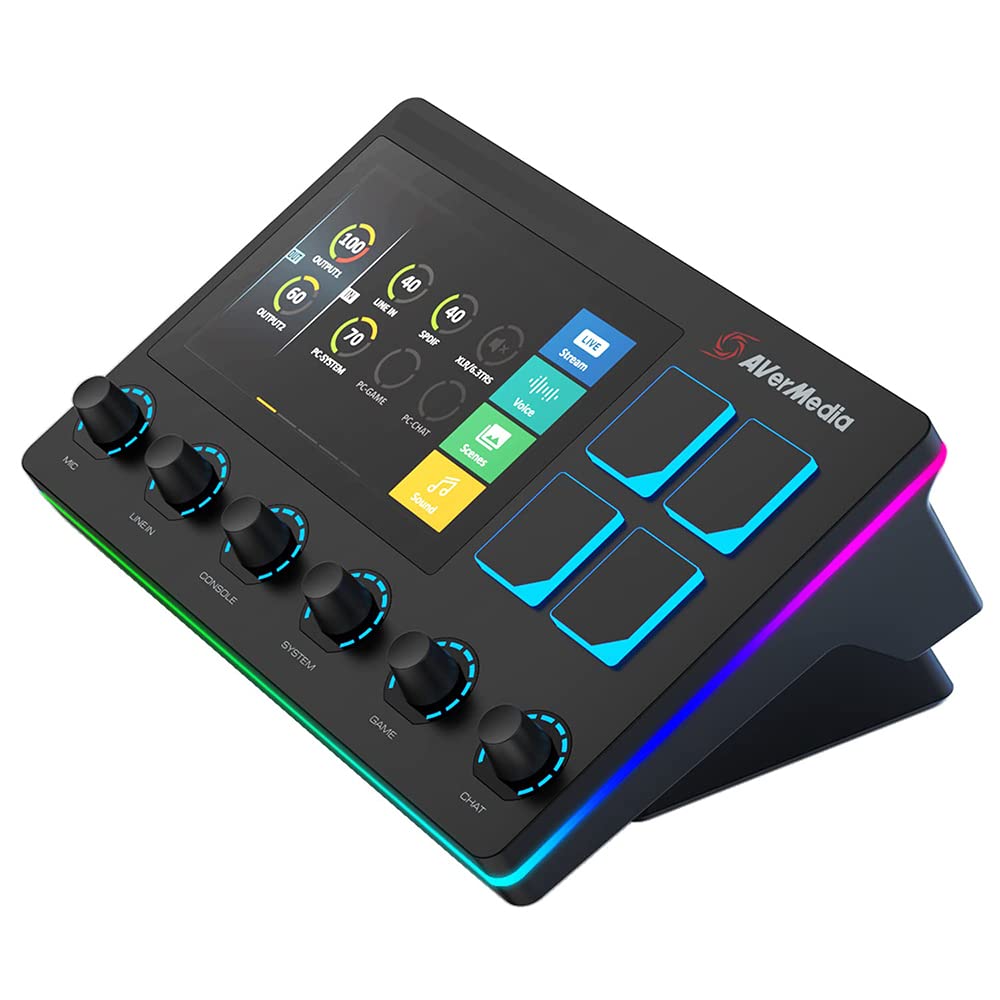

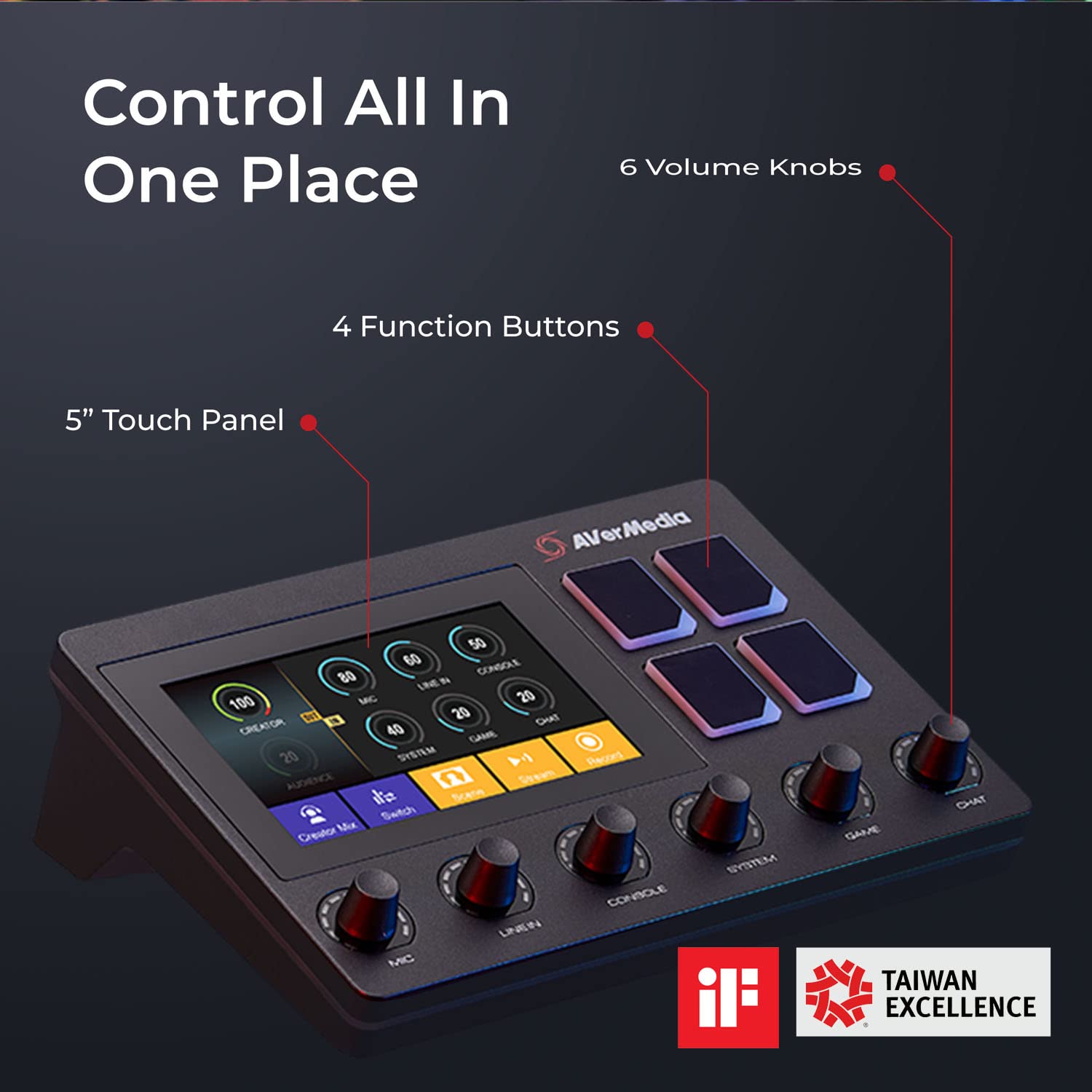

With a 6 track audio mixer and a fully customizable control panel, the Live Streamer AX310 will ensure you have full control over the live creation process. Be more productive, create more efficiently, master your content.
Your most important Tracks, Mixed.
Your voice, alerts, music, even game sound are a huge part of your content. Controlling and monitoring all 6 tracks withe ease and in real-time.
Dual independent audio mixes
Keep your audio levels separate from your audience. With Dual Mix you and your stream can have different audio experiences, allowing each to focus on what’s most important.
Creator Central.

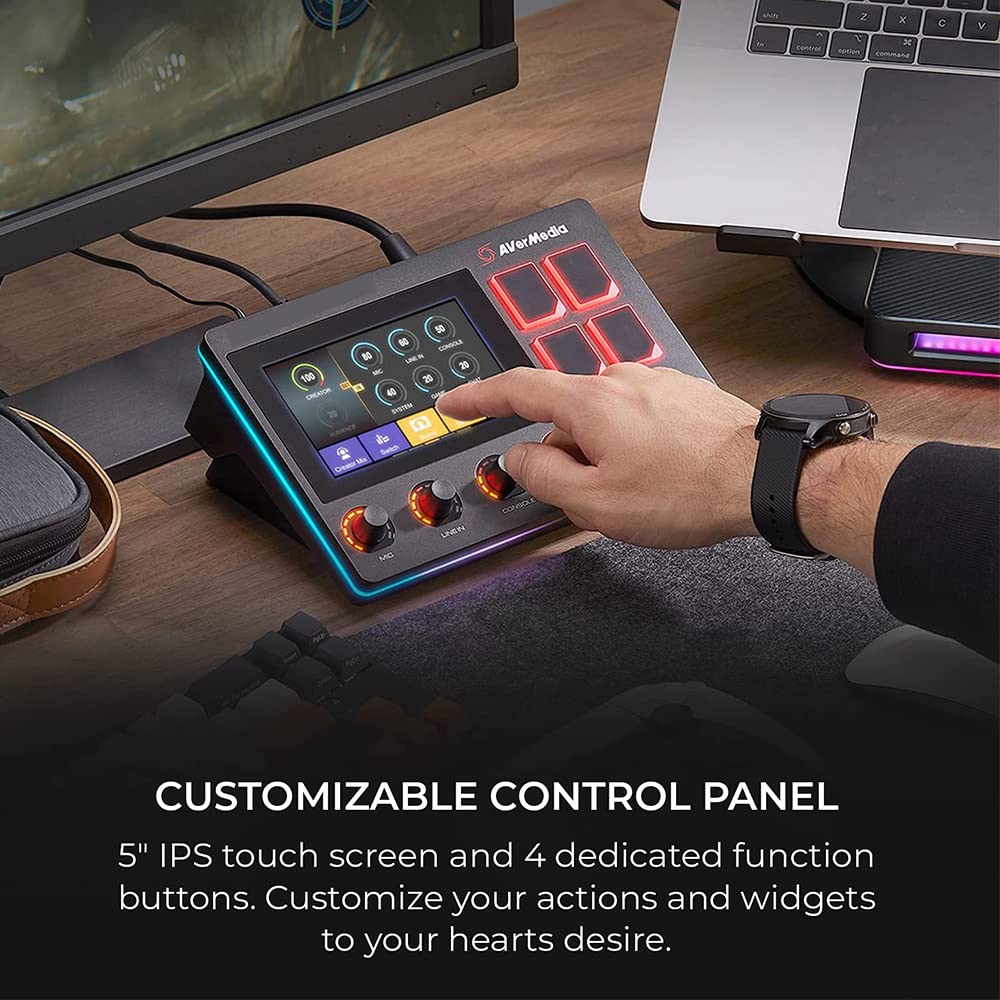

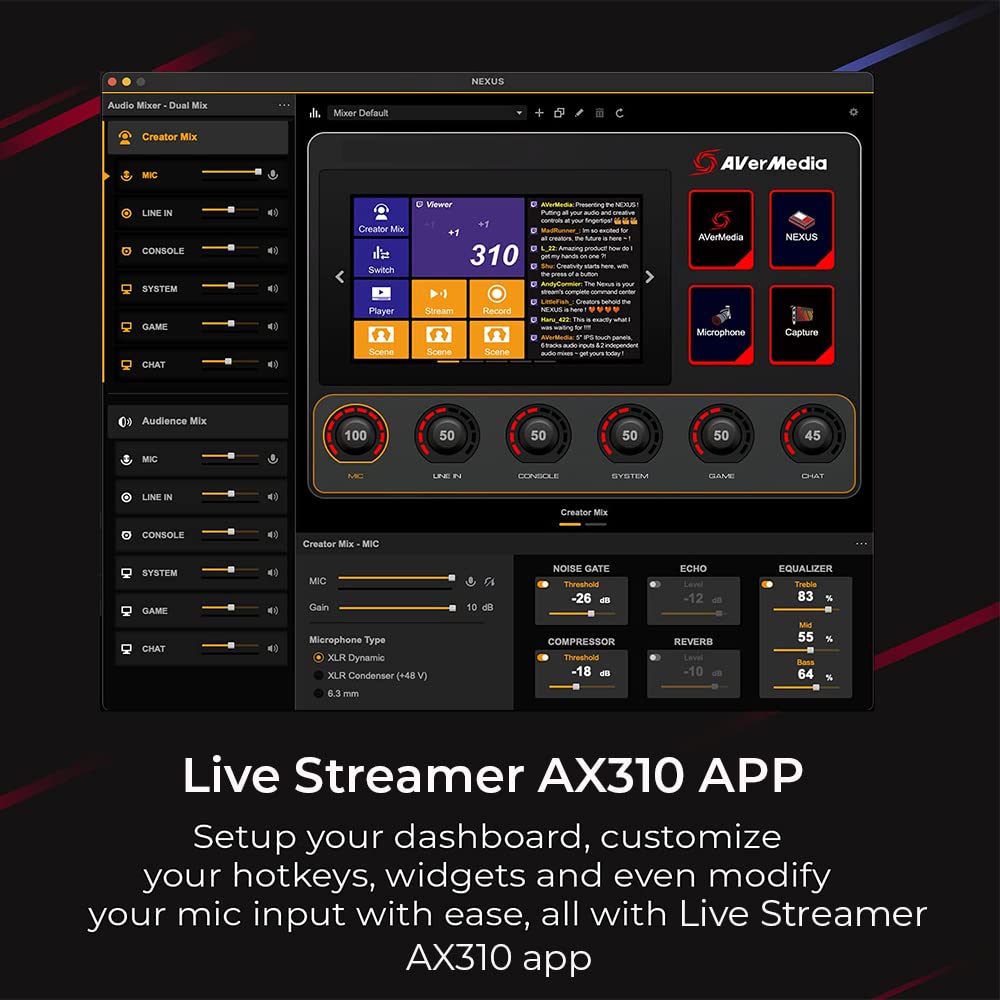

The Creator Central app will have your AX310 customized for your needs in no time. Specially designed with content creators in mind, simply drag and drop widgets, add hotkeys, tune your mic, and more. Mastering your stream is only a few clicks away.
Ever-Evolving Functionality
With our ever growing list of widgets and partners, expand your controls to every aspect of your stream and beyond. Explore the Creator Central Widget store to download the widgets for your every need.

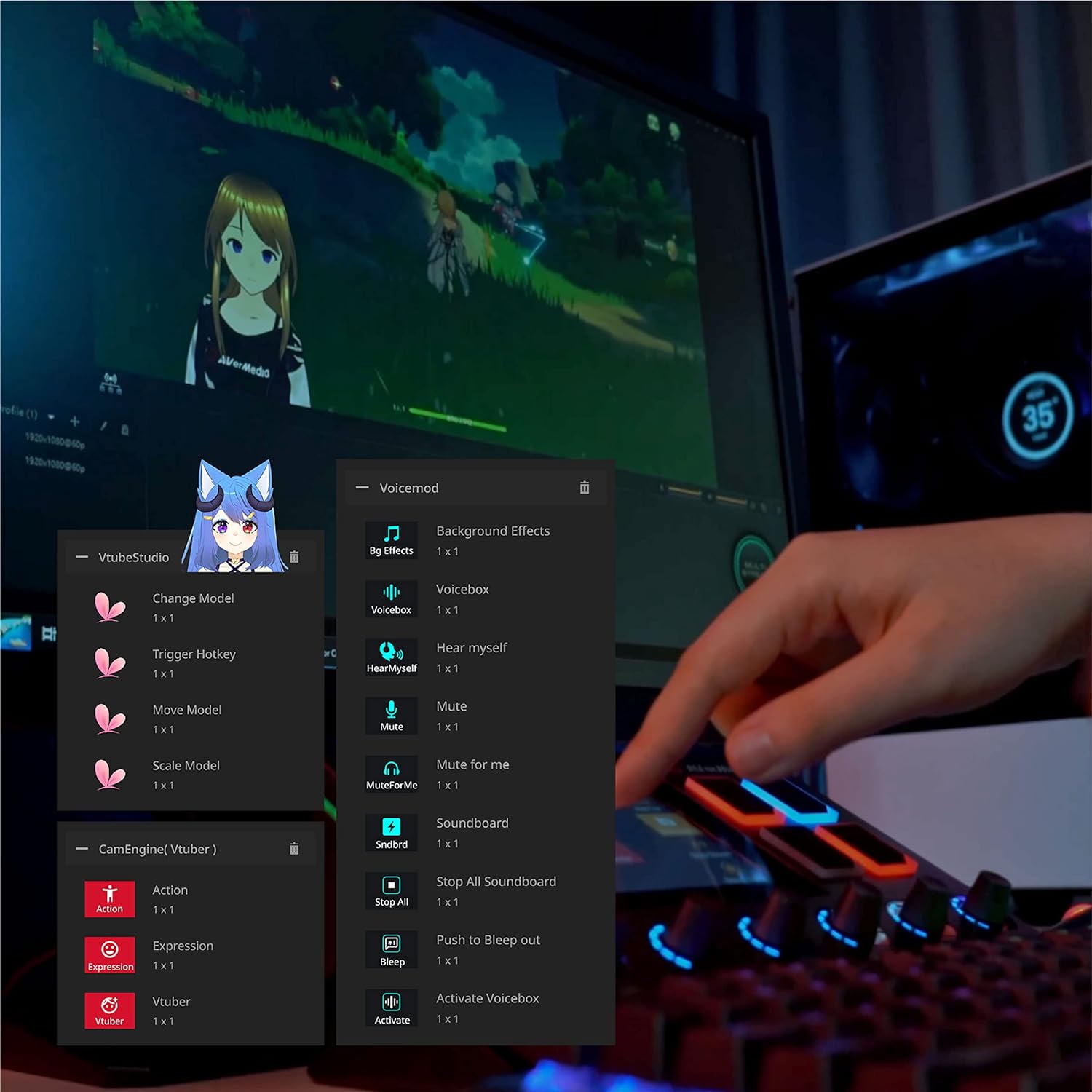

Perfect for Vtubing!
Share your game stream with you at its center as your very own VTube character. Live Streamer AX310 brings all your important VTubing controls to your fingertips with the support for VTube Studio, Voicemod and our very own CamEngine VTuber Edition.
Trigger a custom action, change your model, switch between different voices, all at the touch of a button. The Live Streamer AX310 is the command center of your VTube Stream!
Profiles for Easy Switching
Live Streamer AX310 is not only for streamers but also for every creator. Whether you are a Photographer, Music Producer, Game Streamer or Vtuber, AX310 have all the controls you need.
With the new multi-profile system, you can easily download the preset profiles for Pro Tools, Lightroom and many more and switch between them in an instant to easily multitask.
Ongoing development

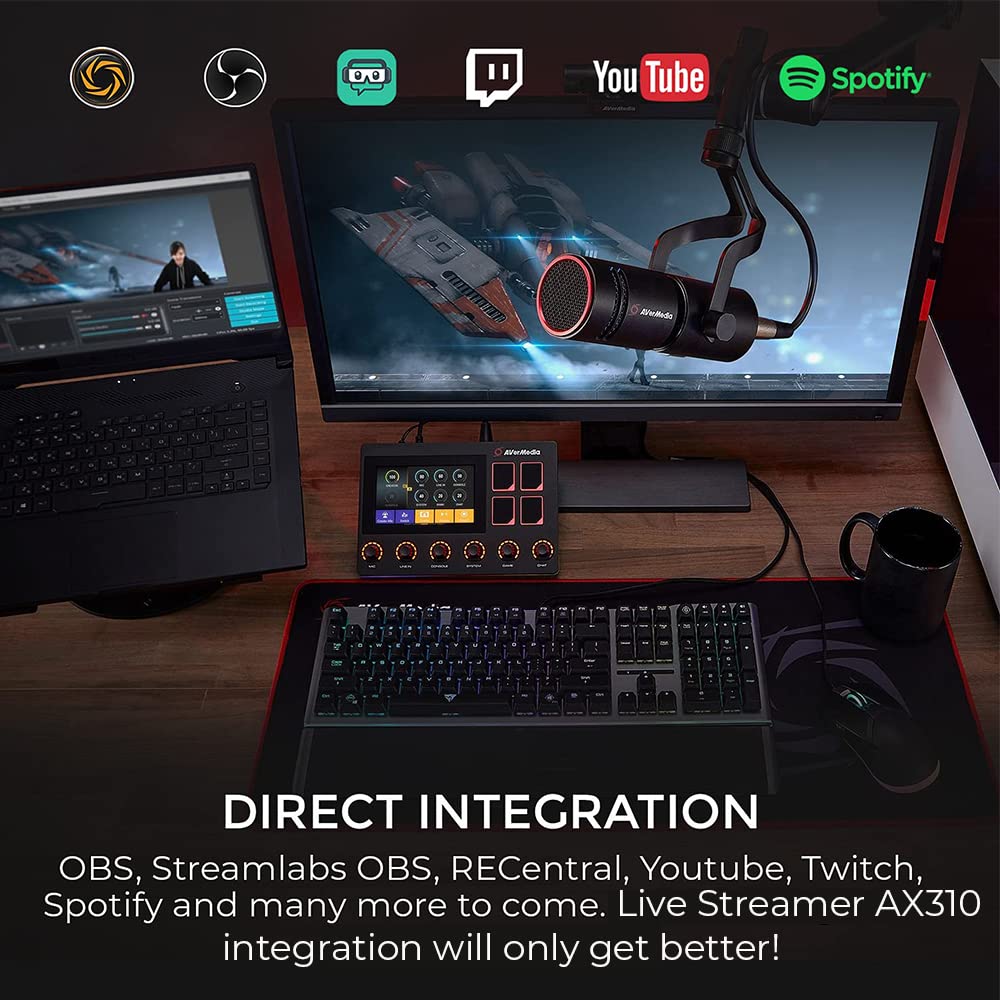

Creator Central integrates widely used streaming and content creation software. With AVerMedia constantly working with other companies and community developers in expanding supported apps, you can be sure that your AX310 will only keep getting better and better!

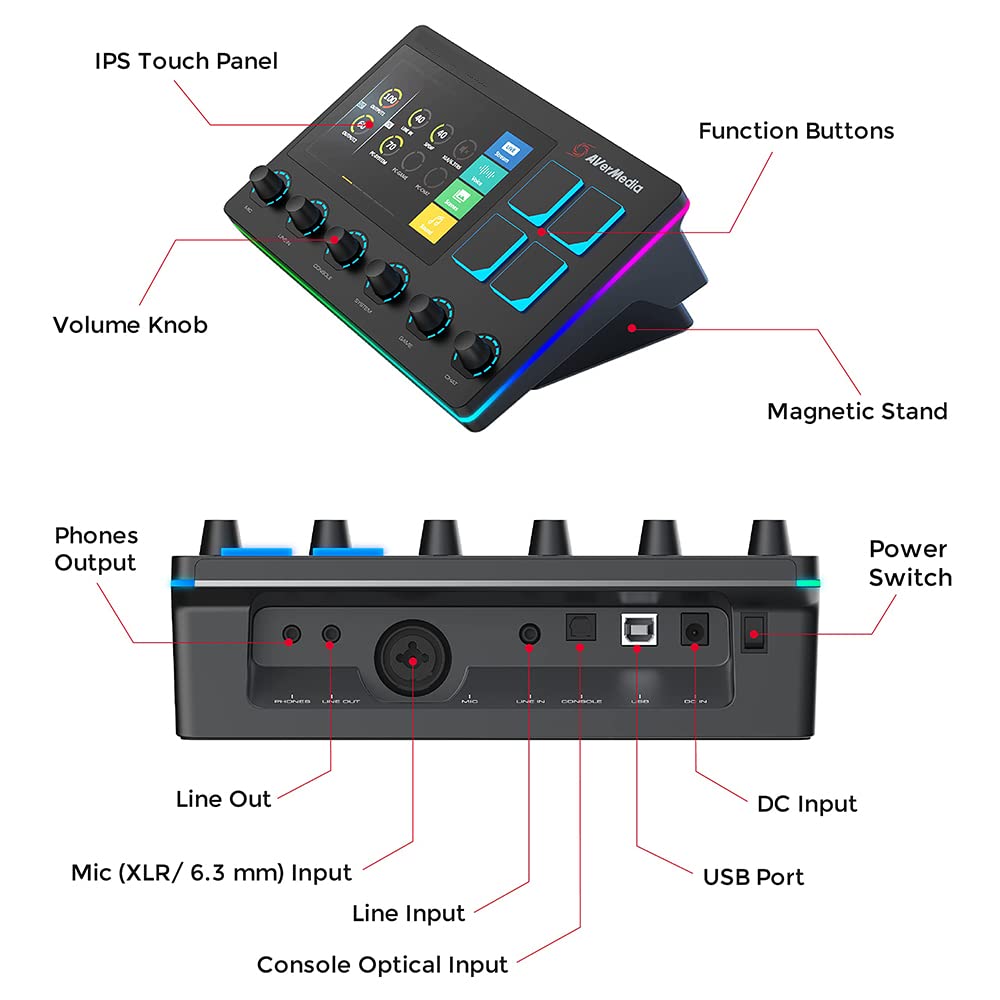

Technical Specifications:
Technical Specifications
• Interface: USB 2.0, Type B (Driver Required)
• Mic In: XLR (Balanced) / 6.3mm (Single-End) x 1
• Line In: 3.5mm TRS, Stereo x 1
• Console In: Optical In (Toslink) x 1
• Computer Inputs: Digital Tracks x 3Headphone Out: 3.5mm TRS, Stereo
• Line Out: 3.5mm TRS, Stereo
• Output Mix (Independent Instances):oCreator mixoAudience mix
• Sampling Rate: Up to 96kHz, 24 bits
• Microphone Effects:Noise Gate, Reverb, Compressor, Equalizer
• Frequency Response: 10Hz to 20kHz
• Dynamic Range: 114 dB
• Screen Panel: 5" IPS Screen with CTP Touch Panel
• Widgets: Interactive & Customizable Grid
• Rotational Encoders: 6
• Lighting: RGB
• Function Buttons: 4
• Power Switch: Yes
• Power Input: Standard 12V DC, Center Negative, 1.5A
• Power Consumption: <7W
• Dimensions (W x D x H):Without Stand: 21.7 x 14.5 x 6.1 cm (5.7 x 8.5 x 2.4 in)With Stand: 21.7 x 14.5 x 9.4 cm (5.7 x 8.5 x 3.7 in)
• Weight:Without Stand: 0.702 kg (24.76 oz)With Stand: 0.847 kg (29.87 oz)- Phantom Power +48V, switchable via AX310 APP- Optical output settings must be set to stereo, AX310 doesn’t support 5.1ch or 7.1ch
System Requirements
• Windows: Windows 10 or later
• Mac: macOS 10.15 or later
Note: Creator Central support Mac M1 Rosetta
What's in the box
• Live Streamer AX310 (AX310)
• Magnetic Kick Stand
• USB 2.0 type B to Type A Cable (1.8 m / 5.9 ft.)
• 3.5 mm TRS Audio Cable(1.8 m / 5.9 ft.)
• 3.5 mm to 6.3 mm Adapter
• Power Adapter
• Quick Guide
