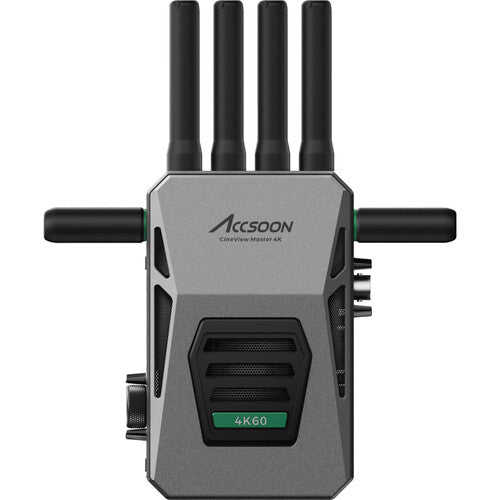

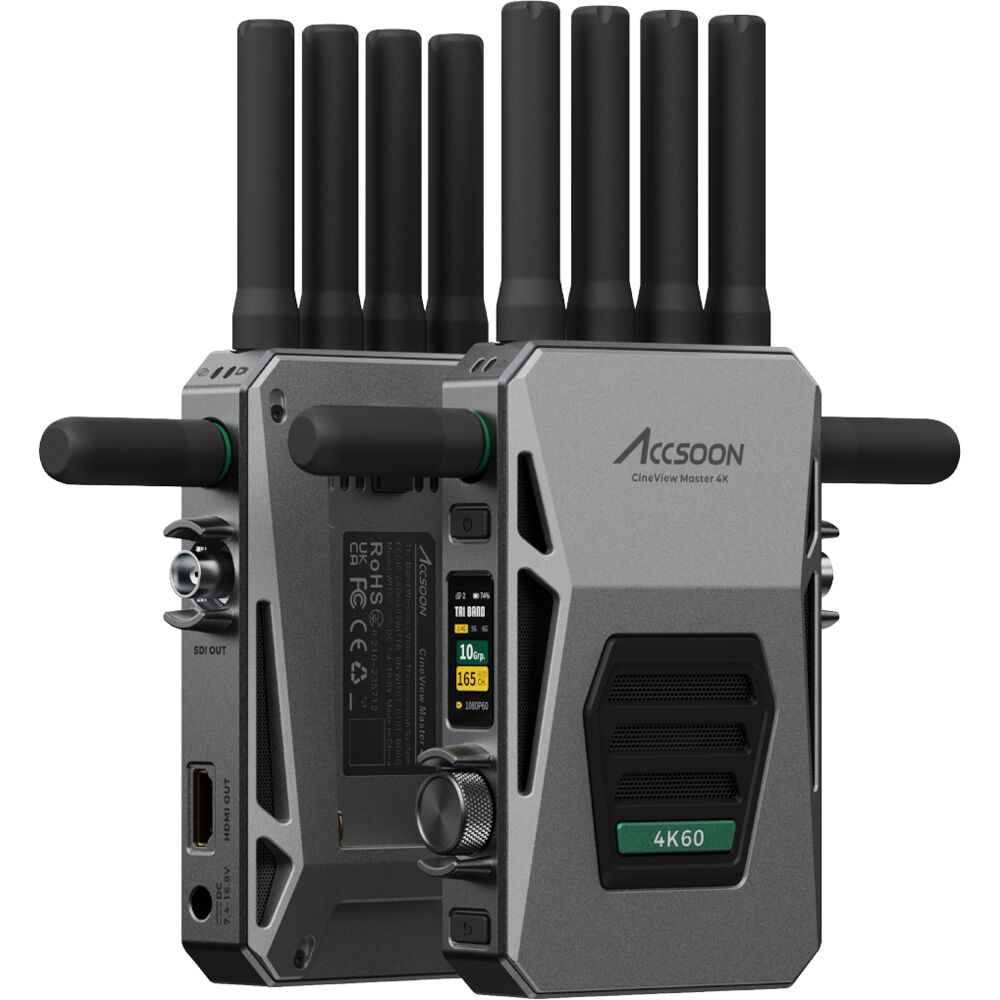

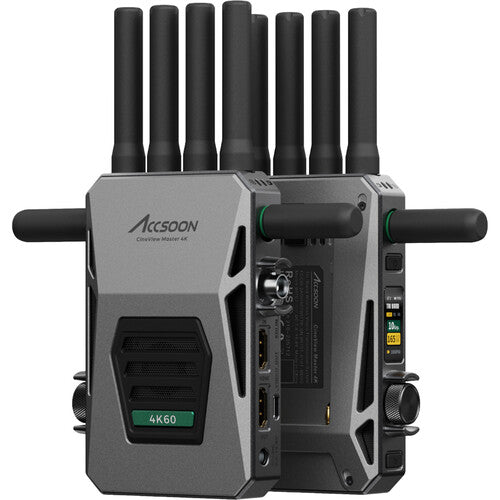

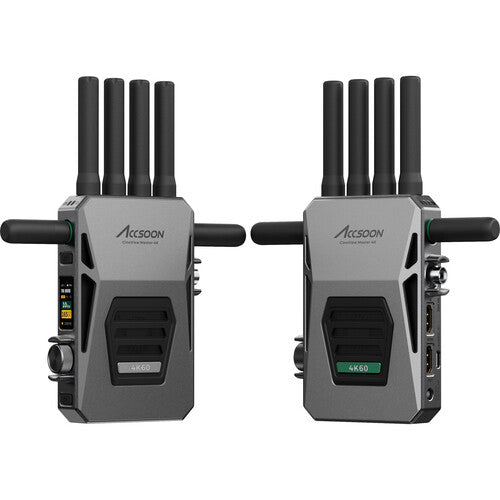

The CineView Master 4K SDI/HDMI Wireless Video Transmission System from Accsoon helps facilitate wireless UHD 4K video transmission with improved user interface and greater range than previous models. Send UHD 4K60 video up to 1.6 miles to the separately available receiver unit with only a 35 ms delay. Wired connections on the transmitter include 3G-SDI and HDMI input ports, as well as a USB-C wired video output from your iOS devices.
The CineView Master 4K boasts the RTMS 4.0 protocol, which integrates 2.4, 5, and 6 GHz frequencies. Intelligent dynamic adjustment of audio and video data goes across all three bands for faster connection times, lower latency, and easy management of multiple connections. With the new 6 GHz frequency, the CineView Master 4K unlocks 14 new channels and gigabit network speed.
The transmitter and separately available receiver unit can communicate up to 1.6 miles away thanks to its tri-band technology and hardware design.

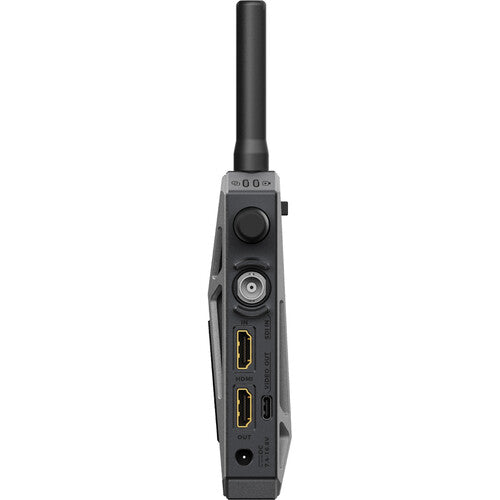

The transmitter has a 3G-SDI input, HDMI input, and HDMI loop output port. A direct USB-C video output on the transmitter communicates directly with your iOS device. It can charge the connected device simultaneously and share your creations to Frame.io through Camera to Cloud integration.
An improved user interface makes for easy creative control over your stream, video settings, LUTs, WiFi, and other advanced settings using the SEE app.
A new high-performance A/V processor with 8K capabilities works in tandem with the RTMS 4.0 protocol for a 400% increase in processing capabilities over previous models. The system can easily create synchronized multi-video streams via tri-band technology.
Toggle between three different fan modes depending on the needs of your production. Standard mode allows for peak fan speeds for outdoor applications, quiet mode reduces the fan speed for studio setups, and off mode just turns the fan off when you cannot risk the noise interfering with your production.

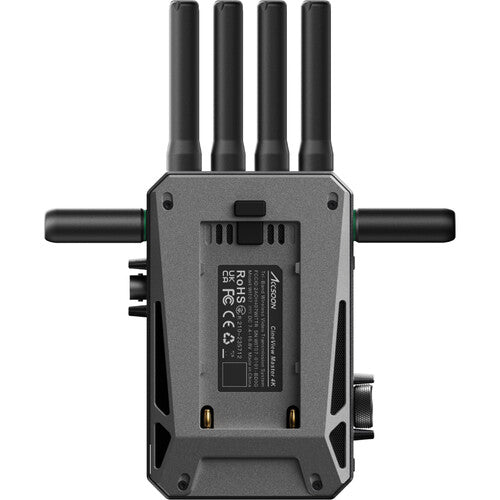

The transmitter supports power from both DC input and L-series batteries. There is also the option to add a separately available V-mount battery adapter.
Technical Specifications:
Video I/O
1x BNC (3G-SDI) Input
1x HDMI 2.0 Input
1x USB-C (Unspecified Signal) Output
Embedded Audio
HDMI/SDI
Latency
35 ms
Video Format
HDMI
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/59.94/50
SDI
Battery Type
1x L-Series
Power Consumption
5 W
Mounting

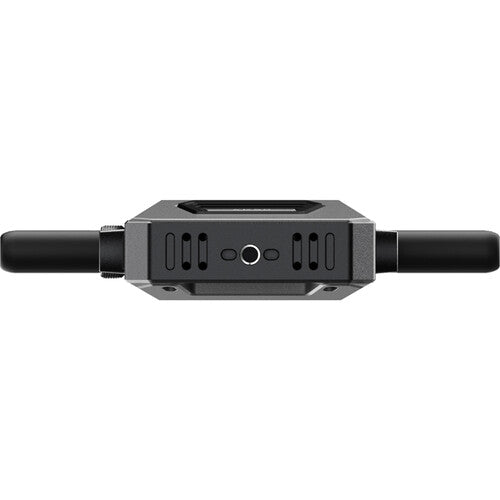

1/4"-20 Female (Bottom)
Audio I/O
No
Power I/O
1x Barrel (2 A / 12 VDC) Input
Wireless Range
1.6 Miles / 2.5 km (Line-of-Sight)
# of Channels
20
Frequency Range
2412 to 2472 MHz
5180 to 5580 MHz
5660 to 5825 MHz
RF Power
17 dBm
Wi-Fi
Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz)
Bluetooth
Mobile App Compatible
Yes: Android & iOS
App Name: Accsoon SEE
Cellular Support
Timecode Support
Input Power
7.4 to 16.8 VDC
Status Display
LCD
Operating Conditions
14 to 104°F / -10 to 40°C
Dimensions
5.1 x 3.7 x 1.3" / 130 x 95 x 32 mm (Excluding Antenna)
Weight
11.36 oz / 322.00 g, Excluding Antenna
