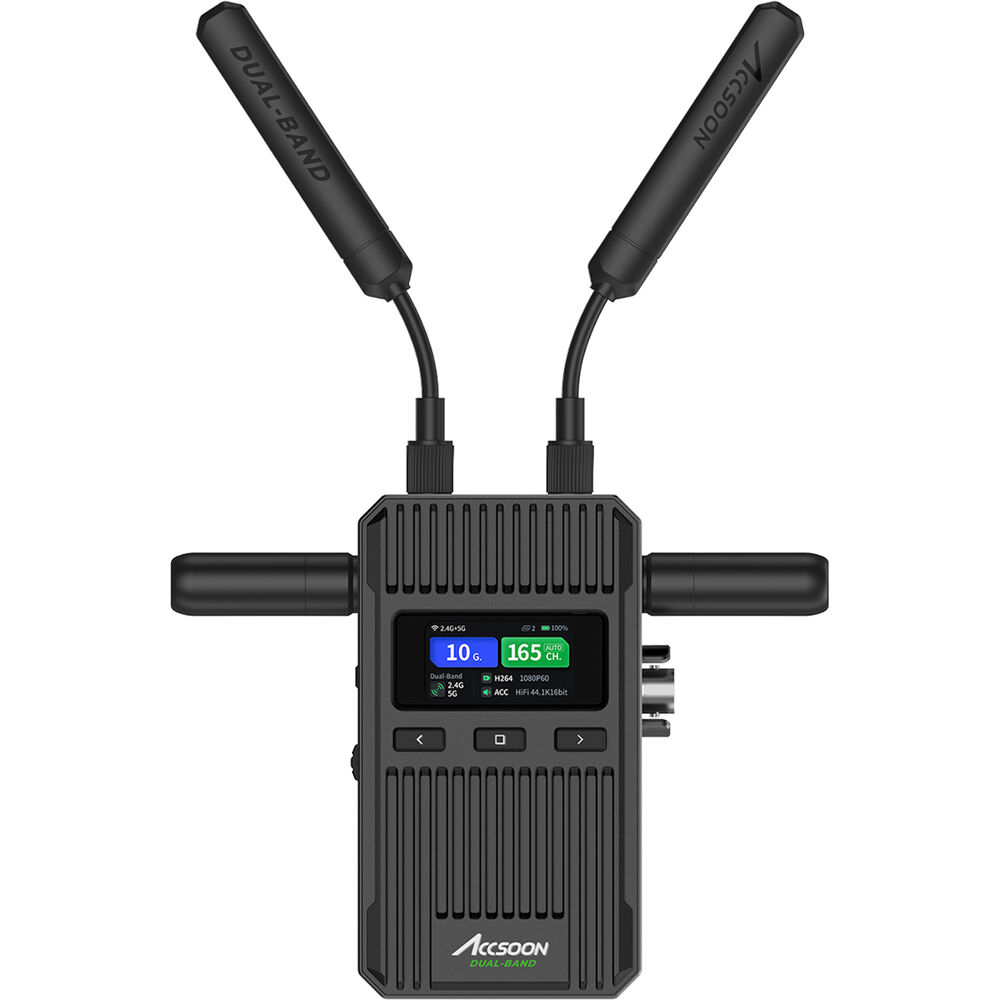

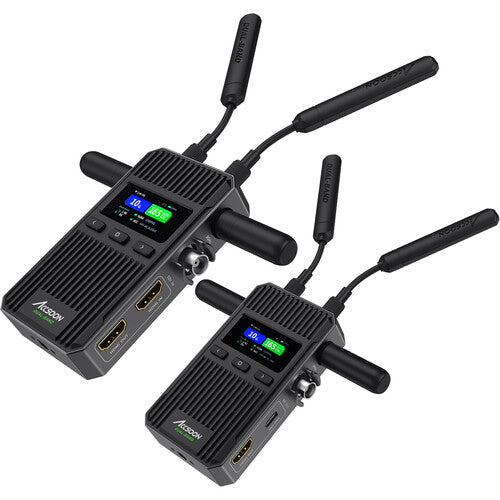

The CineView 2 is the latest addition to Accsoon esteemed CineView product family. Expanding on Accsoon US patented 2.4GHz+5GHz Dual-Band technology and featuring an all-new antenna design, the CineView 2 can seamlessly transmit 1080P 60fps video and audio signals across a 1500ft (450m) line of sight range, all while maintaining an impressively low latency of under 50ms.
Leveraging our Dual-Band transmission technology and the all-new antenna design, CineView 2 ensures a stable connection even over longer distances.
Accsoon continues to push the limits of stable wireless transmission. With the benefits from the newly designed antennas, the CineView 2 surpasses the performance of the CineView SE/HE by extending the transmission range even further, now reaching an impressive 1500 feet.

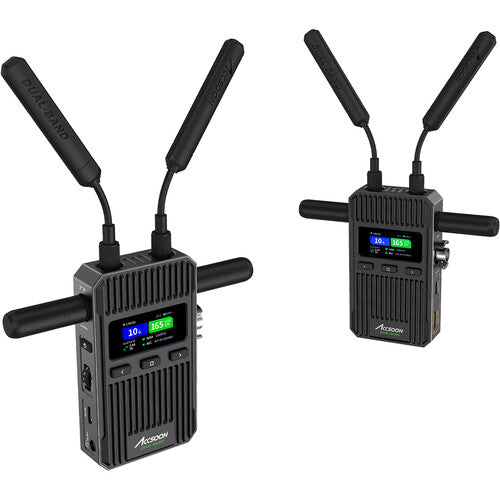

Each CineView 2 transmitter can wirelessly send the video to any combination of dedicated CineView receiver units and smart devices ( both iOS and Android ) totaling up to four.
Classic CineView design, ensuring efficient heat dissipation, quiet shooting with no fan noise.
CineView 2 are backwards compatible with the current CineView SE, HE and Quad models, allowing users to mix and match these as required.
Technical Specifications:
Projects
Transmitter

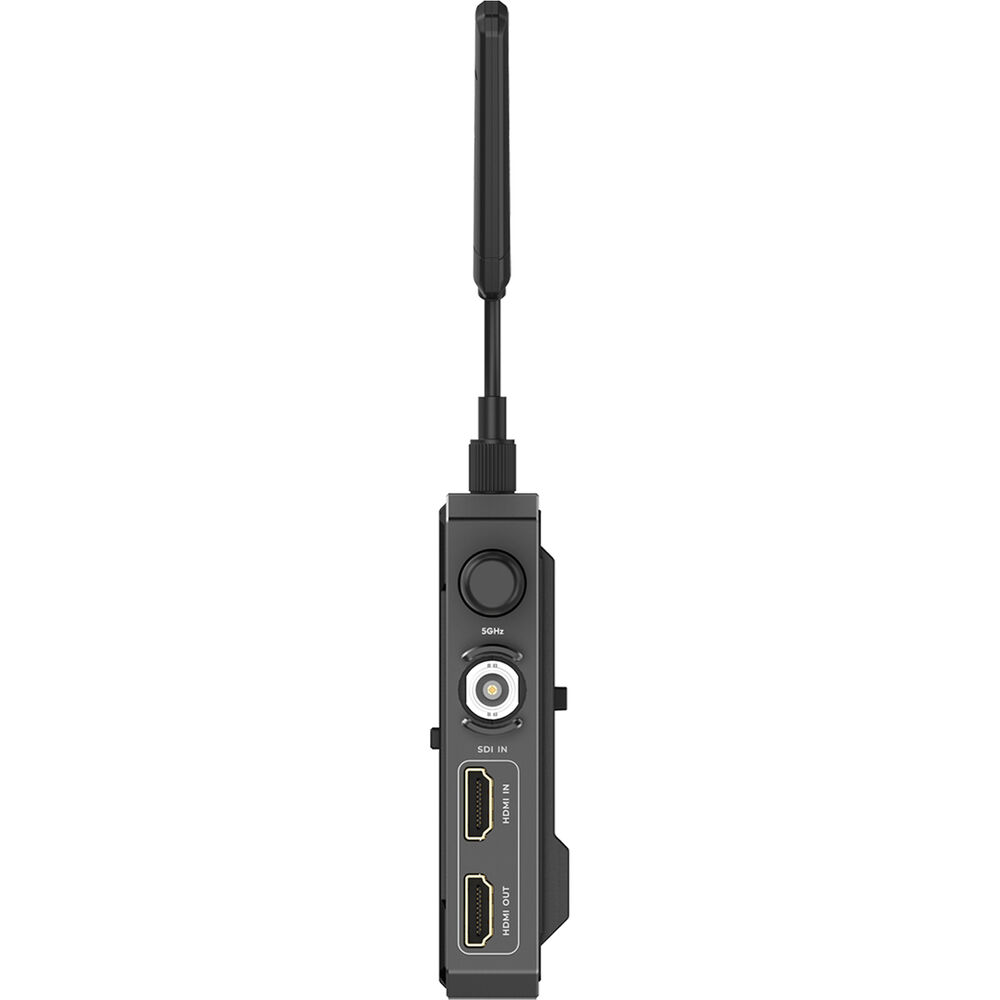

Video Input
HDMI, 3G SDI
Video Output
HDMI Loop-Out
SDI Input Format
1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i
720p: 50/59.94/60p
HDMI Input Format
4096*2160: 23.98/24/25/29.97/30/50/59.94/60p 3840*2160: 23.98/24/25/29.97/30/50/59.94/60p
1080p: 23.98/24/25/29.97/30/50/59.94/60p
1080i: 50/59.94/60i
HDMI Loop-out Format
Identical to the HDMI/SDI video input

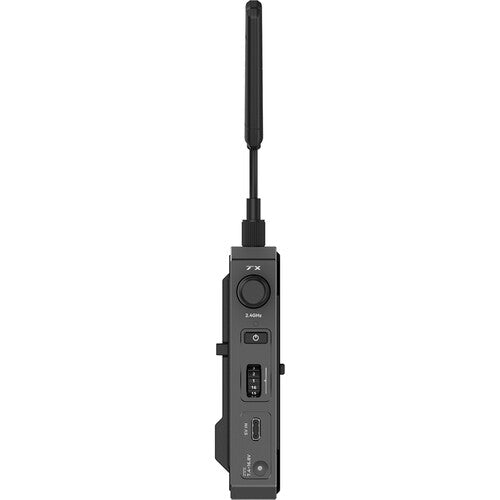

DC Port
5.5mmx2.1mm, center positive
DC Voltage
7.4~16.8V

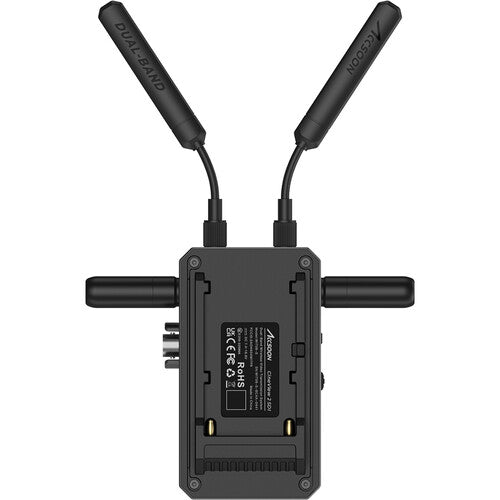

Battery
Compatible with NP-F550, NP-F750, NP-F970
USB-C Power Input
USB-C 5V/3A
Audio
44.1KHz/48KHz 16/20/24bit
Latency
＜50ms (Camera latency not included)

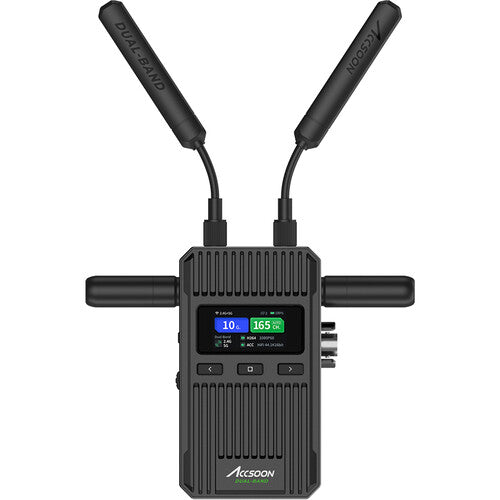

Display
1.47 inch Full-Color LCD Screen
Transmission Power
2.4GHz: 20dBm
5GHz: 20dBm
Transmission Range
1500ft/450m (No obstacles, no interference)
Power Consumption
<6W
Operating Environment Temperature
-10~40℃
Dimensions (Antennas Not Included)
60mm x 27.5 mm x 106.5mm
Weight (Antennas Not Included)
210g
Receiver
HDMI, 3G SDI, UVC
SDI Output Format
1080p: 24/25/30/50/60p Level A
1080i: 50/60i
720p: 50/60p
HDMI Output Format
1080p: 24/25/30/50/60p
<5W
In The Box:
