Key Features:

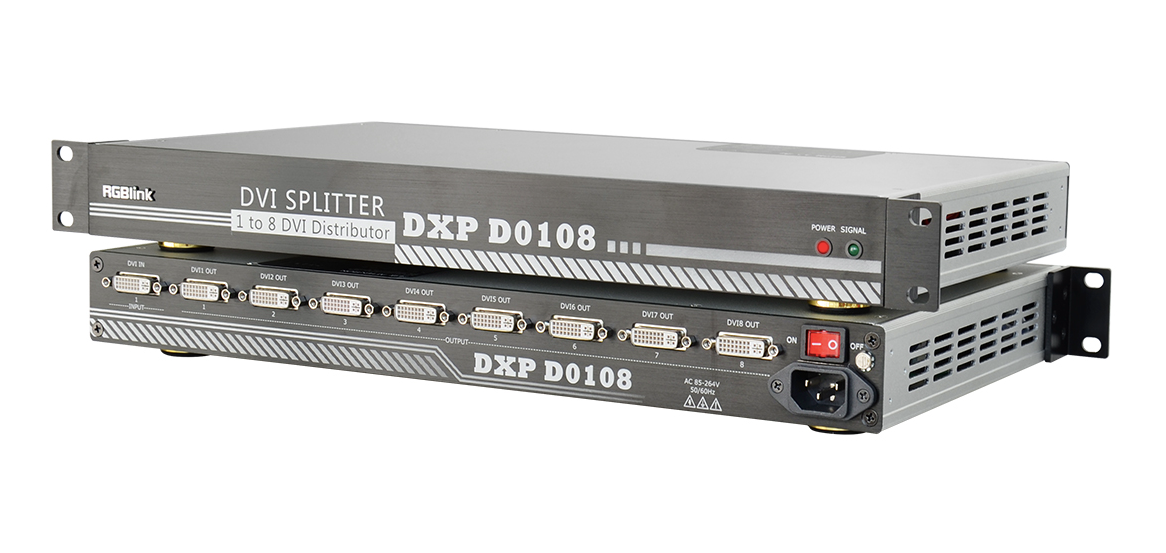

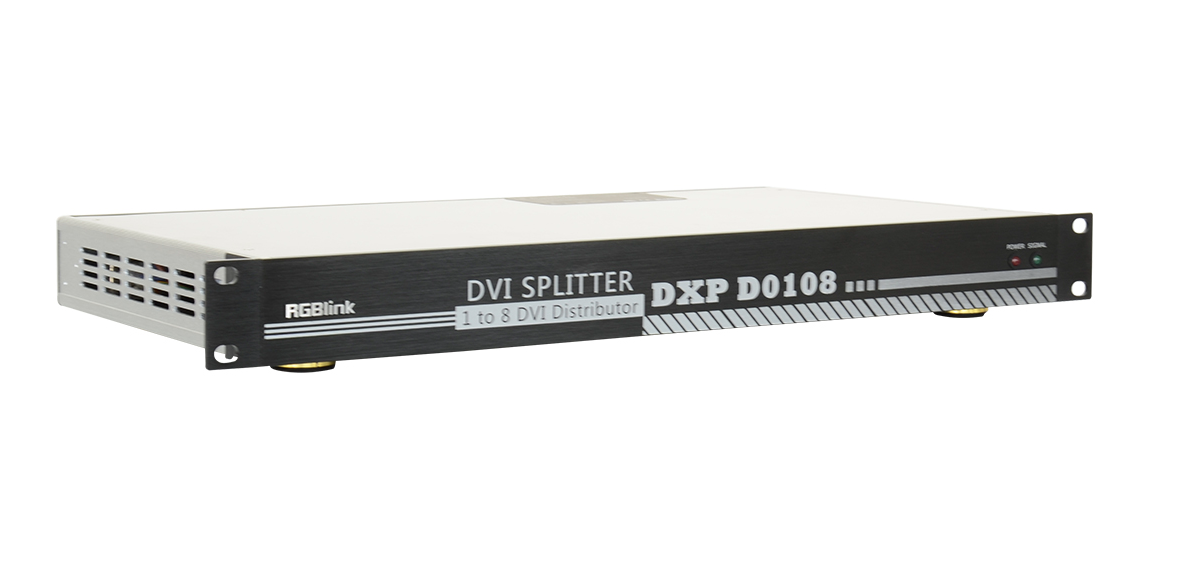

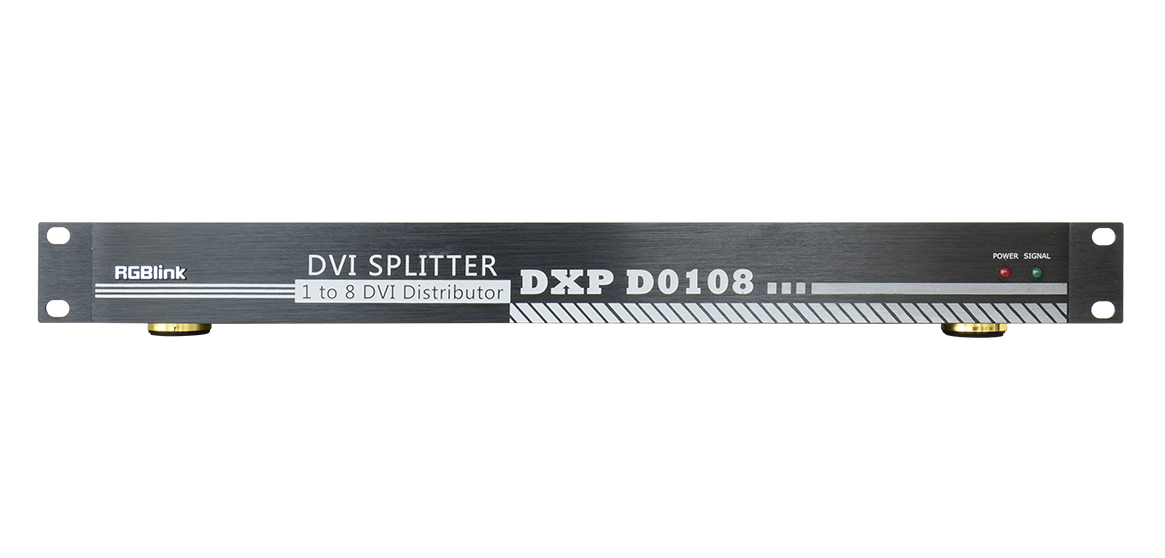

One in eight out, the DXP D0108 provides distribution for DVI (or HDMI) signals in a reliable compact 1RU form factor. As wide range of standard VESA and SMPTE resolutions are supported, and DXP D0108 is HDCP compliant.
Technical Specifications:
Input
1 × DVI
Output
8 × DVI
Input Resolutions
SMPTE
480i|576i|720p23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60
VESA
800x600@60|1024x768@60|1024x768@75|1280x720@50 1280x720@60|1280x768@60|1280x800@60|1280×1024@60 1360x768@60|1366×768@60|1400×1050@60|1440×900@60 1600×1200@60|1680×1050@60|1920×1080@50| 1920×1080@60|1920×1200@60|2048×1152@60 2560×812@60|2560×816@60
Output Resolutions
480i|576i|720p23.98/24/25/29.97/30/50/59.94/60| 1080p23.98/24/25/29.97/30/50/59.94/60| 1080i50/59.94/60
800x600@60|1024x768@60|1024x768@75|1280x720@50 1280x720@60|1280x768@60|1280x800@60|1280×1024@60 1360x768@60|1366×768@60|1400×1050@60 1440×900@60|1600×1200@60|1680×1050@60 1920×1080@50|1920×1080@60|1920×1200@60| 2048×1152@60|2560×812@60|2560×816@60
Supported Standards
DVI 1.0, HDMI 1.3
Input Voltage
AC 85~264V, 50/60Hz
Max Power
65W
Temperature
0℃~45℃
Humidity
10%~85%
