Kiloview N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter

Kiloview N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter

Name: Kiloview N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter
Brand: Kiloview
SKU: N5
Price: 44555 INR
Availability: InStock

Rs. 44,555.00

- +

Kiloview ⁄ Kiloview N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter

Key Features:

Convert 3G-SDI to NDI & NDI|HX 2/3
Convert NDI & NDI|HX 2/3 to 3G-SDI
Resolutions up to 1080p60
Large Preview/Program Tally Display
Low-Latency Switching, Web-Based GUI
Embedded & 3.5mm Audio In/Out
USB Keypad Control in Decoder Mode
Supports External Power and PoE

The N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter from Kiloview transmits video at resolutions up to 1080p60 over an NDI IP network utilizing low-latency switching via a web-based GUI. It supports NDI high bandwidth and NDI|HX 2/3 with loop-through for viewing on a monitor, or 3G-SDI video output originating from any NDI sources coming from any camera, software, or device.

The N5 supports PTZ camera control via USB to serial RS-232/485/422 or over IP, using a single Ethernet cable that can also power the device with PoE (Power over Ethernet) support. Embedded and 3.5mm multichannel audio support is augmented with voice intercom that works between all Kiloview devices and the control PC or phone. A large LED tally display on the front provides program or preview mode status.

2-In-1 NDI Encoding and Decoding

The N5 supports encoding/decoding of NDI High Bandwidth and NDI|HX 2/3. Switch the working mode on the UI to the mode you want, and it can easily accommodate all your workflows. In encoding mode, you can encode 3G-SDI signal into an NDI High Bandwidth/NDI|HX 2/3 video stream. Decoding mode automatically adapts the NDI High Bandwidth/NDI|HX 2/3 for output through 3G-SDI.

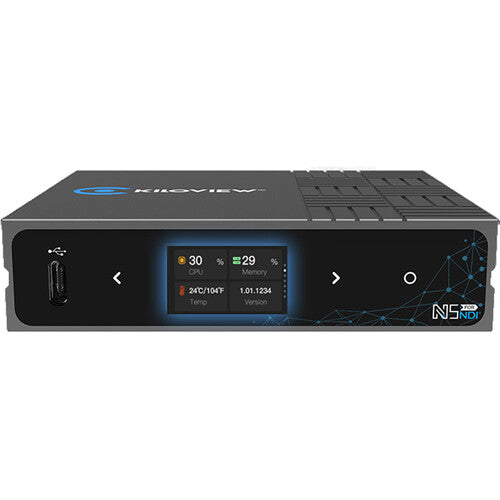

Built-In LCD Screen

A 1.14" LCD screen with touch buttons allows you to easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.

Seamless Switching

In decoding mode, you can preset up to nine NDI sources from the web UI and choose one to output without suffering from black screen, flashing, or lagging.

Control with a USB Keypad

In decoder mode, you can preset the NDI sources from numbers 0-9. Connect the decoder with a USB keypad and easily select the output source with a single press. Or you can use the USB keypad to control a PTZ camera with the most affordable PTZ keyboard you can get.

Multiple Power Options

PoE support allows the N5 to be powered with a single cable connection. With a wide input range of 5 to 18 VDC, it can also be easily powered via USB power or a camera battery.

Technical Specifications:

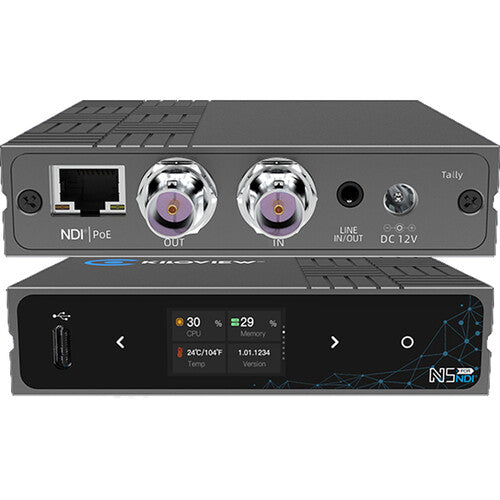

Inputs/Outputs	1 x RJ45 (NDI) 1 x 1/8" / 3.5 mm TRRS A/V
Video Inputs	1 x BNC (3G-SDI)
Audio Inputs	None
Video Outputs	1 x BNC (3G-SDI)
Audio Outputs	None
Other I/O	1 x USB-C Control, NDI, PTZ
Expansion Slots	None
Input Video Format	SDI 1080p at 23.98/24/25/50/59.94/60 fps 720p at 30/50/59.94/60 fps SXVGA (1280 x 1024) at 60 fps 1152 x 900 at 60 fps XGA+ (1152 x 864) at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps
Input Audio Format	Analog
Output Video Format	SDI 1080p at 23.98/24/25/50/59.94/60 fps 720p at 30/50/59.94/60 fps SXGA (1280 x 1024) at 60 fps 1152 x 900 at 60 fps XGA+ (1152 x 864) at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps
Output Audio Format	Analog
Embedded Audio	SDI: 2-Channel
HDR Compatibility	None
Video IP Encoding	NDI: 1920 x 1080 at 60p (80 to 125 Mb/s)
Video IP Decoding	NDI1920 x 1080 at 60p (80 to 125 Mb/s)
Tally Light	Yes
Power I/O	1 x Barrel (12 VDC) Input
PoE Support	PoE 802.3af
Power Consumption	6 W
Operating Temperature	12 to 77°F / -20 to 45°C
Storage Temperature	-4 to 158°F / -20 to 70°C
