Kiloview HDMI to RTSP Wi-Fi Video Encoder

Kiloview HDMI to RTSP Wi-Fi Video Encoder

Name: Kiloview HDMI to RTSP Wi-Fi Video Encoder
Brand: Kiloview
SKU: G2
Price: 37905 INR
Availability: InStock

Rs. 37,905.00

- +

Kiloview ⁄ Kiloview HDMI to RTSP Wi-Fi Video Encoder

Key Features:

Built-In IEEE 802.11 a/b/g/n Wi-Fi
HDMI Input/Output
3.5mm Analog Audio Input & Output
RJ45 Ethernet Port
Micro SD/TF Card Slot
USB Type-A & Mini-USB Ports for Storage
Two Wi-Fi Antennas
12 VDC Power Adapter
ONVIF Compliant

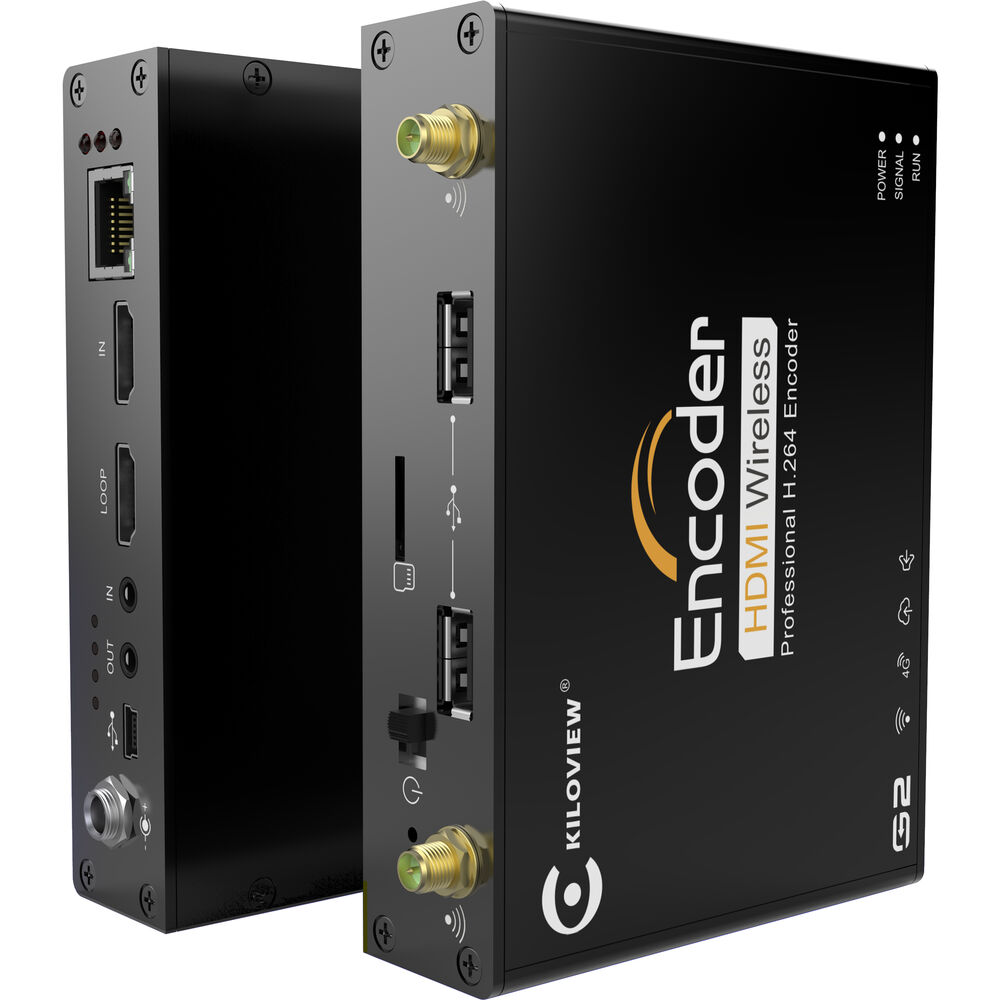

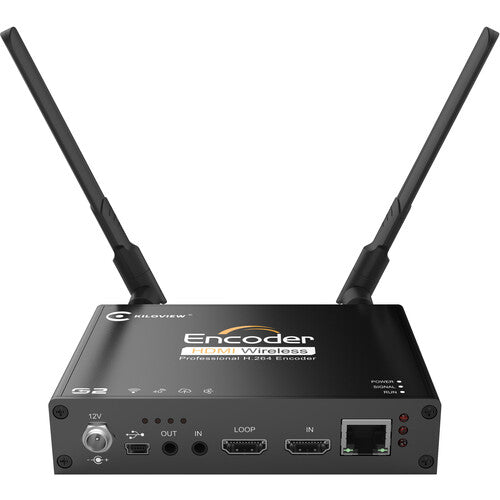

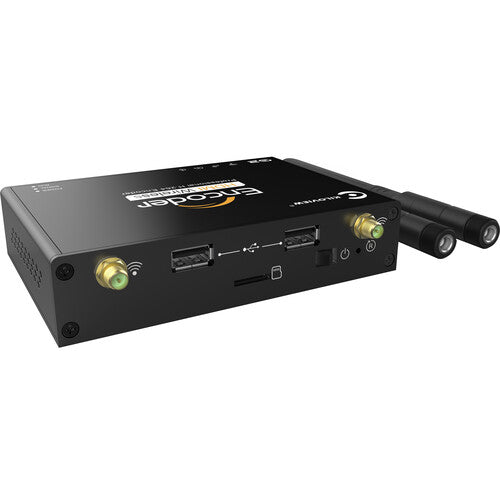

The HDMI to RTSP Wi-Fi Video Encoder from Kiloview is a HDMI H.264 video encoder that supports HDMI 1.4 standard compatible signal input, and HDMI looping. It has a built-in dual-band (2.4G/5G) Wi-Fi and supports a 10/100M self-adaptive Ethernet interface. This encoder supports unbind audio from HDMI signal as well as input audio from analog line-in. It features a microSD/TF card slot and USB Type-A and mini-USB ports for storage. Multi-language is supported for worldwide users. Two Wi-Fi dual-band antennas and a 12 VDC power adapter are included.

Integrates FPGA, video co-processor and video encoding chip
Supports 1080p60 Full HD video encoding, meanwhile enabling up to 960x540 at 60 Hz sub-stream encoding
VLB (Very-Low Bit Rate) H.264 video encoding technology
Built-in Wi-Fi, supporting USB extension and select network accesses
Supports multi 4G-LTE dongle bonding communication (available separately)
Built-in Sunshine streaming media engine, fully supports RTP, RTSP, RTMP, HLS, and TS
20-50 concurrent users can access simultaneously
Supports ONVIF 1.1/2.0 that can be easily connected to secure safety system/NVR system
Use Web interface to manage device
Designed for broadcast and TV, interactive media, medical, network education, secure safety, and other fields
YouTube, UStream, and Twitch global live video platforms supported (tested)
Wowza, FMS, RED5, and SRS streaming media server platforms/CDN systems supported (tested)
Supports image rotation, cutting, gray scale, and other special image processing
Supports character/image overlay
Supports quick function customization based on customers' needs (Please contact factory technical support)
Two-way voice intercom function

Technical Specifications:

Video Inputs	1 x HDMI (1.4)
Audio Inputs	1 x 1/8" / 3.5 mm TRS Stereo Analog
Video Outputs	1 x HDMI (1.4) (Loop Output)
Audio Outputs	1 x 1/8" / 3.5 mm TRS Stereo Analog
Other I/O	1 x USB-A 1 x Mini-USB 1 x RJ45 LAN Output
Latency	HDMI: to 67 ms
Input Video Format	HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps
Output Video Format	HDMI / RJ45 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio	HDMI
HDR Compatibility	Not Specified by Manufacturer
Video IP Encoding	H.264: 1920 x 1080 at 60p
Audio IP Encoding	AAC, G.711
Media Card Reader	1 x microSD (Unspecified Type)
Wireless	Wi-Fi 4 (802.11n)
Wi-Fi	Wi-Fi 4 (802.11n)
Power I/O	1 x Barrel (12 VDC at 1 A) Input
Power Consumption	4 W
Operating Temperature	-4 to 176°F / -20 to 80°C
Operating Humidity	20 to 90% (Non-Condensing)
