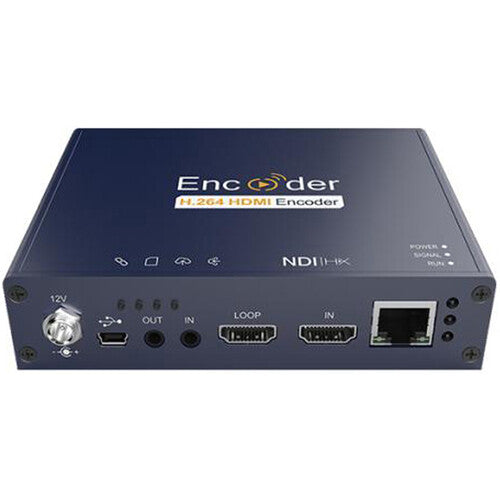

Simultaneously stream your Full HD video to up to 16 x platforms with this HDMI to IP Wired Encoder from Kiloview. The small, portable unit inputs HDMI video up to 1080p60 and outputs the signal over Ethernet and provides an HDMI loop-through output for local viewing.
It supports RTMP/HLS/SRT/TS streaming media protocols, allowing it to work with a variety of platforms. The encoder supports embedded audio and 3.5mm analog audio input and output in ACC or G.711 format. It features a microSD card slot for recrding your video and PTZ control over USB.
Technical Specifications:
Video Inputs
1 x HDMI
Input Video Format
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 30/50/59.94/60 fps
Audio Inputs
1 x 1/8" / 3.5 mm TRS Analog
Input Audio Format
Analog
Video Outputs
Output Video Format
Audio Outputs
Output Audio Format
HDR Compatibility
Not Specified by Manufacturer
Latency
to 67 ms
Expansion Slots
None
Video IP Encoding
H.264, MJPEG: x
Audio IP Encoding
AAC, G.711
Media Card Reader
1 x microSD (Unspecified Type)
Power I/O
1 x Barrel Input
Power Consumption
Device: 12 VDC at 1 A (4 W)
Dimensions
4.9 x 3.5 x 1.1" / 125 x 89 x 28 mm
Weight
13.4 oz / 380 g
In the Box:
