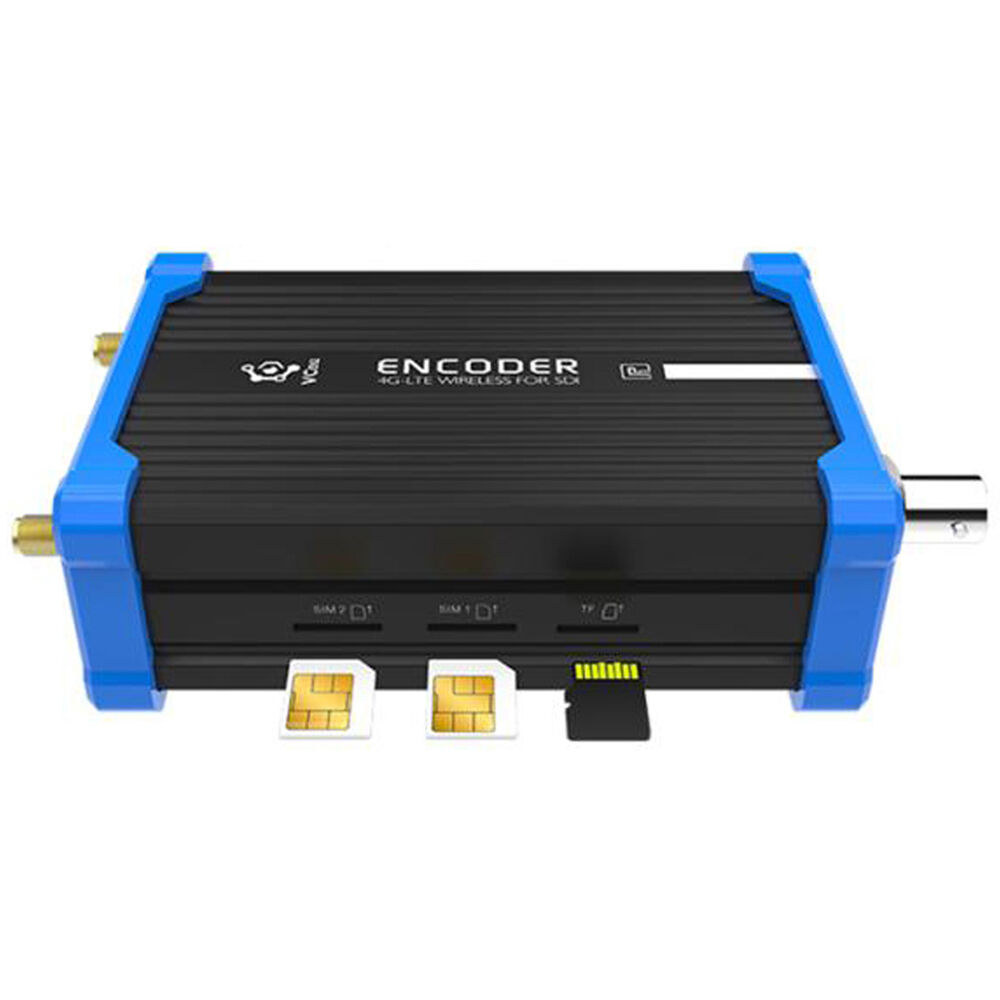

Kiloview 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming

Name: Kiloview 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming
Brand: Kiloview
SKU: P1
Price: 80655 INR
Availability: InStock

Rs. 80,655.00

- +

Kiloview ⁄ Kiloview 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming

Key Features:

Dual-Stream Output, Main and Sub
2 x Internal, 2 x External 4G Antennas
Convert SDI to IP
Simultaneously Stream to 16 Platforms
Wi-Fi and RJ45 Outputs
Supports up to 1080p60
microSD Card Slot
Web-Based Interface
Supports RTMP/HLS/SRT/TS Protocols
Portable Form Factor

Simultaneously stream your Full HD video to up to 16 x platforms with this 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming from Kiloview. The small, portable unit inputs 3G-SDI video up to 1080p60 and outputs the signal over cellular bonding, for North America only, as well as via Wi-Fi and Ethernet.

It supports RTMP/HLS/SRT/TS streaming media protocols, allowing it to work with a variety of platforms. Powered by an internal battery, the encoder supports embedded audio and 3.5mm analog audio input and output in ACC or G.711 format. It features a microSD card slot for recording your video, and it supports PTZ control over USB.

Up to 5 Connections

2 x Internal 4G Cellular + 2 x USB 4G Cellular (LAN) + 1 x Wi-Fi (+ 1 RJ45) supported and it's free configurable to any desired network

Cellular Bonding

With the patented bonding algorithm with KiloLink, P series encoders can automatically balance the data of all connections and adjust the bit rate accordingly to ensure a reliable streaming. In addition, the SDI can support Wi-Fi hotspot for data and file transmission.

Self-Deploy Bonding Cloud with Device Management

Kiloview provides the bonding software for free; it's available for deployment on your own server or cloud-based server.
With KiloLink Server, you can manage all your registered devices—monitoring device status, preview a stream, parameter settings, firmware updating, port forwarding, and so on—on the server end. Real-time connection status and data statistics are also available on server end.
It's easy to manage with a single QR code.

Ultra-Low Latency for End-to-End Video Transmission

With optimized technology, Kiloview P series offers a ultra-low latency video streaming experience, which is suitable for remote production, IRL streaming, or audience interaction with high quality. End-to-end latency with 4G-bonding server is less than one-second under normal working conditions.

RSTP, RTMP, SRT, HLS, and TS-UDP

No matter if you are using a single connection or the bonding connection, with Kiloview P series, you can not only stream your video to YouTube/Facebook and other platforms with RTMP(S), but also transmit your video remotely by SRT and other workflows using different protocols such as RTSP, UDP, and HLS. Outdoor streaming was never so easy.

Multiple Platform Streaming

Kiloview P series encoder supports streaming to 16 platforms simultaneously by configuring the main and sub-stream in the web console, that means you can stream to all the popular platforms with the same content. (Main stream resolution up to 1080p60, sub-stream resolution up to 720p60).

Video Rotate/Crop and Image Overlay

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video, which makes it social media friendly. You can also mirror the stream or adjust the color. Moreover, you can set your overlay image at any position, such as adding a logo, text, etc.

Technical Specifications:

Video I/O	1 x BNC (3G-SDI) Input
HDCP Support	Not Specified by Manufacturer
Embedded Audio	SDI
Audio I/O	None
Power I/O	1 x Barrel Input
Media/Memory Card Slot	Single Slot: microSD/microSDHC
Latency	< 67 ms
Wi-Fi	Yes
Bluetooth	None
Mobile App Compatible	Yes: Android Only App Name: KiloViewAPP Functionality: Adjust Settings, View Live Feed *As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Cellular Support	5G NR, 4G LTE
IP Video	H.264/MJPEG: 1280 x 720 to 1920 x 1080
IP Audio	AAC-LC:
Transport Protocols	HLS, RTMP, RTP, RTSP, SRT
Simultaneous Streams	5 Streams
DC Input Power	12 VDC at 1 A
Built-In Battery	6800 mAh
Power Consumption	6.5 W
Mounting	1 x Cold Shoe
Environmental Protection	None
Operating Temperature	12 to 77°F / -20 to 45°C
Dimensions	4.5 x 3 x 1.4" / 115 x 75 x 35 mm
Weight	14.1 oz / 400 g, Including Battery
