Technical Specifications:
Wireless Technology
Digital 2.4 GHz
Included Transmitters
1 x Clip-On with Microphone
Diversity
Non-Diversity
RF Frequency Band
2400 to 2483.5 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
820.2' / 250 m (Line of Sight)
Max Transmitters per Band
2
Built-In Recorder
Yes
Timecode Support
No
Mobile App Compatible
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Bluetooth
Not Specified by Manufacturer
Encryption
Proprietary
Modulation
GFSK

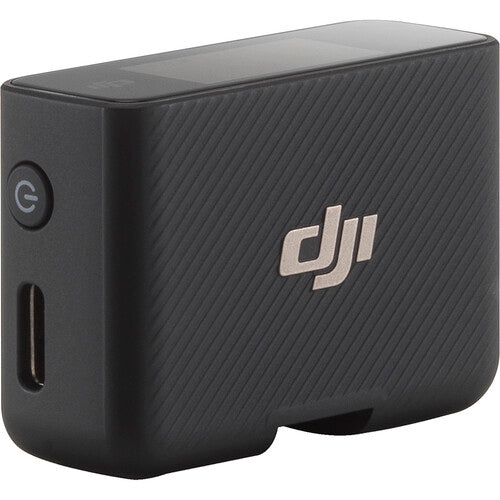

Receiver
Receiver Type
Camera-Mount / Mobile Device-Mount
Mounting Options
Plug-In, Shoe-Mount (with Included Hardware)
Antenna
Internal
Number of Audio Channels

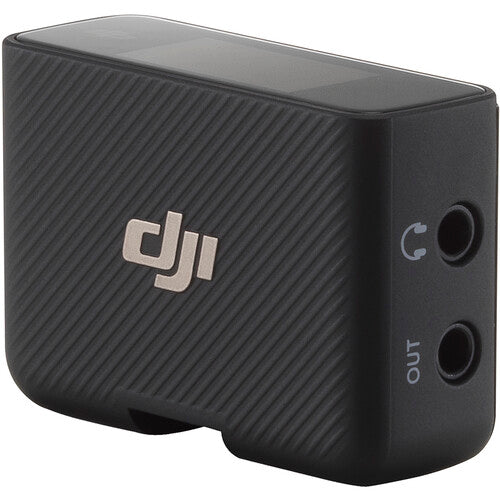

Audio I/O
1 x 1/8" / 3.5 mm TRS Female Unbalanced Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Audio Output Level
-12 to +12 dB
Signal Processing
High-Pass Filter:
150 Hz
Frequency Response
50 Hz to 20 kHz
Network I/O
Word Clock I/O
USB/Lightning Connectivity
1 x Lightning Male (Audio)
1 x USB-C Male (Audio)
RF Output Power
100 mW (EIRP)
Power Requirements
Battery
Battery Type
1 x Built-In Rechargeable
Internal Battery Capacity
320 mAh
Battery Charging Time
70 Minutes
Approx. Battery Life
5 Hours (Lithium Rechargeable)
Display & Indicators
OLED Touchscreen (Battery Status, Channel, Level, Menu Navigation, Transmitter Battery Status)
Operating Temperature
14 to 113°F / -10 to 45°C
Dimensions
1.9 x 1.3 x 0.7" / 47.4 x 32.2 x 17.3 mm
Weight
0.9 oz / 24.9 g

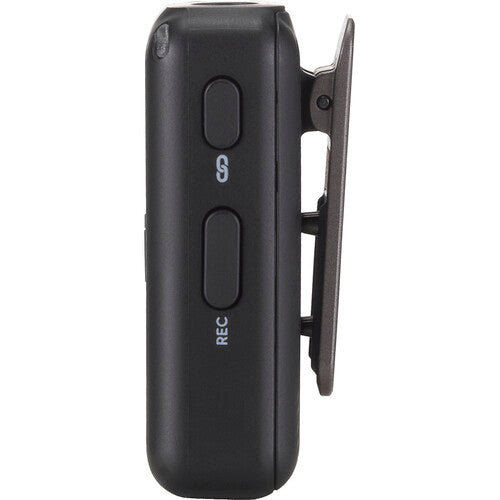

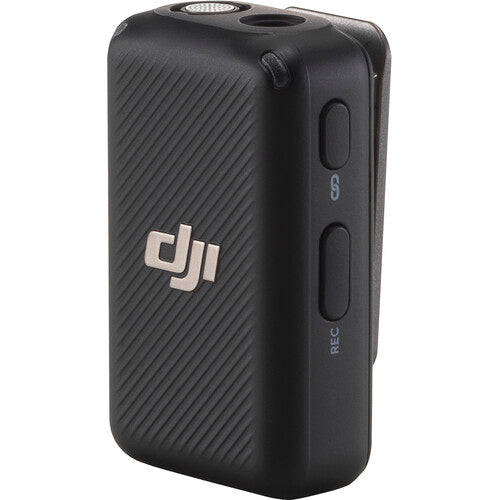

Transmitter
Transmitter Type
Clip-On with Microphone
100 mW
1 x 1/8" / 3.5 mm TRS Female Input
Pad
Muting
Auto-Level Control
Recorder Sample Rates
48 kHz
Recorder Bit Depths
24-Bit
Audio File Formats
WAV
Sync Method
5.5 Hours
USB/Lightning I/O
USB-C
1.9 x 1.2 x 0.8" / 47.3 x 30.4 x 20 mm
1.1 oz / 30 g
Microphone
Microphone Type
Integrated
Sound Field
Mono
Capsule
Electret Condenser
Polar Pattern
Omnidirectional
Equivalent Noise Level
23 dB A-Weighted
Maximum SPL
114 dB SPL
Charging Interface
In the Box:
