DIGITAL FORECAST Bridge RS HDMI 4x4 Matrix Switcher

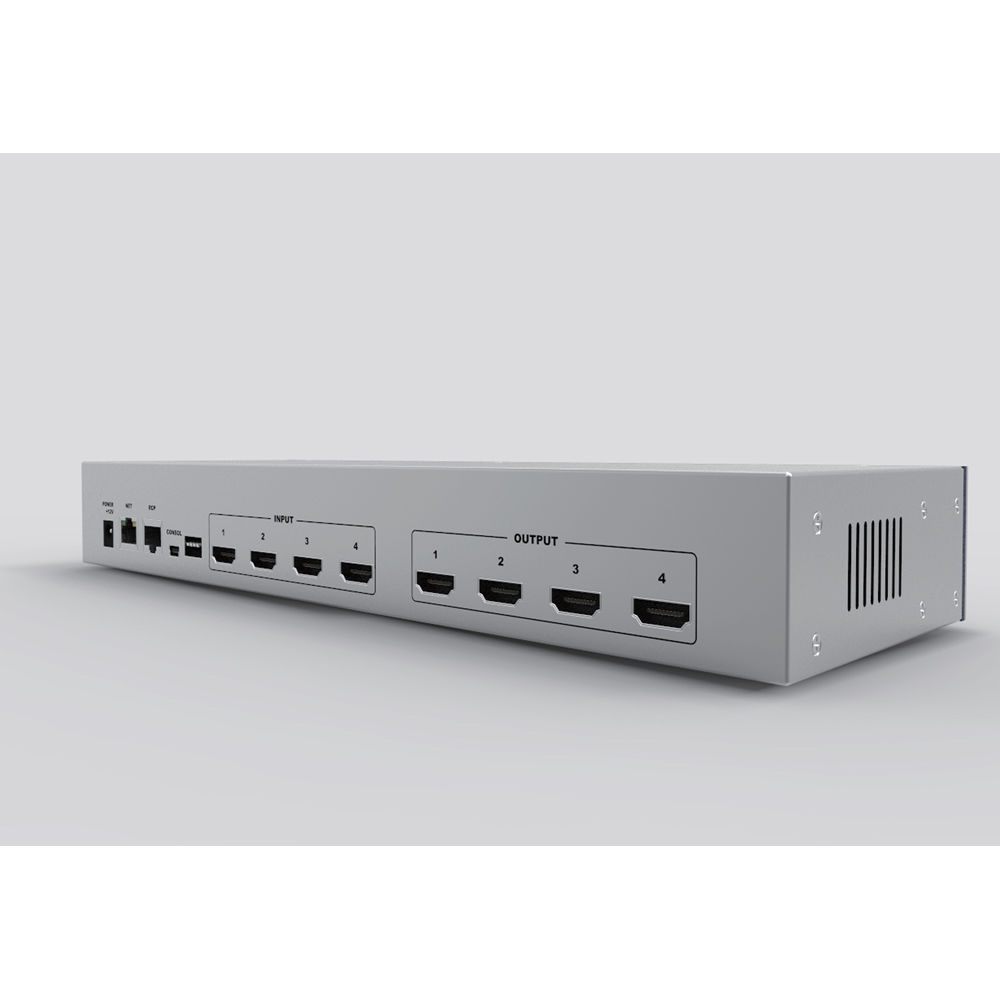

- 4 x HDMI Inputs, 4 x HDMI Outputs
- Supports SD and HD Formats up to 60p
- Rout Any Input to Any Output
- Resolution Conversion via DIP Switches
- Multiview Mode
- Remote Control via Ethernet or RCP

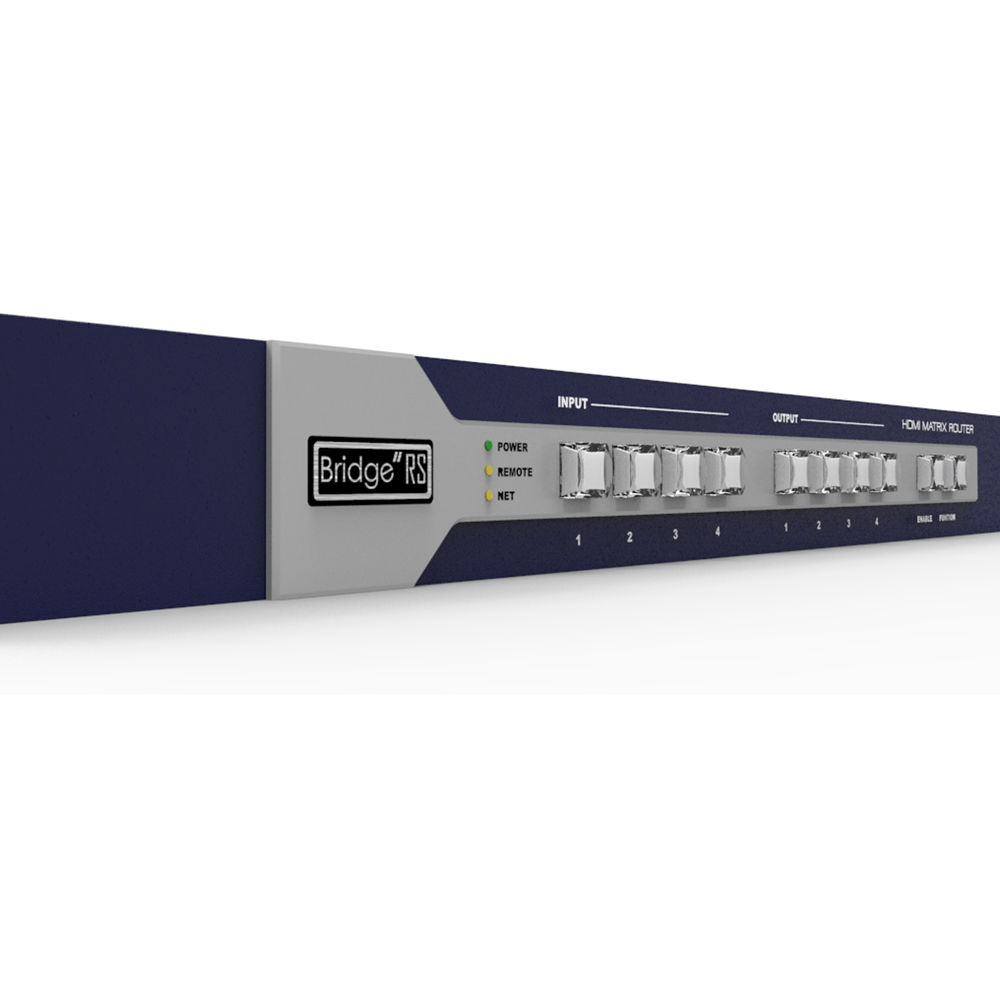

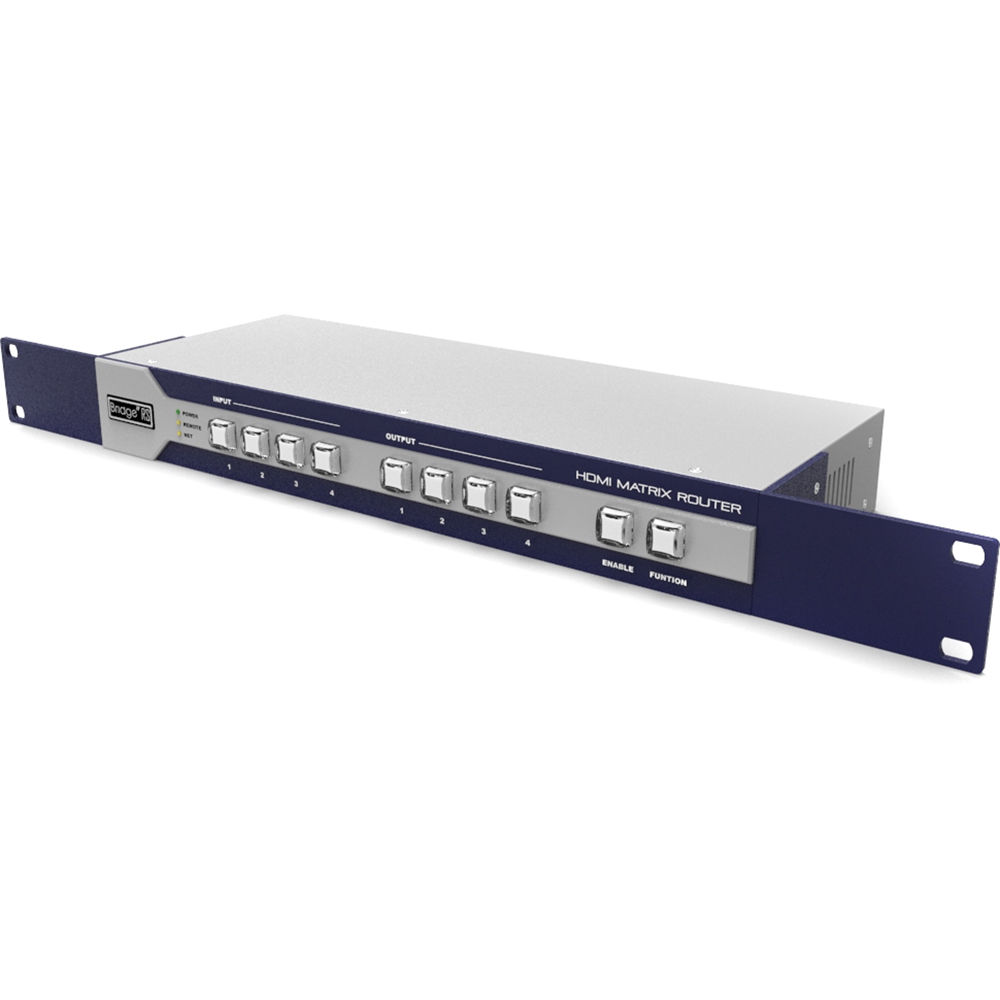

- Front-Panel Controls
With the DIGITAL FORECAST Bridge RS HDMI 4x4 Matrix Switcher up to four HDMI sources can be sent to any combination of four HDMI outputs. Input resolutions can be converted to conform to the connected displays, and a multiview option is available as well. Conversion and multiview modes can be engaged using the built-in DIP switches. Dual RJ45 ports can be connected for either Ethernet or RCP remote control. Local control can be taken using the comprehensive front-panel buttons.
Technical Specifications:
|
Inputs |
4 x HDMI type A, v1.3 |
|
Outputs |
4 x HDMI type A, v1.3 |
|
Video Format Support |
1080p 24/25/30/50/59.94/60 1080PsF 24 1080i 50/59.94/60 720p 24/25/30/50/59.94/60 576p 480p NTSC PAL |
|
Other I/O |

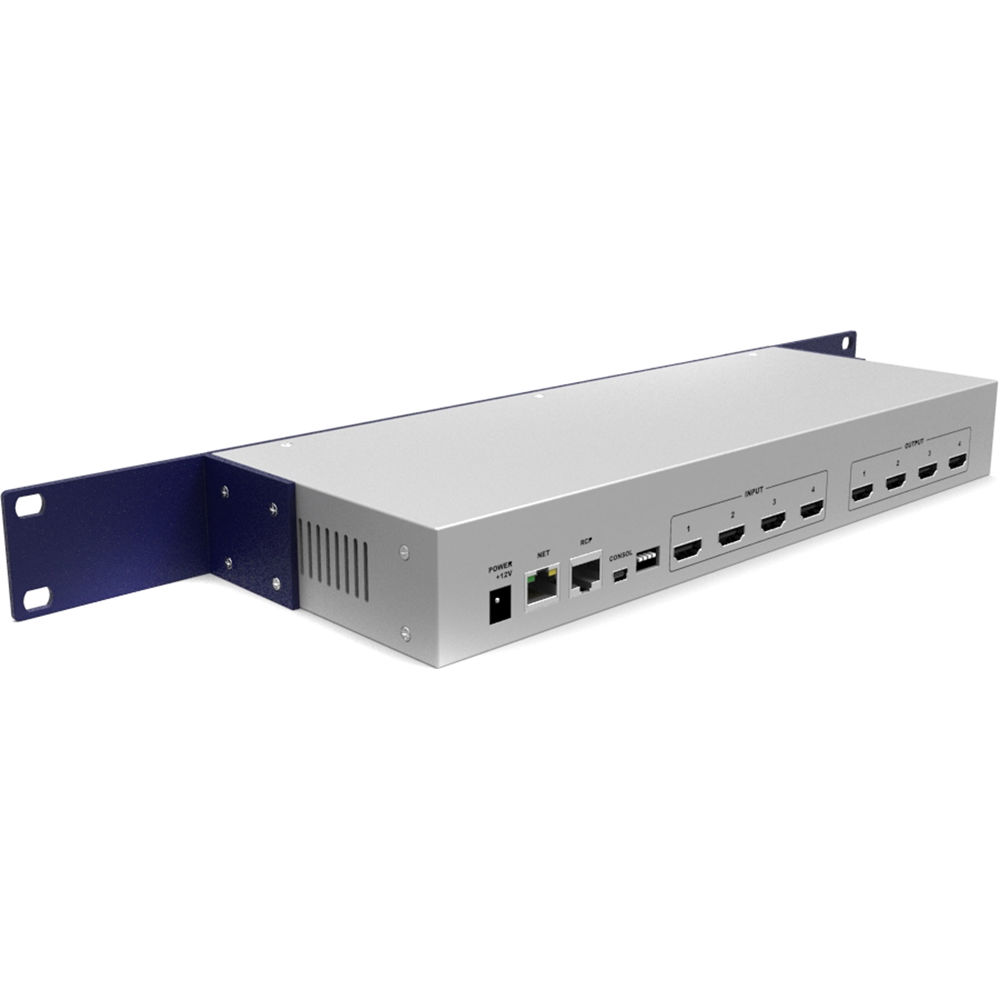

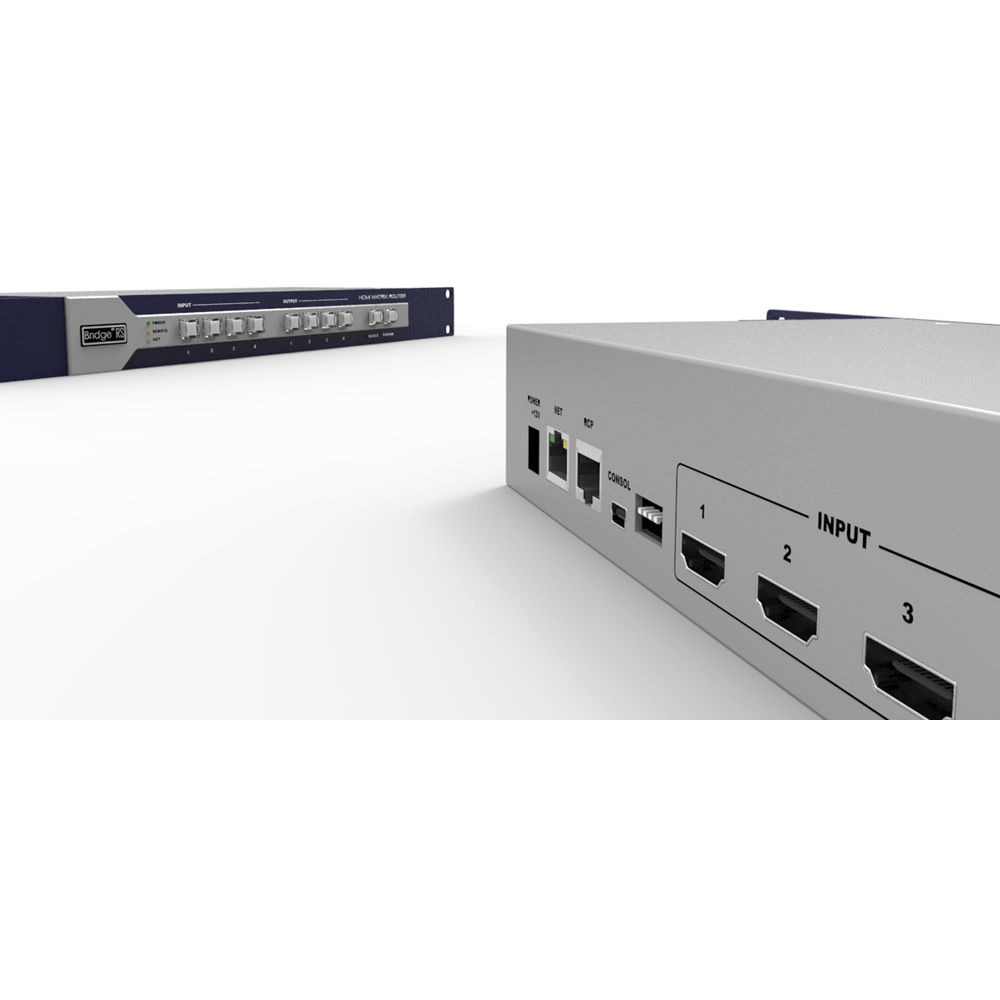

1 x RJ45, Ethernet 1 x RJ45, RCP 1 x USB Mini-B |
|
Power Consumption |
13 W |
|
Operating Temperature |
-4 to 158°F / -20 to 70°C |
|
Humidity |
0-95%, non-condensing |
|
Dimensions |
19 x 6.2 x 1.7" / 48.3 x 15.7 x 4.4 cm |
|
Weight |
2.2 lb / 990 g |
In the Box:
- DIGITAL FORECAST Bridge RS HDMI 4x4 Matrix Switcher
- Power Supply
- Limited 2-Year Manufacturer Warranty
