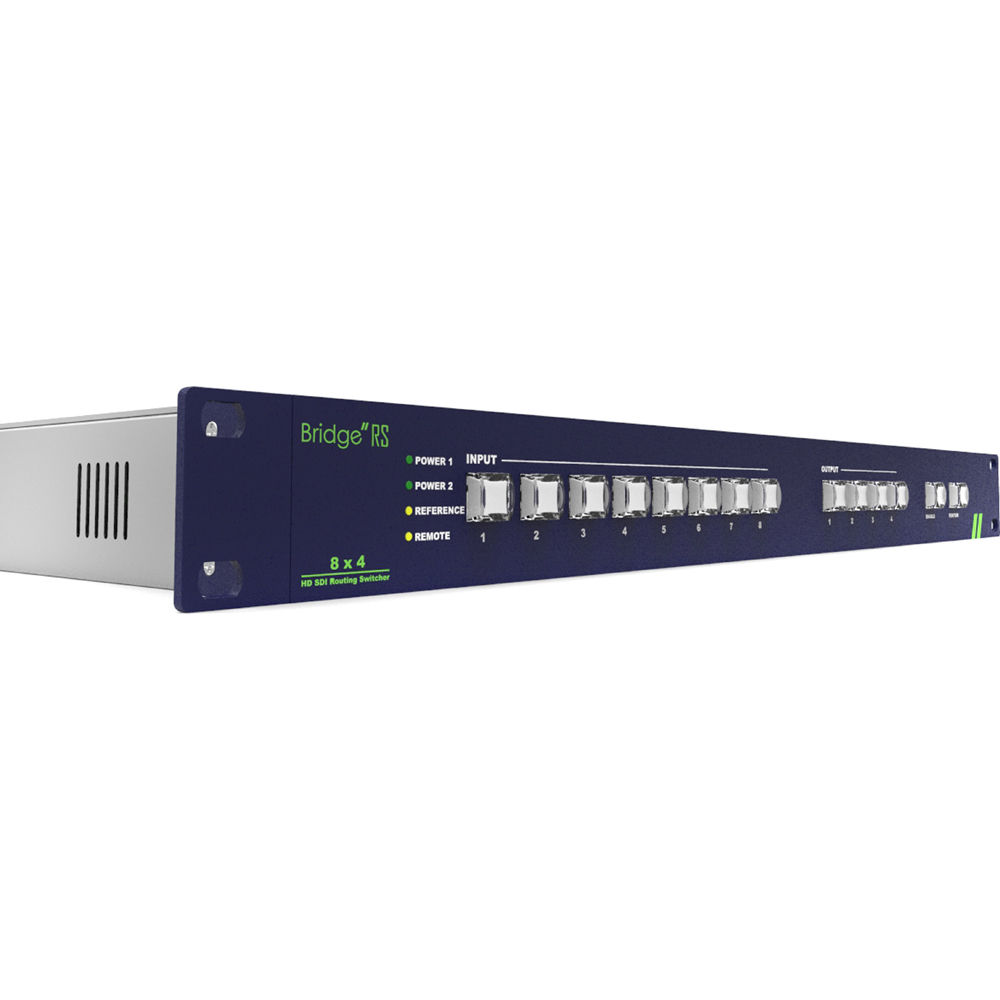

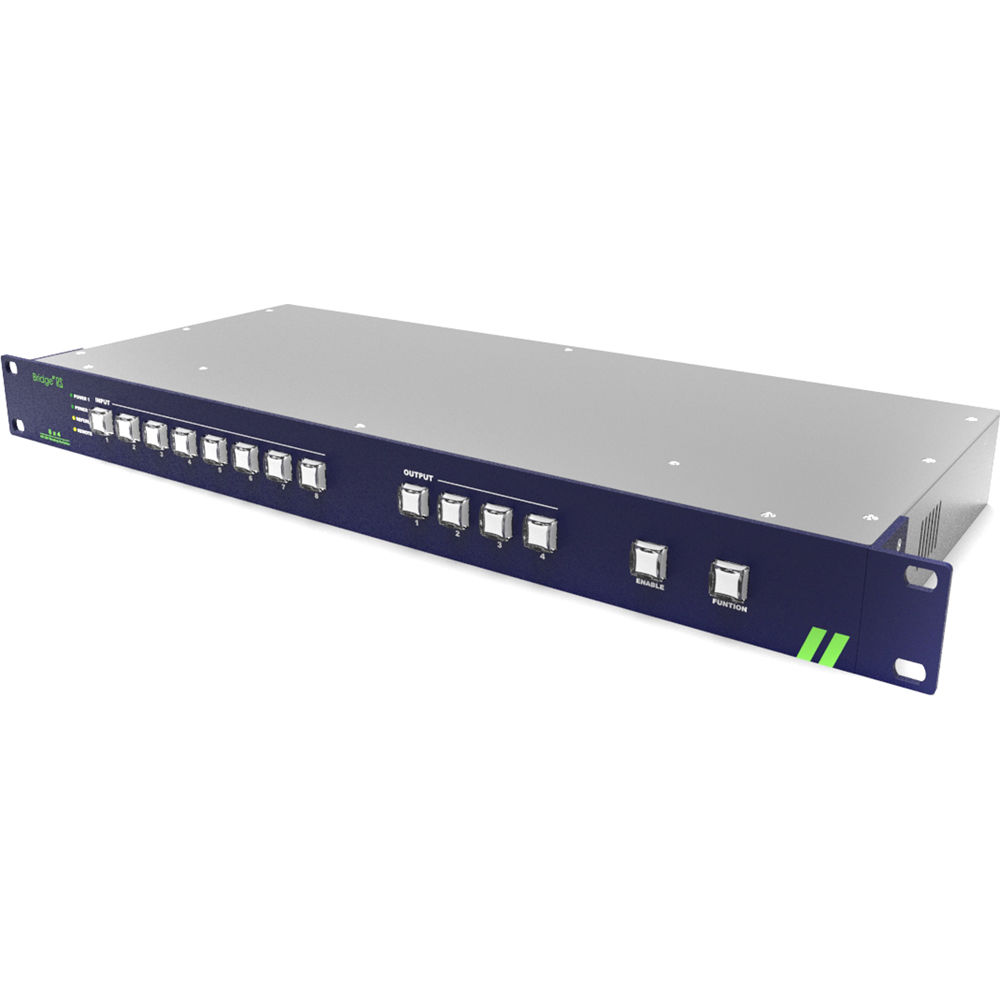

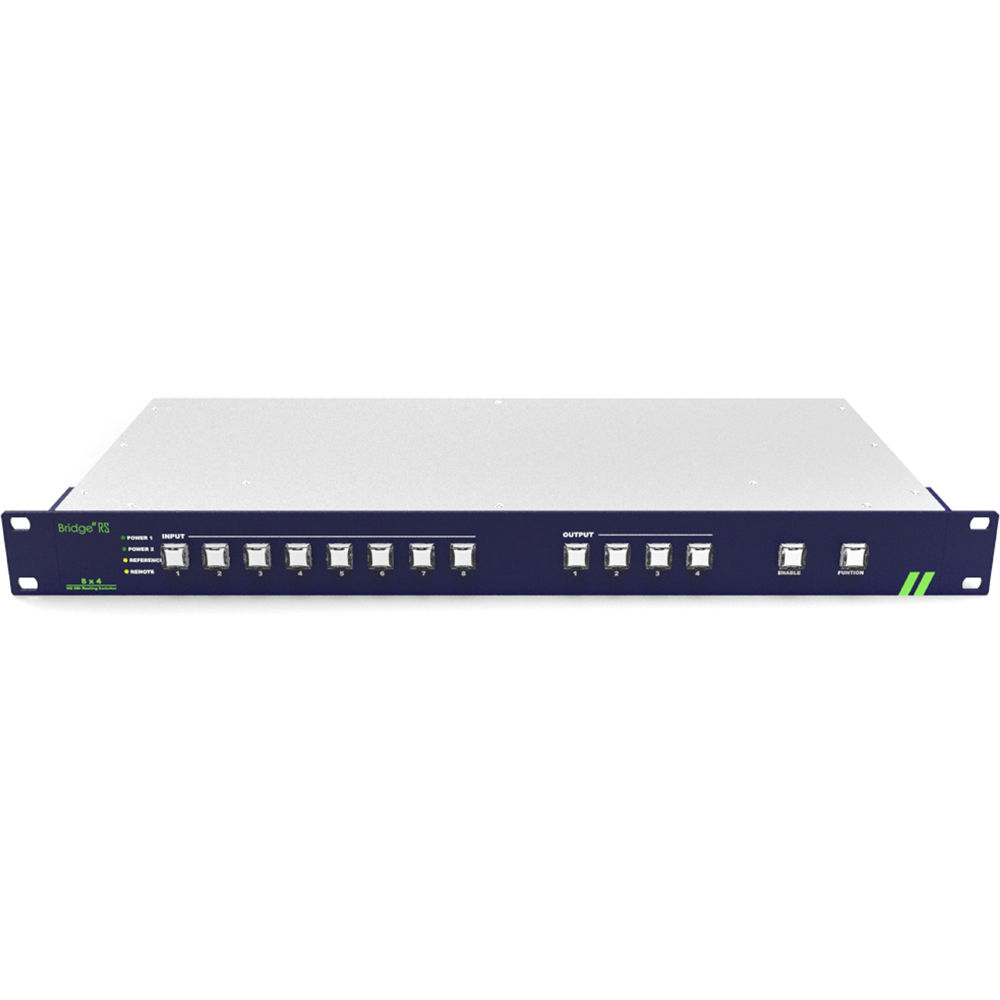

DIGITAL FORECAST Bridge RS 8x4 HD-SDI Routing Switcher
The DIGITAL FORECAST Bridge RS 8x4 HD-SDI Routing Switcher supports 8x4 SDI video inputs/outputs and 1 of HDMI output. It recognizes SD, HD and 3 Gb/s SDI signals automatically and offers reclocked SDI output. The switcher also provides vertical synchronization of the reference signal. In addition, it also comes with the APC function, RCP, Preset Set, and a button to provide added convenience to the user.
- Supports SMPTE 292M, SMPTE 344M, SMPTE 259M, and SMPTE 424M formats
- Supports re-clocking
- Multi-Rate SDI (143M, 177M, 270M, 340M, 540M, 1.485G, 1.485/1.001G, 2.97G)
- 3G/HD/SD-SDI (8 x 4)
- 1 HDMI output
- Auto equalizing (HD Grade: Compensate for up to 328', SD: Up to 984' with Belden 1694 Cable)
- RS-422 deck control ports (RJ45)
- SDI video connections are switchable between standard definition, high definition, and 2K
- SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, and 3 Gb/s HD SDI
- Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI, and DVB-ASI on each input so that each input can be running a different television standard
Technical Specifications:
|
Connections |
SDI Video Input: 8 x BNC SD/HD-SDI, 3 Gb/s SDI and ASI SDI Video Output: 4 x BNC SD/HD-SDI, 3 Gb/s SDI and ASI with SDI re-clocking HDMI Output: 1 x HDMI out 1EA Remote Control: RS-422 (RJ45) Reference Input: 1 x BNC B.B, TRI NET: TCP/IP (RJ45) |
|
Standards |
SD Format Support: NTSC (480i, 59.94) and PAL (576i, 50) HD Format Support: 720p (60/59.94/50), 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98), 1080p (60/59.94) 3G SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B SDI Video Sampling: 4:2:2 and 4:4:4 |
|
Power |
12 VDC, 3.33 A |
|
Dimensions |
13 x 1.5 x 4.3" (330 x 40 x 110 mm) |
|
Weight |
3.3 lb (1.55 kg) |
In the Box:
- DIGITAL FORECAST Bridge RS 8x4 HD-SDI Routing Switcher
- Power Supply (12VDC, 3.33A)
