Datavideo TLM-170K 17.3" 4K ScopeView Production Monitor (Desktop)

Datavideo TLM-170K 17.3" 4K ScopeView Production Monitor (Desktop)

Name: Datavideo TLM-170K 17.3" 4K ScopeView Production Monitor (Desktop)
Brand: Datavideo
SKU: TLM-170K
Price: 420000 INR
Availability: InStock

Rs. 443,680.00 Rs. 420,000.00

- +

Datavideo ⁄ Datavideo TLM-170K 17.3" 4K ScopeView Production Monitor (Desktop)

Key Features:

17.3" 3840 x 2160 Backlit LED Display
Input up to DCI 4K60 Video Signals
1 x 12G-SDI & 2 x HDMI 2.0 Inputs
HDMI/SDI Loop Output & Cross Conversion
Desktop-Style Monitor, 300 cd/m²
±89° Viewing Angle
Dual-Color LED Tally Light
Pixel Zoom up to 8x

Add a high-quality 1080p display and professional features to your production with the desktop TLM-170K 17.3" ScopeView Production Monitor from Datavideo. The monitor features a 3840 x 2160 resolution display and supports up to DCI 4K60 video via a 12G-SDI input, two HDMI 2.0 inputs, an HDMI output, and an SDI loop-through output. The inputs and outputs also support cross conversion so, for example, you can input via SDI and output to HDMI.

The monitor features a large, dual-color LED tally light on the front at the top, indicating live or cued status, that is controlled using the tally input on the back. The display features a ±89° angle of view, 300 cd/m² brightness, a 700:1 contrast ratio, dual speakers, and a headphone jack. Image management features include pixel zoom up to 8x, blue only, markers, underscan, H/V delay, waveform, peaking, false color, image flip, safe frame, and more. The monitor comes with an adjustable, tilting desktop stand.

Natural Color, Brightness, and Contrast

The TLM-170K series monitors feature a UHD 4K 3840 x 2160 IPS LCD panel. The high-bright, high-contrast panel provides rich color, revealing subtle detail in bright highlights and dark shadows. It provides an 8-million pixel resolution which is four times the detail than the Datavideo Full HD monitor.

HDR Support

The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.

Multiple Input and Output Configurations

One 12G-SDI and two HDMI 2.0 inputs
One 12G-SDI and one HDMI 2.0 loop-through outputs

Various Built-In Functions

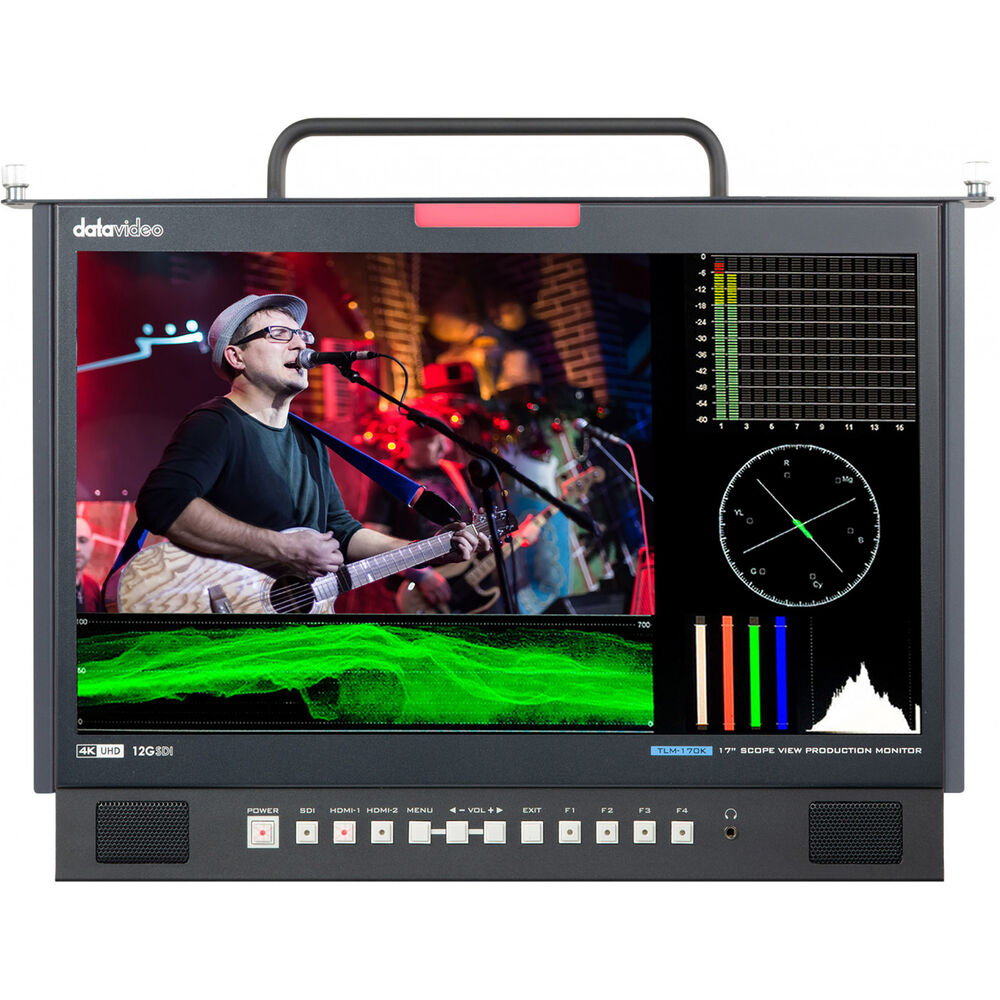

The monitor features numerous built-in monitoring tools, including support column (YRGB peak), timecode, waveform, vectorscope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.

Tally Light

A tally light is included for use with live production.

Audio Support

There is a 3.5mm headphone jack and front speakers on the front of the display.

Shortcut Buttons

User-defined F1/F2/F3/F4 shortcut keys on the front of the monitor help to apply functions quickly.

Mounting Options

A desktop stand is included.

Image Management Features

Center marker
Aspect marker
Underscan
Scan: Zoom, aspect, pixel-to-pixel
Aspect ratio selection
Freeze image
Check field
False color
Exposure
H/V delay
Focus assist
Histogram
Waveform
DSLR (5D2, 5D3)
Peaking
Exposure
RGB parade
Image flip
Audio meters
Color temperature selection
Gamma correction
Backlight adjustment

Technical Specifications:

Panel Type	TFT LCD
Display Size	17.3" / 43.9 cm
Resolution	3840 x 2160
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° (89/89) Vertical: 178° (89/89)
Touchscreen	No
Maximum Brightness	300 nits / cd/m2
Contrast Ratio	700:1
HDR Compatibility	Yes
Pixels Per Inch (ppi)	129 ppi
Image Controls	Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

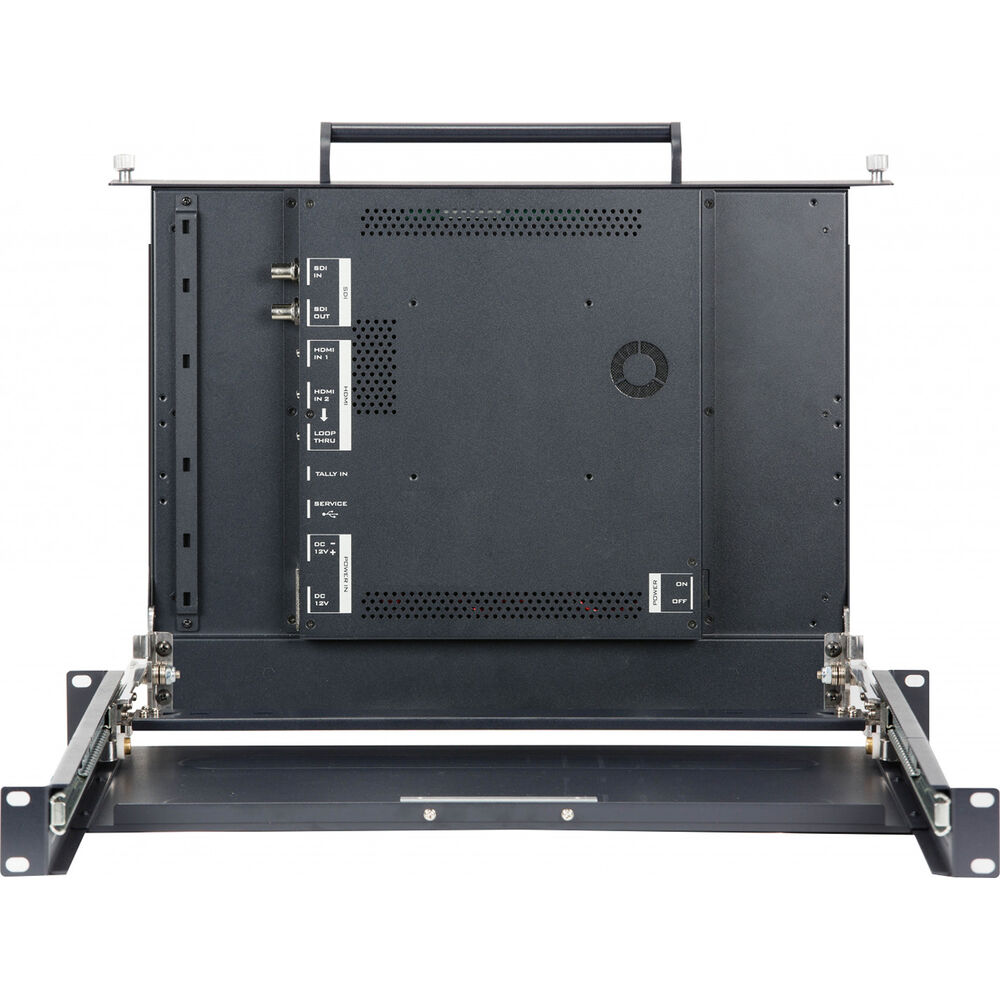

Video I/O	1 x BNC (12G-SDI) Input 2 x HDMI 2.0 Input 1 x BNC (12G-SDI) Loop Output 1 x HDMI 2.0 Loop Output
Embedded Audio	SDI HDMI
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	2 x 3 W
Power I/O	1 x XLR 4-Pin (12 VDC) Input 1 x Unspecified 2-Pin (12 VDC) Input
Other I/O	1 x USB-A (Firmware) Input 1 x 1/8" / 3.5 mm (Tally) Input
Media/Memory Card Slot	None
Wi-Fi	None
Bluetooth	None
Mobile App Compatible	No *Check with manufacturer for the most up-to-date compatibility
Video Format	SDI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24 1080i: 60/59.94/50 720p: 60/59.94/50 576i 480i HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24 1080i: 60/59.94/50 720p: 60/59.94/50 576i 480i
DC Input Power	12 VDC at 3 A
Battery Type	None
Power Consumption	34.6 W (Maximum)
Operating Temperature	32 to 72°F / 0 to 40°C
Operating Humidity	10 to 80%
Storage Temperature	-4 to 140°F / -20 to 60°C
