Add a high-quality 1080p display and professional features to your production with the rackmount TLM-170FM 17.3" ScopeView Production Monitor from Datavideo. The monitor features a 1920 x 1080 resolution display and supports up to DCI 4K60 video via a 12G-SDI input, two HDMI 2.0 inputs, an HDMI output, and an SDI loop-through output. The inputs and outputs also support cross conversion so, for example, you can input via SDI and output to HDMI.

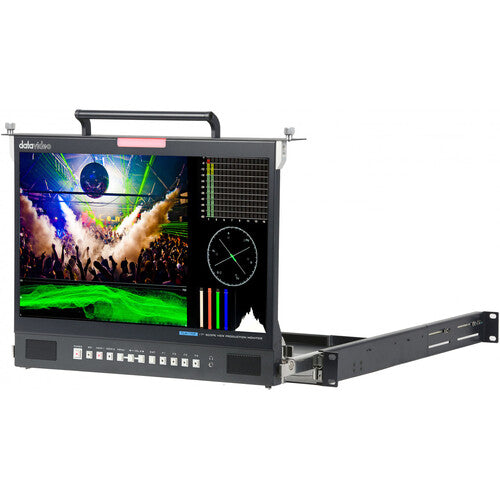

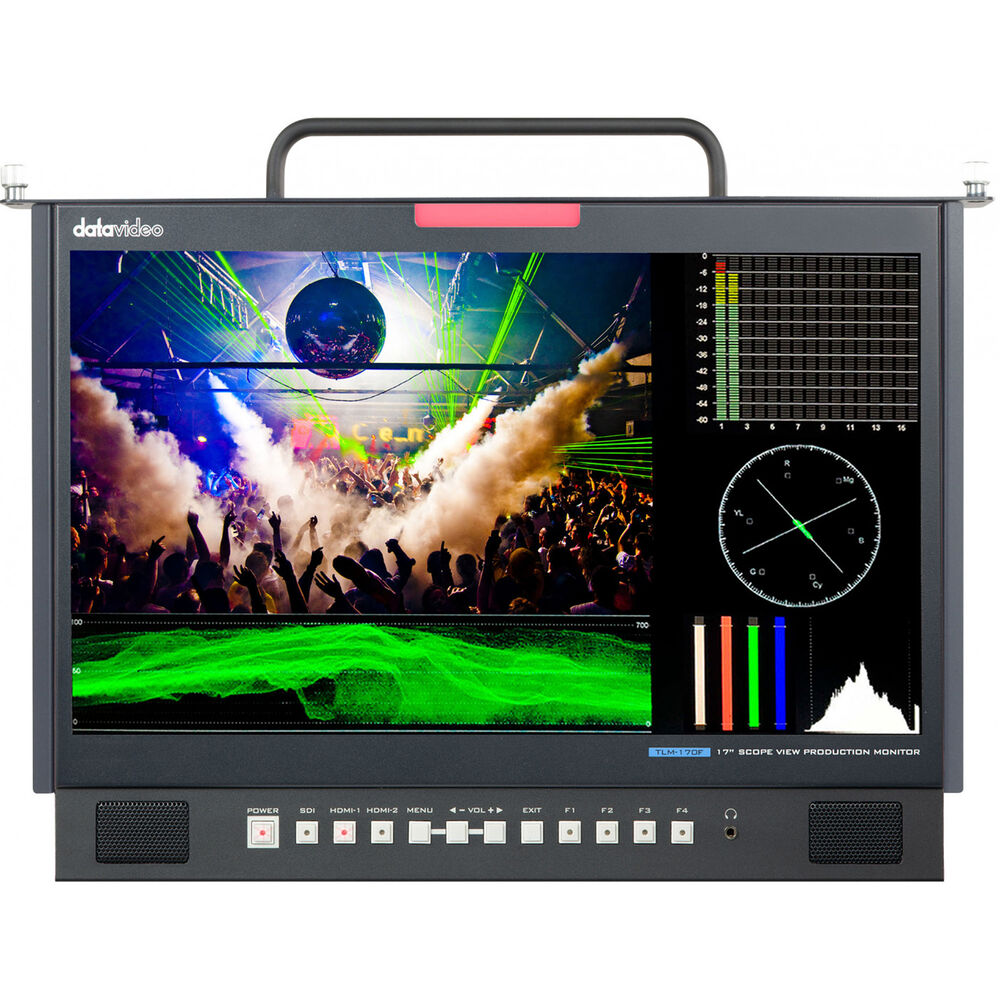

The monitor features a large, dual-color LED tally light on the front at the top, indicating live or cued status, that is controlled using the tally input on the back. The display features a ±89° angle of view, 300 cd/² brightness, a 700:1 contrast ratio, dual speakers, and a headphone jack. Image management features include pixel zoom up to 8x, blue only, markers, underscan, H/V delay, waveform, peaking, false color, image flip, safe frame, and more. The monitor comes with a 1 RU pullout tray for rackmount installation.
Technical Specifications:
Panel Type
TFT LCD
Display Size
17.3" / 43.9 cm
Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178° (89/89)
Vertical: 178° (89/89)
Touchscreen
No
Maximum Brightness
300 nits / cd/m2
Contrast Ratio
700:1
HDR Compatibility
Yes
Pixels Per Inch (ppi)
129 ppi
Image Controls
Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

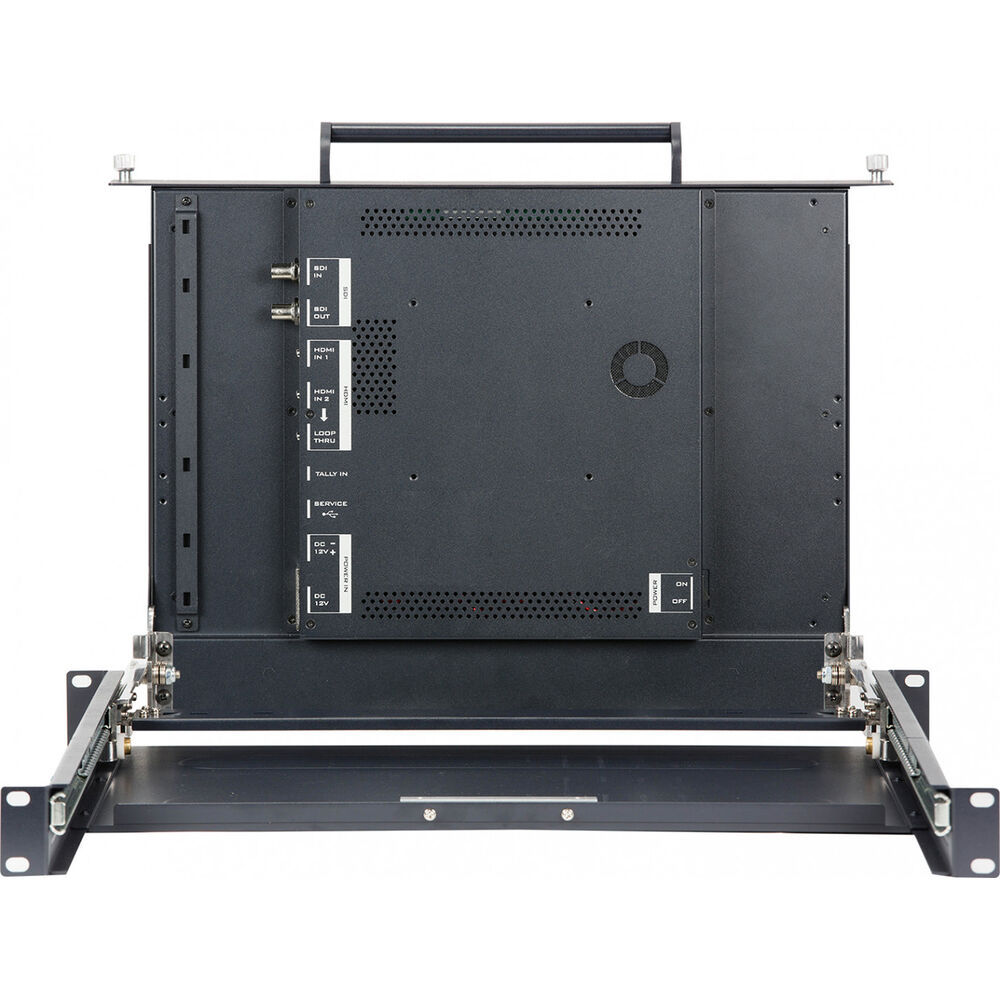

Video I/O
1 x BNC (12G-SDI) Input
2 x HDMI 2.0 Input
1 x BNC (12G-SDI) Loop Output
1 x HDMI 2.0 Loop Output
Embedded Audio
SDI
HDMI
Audio I/O
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
2 x 3 W
Power I/O
1 x XLR 4-Pin (12 VDC) Input
1 x Unspecified 2-Pin (12 VDC) Input
Other I/O
1 x USB-A (Firmware) Input
1 x 1/8" / 3.5 mm (Tally) Input
Media/Memory Card Slot
None
Wi-Fi
Bluetooth
App Compatible
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Video Format
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24
1080i: 60/59.94/50
720p: 60/59.94/50
576i
480i
DC Input Power
12 VDC at 3 A
Battery Type
Power Consumption
34.6 W (Maximum)
Operating Temperature
32 to 72°F / 0 to 40°C
Operating Humidity
10 to 80%
Storage Temperature
-4 to 140°F / -20 to 60°C
