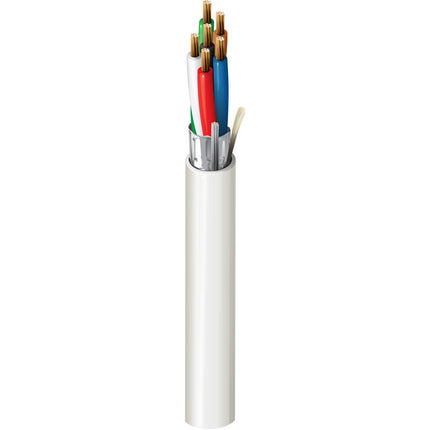

Security & Sound Cable, Riser-CMR, 6-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Technical Specifications:
Suitable Applications
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
CONDUCTOR
Element
Conductor(s)
Number of Element
6
Size
22 AWG
Stranding
7x30
Material
BC - Bare Copper
INSULATION
PP - Polypropylene
Nom. Thickness
0.008 in (0.20 mm)
Nom. Insulation Diameter
0.045 in (1.1 mm)
Color Code
Black, Red, White, Green, Brown, Blue
OUTER SHIELD
Shield Type
Tape
Bi-Laminate (Alum+Poly)
Coverage
100%
Drainwire Type
24 AWG (7x32) TC
OUTER JACKET
PVC - Polyvinyl Chloride
0.017 in (0.43 mm)
Nom. Diameter
0.172 in (4.37 mm)
Ripcord
Yes
Overall Cable Diameter (Nominal)
ELECTRICALS
Nom. Conductor DCR
16.9 Ohm/1000ft
Nom. Capacitance Cond-to-Cond
22.5 pF/ft (73.8 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)
40.5 pF/ft (133 pF/m)
Max. Current
4.2 Amps per Conductor @ 25°C
VOLTAGE
UL Voltage Rating
300 V
TEMPERATURE
UL Temperature
75°C
Operating
-20°C to +75°C
BEND RADIUS
Stationary Min.
1.7 in (43 mm)
Installation Min.
Max. Pull Tension
60 lbs (27 kg)
Bulk Cable Weight
22 lbs/1000ft
