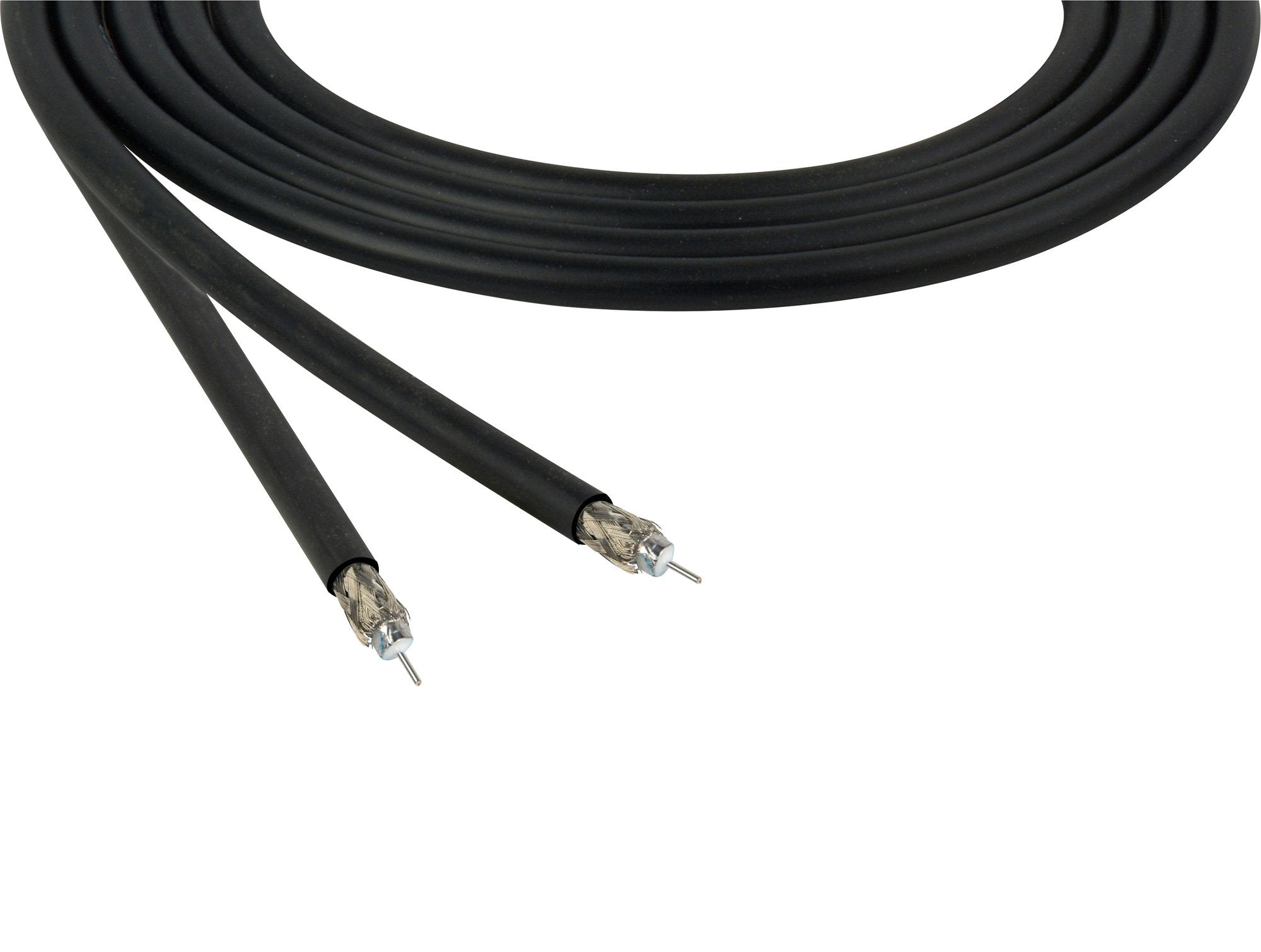

Suitable Applications

Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

RG Type

6

CONDUCTOR

Size

18 AWG

Stranding

Solid

Nom. Diameter

0.040 in

Material

SC - Silvered Copper

INSULATION

Material

PE - Polyethylene (Foam)

Nom. Insulation Diameter

0.180 in (4.57 mm)

OUTER SHIELD

Layer

1

Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duobond® II

Coverage

100%

Layer

2

Outer Shield Type

Braid

Material

Tinned Copper (TC)

Material Trade Name

-

Coverage

95%

OUTER JACKET

Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.274 in (6.96 mm)

Overall Cable Diameter (Nominal)

0.274 in (6.96 mm)

RETURN LOSS

Frequency

Min. Return Loss

5 - 1600 MHz

23 dB

1600 - 4500 MHz

21 dB

4500 - 12000 MHz

15 dB

ATTENUATION

Frequency

Nom. Attenuation

1 MHz

0.23 dB/100ft

3.58 MHz

0.44 dB/100ft

5 MHz

0.51 dB/100ft

6 MHz

0.56 dB/100ft

7 MHz

0.59 dB/100ft

10 MHz

0.70 dB/100ft

12 MHz

0.75 dB/100ft

25 MHz

1.04 dB/100ft

55 MHz

1.45 dB/100ft

67.5 MHz

1.58 dB/100ft

71.5 MHz

1.62 dB/100ft

88.5 MHz

1.78 dB/100ft

100 MHz

1.89 dB/100ft

135 MHz

2.10 dB/100ft

143 MHz

2.16 dB/100ft

180 MHz

2.44 dB/100ft

270 MHz

2.97 dB/100ft

360 MHz

3.45 dB/100ft

540 MHz

4.30 dB/100ft

720 MHz

5.00 dB/100ft

750 MHz

5.10 dB/100ft

1000 MHz

5.90 dB/100ft

1500 MHz

7.30 dB/100ft

2000 MHz

8.50 dB/100ft

2250 MHz

9.10 dB/100ft

3000 MHz

10.6 dB/100ft

4500 MHz

13.2 dB/100ft

6000 MHz

15.5 dB/100ft

12000 MHz

23.0 dB/100ft

ELECTRICALS

Nom. Conductor DCR

6.4 Ohm/1000ft (21 Ohm/km)

Nom. Outer Shield DCR

2.8 Ohm/1000ft (9.2 Ohm/km)

Nom. Capacitance Cond-to-Shield

15.9 pF/ft (52.2 pF/m)

Nom. Characteristic Impedance

75 Ohm

Nom. Velocity of Prop.

85%

UL Voltage Rating

300 V (CMR, CMG)

TEMPERATURE

UL Temperature

60°C

Operating

-20°C to +75°C

BEND RADIUS

Installation Min.

2.75 in

Max. Pull Tension

69 lbs (31 kg)

Bulk Cable Weight

41 lbs/1000ft
