Suitable Applications

Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

RG Type

11

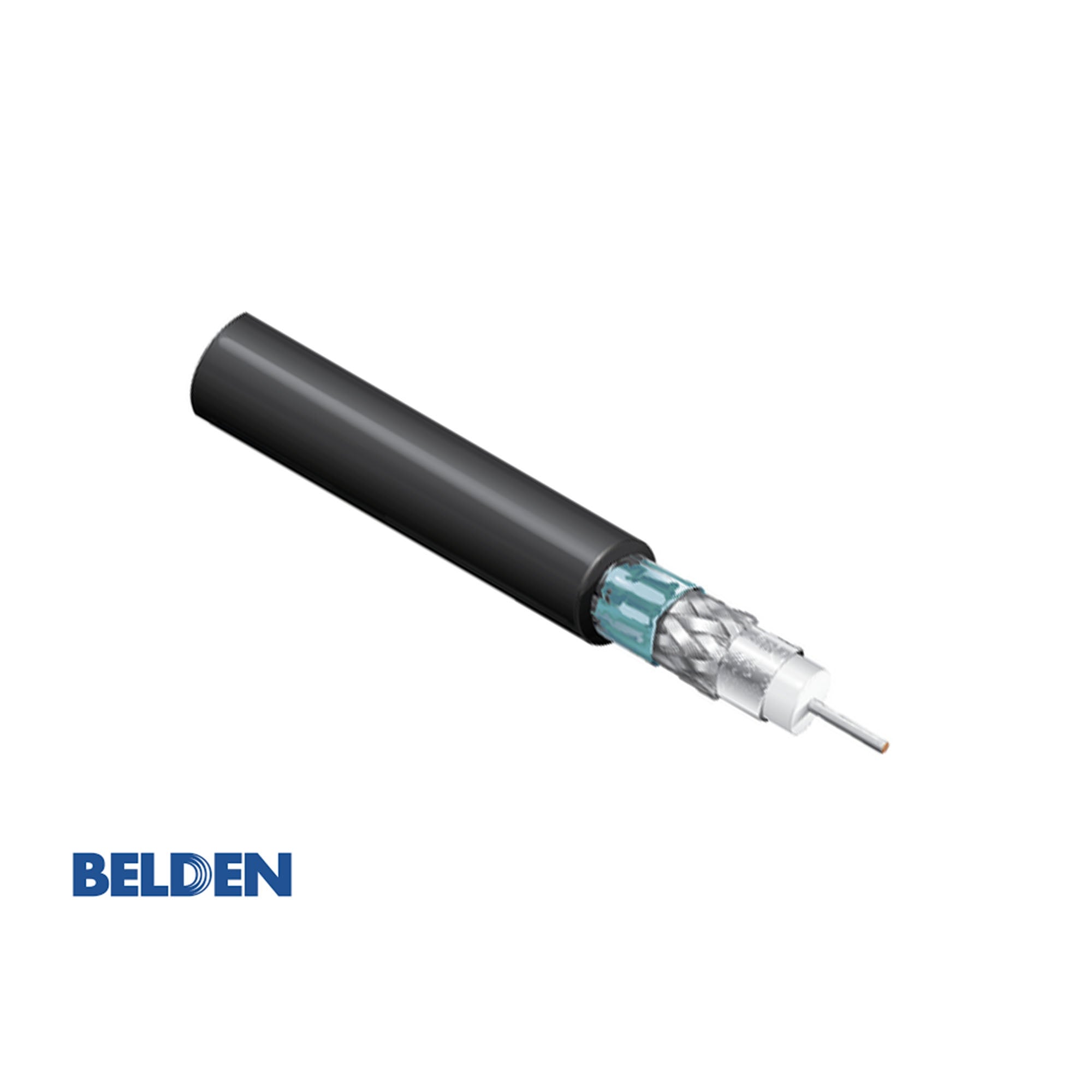

CONDUCTOR

Size

14 AWG

Stranding

Solid

Nom. Diameter

0.064 in

Material

SC - Silvered Copper

INSULATION

Material

PE - Polyethylene (Foam)

Nom. Insulation Diameter

0.280 in (7.11 mm)

Color Code

White

OUTER SHIELD

Layer 1

1

Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duobond® II

Coverage

100%

Notes

Layer 2

2

Outer Shield Type

Braid

Material

Tinned Copper (TC)

Material Trade Name

Coverage

95%

Notes

Layer 3

3

Outer Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Material Trade Name

Beldfoil®

Coverage

100%

Notes

With Shorting Fold and Bonded to inside of jacket for easy preparation

OUTER JACKET

Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.400 in (10.2 mm)

Overall Cable Diameter (Nominal)

0.400 in (10.2 mm)

RETURN LOSS

Frequency

Min. Return Loss

5 - 1600 MHz

23 dB

1600 - 4500 MHz

21 dB

4500 - 12000 MHz

15 dB

ATTENUATION

Frequency

Nom. Attenuation

1 MHz

0.16 dB/100ft

3.58 MHz

0.30 dB/100ft

5 MHz

0.34 dB/100ft

6 MHz

0.37 dB/100ft

7 MHz

0.39 dB/100ft

10 MHz

0.45 dB/100ft

12 MHz

0.49 dB/100ft

25 MHz

0.67 dB/100ft

55 MHz

0.95 dB/100ft

67.5 MHz

1.04 dB/100ft

71.5 MHz

1.07 dB/100ft

88.5 MHz

1.17 dB/100ft

100 MHz

1.24 dB/100ft

135 MHz

1.41 dB/100ft

143 MHz

1.45 dB/100ft

180 MHz

1.61 dB/100ft

270 MHz

1.96 dB/100ft

360 MHz

2.27 dB/100ft

540 MHz

2.81 dB/100ft

720 MHz

3.27 dB/100ft

750 MHz

3.34 dB/100ft

1000 MHz

3.89 dB/100ft

1500 MHz

4.83 dB/100ft

2000 MHz

5.65 dB/100ft

2250 MHz

6.02 dB/100ft

3000 MHz

7.07 dB/100ft

4500 MHz

8.81 dB/100ft

6000 MHz

10.45 dB/100ft

12000 MHz

16.39 dB/100ft

ELECTRICALS

Nom. Conductor DCR

2.5 Ohm/1000ft

Nom. Outer Shield DCR

1.3 Ohm/1000ft (4.3 Ohm/km)

Nom. Capacitance Cond-to-Shield

15.5 pF/ft (50.9 pF/m)

Nom. Characteristic Impedance

75 Ohm

Nom. Velocity of Prop.

85%

VOLTAGE

UL Voltage Rating

300 V (CMR, CMG)

Mechanical Characteristics

TEMPERATURE

UL Temperature

60°C

Operating

-20°C to +75°C

BEND RADIUS

Installation Min.

4 in (100 mm)

Max. Pull Tension

145 lbs (65.8 kg)

Bulk Cable Weight

86 lbs/1000ft
