AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
- 6-Channel Video Switcher
- 3G-SDI and HDMI Input/Output
- Input up to 1080p Video
- Built-In 5" Display, RTSP Streaming
- Support for External USB Drive Recording
- Luma/Chroma Key, Mix/Fade/Wipe Effects
- T-Bar, Auto, and Cut Transitions
- Audio Mixing, Multiview, PiP Layout

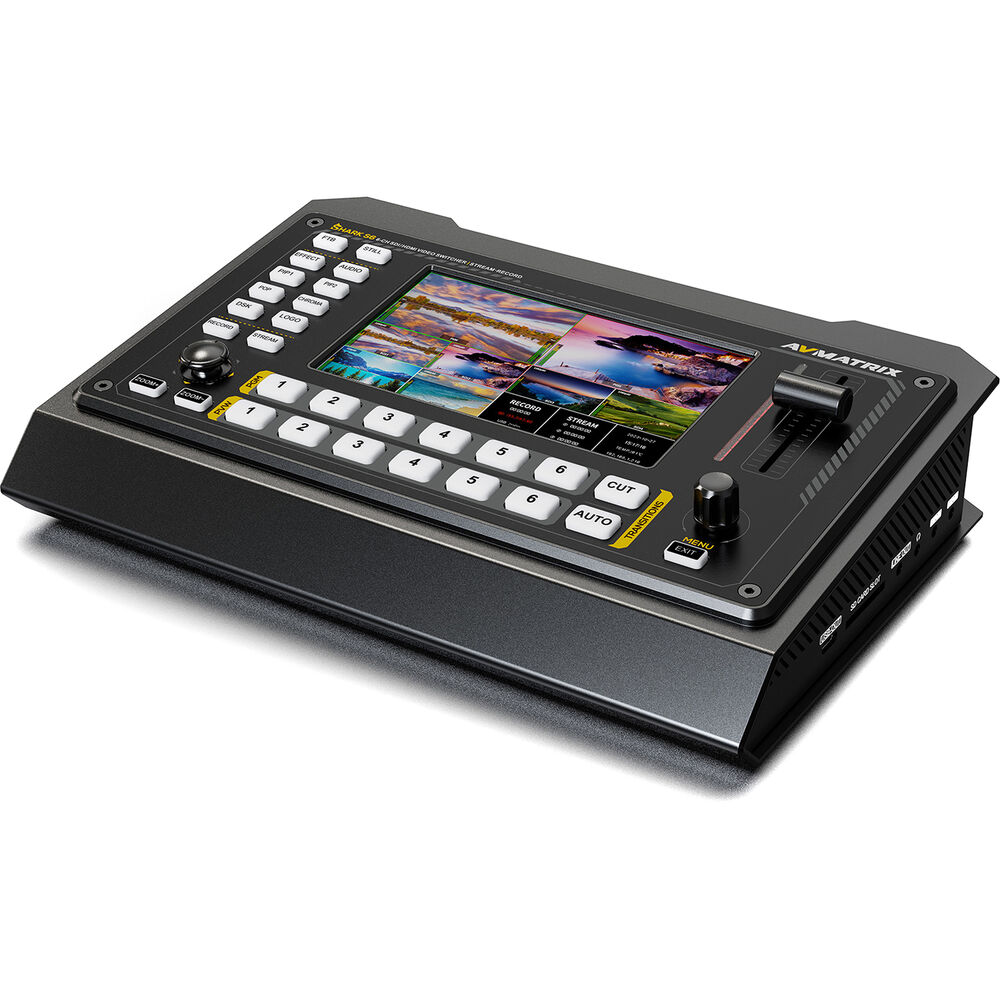

The Shark S6 6-Channel HDMI/SDI Video Switcher from AVMATRIX features 6-channel HDMI/SDI input / output and can stream via Ethernet, capture and connect to computer conferencing apps via USB, PTZ camera control, SD card and USB recording, transitions, effects, audio mixing, keying, and features a 5" HD color display.
The LAN port supports IP streaming transmission through RTMP/S, RTSP, and SRT protocols, allowing users to easily live stream video to platforms such as YouTube, Facebook, and Twitch for high-quality productions.

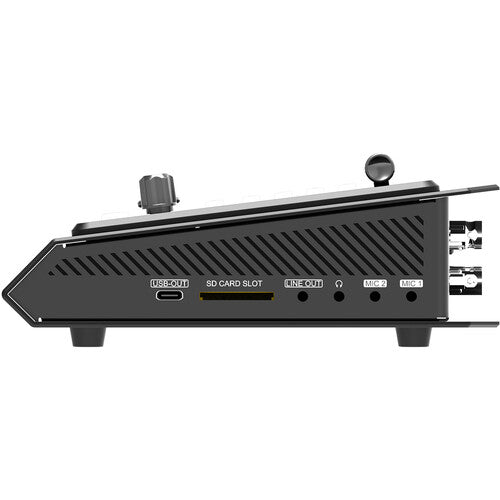

The SD card slot and USB-A interface allow direct recording of the program (PGM) output, making it easy to capture your live program. It supports up to 32 Mb/s encoding in MJPEG file format.
The USB-C port allows the switcher to go into webcam mode, sending video and audio output to a computer for live broadcasts to a variety of platforms such as OBS, vMix, Teams, Twitch, YouTube, Skype, VLC, and more. It supports Windows, Linux, and macOS computer systems.
Featuring PTZ control, operators can remotely control the pan, tilt, and zoom of PTZ cameras via LAN and/or RS-232/422/485 serial connections. It supports VISCA, VISCA-over-IP, Pelco P/D, and ONVIF protocols.

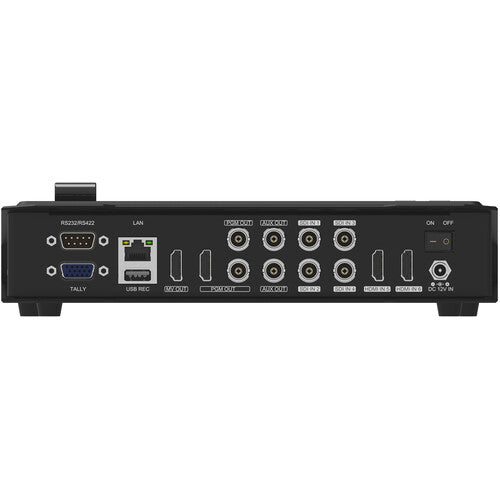

There are four SDI and two HDMI inputs, two SDI and one HDMI PGM outputs, one HDMI multiview output, and two SDI aux outputs that allow operators to configure and combine output from any of the six inputs, PGM, PVW, multiview, and more.

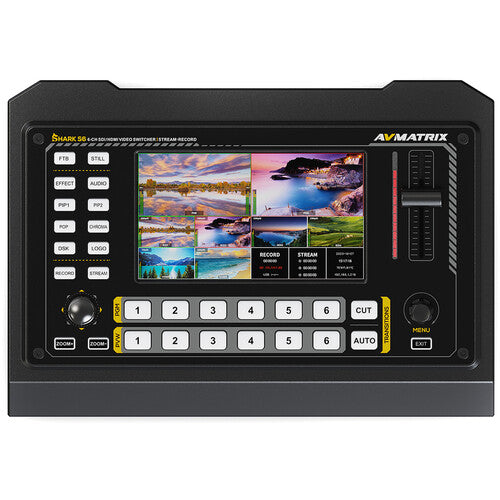

The built-in 5" LCD provides a multiview display with real-time monitoring of six inputs as well as streaming and recording status.
The switcher supports both portrait and landscape modes for multiview output. The user can choose the layout they need, depending upon different streaming and production needs.
The integrated audio mixer enhances your productions by combining two external mic inputs and six-input embedded audio. Operators can also set the AFV and utilize the audio delay feature to ensure video/audio sync.
The Shark S6 features enhanced chroma key technology over previous switcher models delivering precise background removal for virtual studios and live events.
Technical Specifications:
|
Effect Types |
1x Graphic, Chroma Key |
|
Downstream Keys |
1x DVE |
|
Switching Type |
Software, Touchscreen |
|
Number of Video Input Sources |
6 |
|
Video Inputs |
4x BNC (3G-SDI) Female 2x HDMI Female |
|
Input Video Format |
SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI WUXGA (1920 x 1200) at 30/50/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 15/23.98/24/25/29.97/50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
|
Audio Inputs |
2x 1/8" / 3.5 mm TRS Analog Female |
|
Input Audio Format |
Analog |
|
Embedded Audio Input |
HDMI SDI |
|
Video Output Channels |
4 |
|
Video Outputs |
3x BNC (3G-SDI) Female 1x HDMI Female 1x USB-C (USB Video) Female (Program) |
|
Output Video Format |
HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps |
|
Audio Outputs |
4x 1/8" / 3.5 mm TRS Analog Female |
|
Output Audio Format |
Analog |
|
Embedded Audio Output |
HDMI SDI RJ45 |
|
Multiview Output |
6-Way Multiview via HDMI |
|
Monitor Output |
1x HDMI |
|
Other I/O |
1x DE-9/DB-9 RS-232, RS-422, RS-485 Input/Output 1x DE-15/DB-15 Tally Input/Output 1x RJ45 LAN Input/Output 1x USB-A 2.0 Input/Output |
|
Video Standard Compliance |
SMPTE 259M/292M/424M |
|
IP Video |
MJPEG: 1920 x 1080 at 60p Encoding |
|
Transport Protocols |
RTMP, RTMPS, RTSP, SRT |
|
Compatible Services |
Facebook Live, Instagram, Livestream, Skype, Twitch, YouTube Live |
|
Recording Media |
1x USB-A 2.0 (External Drives) |
|
Recording Modes |
1920 x 1080p up to 60 fps |
|
Display Size |
5" |
|
OS Compatibility |
Windows 7 or Later Windows 8 or Later Windows 10 or Later Windows 11 or Later Linux 2.6.38 or Later macOS 10.8 or Later |
|
Processor |
Not Specified by Manufacturer |
|
Wi-Fi |
No |
|
Bluetooth |
No |
|
Power I/O |
1x Barrel (12 VDC at 1.5 A) Input |
|
Power Consumption |
Device: 18 W |
|
Operating Temperature |
-4 to 140°F / -20 to 60°C |
|
Storage Temperature |
-22 to 158°F / -30 to 70°C |
|
Dimensions |
9.4 x 6.6 x 1.9" / 238.5 x 168.2 x 47.5 mm |
|
Weight |
3.2 lb / 1.5 kg |
In the Box:
- AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
- 12 VDC Power Supply
- USB-A to USB-C Cable
- DB-15 Tally Adapter
- Carry Case
- Limited 2-Year Manufacturer Warranty
